Clutch “washer mod” or “contact button mod”

Clutch “washer mod” or “contact button mod”. “washer mod” (30 minutes max!). No oil will leak out on removal. 10mm. 1/16” thick .06mm. 6mm. Stock Harley chromed washer CCI part # 35604. Washer installed. Make sure washer does not foul rubber gasket # 2 on re- fitting.

catrin
Télécharger la présentation

Clutch “washer mod” or “contact button mod”

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Clutch“washer mod”or“contact button mod”

  2. “washer mod” (30 minutes max!)

  3. No oil will leak out on removal

  4. 10mm 1/16” thick .06mm 6mm Stock Harley chromed washer CCI part # 35604

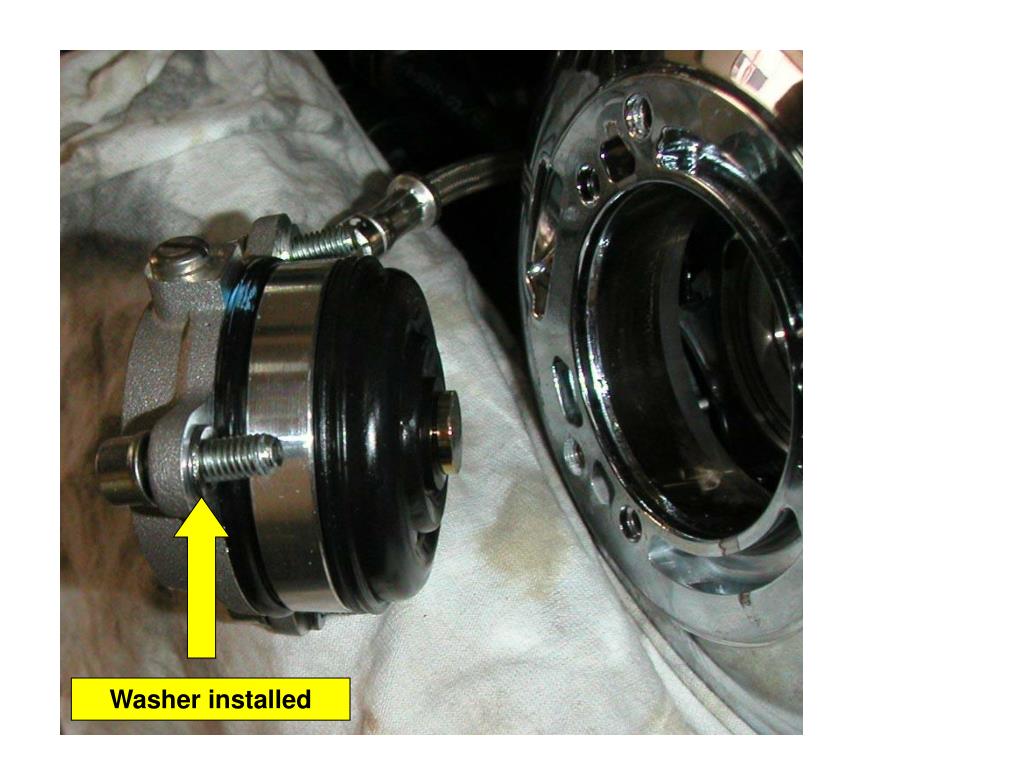

  5. Washer installed

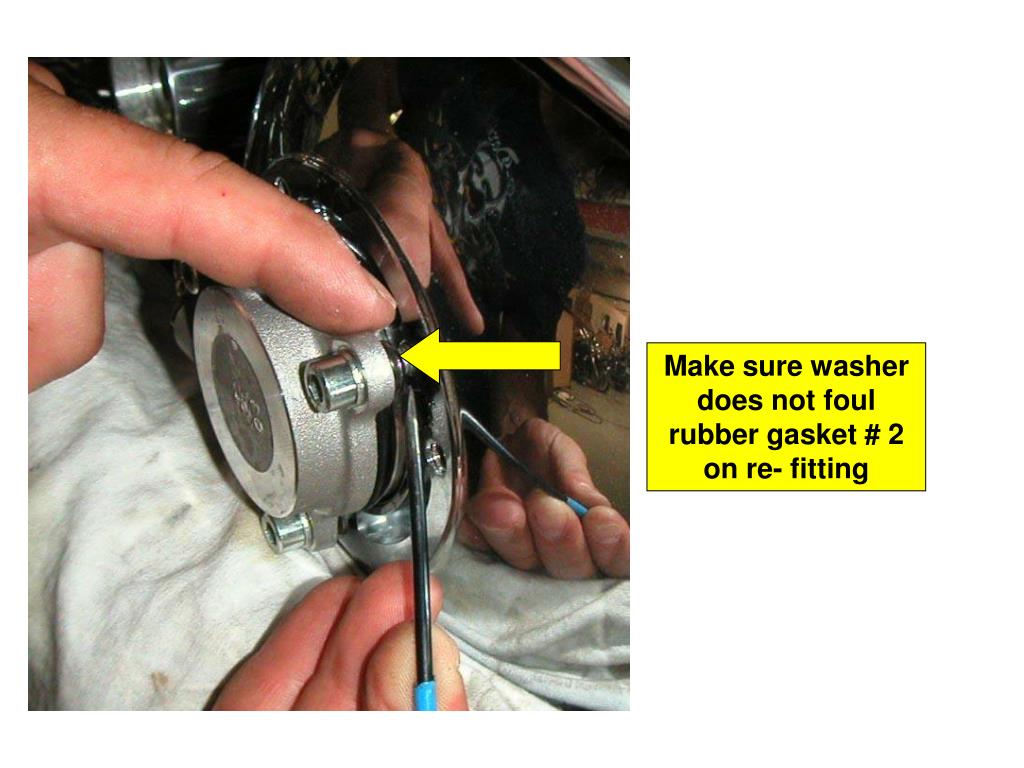

  6. Make sure washer does not foul rubber gasket # 2 on re- fitting

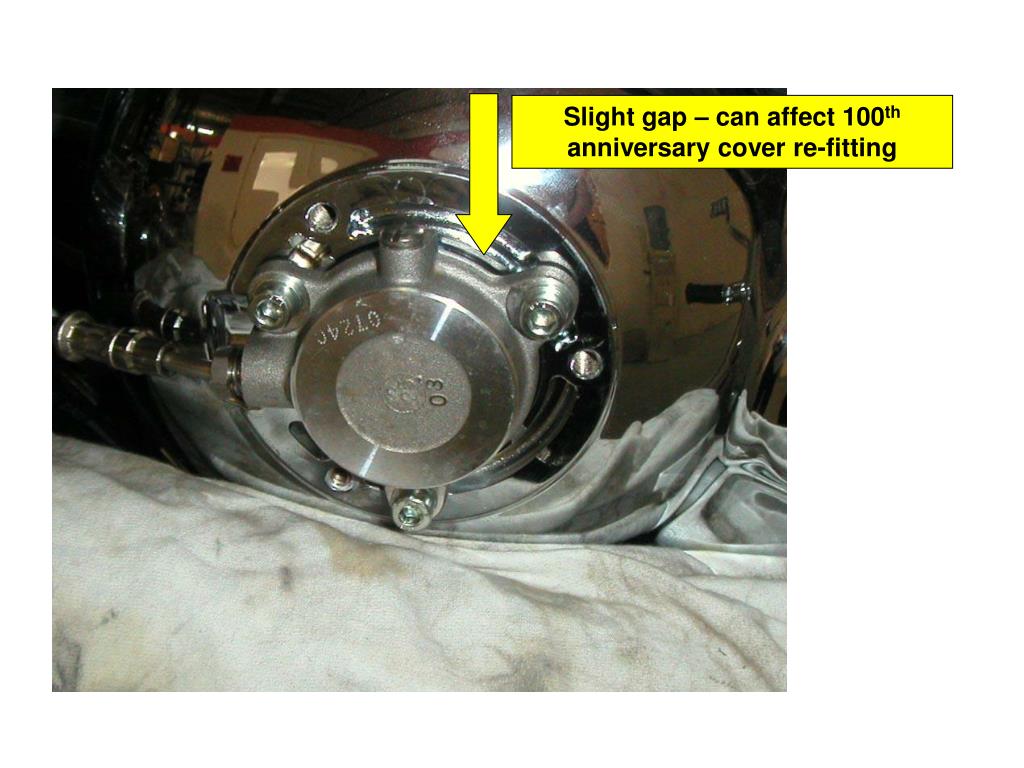

  7. Slight gap – can affect 100th anniversary cover re-fitting

  8. “contact button mod”

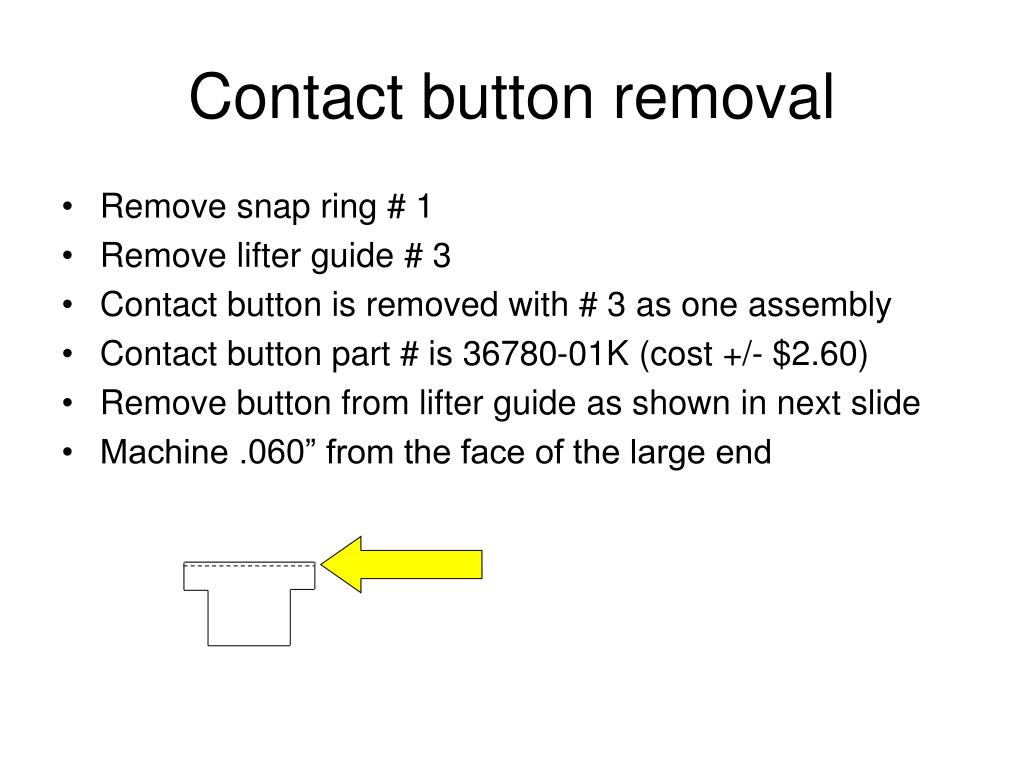

  9. Contact button removal • Remove snap ring # 1 • Remove lifter guide # 3 • Contact button is removed with # 3 as one assembly • Contact button part # is 36780-01K (cost +/- $2.60) • Remove button from lifter guide as shown in next slide • Machine .060” from the face of the large end

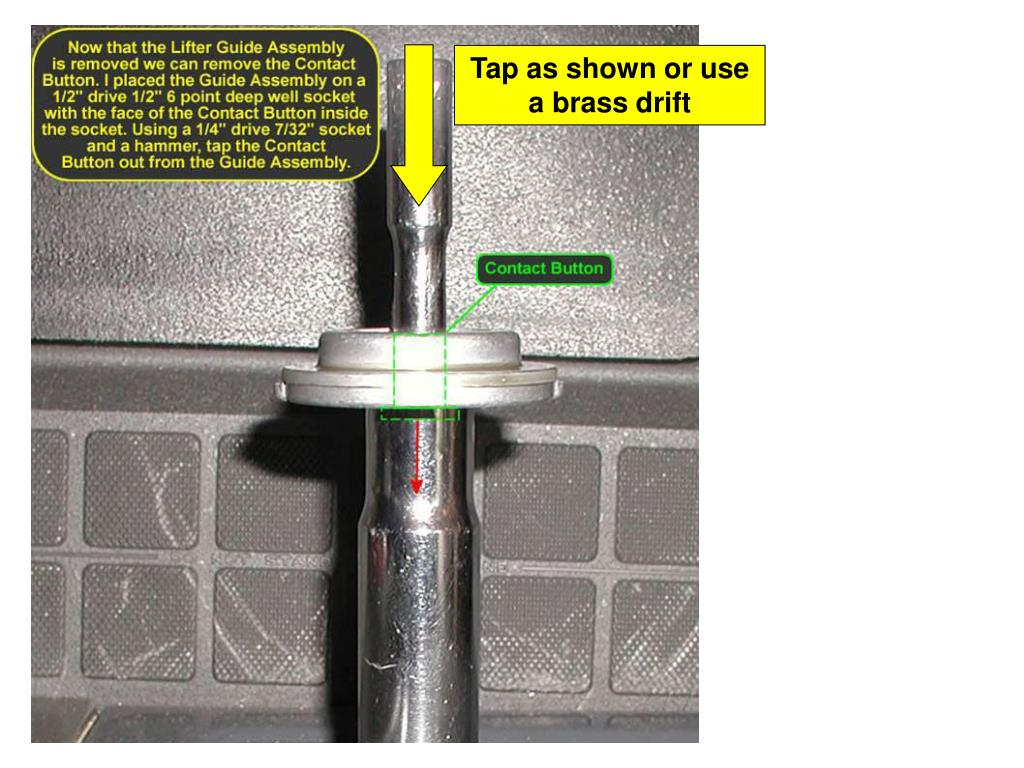

  10. Tap as shown or use a brass drift
