Isosceles Right Angled Triangle. 1. 1. The three sides cannot be all integers. 5. 4. 3. Find a right angled triangle with integral sides near to be isosceles. such as. Question. The difference between two legs is 1 What is the next triangle?

Isosceles Right Angled Triangle - slide 1
01 / 16Isosceles Right Angled Triangle
1 / 17

Télécharger la présentation

Isosceles Right Angled Triangle
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation
  1. Isosceles Right Angled Triangle

  2. 1 1 The three sides cannot be all integers

  3. 5 4 3 Find a right angled triangle with integralsides near to be isosceles such as

  4. Question • The difference between two legs is 1 • What is the next triangle? • Are there sequences of the legs with ratio tending to 1 : 1 ?

  5. a + k a + 1 a The three sides should be a, a + 1 and a + k where a, k are positive integers and k > 1

  6. Relation between a and k • a2 + (a + 1)2 = (a + k)2 • a2 – 2(k – 1)a – (k2 – 1) = 0 • as a > 0

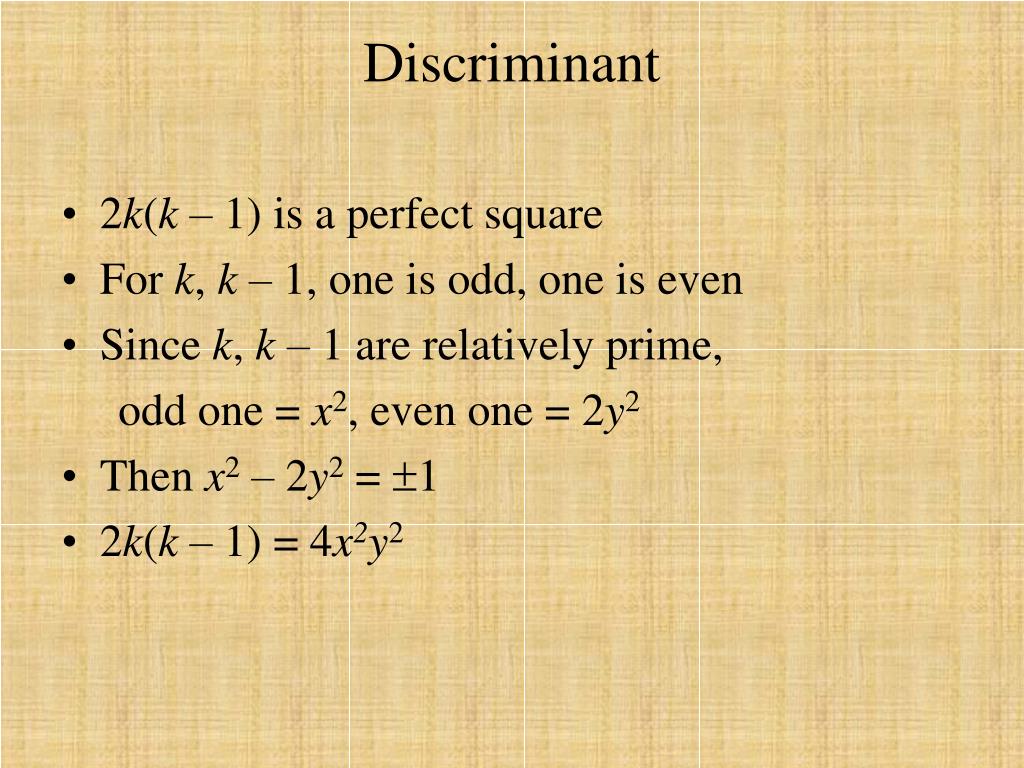

  7. Discriminant • 2k(k – 1) is a perfect square • For k, k – 1, one is odd, one is even • Since k, k – 1 are relatively prime, odd one = x2, even one = 2y2 • Then x2 – 2y2 = 1 • 2k(k – 1) = 4x2y2

  8. Find the three sides

  9. Find the three sides If k is odd, then k = x2, then the three sides are: 2y2 + 2xy, x2 + 2xy, x2 + 2xy + 2y2 If k is even, then k = 2y2, then the three sides are: x2 + 2xy, 2y2 + 2xy, x2 + 2xy + 2y2 Both cases have the same form.

  10. Pell’s Equation • x2 – 2y2 = 1 • How to solve it? • Making use the expansion of into infinite continued fraction

  11. Continued Fraction

  12. Sequence of the Fractions

  13. Sequence of the Fractions {fn} is generated by the sequence{1, 2, 2, 2, …. } where h1 = 1, h2 = 3, k1 = 1, k2 = 2 hn = hn-2 + 2hn-1, kn = kn-2 + 2kn-1 for n > 2

  14. Solution of Pell’s Equation x2 – 2y2 = 1 • (hn, kn) is a solution of x2 – 2y2 = 1 when n is even. • (hn, kn) is a solution of x2 – 2y2 = -1 when n is odd. • This is the full solution set.

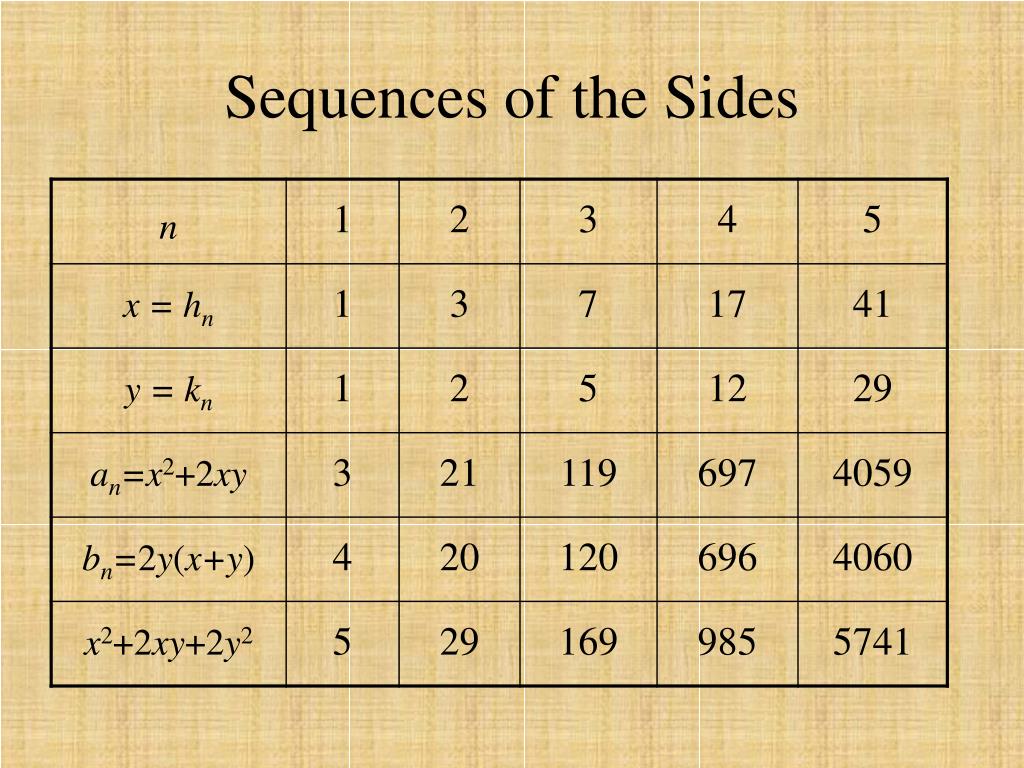

  15. Sequences of the Sides

  16. Properties of Sequences The triangle tends to be isosceles
