Formal Methods of Systems Specification Logical Specification of Hard- and Software

1. Formal Methods of Systems SpecificationLogical Specification of Hard- and Software Prof. Dr. Holger Schlingloff Institut für Informatik der Humboldt Universität and Fraunhofer Institut für Rechnerarchitektur und Softwaretechnik

2. Boolean Normal Forms • DNF, CNF, NAND-, NOR-normal form • (p|q)=(p¬q); ¬p=(p|p); (pq)=(p|¬q) • used for gate arrays • Algebraic normal form • XOR of conjunction of (positive) propositions • later: tree normal forms • (ordering of propositions)

3. Boolean Modelling of Reactive Systems • (Parallel) transition systems, shared variables programs • shared variables program (V,D,T,s0) • V=(v1,…,vn) is a set (sequence) of program variables • D=(D1,…,Dn) is a tuple of corresponding finite domains Di={di1,…,dim} • TDD is a transition relation, and • s0 = (d11,…,dn1) is the initial state • Propositional representation of programs • T=((request=true)(state=ready)(state‘=busy)) • Representation of non-boolean domains?

4. Binary Encoding of Domains • Any variable on a finite domain D can be replaced by log(D) binary variables • similar to encoding of data types by compilers • e.g. var v: {0..15} can be replaced byvar v1,v2,v3,v4: boolean(0=0000, 1= 0001, 2=0010, 3=0011, ..., 15=1111) • State space • still in the order of original domain! • e.g. three int8-variables can have 224=108 states • e.g. array of length 10 with 10-bit values  1030 states • Representation of large sets of states?

5. Representation of Sets

6. Ordered Tree Form • Normal form for propositional formulas • Uses only the connective Ite • Linear ordering on the set of propositions • e.g., most significant bit first • Shannon expansion

7. Truth table and tree form formula Reduction: Replace Ite (v,ψ,ψ) by ψ

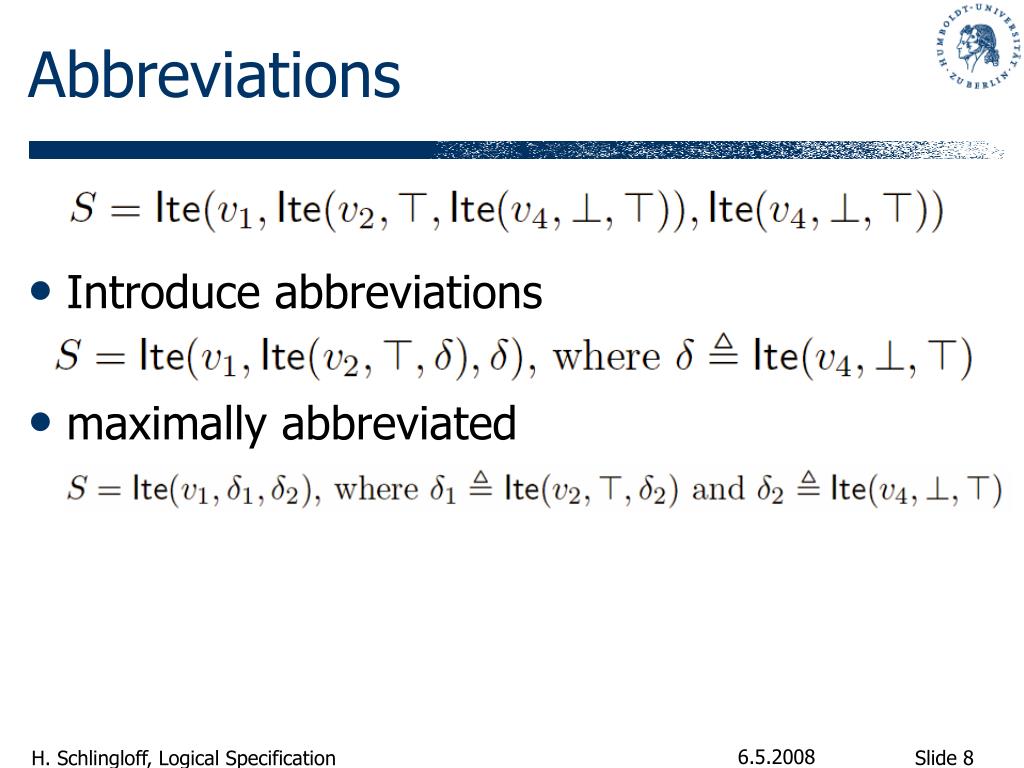

8. Abbreviations • Introduce abbreviations • maximally abbreviated

9. Binary Decision Trees (BDTs) • Binary decision tree • Elimination ofisomorphic subtrees(abbreviations)

10. Binary Decision Diagrams (BDDs) • Elimination ofredundant nodes(redundant subformulas) Ite (v,ψ,ψ) by ψ

11. A Toy Example • How many states are reachable? • How to check whether a given state is reachable?

12. Coding in nuSMV

13. Coding in SMV (cont.) • SMV quickly finds a solution (rrddlluurrddlluurrddlluurrdd)

14. Another Toy Example • gibts vielleicht noch besser (color)

15. Verification Model of Shift Register

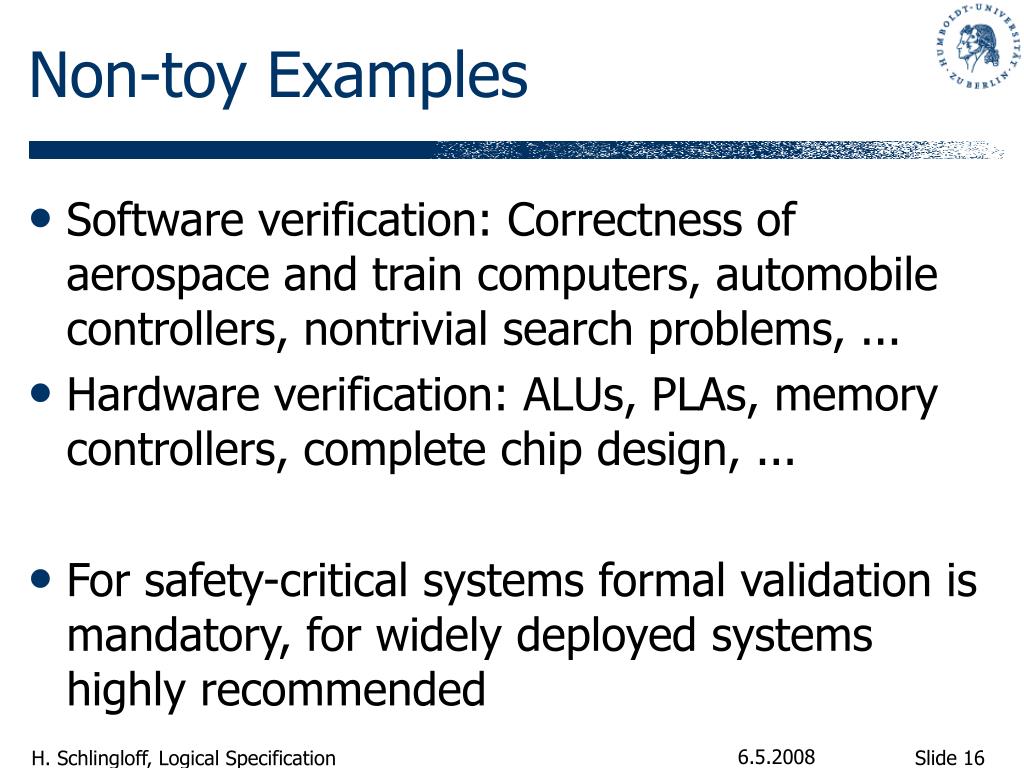

16. Non-toy Examples • Software verification: Correctness of aerospace and train computers, automobile controllers, nontrivial search problems, ... • Hardware verification: ALUs, PLAs, memory controllers, complete chip design, ... • For safety-critical systems formal validation is mandatory, for widely deployed systems highly recommended

17. Calculation of BDDs

18. The Influence of Variable Ordering • Heuristics: keep dependent variables close together!

19. Transitive Closure • Each finite (transition) relation can be represented as a boolean formula / BDD • The transitive closure of a relation R is defined recursively by • Thus, transitive closure be calculated by an iteration on BDDs • Logical operations (, , ) can be directly performed on BDDs

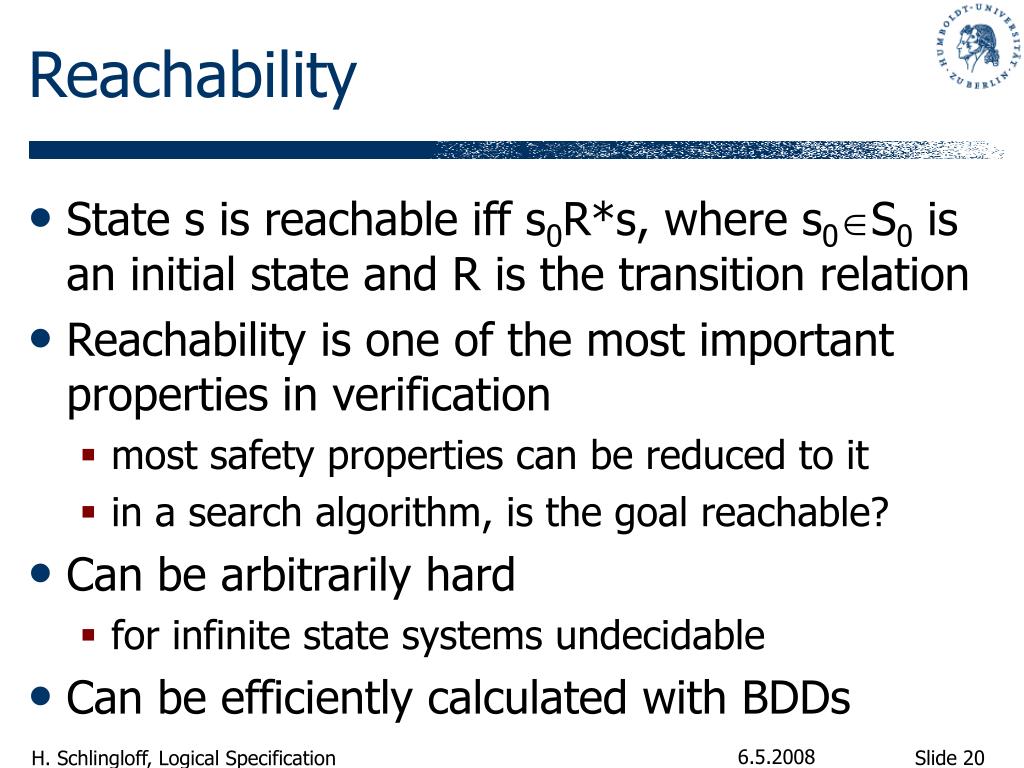

20. Reachability • State s is reachable iff s0R*s, where s0S0 is an initial state and R is the transition relation • Reachability is one of the most important properties in verification • most safety properties can be reduced to it • in a search algorithm, is the goal reachable? • Can be arbitrarily hard • for infinite state systems undecidable • Can be efficiently calculated with BDDs

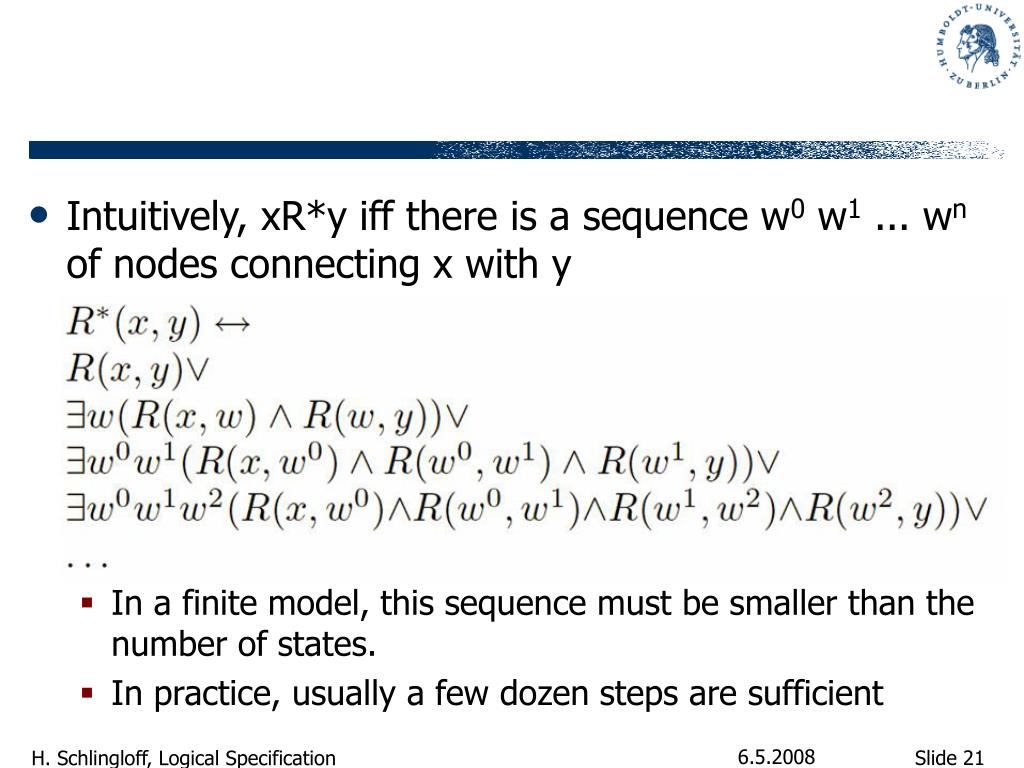

21. Intuitively, xR*y iff there is a sequence w0 w1 ... wn of nodes connecting x with y • In a finite model, this sequence must be smaller than the number of states. • In practice, usually a few dozen steps are sufficient
