  1. Formal Methods of Systems SpecificationLogical Specification of Hard- and Software Prof. Dr. Holger Schlingloff Institut für Informatik der Humboldt Universität and Fraunhofer Institut für Rechnerarchitektur und Softwaretechnik

  2. Question from last week Q.: Is there anything which can not be specified with Z? • anything = a function from Nat to Nat A.: The number of possible Z specifications is at most countable, while there are uncountably many such functions • More general, the number of possible specifications in any well-defined specification formalism is at most countable • yet, it is hard to find a „natural“ function which is not specifiable, since the formalism is designed especially to formulate all „natural“ functions…

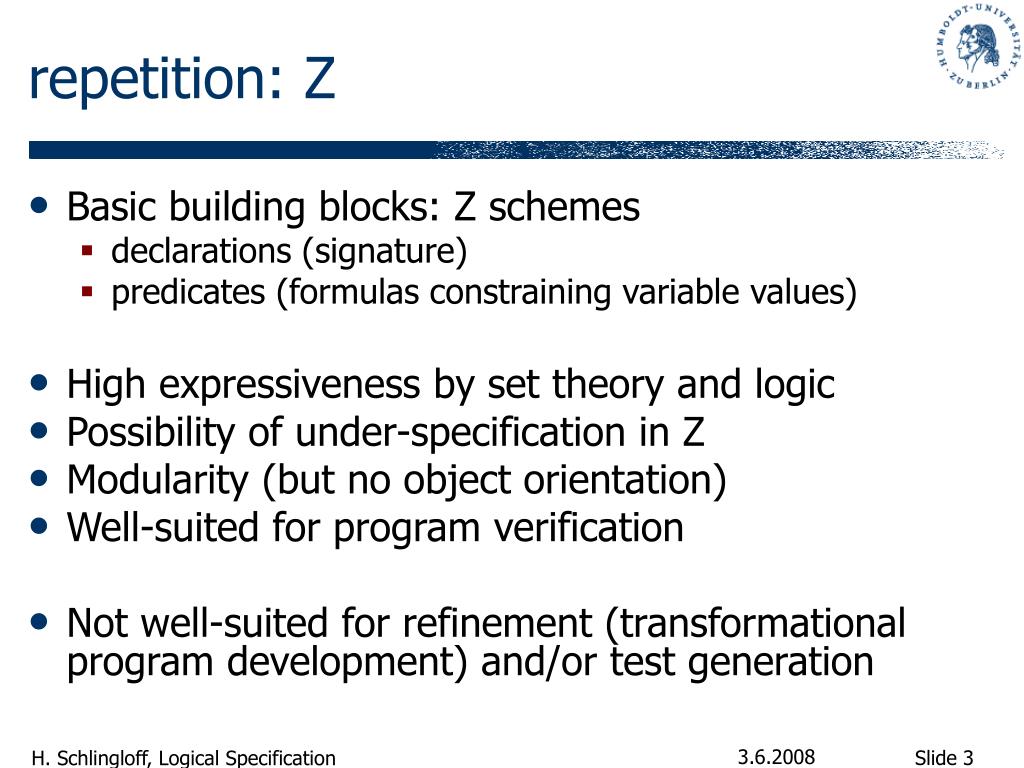

  3. repetition: Z • Basic building blocks: Z schemes • declarations (signature) • predicates (formulas constraining variable values) • High expressiveness by set theory and logic • Possibility of under-specification in Z • Modularity (but no object orientation) • Well-suited for program verification • Not well-suited for refinement (transformational program development) and/or test generation

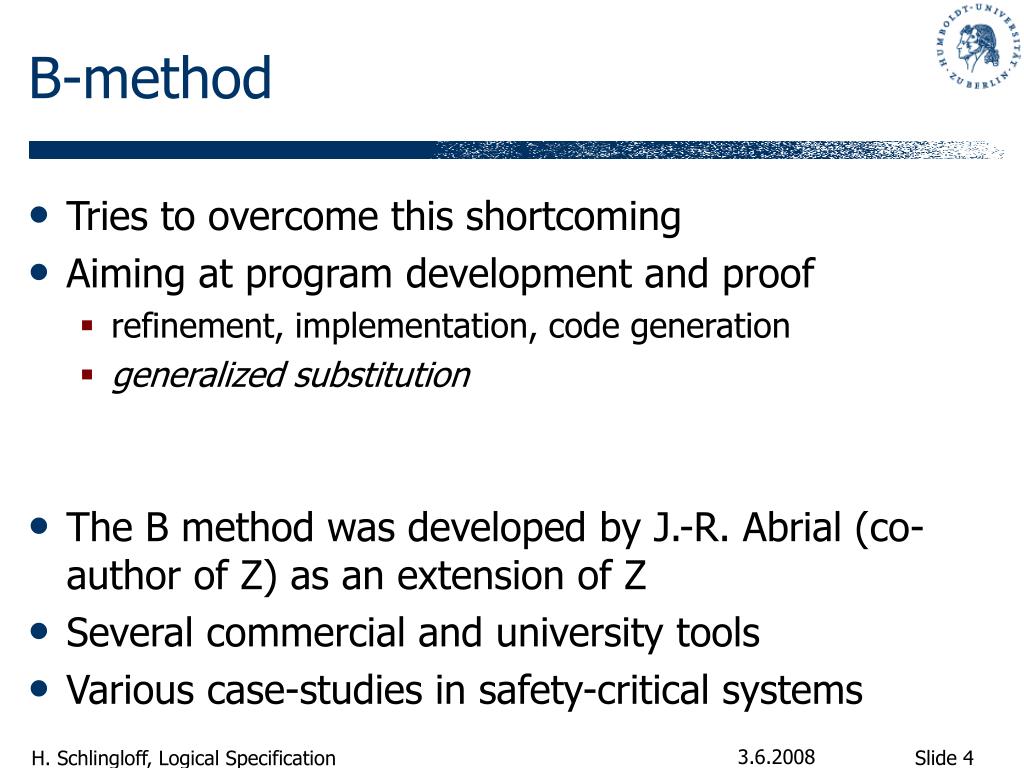

  4. B-method • Tries to overcome this shortcoming • Aiming at program development and proof • refinement, implementation, code generation • generalized substitution • The B method was developed by J.-R. Abrial (co-author of Z) as an extension of Z • Several commercial and university tools • Various case-studies in safety-critical systems

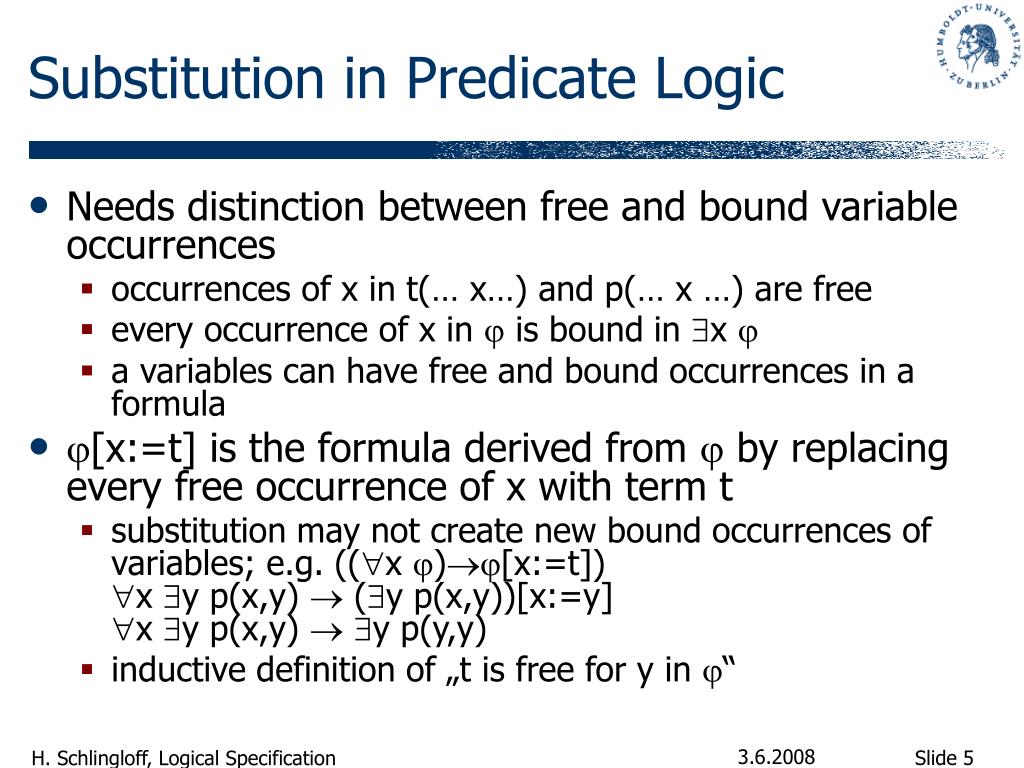

  5. Substitution in Predicate Logic • Needs distinction between free and bound variable occurrences • occurrences of x in t(… x…) and p(… x …) are free • every occurrence of x in  is bound in x  • a variables can have free and bound occurrences in a formula • [x:=t] is the formula derived from  by replacing every free occurrence of x with term t • substitution may not create new bound occurrences of variables; e.g. ((x )[x:=t])x y p(x,y)  (y p(x,y))[x:=y]x y p(x,y)  y p(y,y) • inductive definition of „t is free for y in “

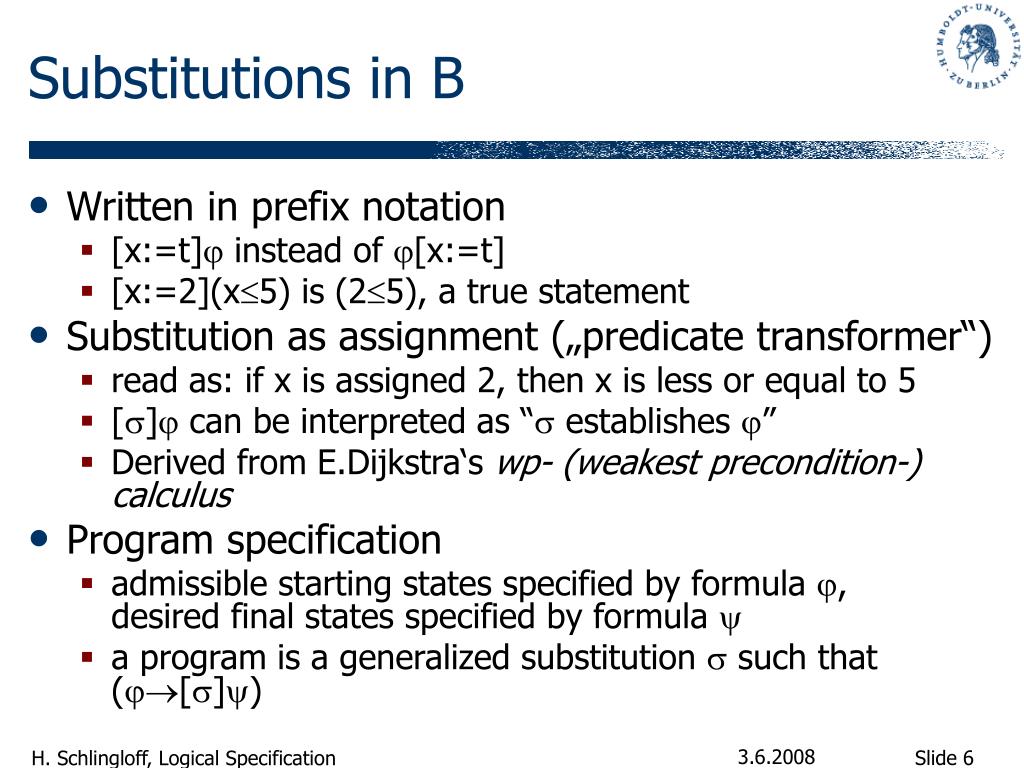

  6. Substitutions in B • Written in prefix notation • [x:=t] instead of [x:=t] • [x:=2](x5) is (25), a true statement • Substitution as assignment („predicate transformer“) • read as: if x is assigned 2, then x is less or equal to 5 • [] can be interpreted as “ establishes ” • Derived from E.Dijkstra‘s wp- (weakest precondition-) calculus • Program specification • admissible starting states specified by formula , desired final states specified by formula  • a program is a generalized substitution  such that ([])

  7. B • Based on abstract machines • don‘t confuse with abstract state machines (ASM) • Predicates define properties of abstract machines (states of interest) • a state is a valuation of variables • Substitutions define value changes, allow to transform predicates • generalized substitutions can be seen as operations on states • Invariants are properties which hold in all states • similar to Z formulas • often used to define type constraints • Initialization is by a special substitution • Refinements define transformations between abstract machines

  8. Global View Reference: Most of the following material is taken from Moreira, Deharbe, Software Engineering with the B method; 8th Braz. Sym. on FM, http://www.consiste.dimap.ufrn.br/~david/files/sbmf05-tutorialb.pdf

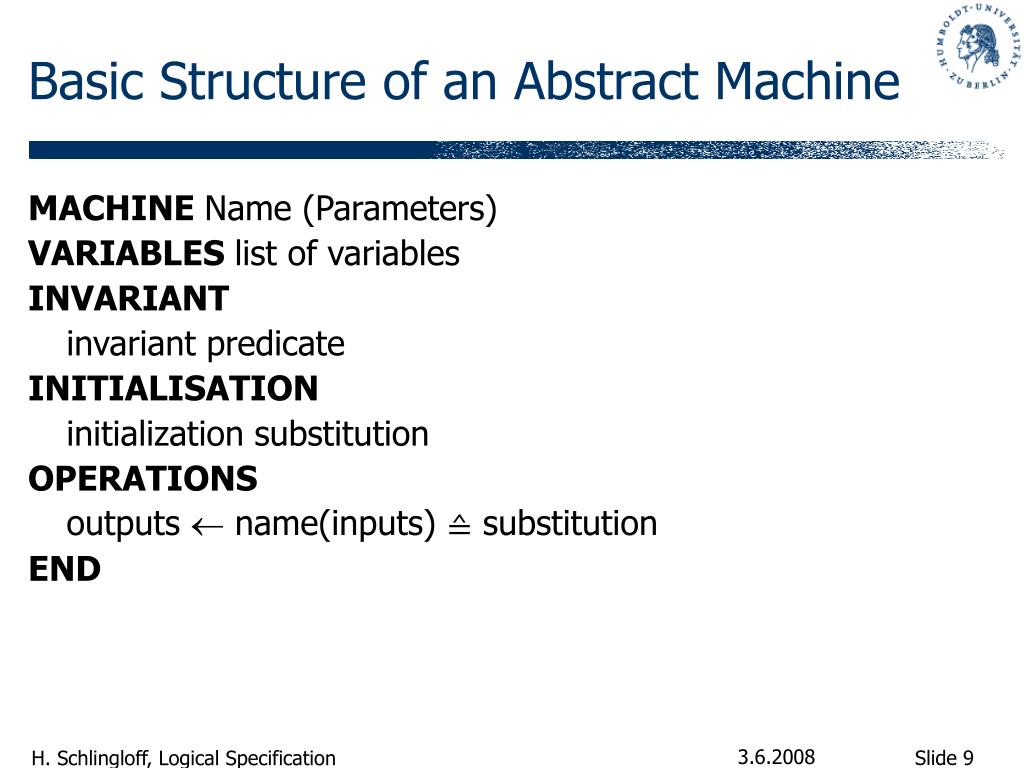

  9. Basic Structure of an Abstract Machine MACHINE Name (Parameters) VARIABLES list of variables INVARIANT invariant predicate INITIALISATION initialization substitution OPERATIONS outputs  name(inputs) ≙ substitution END

  10. Example MACHINE BirthdayAgenda (NAME, DATE) VARIABLES known, birthday INVARIANT known NAME birthday known DATE INITIALISATION known, birthday := ,  OPERATIONS Register (n, d) ≙ PRE n NAME d DATE n known THEN known := known {n} || birthday := birthday {n ↦d} END d FindBirthday (n) ≙ PRE n NAME n known THEN d := birthday(n) END; END a FindParty (d)≙ PRE d DATE THEN a := birthday-1 (d) END

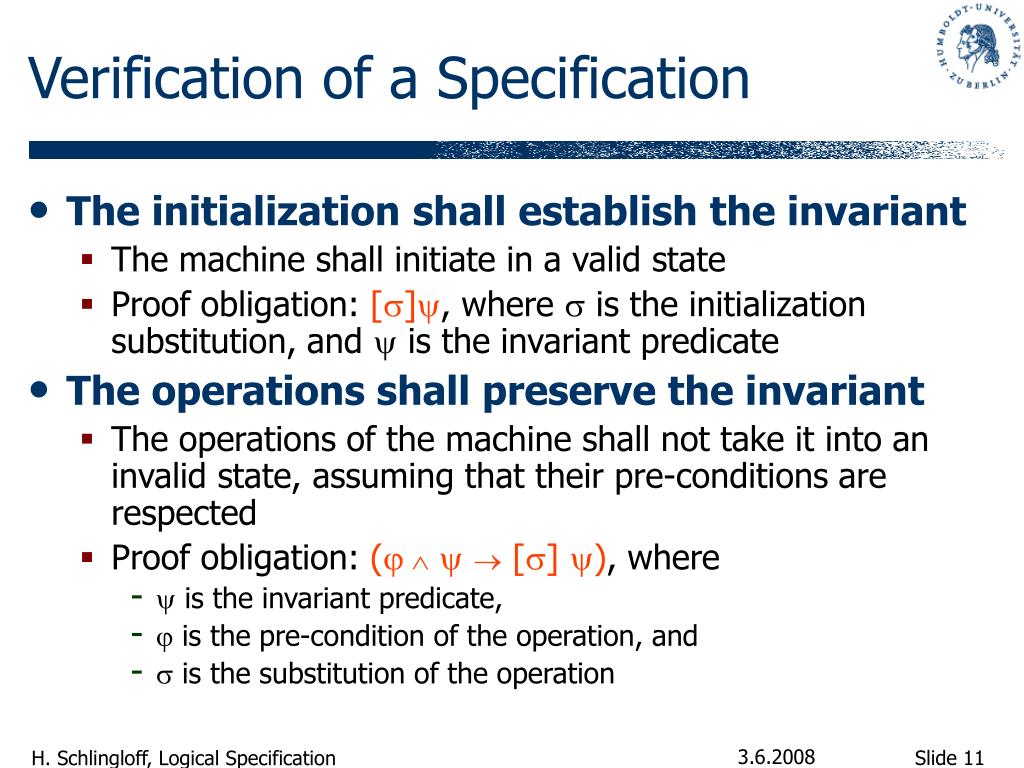

  11. Verification of a Specification • The initialization shall establish the invariant • The machine shall initiate in a valid state • Proof obligation: [], where  is the initialization substitution, and  is the invariant predicate • The operations shall preserve the invariant • The operations of the machine shall not take it into an invalid state, assuming that their pre-conditions are respected • Proof obligation: ( [] ), where •  is the invariant predicate, •  is the pre-condition of the operation, and •  is the substitution of the operation

  12. Example

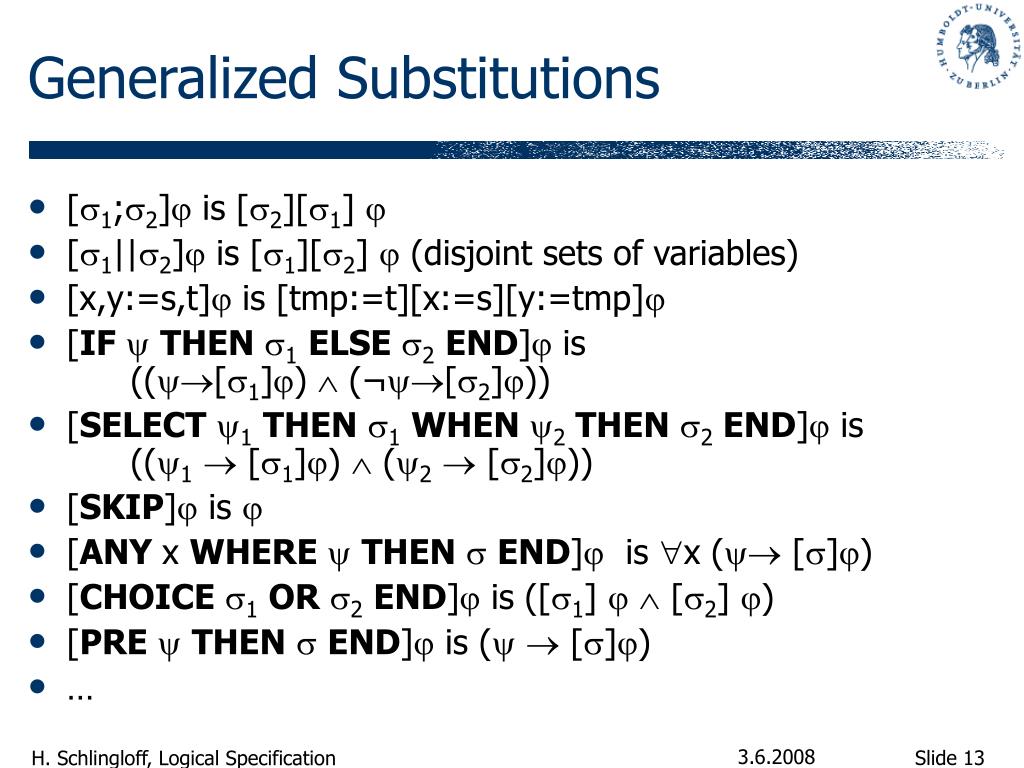

  13. Generalized Substitutions • [1;2] is [2][1]  • [1||2] is [1][2]  (disjoint sets of variables) • [x,y:=s,t] is [tmp:=t][x:=s][y:=tmp] • [IF THEN 1ELSE 2END] is (([1])  (¬[2])) • [SELECT 1THEN 1WHEN 2 THEN 2 END] is ((1 [1])  (2 [2])) • [SKIP] is  • [ANY x WHERE THEN END] is x ( []) • [CHOICE 1OR 2END] is ([1]  [2] ) • [PRE THEN END] is ( []) • …

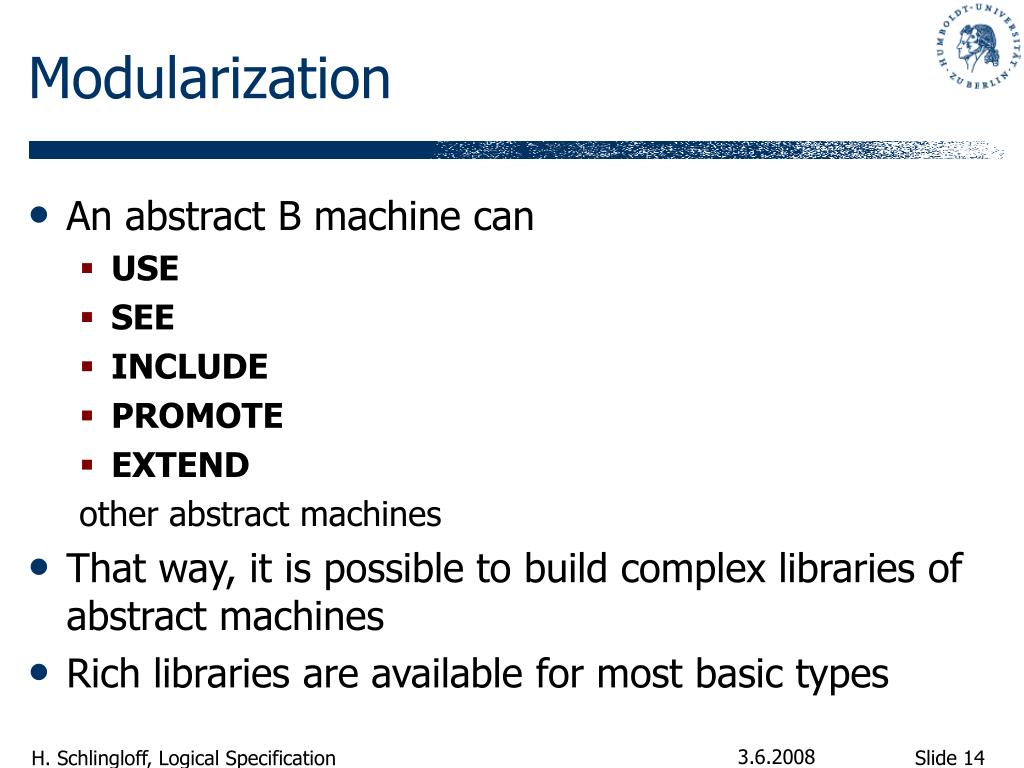

  14. Modularization • An abstract B machine can • USE • SEE • INCLUDE • PROMOTE • EXTEND other abstract machines • That way, it is possible to build complex libraries of abstract machines • Rich libraries are available for most basic types
