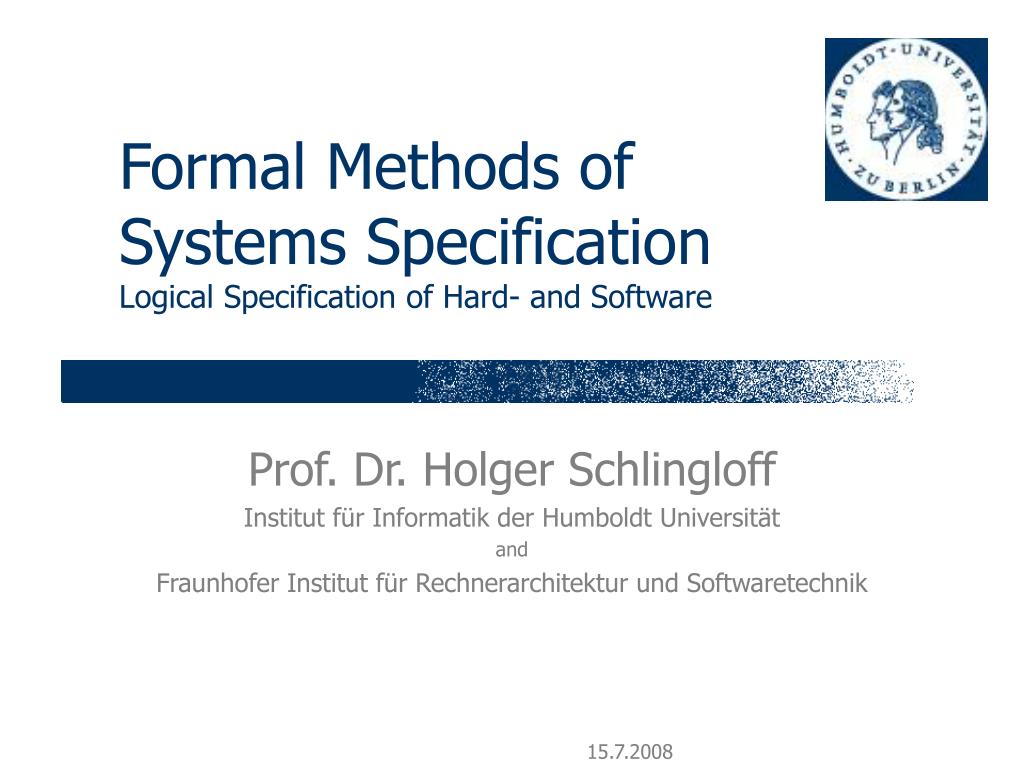

Formal Methods of Systems Specification Logical Specification of Hard- and Software

1. Formal Methods of Systems SpecificationLogical Specification of Hard- and Software Prof. Dr. Holger Schlingloff Institut für Informatik der Humboldt Universität and Fraunhofer Institut für Rechnerarchitektur und Softwaretechnik

2. Temporal logic • Description of the dynamics of systems • Model checking of hardware • “Software model checking”: research • Linear and branching time logic • Temporal assertions languages • SPL, ForSpec, PSL (IEEE Standard)

3. Example: Coffee Machine

4. SDL Description

5. SPL Properties

6. Towards Temporal Logic

7. Definability • F+ can define F* • X and F* can define F+ • F* without X can not define F+ • Similarly, interval properties can not be expressed

8. Temporal logic • “Modal logic with ‘until’”

9. Examples

10. Other connectives

11. Definability • U+ can define U* • similar as above, U* can not define U+ • Unless- or Weak-until- operator • In natural models it holds that

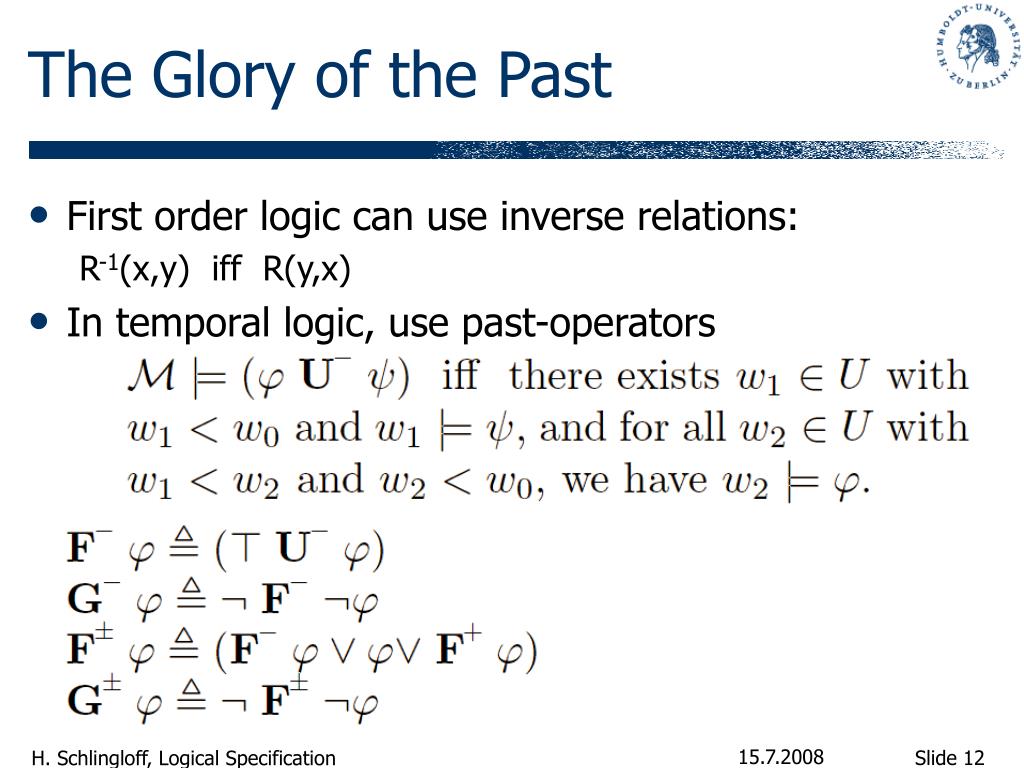

12. The Glory of the Past • First order logic can use inverse relations: R-1(x,y) iff R(y,x) • In temporal logic, use past-operators

13. Declarative Past and Imperative Future • Gabbay argues for the following normal form (φψ) where φ is a pure past or present declarative formula, and ψ is a pure future imperative formula • Executable temporal logic • Tempura programming language (Mostowsky)  TLA Temporal logic of actions (Lamport)

14. Temporal Logic and First Order Logic Standard Translation

15. Two- and Three Variable Fragment • FOL gives for each temporal formula a first order formula with exactly one free variable • For modal logic, FOL can be refined such that the resulting formula uses only two bound variables (reuse variables inside). For the until-operator, three variables are needed and sufficient. • Certain first-order theories (e.g. the theory of complete linear orders) are also in the three-variable fragment. • Translation from first order formulas of these theories into temporal logic?

16. Expressive completeness • TL is called expressively complete for a certain class of models, if for every first order formula there is an equivalent temporal one • Natural model: isomorphic to the integers • Linear model: all points linearly ordered • Complete linear order: limits exist • Kamp’s theorem: TL is expressively complete for complete linear orders

17. Wrap-Up • What has been achieved • logics: propositional logic, first-order logic, Z, B, OCL, Spec# • methods: normalization, model checking, theorem proving, assertional reasoning, test generation • tools: COQ, NuSMV, CZT, Octopus, SpecExplorer • What remains to be done • other logics: ZFC (set theory), HOL (higher-order logic), VDM, OZ (object-Z), LTL/CTL, TLA+, ForSpec, Sugar/PSL • other methods: static analysis, handling of pointers, worst case execution time (WCET) estimation, run-time monitoring, … • more tools: integrated proof assistants (e.g. proof general, ACE assertion checking environment, Frama-C, …)

18. Questions?

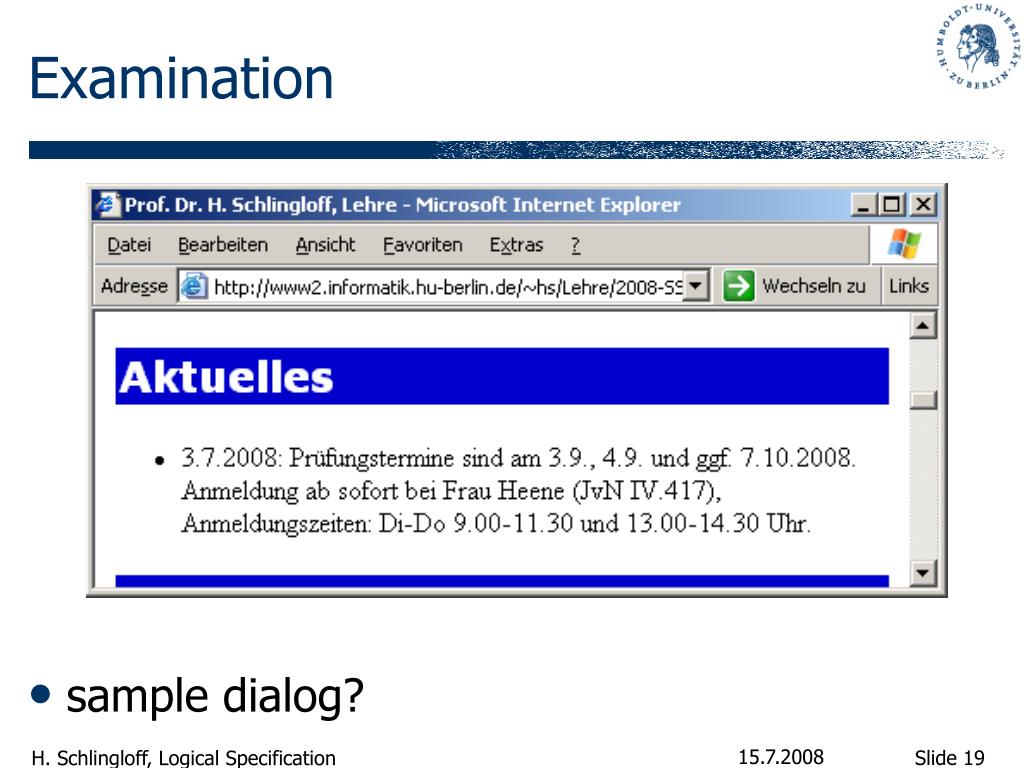

19. Examination • sample dialog?
