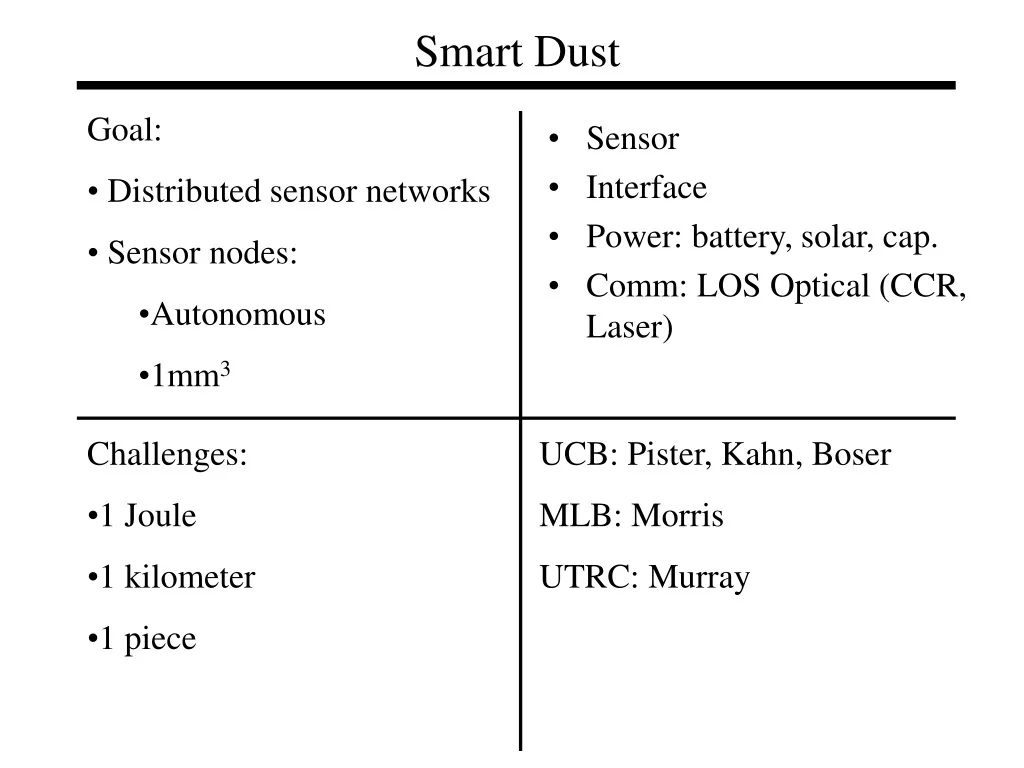

Smart Dust. Goal: Distributed sensor networks Sensor nodes: Autonomous 1mm 3. Sensor Interface Power: battery, solar, cap. Comm: LOS Optical (CCR, Laser). Challenges: 1 Joule 1 kilometer 1 piece. UCB: Pister, Kahn, Boser MLB: Morris UTRC: Murray. Laser diode III-V process.

cgage
Télécharger la présentation

Smart Dust

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Smart Dust • Goal: • Distributed sensor networks • Sensor nodes: • Autonomous • 1mm3 • Sensor • Interface • Power: battery, solar, cap. • Comm: LOS Optical (CCR, Laser) • Challenges: • 1 Joule • 1 kilometer • 1 piece UCB: Pister, Kahn, Boser MLB: Morris UTRC: Murray

  2. Laser diode III-V process Smart Dust Components Passive CCR comm. MEMS/polysilicon Active beam steering laser comm. MEMS/optical quality polysilicon Analog I/O, DSP, Control COTS CMOS Sensor MEMS/bulk, surface, ... Power capacitor Multi-layer ceramic Solar cell CMOS or III-V Thick film battery Sol/gel V2O5 1-2 mm

  3. Dust components • Thick film battery: 1mm^3, 1 J storage • Power capacitor: 0.25mm^3, 1uJ storage • Solar cell: 1x1x0.1mm^3, 0.1mW generation • CMOS controller: 1x1x0.1mm^3 • Sensor: 0.5x0.5x0.1mm^3 • Passive CCR comm: 0.5x0.5x0.1mm^3, 10kbps, 1uW, 1km • Active laser comm: 1x0.5x0.1mm^3, 1Mbps, 10mW, 10km • Total volume: < 1.5 mm^3 • Total mass: < 5 mgm

  4. Mapleseed solar cell MEMS/Hexsil/SOI 1-5 cm Airborne Dust Controlled auto-rotator MEMS/Hexsil/SOI Rocket dust MEMS/Hexsil/SOI
