General relativity

General relativity. Special relativity applies only to observers moving with constant velocity . Can we generalize relativity to accelerated observers ? No problem for Einstein, just a few more thought experiments …. Ch. 11.1.

chamlin
Télécharger la présentation

General relativity

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

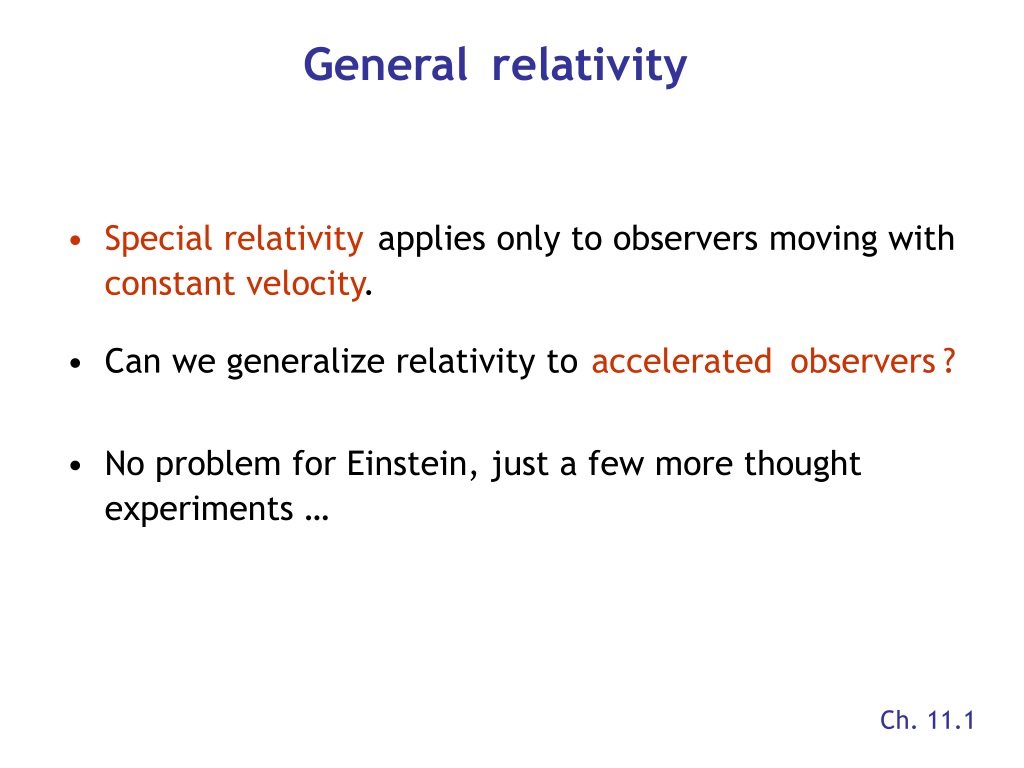

  1. General relativity • Special relativityapplies only to observers moving with constant velocity. • Can we generalize relativity to accelerated observers? • No problem for Einstein, just a few more thought experiments … Ch. 11.1

  2. The forces from acceleration and gravity cannot be distinguished Gravity

  3. In an accelerating spaceship a stone drops just like Newton’s apple

  4. A stone thrown sideways follows an arc (again just like Newton)

  5. Light follows an arc, too(that’s Einstein)

  6. Star’s real position Star’s apparent position Starlight deflected by Sun’s gravity Moon Einstein’s logic 1) Acceleration and gravity cannot be distinguished.2) Acceleration deflects light. 3) Therefore, gravity should deflect light. Confirmed by experiment: Stars can be detected close to the Sun during a solar eclipse. Their light is indeed deflected by the Sun’s gravity.

  7. Eddington’s Eclipse Expedition 1919 • British astronomer Eddington traveled to Principe Island in the Gulf of Guinea to observe deflection of starlight during a solar eclipse. • Aftermonthsofdrought itwas pouring rain on the day of the eclipse.Thecloudspartedjust in time to see the eclipse. • The photographs revealed an apparent deflection of stars away from the Sun, as predic- ted by Einstein. • Einstein was instantly famous.

  8. Gravitational lensing • TheSunactslike alensdeflecting the light from stars behind it. • Acluster of ga-laxies can also act as lens by deflectinglight from galaxies behind it. • The mass of the galaxy cluster is obtained from faint arcs pro-ducedbyalens.

  9. Gravitational lensing simulation When a black hole with the mass of Saturn is placed in front of the two central towers, gravitational lensing bends them into arcs. This explains the faint arcs in the Hubble image.

  10. Curved space-time • The bending of light by the gravity of the Sun brings up the question: What is a straight line? • Laser beams are our best methodtoproducea straight line. • If light does not go straight, what else would? • We conclude that space itself must be curved. It does not allow a straight line.Thepathofa light beam is the straightest possible path.

  11. A light clock slows down in curved space Mirror Mirror Light beam Incurved space, light takes adetour compared to flat space (dotted line). The detour increases the time to complete one cycle of a light clock (Lect.14, Slide3). The clock slows down.

  12. Gravitational time dilation • Gravity warps both space and time! • Clocks run more slowly in a gravitational force field. • In a GPS satellitethe clock speeds up during launch into orbit,where gravity is reduced. The satellite clock needs to be set slightly slow before launch to compensate (by a factor of 4.510-10). • This effect is much larger than the time dilation due to special relativity (Lect. 14, Slide 7), which acts in the opposite direction.

  13. In general relativity, gravity is a warp in space. The orbits of the planets and comets can be explained by their movement around the dimple in space that is created by the mass of the Sun. Curved space explains the planet’s orbits

  14. Einstein’s equations of gravity • Einstein’s equations of gravity are rather complicated. Even Einstein needed help from expert mathematicians. • Einstein’s equations in words (by John Wheeler): Matter tells space how to curve, and space tells matter how to move. • General relativity connects space and matter,concepts • that seem to have nothing in common. • General relativity is reduced to special relativity in the • absence of gravity or acceleration. It includes the results • of special relativity on length contraction, time dilation.
