Front-end electronics Calibration. Pedestal - FADC 내부 함수 이용 : new run 시작전 항상 측정  mean 값만 측정 됨 - external trigger 이용 : trigger box 에서 random trigger 생성  주기적으로 수행 : mean 값과 rms 측정. 2. Timing calibration - 각 보드에 대한 T0 calibration : function generator 이용.

channing-snow
Télécharger la présentation

Front-end electronics Calibration

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Front-end electronics Calibration • Pedestal • - FADC 내부 함수 이용 : new run 시작전 항상 측정 •  mean 값만 측정 됨 • - external trigger 이용 : trigger box에서 random trigger 생성 •  주기적으로 수행 : mean값과 rms측정

  2. 2. Timing calibration - 각 보드에 대한 T0 calibration : function generator 이용 FADC 1 FADC 2 FADC 3 FADC 4 a b d c FADC 1 을 기준으로 하면 T2calib = T2 – ( b – a ) T3calib = T3 – ( c – a ) T4calib = T4 – ( d – a ) …..

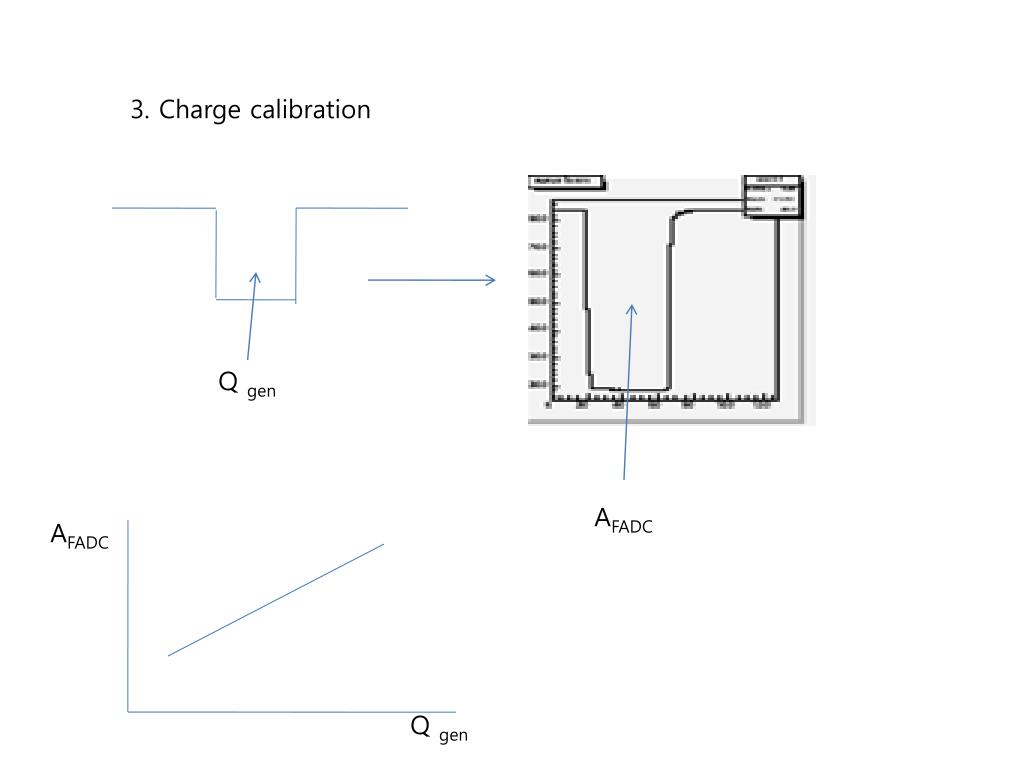

  3. 3. Charge calibration Q gen AFADC AFADC Q gen
