03|Prototype Implementation

03|Prototype Implementation. Basic prototype. $30. $30. $5. 1. Get input from CharlieCard using RFID sensor. 2. Take a picture with laptop. 3. Organize and display collected pictures in grid format. Harvard Graduate School of Design | REALTIME CITIES 2014 | Ubifare | Radhya A.

charles-crawford
Télécharger la présentation

03|Prototype Implementation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

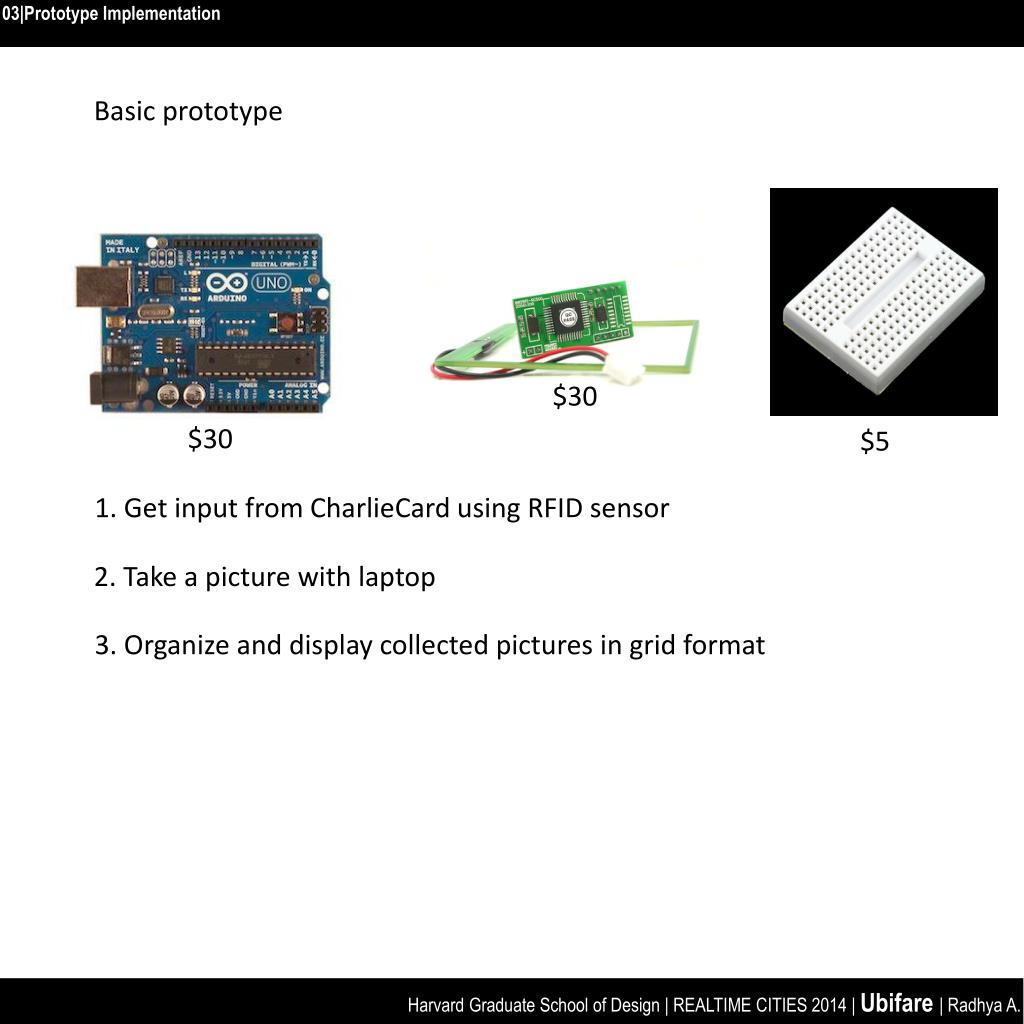

  1. 03|Prototype Implementation Basic prototype $30 $30 $5 1. Get input from CharlieCard using RFID sensor 2. Take a picture with laptop 3. Organize and display collected pictures in grid format Harvard Graduate School of Design | REALTIME CITIES 2014 | Ubifare| Radhya A.

  2. 03|Prototype Implementation Prototype Flowchart Harvard Graduate School of Design | REALTIME CITIES 2014 | Ubifare| Radhya A.

  3. 03|Prototype Implementation Prototype code to be edited #include <SoftwareSerial.h> #define ADD_TAG_CODE "210014DFE309" //change this ID with your own card TAG #define DEL_TAG_CODE "210014E2BD6A" //change this ID with your own card TAG SoftwareSerialrfid = SoftwareSerial(5, 6); String msg; String ID ; //string to store allowed cards void setup() { Serial.begin(9600); Serial.println("Serial Ready"); rfid.begin(9600); Serial.println("RFID Ready"); } char c; void loop(){ while(rfid.available()>0){ c=rfid.read(); msg += c; Serial.println(msg); Serial.println(msg.length()); } msg=msg.substring(1,13); if(msg.indexOf(ADD_TAG_CODE)>=0) add(); else if(msg.indexOf(DEL_TAG_CODE)>=0) del(); else if(msg.length()>10) verifica(); msg=""; } void add(){ Serial.print("What TAG do you wanna grant access?: "); msg=""; while(msg.length()<13){ while(rfid.available()>0){ c=rfid.read(); msg += c; } } if(ID.indexOf(msg)>=0) { Serial.println("\nAccess already granted for this card."); msg=""; } else{ Serial.print("Card: "); Serial.println(msg); ID += msg; ID += ","; //Serial.print("ID: "); // Serial.println(ID); msg=""; Serial.println("Access granted for this card."); } void verifica(){ msg=msg.substring(1,13); if(ID.indexOf(msg)>=0) Serial.println("Access granted."); else Serial.println("Access denied."); } > When card is scanned change value to true. > If true, take a photo and store in specified folder. > Display collected photos. Harvard Graduate School of Design | REALTIME CITIES 2014 | Ubifare| Radhya A.

  4. 03|Prototype Implementation Mockup of installation Harvard Graduate School of Design | REALTIME CITIES 2014 | Ubifare| Radhya A.

  5. 03|Prototype Implementation Mockup of installation version 2 Cheaper and easier alternative. Using rolling boards with TV mounted on them at Gund. Front has an monitor and RFID sensor connected to a RaspberryPi A poster describing the project TV Displaying and photos of people Harvard Graduate School of Design | REALTIME CITIES 2014 | Ubifare| Radhya A.

  6. 03|Prototype Implementation Installation Flowchart Harvard Graduate School of Design | REALTIME CITIES 2014 | Ubifare| Radhya A.

  7. 03|Prototype Implementation Implementation Schedule • 4/6 – 4/12: CODE + PROTOTYPE • Edit Code • Make working prototype • 4/13 - 4/19: VIDEO + POSTER • UbiFareconcept video • Make poster for installation • 4/20 – 4/26: INSTALLATION • Collect installation pieces • Construct installation • Find location for installation • Take photos and videos of installation • 4/28: Review Harvard Graduate School of Design | REALTIME CITIES 2014 | Ubifare| Radhya A.
