Soft-Switching DC-DC Converter

Soft-Switching DC-DC Converter. Is to shape the voltage or the current waveform by creating a resonant condition to: Force the voltage across the switching device to drop to zero before turning it ON  Zero-Voltage Switching (ZVS)

chase-carson
Télécharger la présentation

Soft-Switching DC-DC Converter

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Soft-Switching DC-DC Converter Is to shape the voltage or the current waveform by creating a resonant condition to: Force the voltage across the switching device to drop to zero before turning it ON  Zero-Voltage Switching (ZVS) Force the current through the switching device to drop to zero before turning it OFF  Zero-Current Switching (ZCS)

  2. Overview • Many soft-switching dc-dc converter families were introduced in the open literature • The objectives of these topologies are to develop high switching frequency converters with high power density and high efficiency • This was accomplished by adding additional components to the power stage. • Steady-state analysis tend to be time consuming. • Provided little insight into the converter switching-cell operation.

  3. Hard-Switching and Soft-Switching Hard-Switching Zero-Voltage Switching Zero-Current Switching

  4. Why Soft-Switching? • Reduce switching losses especially at high switching frequencies • Increase the power density, since the size and weight of the magnetic components is decreased by increasing the operating frequency • Reduce the Electromagnetic Interference (EMI)

  5. Conventional DC-DC Converters(Hard-Switching) Boost Buck Buck-Boost Cuk Zeta Sepic

  6. Switching-Cell Sharing All the Conventional DC-DC Converters shares the same switching-cell With different orientation of the cell in a specific converter The Conventional DC-DC Switching-Cell

  7. Analyzed Soft-Switching Cells

  8. Zero-Voltage-Switching Quasi-Resonant ZVS-QRC Switching-Cell ZVS-QRC Cell Basic Switching-Waveforms

  9. ZVS-QRC Family ZVS-QRC Boost ZVS-QRC Buck ZVS-QRC Buck-Boost ZVS-QRC Cuk ZVS-QRC Zeta ZVS-QRC Sepic

  10. Zero-Current-Switching Quasi-Resonant ZCS-QRC Switching-Cell ZCS-QRC Cell Basic Switching-Waveforms

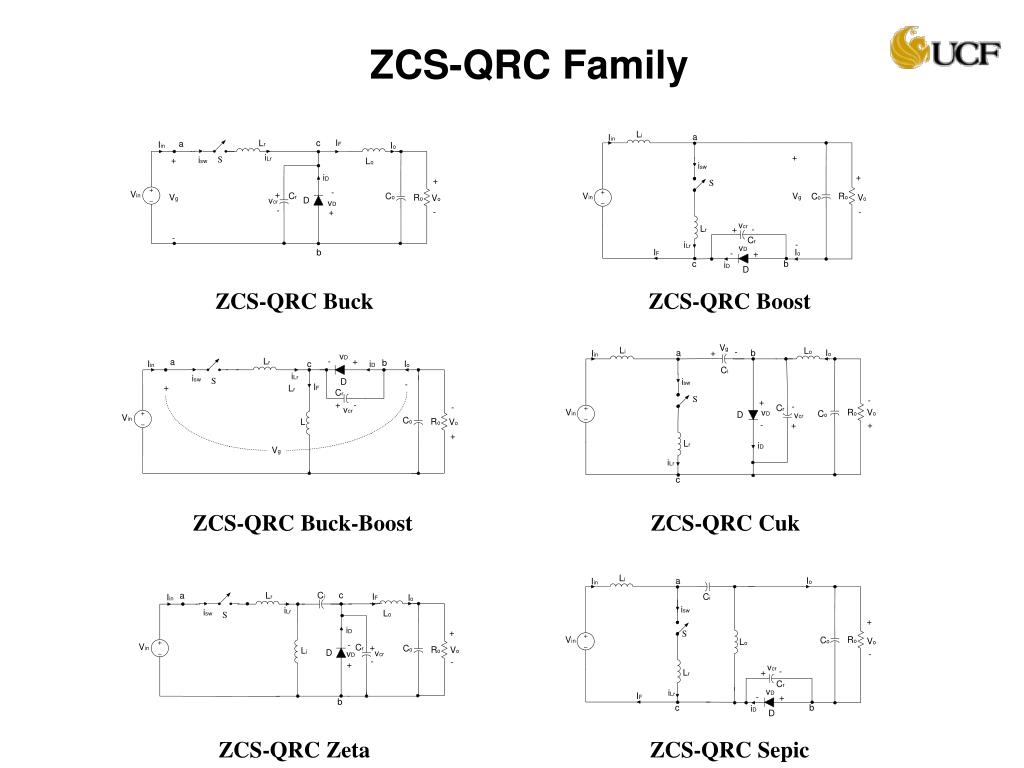

  11. ZCS-QRC Family ZCS-QRC Buck ZCS-QRC Boost ZCS-QRC Buck-Boost ZCS-QRC Cuk ZCS-QRC Zeta ZCS-QRC Sepic

  12. ero-Current-Transition PWM Cell ZCT-PWM Switching-Cell ZCT-PWM Cell Basic Switching-Waveforms
