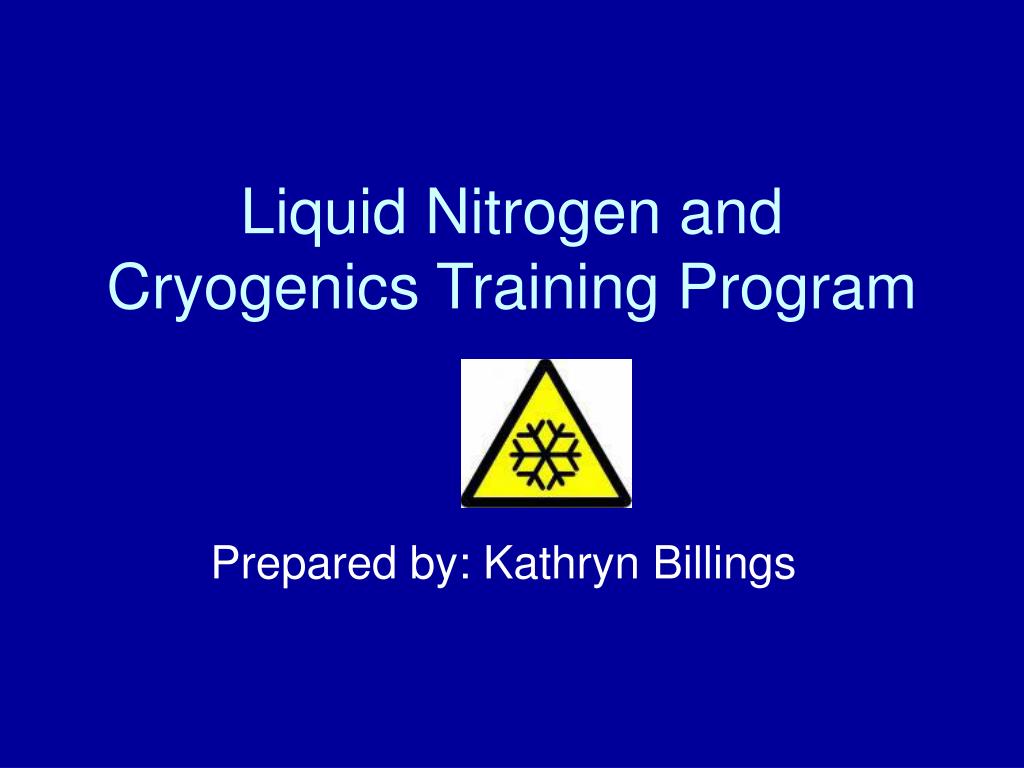

  1. Liquid Nitrogen and Cryogenics Training Program Prepared by: Kathryn Billings

  2. Potential HazardsHealth: • Vapors may cause dizziness or asphyxiation without warning. • Vapors from liquefied gas are initially heavier than air and spread along ground. • Contact with gas or liquefied gas may cause burns, severe injury, and/or frostbite.

  3. Public Safety • Immediately call emergency personnel in the event of a large spill or leak. 9-1-1 from campus phone or 438-8631 for ISUPD dispatcher • Isolate large spills or leaks for at least 100 meters in all directions. • Keep unauthorized personnel away. • Stay upwind. • Keep out of low areas. • Ventilate closed spaces before entering.

  4. Container Requirements • Closed container with a loose fitting top that allows venting. • Use only vessels designed for extreme cold (i.e. insulated). • Vessel must have carrying handles or be on wheels.

  5. Potential HazardsExplosion: • Liquid Nitrogen must be transported and stored in an appropriate container containing pressure relief devices. • Otherwise, when the pressure builds up, • the stopper could be "rocketed out" • or worse, the container could explode

  6. Appropriate Containers Examples of acceptable cryogenic Dewar's:

  7. Inappropriate Containers • DO NOT use open, un-insulated or glass containers!

  8. Liquid Nitrogen Tank • Located off loading dock at Science Lab Building • Key can be checked out at the Chemistry storeroom. • Enter through South East gate. Valve Location

  9. Liquid Nitrogen Tank • Do NOT touch any of the valves on the North side of the tank. • Do NOT enter through the North gate. DO NOT touch!

  10. Protective Clothing • Always wear thermal protective clothing when handling refrigerated/cryogenic liquids or solids. • It is required you wear a full face shield over safety glasses, loose fitting gauntlet gloves, long sleeve shirts, full-length trousers without cuffs, and fully enclosed shoes.

  11. Fill Hose • The liquid Nitrogen is released through this hose.

  12. Procedures:Step 1: Fill Hose • Insert and hold the fill hose into the appropriate container or into the funnel.

  13. Procedures:Step 2: Open/Close Valve • Open valve slowly to begin filling. • Close valve tightly after filling. Valve

  14. Safe Handling • Wear Personal Protective Equipment: • Face Guard • Gloves • Always use liquid Nitrogen in a well ventilated area. • Use a loose-fitting stopper or lid that allows venting of the boil off. • If using a funnel, use caution not to overfill the container.

  15. Safe HandlingContinued • Only transport liquid nitrogen in the freight elevator with no other occupants present. • Only use containers that have been designed specifically for cryogenic liquids. • Do not store in a confined space. • Do not store at temperatures above 125°F.

  16. References • Emergency Response Guide 2004 • Harvard University • Praxair • http://www.chem.uncc.edu/safety/NitrogenSafety.html • http://www-safety.deas.harvard.edu/services/nitrogen.html
