  1. Lecture 5Tectonic Landforms Landforms that result from crustal movements Landforms with little erosion so "their shape defines a fractured or deformed surface" Bloom

  2. Escarpment or "scarp" • Tectonic Scarp: steep slope from differential movement of surface Basaltic Lava Flows Axial Lake Deposits Soils FW HW High angle Normal faults, Tanzania Rift Valley http://travel.mongabay.com/tanzania/images/tz_elf_0560.html Border Fanglomerate

  3. Flatirons • Dissection of scarp ( often a side of a hogback) by many gullies forms triangular facets http://en.wikipedia.org/wiki/File:Flatirons.jpg

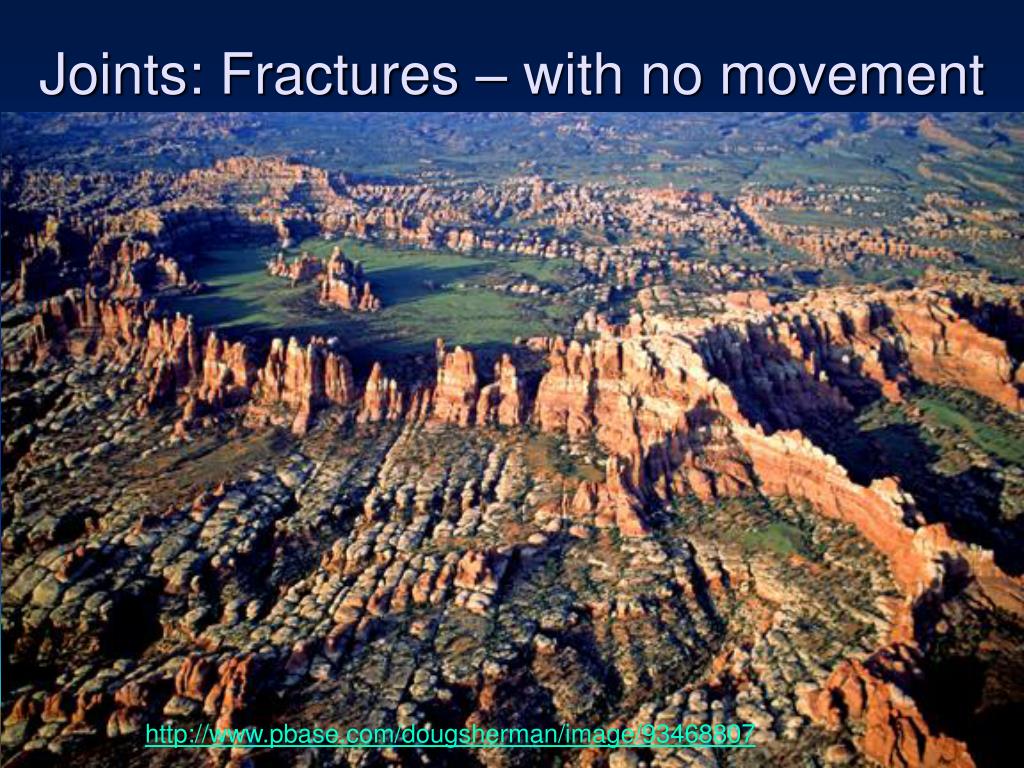

  4. Joints: Fractures – with no movement http://www.pbase.com/dougsherman/image/93468807

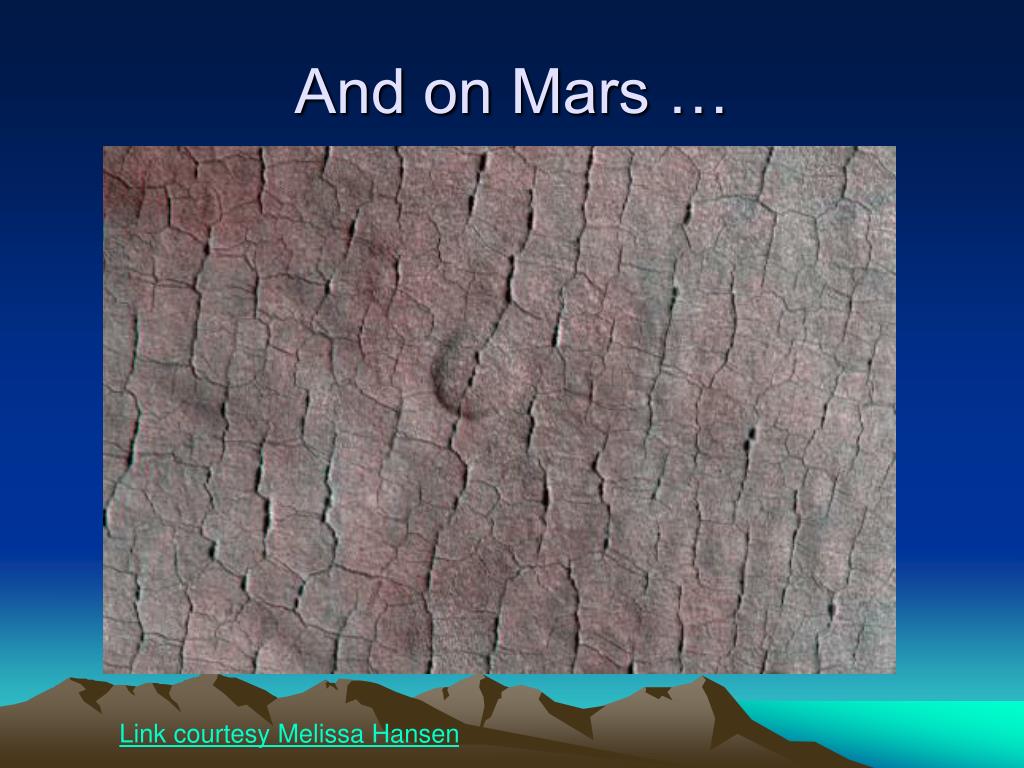

  5. And on Mars … Link courtesy Melissa Hansen

  6. Faults 1: Normal Faults • Typical of Divergent Margins • Rift Valleys and Mid-Ocean Ridges • High-angle and Listric • Horst and Graben Structure • Hanging wall is down

  7. Divergent Margins @ MOR, Iceland

  8. Graben in Iceland, a subaerially exposed Mid-Ocean Ridge Source:Simon Fraser/Science Photo Library/Photo Researchers, Inc.

  9. Rift Valley x-sec Origin of Basaltic magma 2

  10. Faults 2: Reverse Fault Structures • Typical of Convergent Margins • E.g. Accretionary Wedges (Santa Catalina Island’s schists) and Fold and Thrust Mountains (Himalayas, Alps, Appalachians) • Often low-angle thrusts • Hanging wall is up Overhanging Block http://rst.gsfc.nasa.gov/Sect2/05-01_reverse_fault-jyougashima_DSC8766.jpg

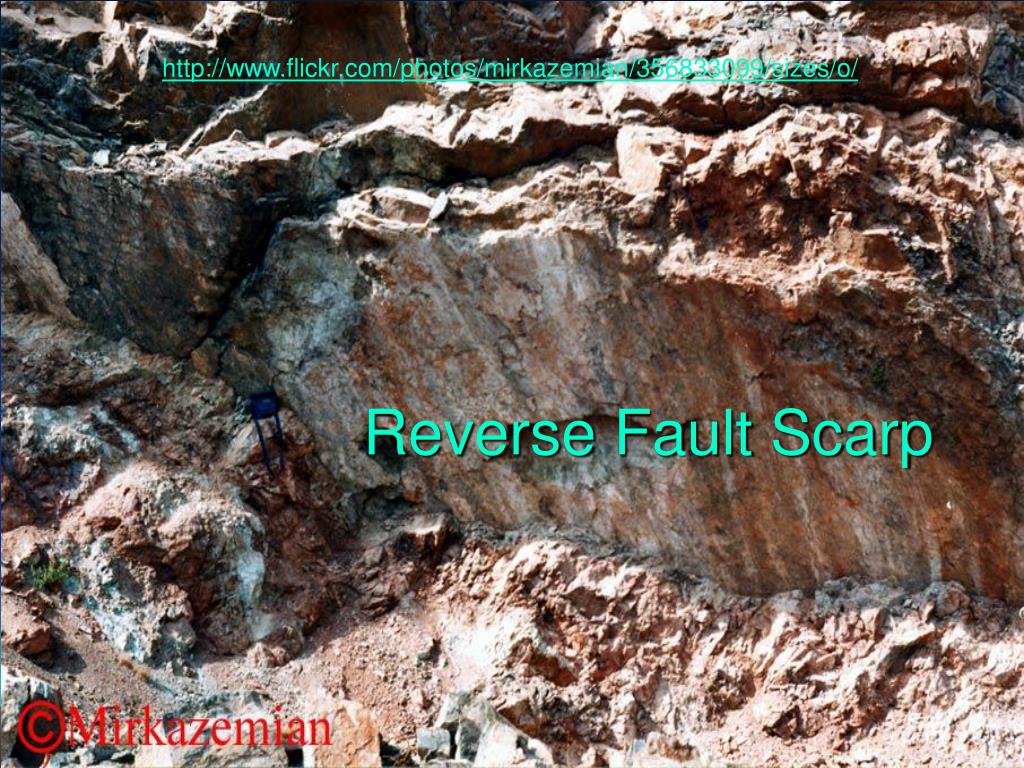

  11. Reverse Fault Scarp http://www.flickr.com/photos/mirkazemian/356833099/sizes/o/

  12. Klippe - Thrust Fault Remnant A feature of thrust fault terranes. The klippe is the remnant portion of a nappe after erosion. http://www.pbase.com/dougsherman/image/93469147 Chief Mountain, a klippe outlier of the Lewis Thrust, Glacier National Park, MT

  13. Faults 3:Transform Faults between MOR's

  14. Strike-slip fault http://epod.usra.edu/archive/images/wallace_creek_aerial.jpg

  15. Sag pond along San Andreas Transform (strike-slip) Fault

  16. The linear strike-slip feature running across this anaglyph is one of many transform faults in California.  Along it can be seen good examples of off-set streams [and] a shutter ridge . From Drury, text paraphrased.

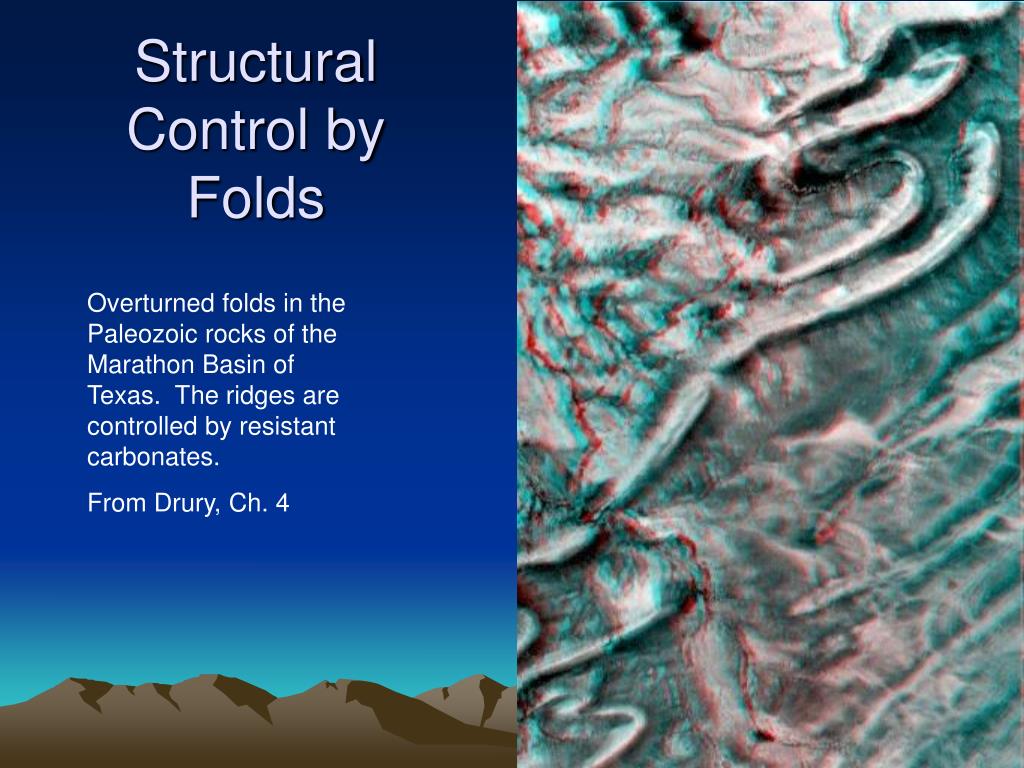

  17. Structural Control by Folds Overturned folds in the Paleozoic rocks of the Marathon Basin of Texas.  The ridges are controlled by resistant carbonates.  From Drury, Ch. 4

  18. A Monocline near Cody, Wyoming

  19. Upwarps 1: The Adirondack Mountains of Northern New York Source:Clyde H. Smith/Allstock/Tony Stone Images Although the rocks are ancient, the uplift that formed the Adirondack dome has occurred within the last 5 million years — relatively recent in geologic time — and is ongoing. Mantle upwelling, Upwarp Mountains

  20. Upheaval Dome, Canyonlands Colorado Plateau Uplift http://www.pbase.com/dougsherman/image/93400984

  21. Salt Dome Low density Buoyant Salt Diapirs Surrounding sediments upwarped Petroleum exploration

  22. A collapse downwarp Salt Creek Graben at Arches National Park, UT. Solution of evaporites in the underlying Pennsylvanian Paradox Fm. caused the Graben to form.

  23. Plumes under Continent Interiors. A Rhyolitic Igneous Dome, Yellowstone Caldera

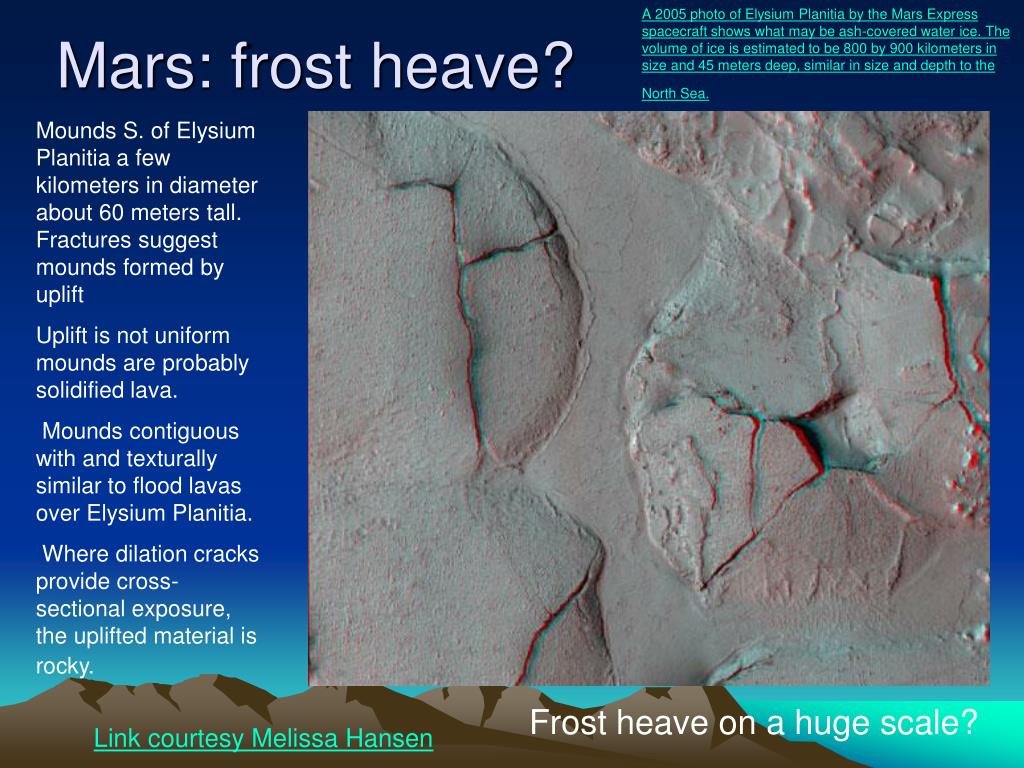

  24. A 2005 photo of Elysium Planitia by the Mars Express spacecraft shows what may be ash-covered water ice. The volume of ice is estimated to be 800 by 900 kilometers in size and 45 meters deep, similar in size and depth to the North Sea. Mars: frost heave? Mounds S. of Elysium Planitia a few kilometers in diameter about 60 meters tall. Fractures suggest mounds formed by uplift Uplift is not uniform mounds are probably solidified lava. Mounds contiguous with and texturally similar to flood lavas over Elysium Planitia. Where dilation cracks provide cross-sectional exposure, the uplifted material is rocky. Frost heave on a huge scale? Link courtesy Melissa Hansen

  25. Review of Cenozoic Tectonics http://www.globalchange.umich.edu/Ben/Helvetic%20Morcles%20nappe.JPG A nappe is a large sheetlike body of rock that has been moved more than 2 km (1.2 miles) from its original position. Nappes form during continental plate collisions, when folds are sheared so much that they fold back over on themselves and break apart. The resulting structure is a large-scale recumbent fold. The term stems from the French word for tablecloth.

  26. Cenozoic Orogenic activity concentrated in two areas • Alpine-Himalayan belt deformation began in the Mesozoic and remains geologically active. Isolation of Tethys to form the modern Mediterranean Sea • circum-Pacific belt deformation occurred throughout the Cenozoic

  27. 1. The underside of Europe collided with numerous microplates rifted from Africa Closing of the Tethys Sea between late Mesozoic and early Cenozoic time 4. Thrusts not Subduction Arabian-African Rift 3. Messinian Salinity Crisis ~ 5.5 mya 2. Pliocene three way rift. 3. Arabia Microcontinent collision -> Zagros Mts

  28. Subduction-Zone Features Note sequence from land to trench Note ocean plate rocks that don’t get subducted in a collision If a continent converges from the left, what rocks will fold in the collision? Himalayas

  29. Continent • Abyssal plains • Can be sites of thick accumulations of sediment • Sediments thickest away from MOR • Abyssal plains found in all oceans • Studded by old cold seamounts and MORs Back-Arc Basin Trench Accretionary wedge Fore-Arc Basin Volcanic Arc

  30. Drawings of Nappes in the Alps New Orogen, Nappes still visible http://www.geol-alp.com/chartreuse/3_tecto_chartreuse/1_ch_occ.html

  31. "A spectacular thrust fault in the Caledonides of NW Scotland, which drove Archaean gneisses over Cambro-Ordovician sediments.  The thrust plane is marked by the pronounced bench on the peninsula, which is coated with mylonite.  The typical knobbly topography of the heavily glaciated gneisses is quite obvious in the upper part …. " From Drury, Ch. 4 Definition Nappes previous slide

  32. Himalayan Orogeny Subduction and TST Partly subducted so under AW

  33. Himalayan Orogeny AW FAB

  34. INDIA under cloud cover Rain Shadow Desert: Tibetan Plateau Fold and Thrust Mountains, Himalayas, Continent-Continent collision North

  35. Taklamakan Desert NORTH Tibetan Plateau Himalayas

  36. San Andreas Transform MOR Subducted! Changed Orientation 15 mya SAF forms

  37. North American Cordillera Topography Columbia River Basalts WHY SO FAR INLAND? Basin and Range Crust very thin there

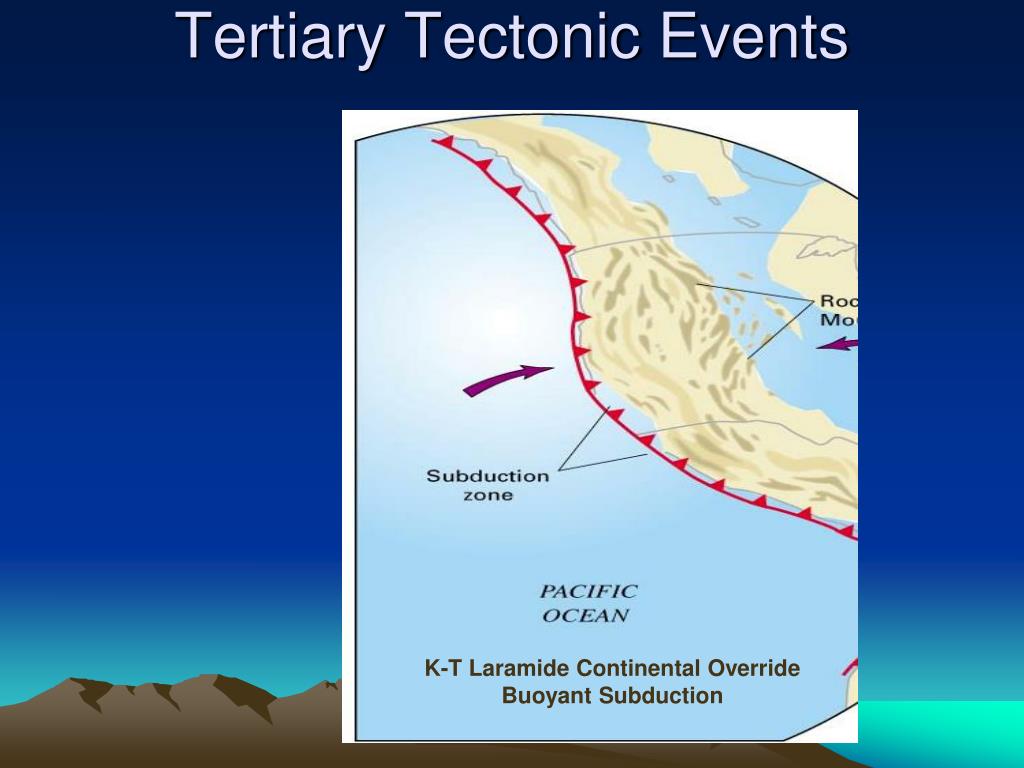

  38. Tertiary Tectonic Events K-T Laramide Continental Override Buoyant Subduction

  39. North American Cordillera

  40. Rockies: Buoyant Subduction caused Laramide Orogeny Vertical block uplift Normal, thin-skinned Approaching Continent pushes accretionary wedge sediments into forearc sediments

  41. The Grand Tetons in Wyoming Source: Peter French/DRK Photo High Angle Faults, Buoyant Subduction.

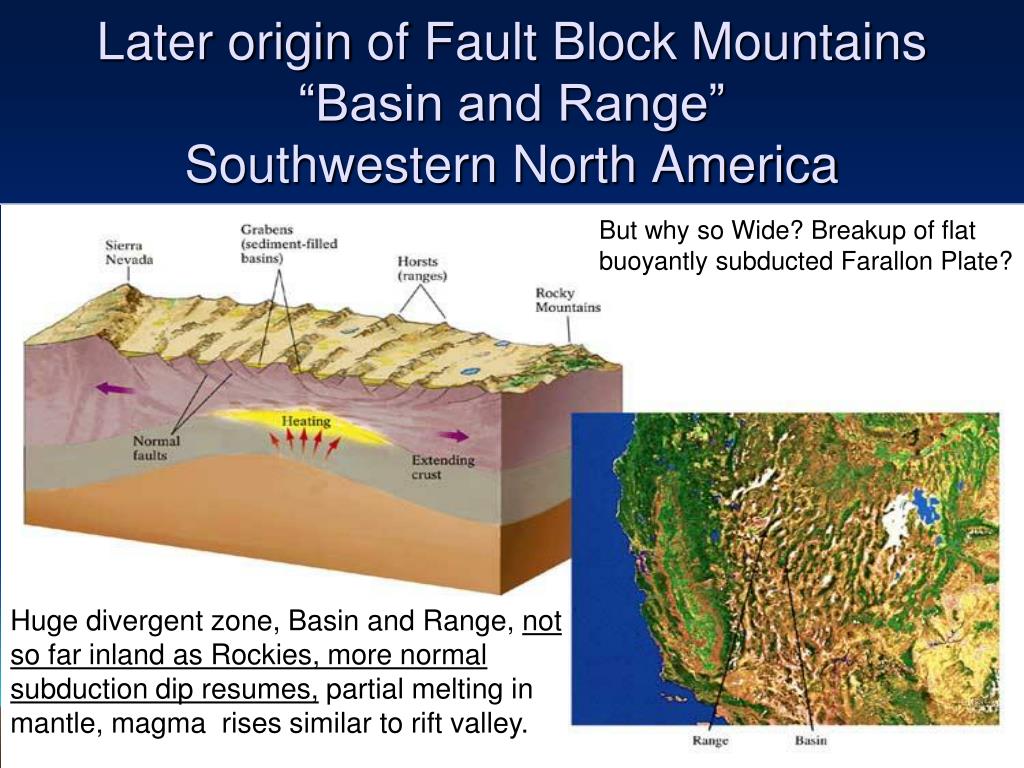

  42. Later origin of Fault Block Mountains “Basin and Range” Southwestern North America But why so Wide? Breakup of flat buoyantly subducted Farallon Plate? Huge divergent zone, Basin and Range, not so far inland as Rockies, more normal subduction dip resumes, partial melting in mantle, magma rises similar to rift valley.

  43. Basin and Range province Range Basin Extensional Feature w/ Normal Faults

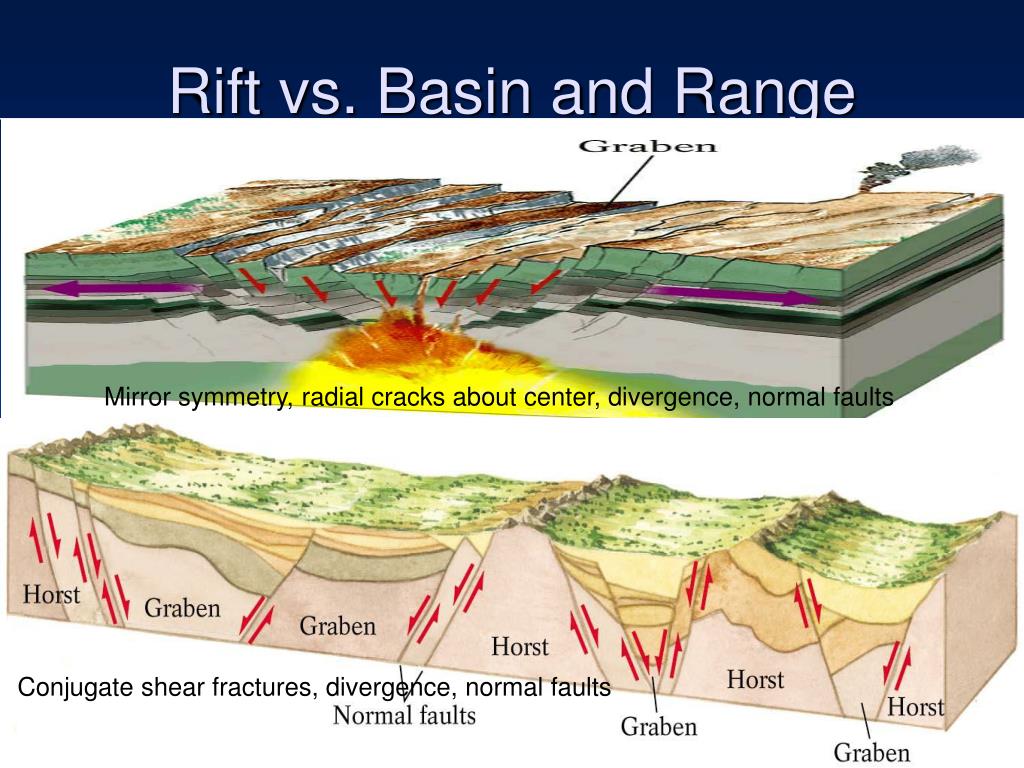

  44. Rift vs. Basin and Range Mirror symmetry, radial cracks about center, divergence, normal faults Conjugate shear fractures, divergence, normal faults

  45. Displaced terranes – Western Cordillera These terranes overlap in age but have different rock types, paleolatitudes and fossils. However, we can deduce when they accreted from their order, and the metamorphic ages of their suture zones

  46. Columbia River Basalts(including the Saddle Mountains Basalt) 17my

  47. Columbia River Basalts and Yellowstone Plume http://en.wikipedia.org/wiki/Columbia_River_Basalt_Group
