Groundwater Study of Malad and Bear Rivers, Box Elder County, Utah

This cooperative study conducted by the U.S. Geological Survey and the Division of Water Rights from March 2012 to March 2015 provides a detailed hydrologic understanding of the groundwater systems within the Malad and Bear Rivers drainages. It examines how groundwater pumping influences surface water flows and aquifer recharge. By utilizing a regional groundwater flow model, the study simulates interactions between groundwater, streams, and pumping activities, while assessing factors such as permeability and recharge rates. The findings aim to inform sustainable groundwater development and surface-water rights management.

chelsa
Télécharger la présentation

Groundwater Study of Malad and Bear Rivers, Box Elder County, Utah

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Groundwater Study For Malad and Bear Rivers Drainages, Box Elder County Bear River Water Conservancy District 102 West Forest Street Brigham City, Utah 84302 April 23, 2012

  2. Role of U.S. Geological Survey Provide hydrologic understanding specifically designed to inform decisions about groundwater development and surface-water rights • Cooperative Study Division of Water Rights U.S. Geological Survey • Length of Study March 2012 to March 2015 • Funding $360,000

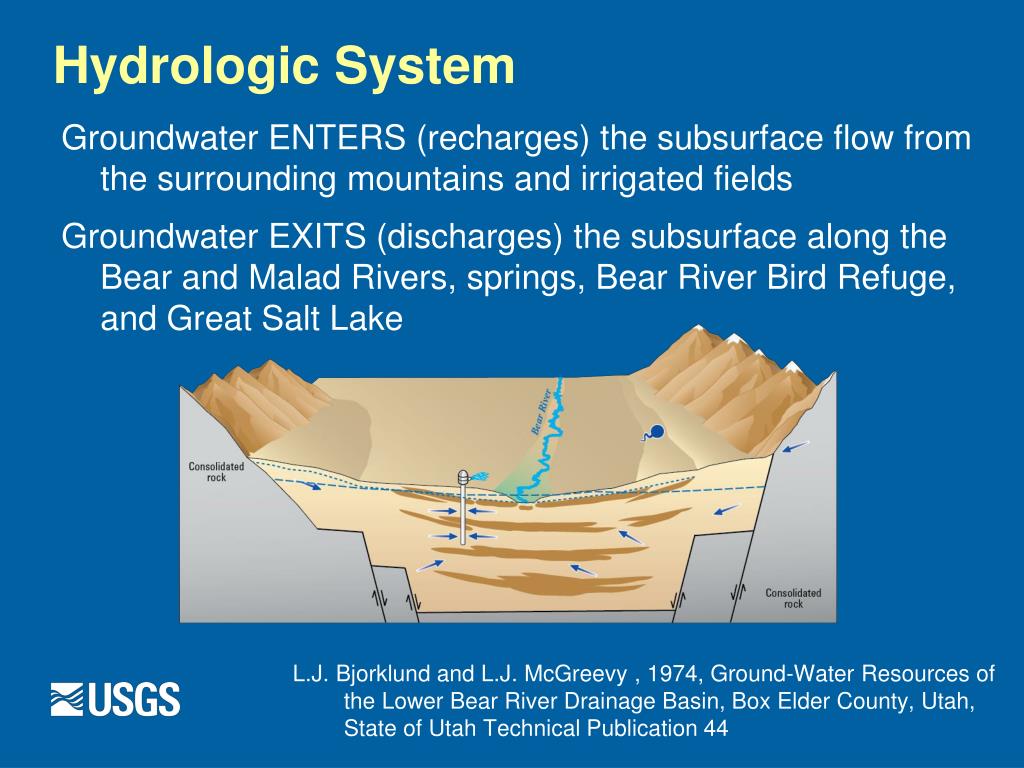

  3. Hydrologic System Groundwater ENTERS (recharges) the subsurface flow from the surrounding mountains and irrigated fields Groundwater EXITS (discharges) the subsurface along the Bear and Malad Rivers, springs, Bear River Bird Refuge, and Great Salt Lake L.J. Bjorklundand L.J. McGreevy , 1974, Ground-Water Resources of the Lower Bear River Drainage Basin, Box Elder County, Utah, State of Utah Technical Publication 44

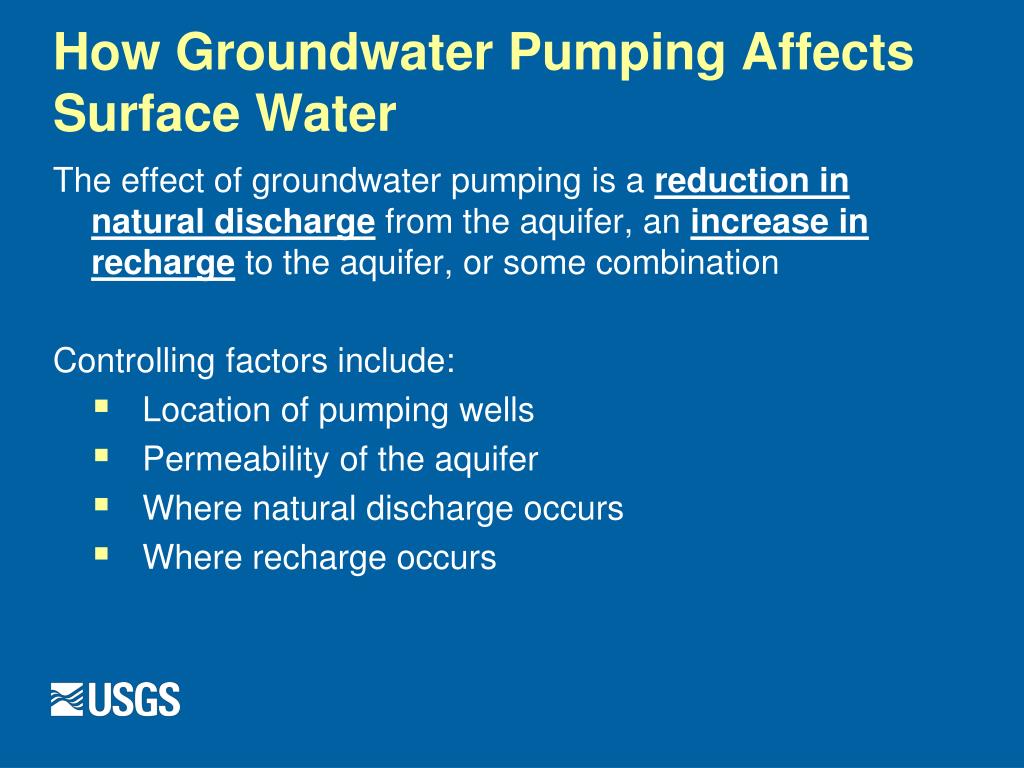

  4. How Groundwater Pumping Affects Surface Water The effect of groundwater pumping is a reduction in natural discharge from the aquifer, an increase in recharge to the aquifer, or some combination Controlling factors include: • Location of pumping wells • Permeability of the aquifer • Where natural discharge occurs • Where recharge occurs

  5. Analysis Tool is Regional Groundwater Flow Model Simulates the interactions between streams, groundwater, springs, pumping, irrigation, and mountains Includes: • Permeability of the consolidated rocks in the mountains • Permeability of the sand-silt-clay in the valley • Recharge from snow and rain • Recharge from irrigation • Discharge to wells, springs, streams, and plants

  6. Groundwater Model Reflects Conditions in Early 1970’s Modify to current conditions • Locations and amounts of irrigation • Additional wells • Discharge to streams and springs • Consideration of field drains

  7. Collection and Examination of Additional Data Land owner cooperation for access to wells and other measurements sites is essential • Spring flows • Stream flows • Chemistry • Water levels • Field drains • Land-use changes

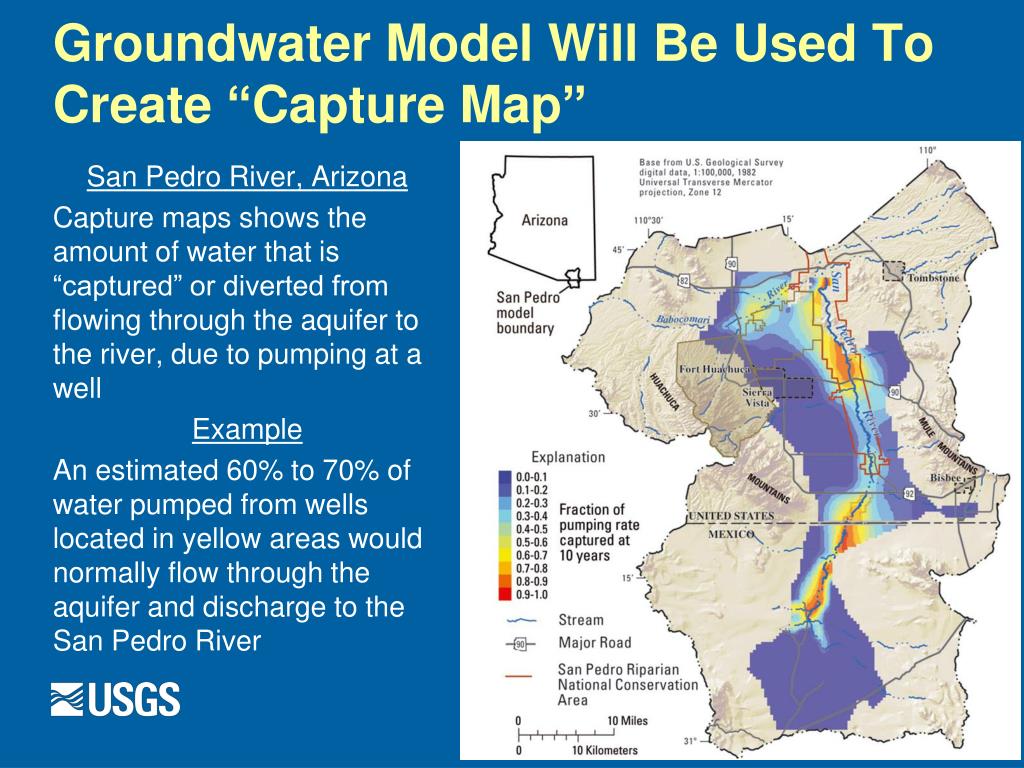

  8. Groundwater Model Will Be Used To Create “Capture Map” San Pedro River, Arizona Capture maps shows the amount of water that is “captured” or diverted from flowing through the aquifer to the river, due to pumping at a well Example An estimated 60% to 70% of water pumped from wells located in yellow areas would normally flow through the aquifer and discharge to the San Pedro River

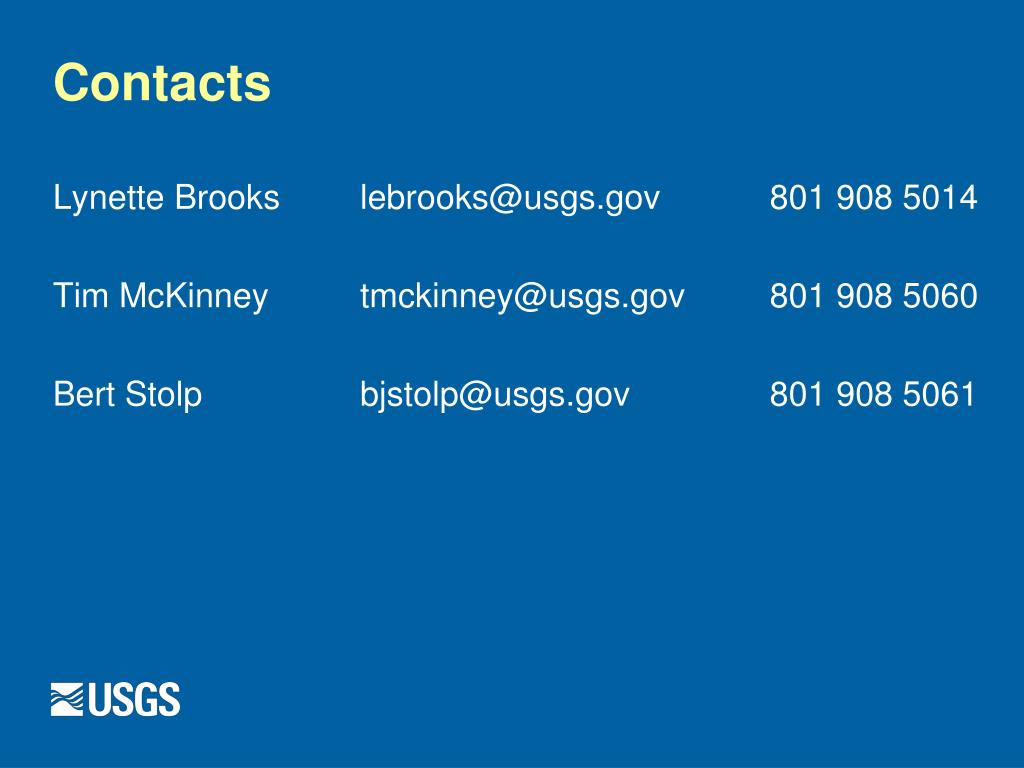

  9. Contacts Lynette Brooks lebrooks@usgs.gov 801 908 5014 Tim McKinney tmckinney@usgs.gov 801 908 5060 Bert Stolp bjstolp@usgs.gov 801 908 5061
