  1. Zookeeper at Facebook Vishal Kathuria

  2. Agenda • Zookeeper use at Facebook • Project Zeus – Goals • Tao Design • Tao Workload simulator • Early results of Zookeeper testing • Zookeeper Improvements

  3. Use Cases Inside Facebook • HDFS • For location of the name node • Name node leader election • 75K temporary (permanent in future) clients • HBase • For mapping of regions to region servers, location of ROOT node • Region server failure detection and failover • After UDBs more to HBase, ~100K permanent clients • Titan • Mapping of user to Prometheus web server within a cell • Leader election of Prometheus web server • Future: Selection of the Hbase geo-cell

  4. Use cases (contd) • Ads • Leader Election • Scribe • Leader election of scribe aggregators • Future customers • TAO • Sharding • MySQL • Leader Election • Search

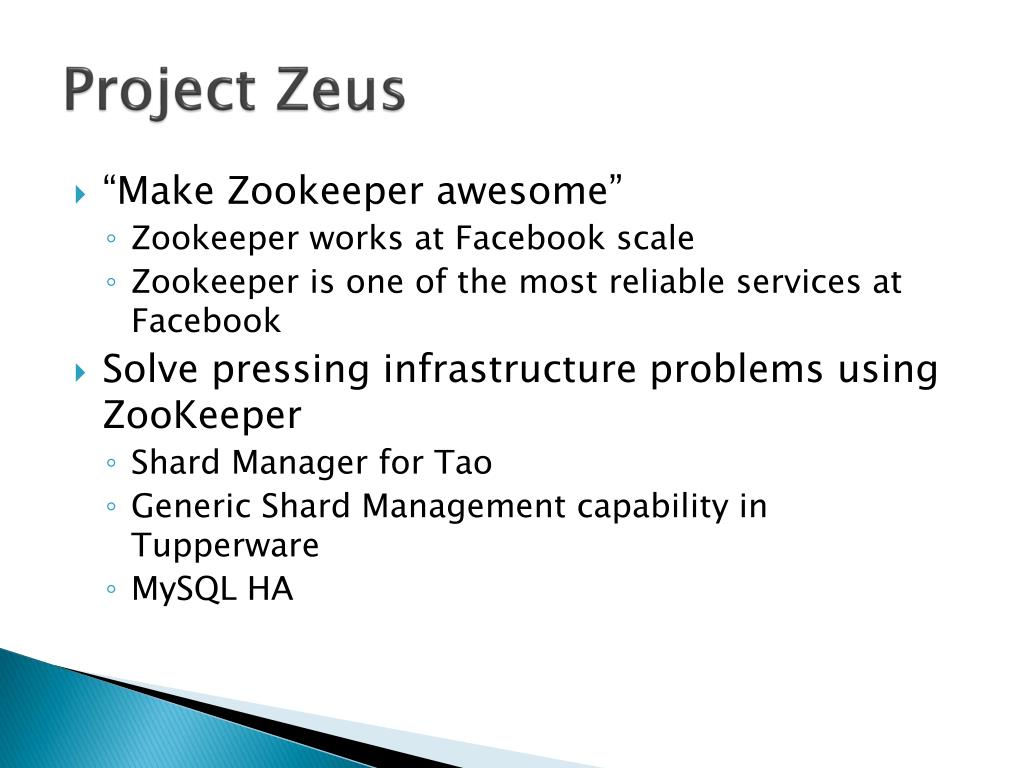

  5. Project Zeus • “Make Zookeeper awesome” • Zookeeper works at Facebook scale • Zookeeper is one of the most reliable services at Facebook • Solve pressing infrastructure problems using ZooKeeper • Shard Manager for Tao • Generic Shard Management capability in Tupperware • MySQL HA

  6. Caveats • Project is 5 weeks old • Initial sharing of ideas with the community • Ideas not yet whetted or proven through prototypes

  7. Tao Design • Shard Map • Based on ranges instead of consistent hash • Stored in ZooKeeper • Accessed by clients using Aether • Populated by Eos • Dynamically updated based on load information

  8. Tao Projected Workload • Scale requirements for a single cluster • 24,000 Web machines • Read only clients • 6,000 Tao server machines • Read/Write clients • About 20 clusters site wide • Shard Map is 2-3 MB of data

  9. Tao Workload Simulator • Clients • Read the shard map of local cluster after connection • Put a watch on the shard map • Refresh shard map after watch fires • Follower Servers • These servers are clients of the leader servers • Also read their own shard map • Leader Servers • Read their own shard map and of all of their followers • Shard Manager - Eos • Periodically updates the shard map

  10. Hardware • 3 node zookeeper ensemble • 8 core • 8G RAM • Clients – 20 node cluster • Web class machines • 12 G RAM

  11. Scenario - Steady State • Using Zookeeper ensemble per cluster model • Assumptions • 40K connections • Small number of clients joining/leaving at any time • Rare updates to the shard map – once every 10 minutes • Result • Zookeeper worked well in this

  12. Scenario - Cluster Power Up/Down • Cluster Powering Up • 25K Clients simultaneously trying to connect • Slow response time • It took some clients 560s to connect and get data • Cluster powering down • 25 K clients simultaneously disconnect • System Temporarily Unresponsive • The disconnect requests filled zookeeper queues • System would not accept any more new connections or requests • After a short time, the disconnect requests were processed and the system became responsive again

  13. Scenario – Zookeeper Node Failure • Rolling Restart of ZooKeeper Nodes • Startup/Shutdown of entire cluster • With active clients • Without active clients • Result • No corruptions or system hangs noticed so far

  14. Zookeeper Design • Client connect/disconnect is a persisted update involving all nodes • The ping and connection timeout handling is done by the leader for all connections • Single thread handling connect requests and data requests • Zookeeper is implemented as a single threaded pipeline. • All reads are serialized • Low read throughput • Uses only 3 cores at full load

  15. Zookeeper Improvement Ideas • Non persisted sessions with local session tracking • Hacked a prototype to test potential • Initial test runs very encouraging • Dedicated connection creation thread • Prototyped, test runs in progress • Multiple threads for deserializing incoming requests

  16. Zookeeper Improvement Ideas • Dedicated parallel pipeline for read only clients
