  1. Theory and Application of Multiple Sequence Alignments a.k.a What is a Multiple Sequence Alignment, How to Make One, and What to Do With It Brett Pickett, PhD

  2. History • Structure of DNA discovered (1953) • First (phage) genome determined in 1977 • Human genome project begun in 1990 • First living organism (H.i.) sequenced in 1995 • Human “Rough draft” completed in 2000 • NHGRI (public) vs. J. Craig Venter (private) • Used “super” computer to put human genome together in right order

  3. What is a Genome? • Genetic material required for organism to replicate • Eukaryotes (Humans): # chromosomes • Prokaryotes (Bacteria): 1 chromosome • Viruses: “what’s a chromosome?” • 10 trillion cells in human body X 2m = 3.2 Gb • 780,000 times around Earth • 67.8 roundtrips to the sun • Bacteria (580 kb- 10 Mb) • Virus (3.5 kb – 1.3 Mb) http://www.rsc.org/chemsoc/timeline/pages/2001.html

  4. Why are Genomes so Important? • Encode all organismal functions • DNA -> RNA -> protein • Unique to each organism • Find differences (mutations) only by comparing genomes with each other www.thednastore.com/images/cells/mrdna1.jpg

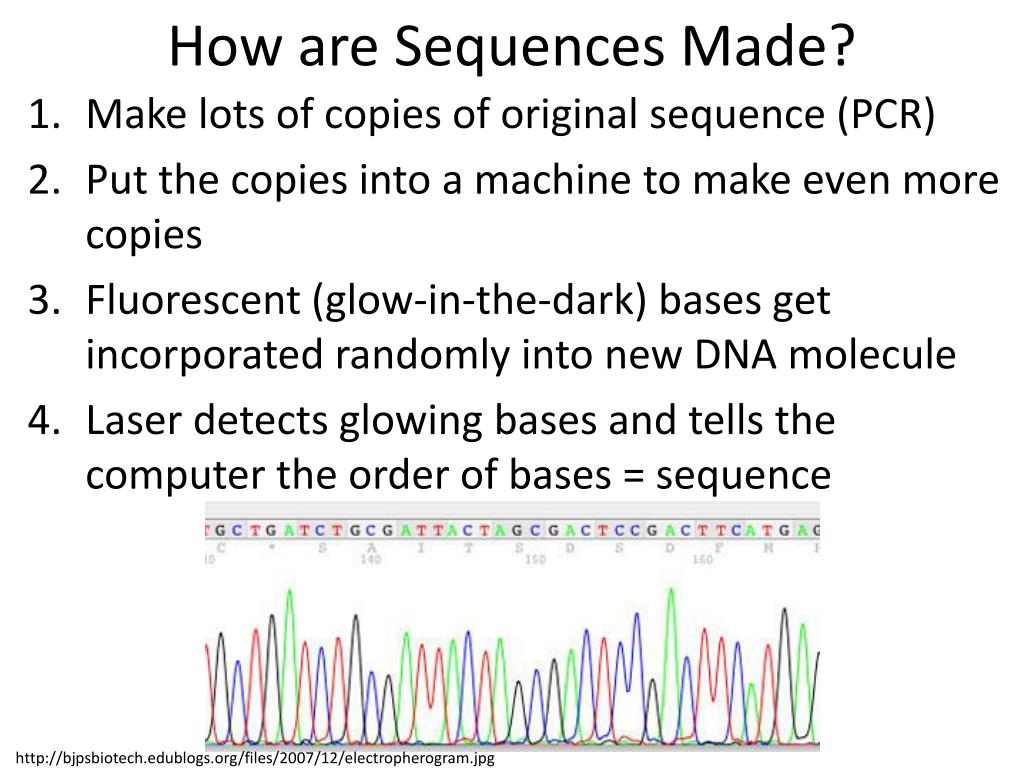

  5. How are Sequences Made? • Make lots of copies of original sequence (PCR) • Put the copies into a machine to make even more copies • Fluorescent (glow-in-the-dark) bases get incorporated randomly into new DNA molecule • Laser detects glowing bases and tells the computer the order of bases = sequence http://bjpsbiotech.edublogs.org/files/2007/12/electropherogram.jpg

  6. What’s the Next Step? • After sequence is determined, then what? • Make sense of it by comparing with other related (homologous) sequences • Multiple Sequence Alignment

  7. What is an Alignment? Unaligned Aligned • Lining up related (homologous) positions • Allows comparison

  8. Comparing Sequences (Genomes) • All DNA contains a unique genetic “fingerprint” • Similarity reveals • Related function • Shared evolutionary history education.vetmed.vt.edu/.../FINGERPRINT.jpg

  9. Aligning with Computational Methods • Computers can’t “see” patterns • Use math to find best alignment by assigning scores • Match • Mismatch • Gap • Internal • Insertion / deletion (indel) • Terminal • Missing information?

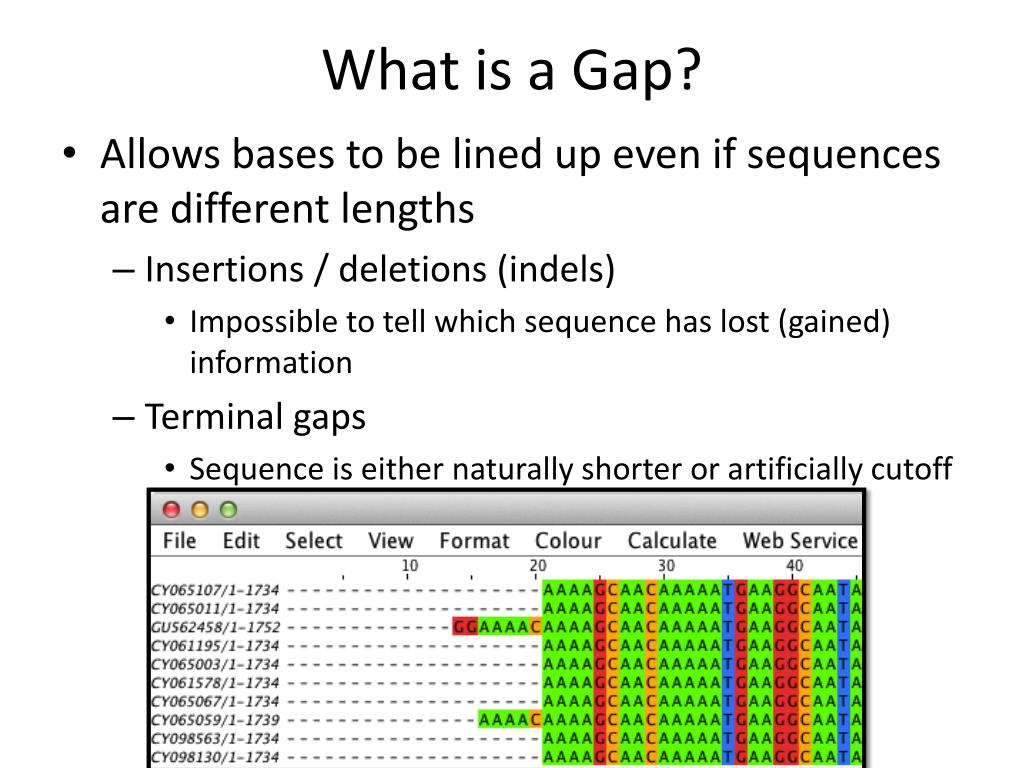

  10. What is a Gap? • Allows bases to be lined up even if sequences are different lengths • Insertions / deletions (indels) • Impossible to tell which sequence has lost (gained) information • Terminal gaps • Sequence is either naturally shorter or artificially cutoff

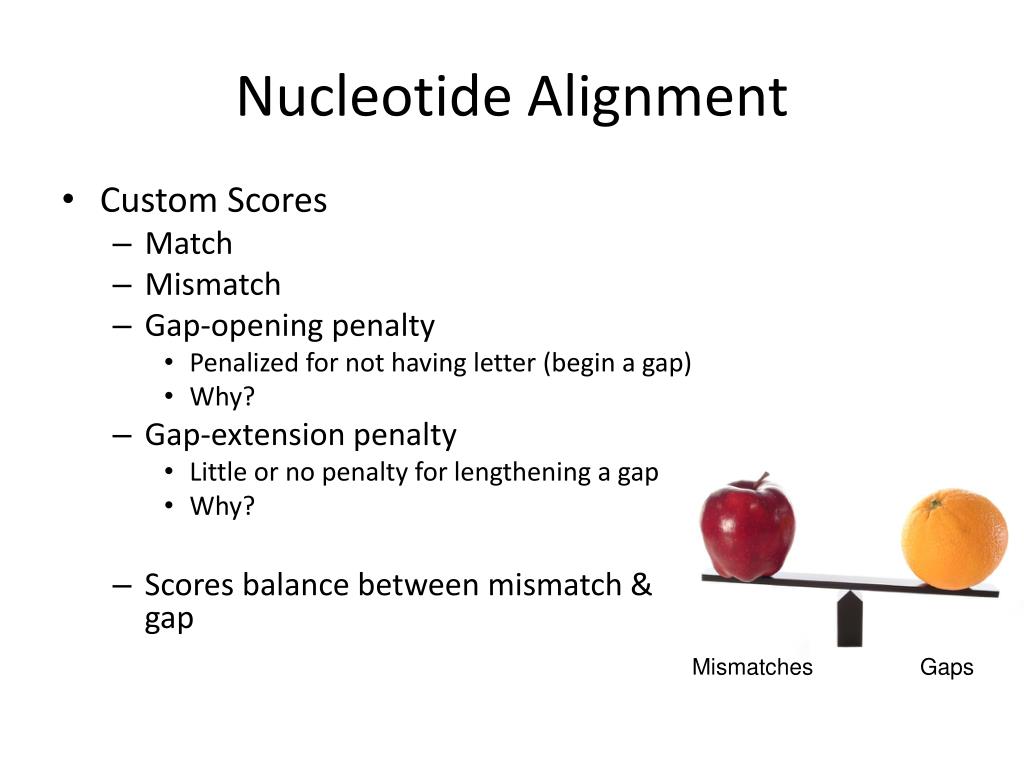

  11. Nucleotide Alignment • Custom Scores • Match • Mismatch • Gap-opening penalty • Penalized for not having letter (begin a gap) • Why? • Gap-extension penalty • Little or no penalty for lengthening a gap • Why? • Scores balance between mismatch & gap Gaps Mismatches

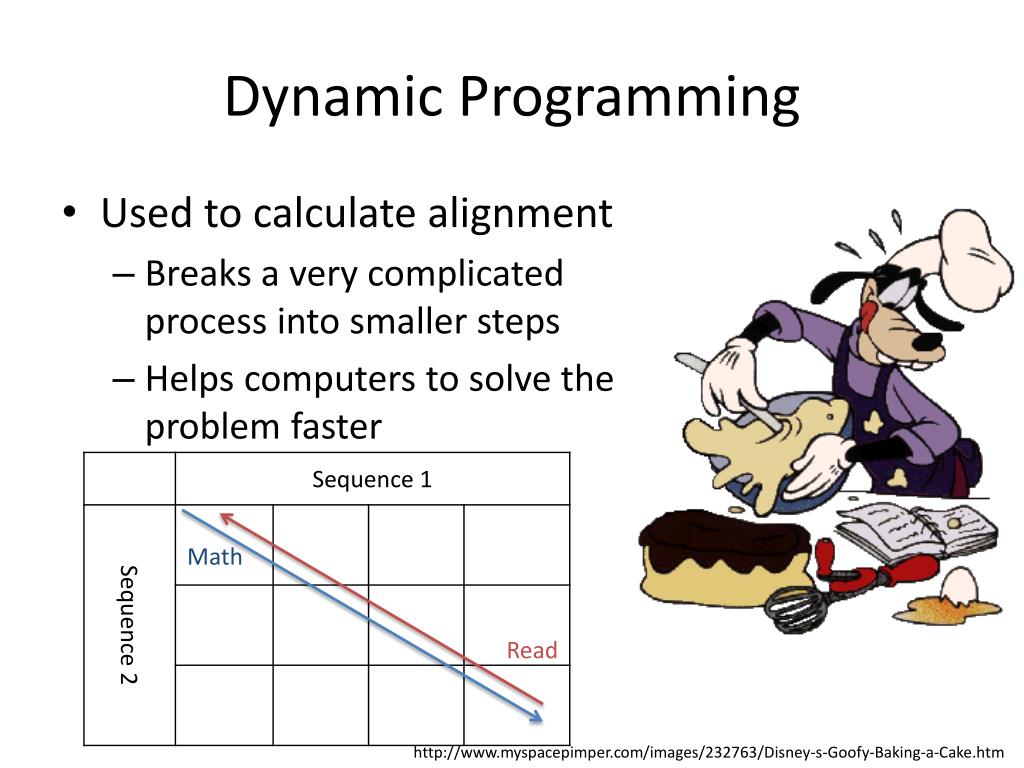

  12. Dynamic Programming • Used to calculate alignment • Breaks a very complicated process into smaller steps • Helps computers to solve the problem faster Math Read http://www.myspacepimper.com/images/232763/Disney-s-Goofy-Baking-a-Cake.htm

  13. Manual Alignment Match = 5 Mismatch = -2 Gap Opening = -4 Gap Extension = 0 Traceback: Follow the highest scores back to the beginning Up or sideways = gap, diagonal = homology (line up) A - A A T T C C

  14. Computer-Generated Alignment • Much faster than we are • 2 GHz = 2B calculations per second • Don’t get tired, make mistakes, or get handcramps

  15. Alignment Process

  16. Types of Alignment • Global • Aligns entire sequence • Permits gaps • Forced even if sequences not homologous • Local • Aligns longest region possible with minimal (no) gaps

  17. Beware! • The computer is not always right • Alignments • Optimal: highest score • True: evolutionarily correct • Can be improved • Hard for computer to accurately place indels (gaps) • Apply prior knowledge--codons Nucleotide Sequence Amino Acid Sequence AA- ACC C ??? Thr ? Asn Lys - AAA CCC Lys Pro vs.

  18. BLAST • Basic Local Alignment Search Tool • Most frequently used alignment tool • Local alignment of 1 sequence (query) against all known sequences (subjects) in database • Uses a “heuristic” to reduce number of sequences it actually has to align • Like using “Google” to find most homologous sequences

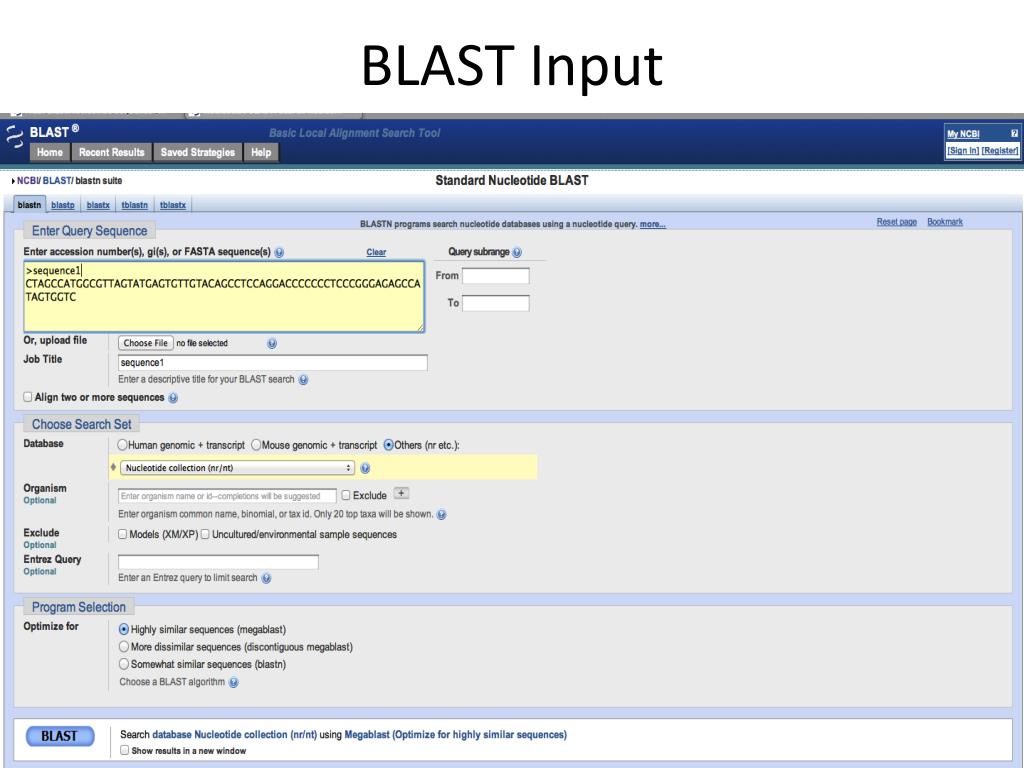

  19. BLAST Input

  20. BLAST Output

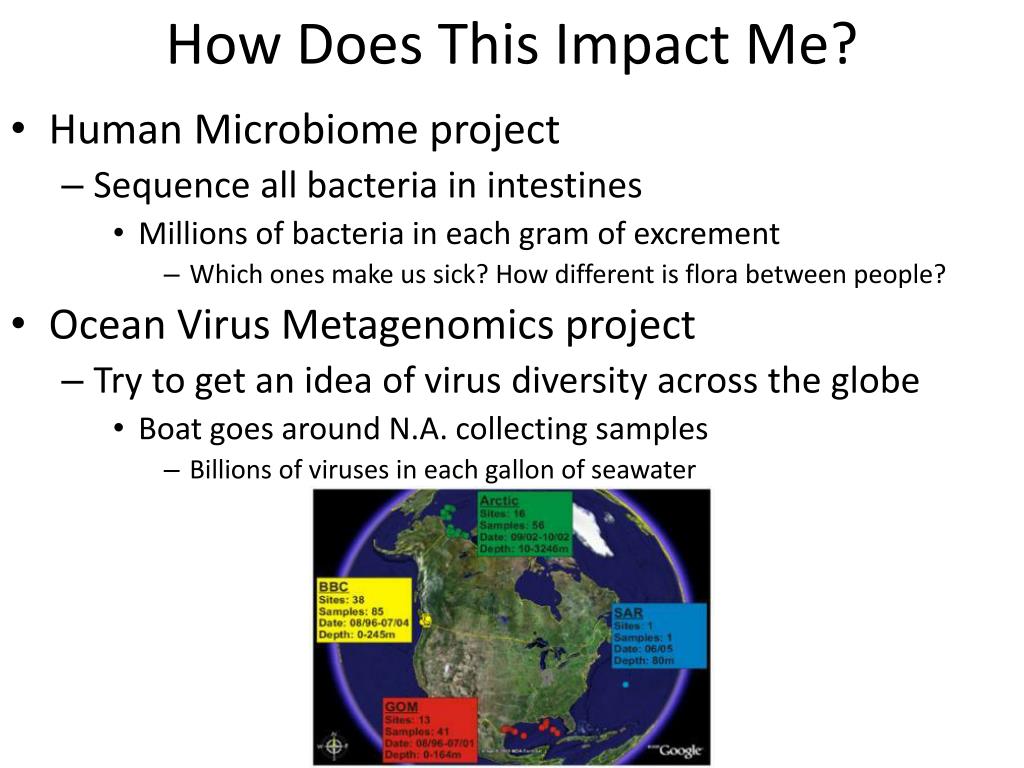

  21. How Does This Impact Me? • Human Microbiome project • Sequence all bacteria in intestines • Millions of bacteria in each gram of excrement • Which ones make us sick? How different is flora between people? • Ocean Virus Metagenomics project • Try to get an idea of virus diversity across the globe • Boat goes around N.A. collecting samples • Billions of viruses in each gallon of seawater

  22. How Does This Impact Me (cont’d)? • Used to take swabs, grow colonies on agar • Antimicrobial resistance in turkeys • Sequencing removes middle step • How to quickly assign genus and species to new sequences? • BLAST • Project: New Phage from ponds

  23. Other Uses for Alignments

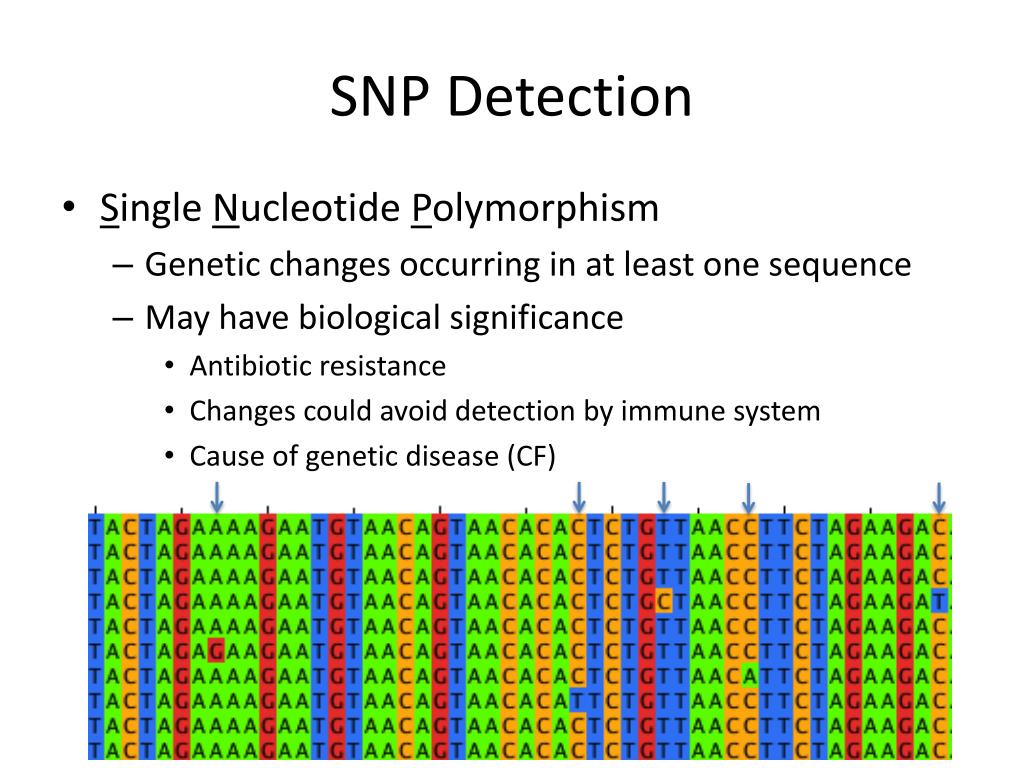

  24. SNP Detection • Single Nucleotide Polymorphism • Genetic changes occurring in at least one sequence • May have biological significance • Antibiotic resistance • Changes could avoid detection by immune system • Cause of genetic disease (CF)

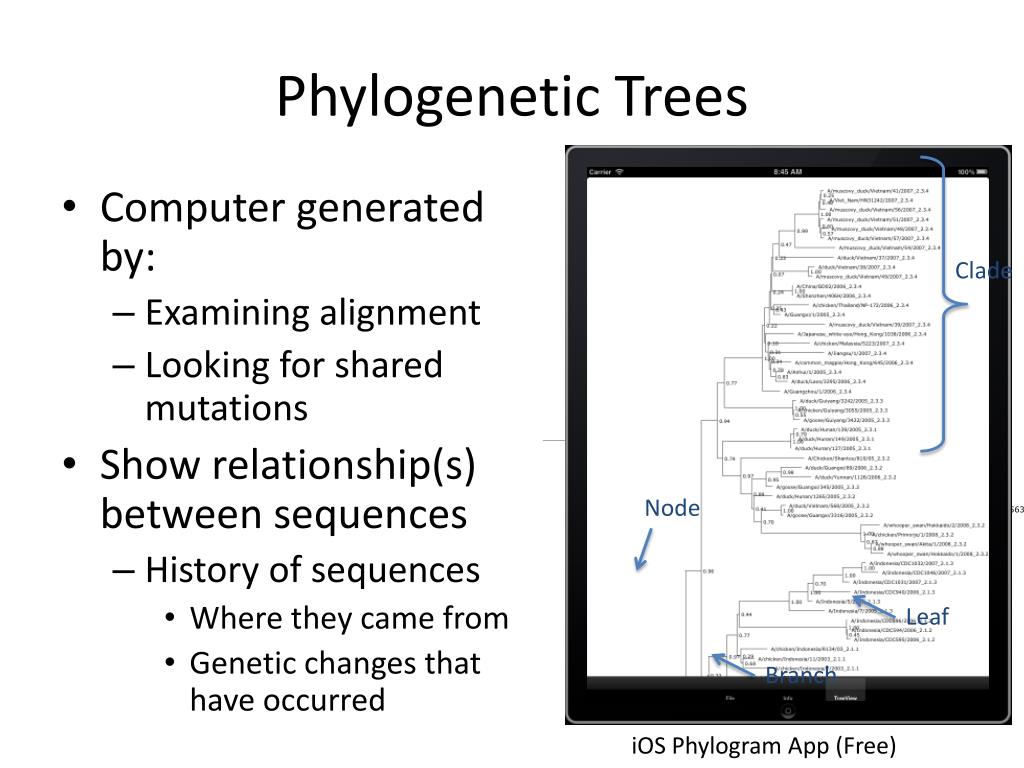

  25. Phylogenetic Trees • Computer generated by: • Examining alignment • Looking for shared mutations • Show relationship(s) between sequences • History of sequences • Where they came from • Genetic changes that have occurred Clade Node Leaf Branch iOSPhylogram App (Free)

  26. Recombination RdRP Daughter Sequence Major Parent • Can occur in all types of organisms • Eukaryotes • Prokaryotes • Viruses • May change characteristic of organism • Make you sick (or not) • Not recognized by immune system • Fast way of getting lots of genetic changes Genome 1 Minor Parent Breakpoint Genome 2

  27. Reassortment • Chromosomes (segments) from one organism replace those from another • May change characteristic of organism • Make you sick (or not) • Not recognized by immune system • Fast way of getting lots of genetic changes = +

  28. Other Analysis Options • Align Sequences • Look for genetic changes (genotype) that are associated with traits (phenotype) • Host • How sick it makes you • Drug resistance • Inherited disease • Do any mutations consistently accompany the traits? • Genome Wide Association Studies http://lovestats.wordpress.com/dman/

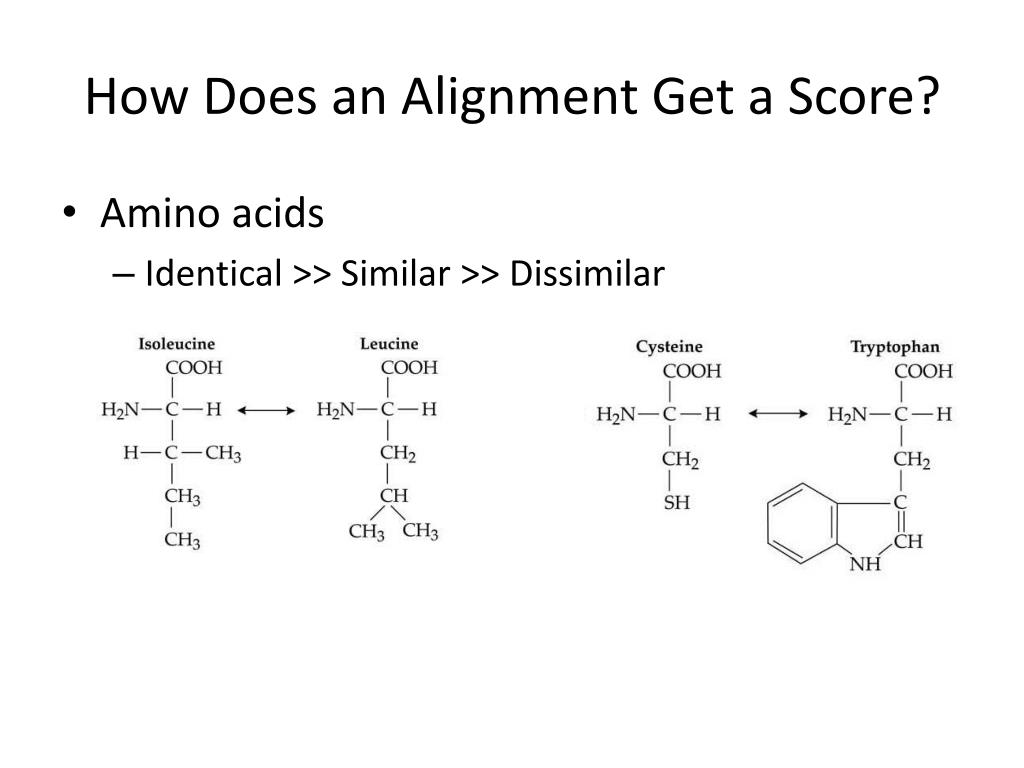

  29. How Does an Alignment Get a Score? • Amino acids • Identical >> Similar >> Dissimilar

  30. Score Lookup Table (Matrix) Symmetrical Positive Scores on Diagonal (Matches) Some Mismatches get Negative Scores Some Mismatches don’t
