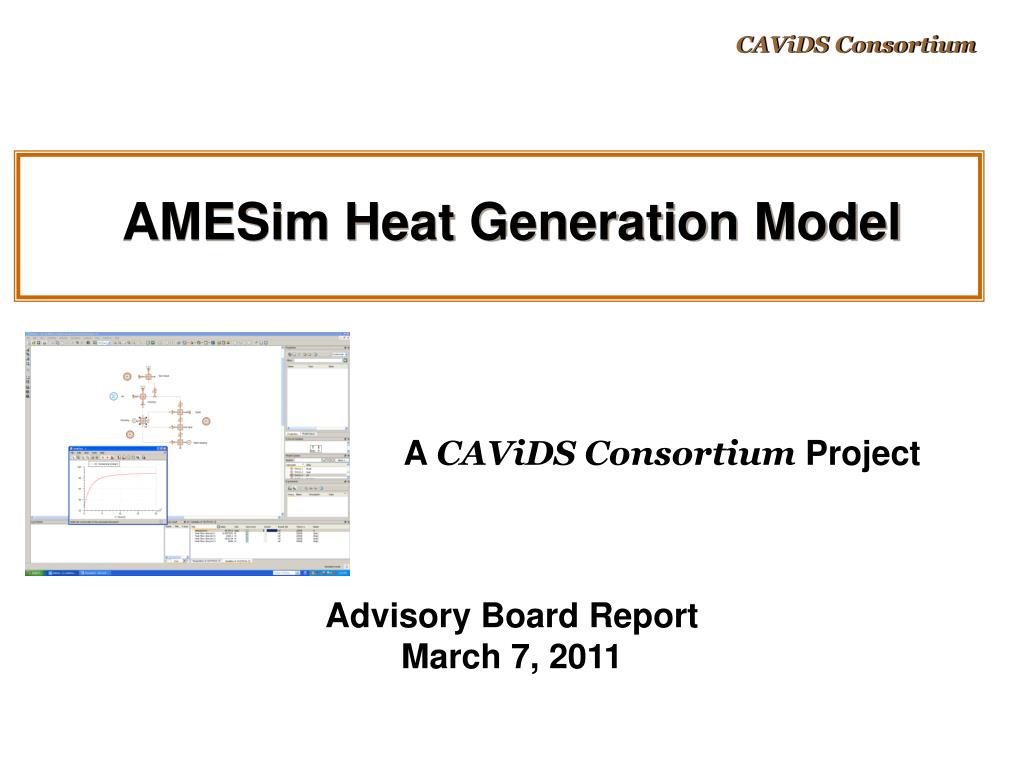

  1. CAViDS Consortium AMESim Heat Generation Model A CAViDS Consortium Project Advisory Board Report March 7, 2011

  2. CAViDS Consortium Project Objective • Develop an AMESim heat generation model of a gearbox system which compares favorably with experimental results.

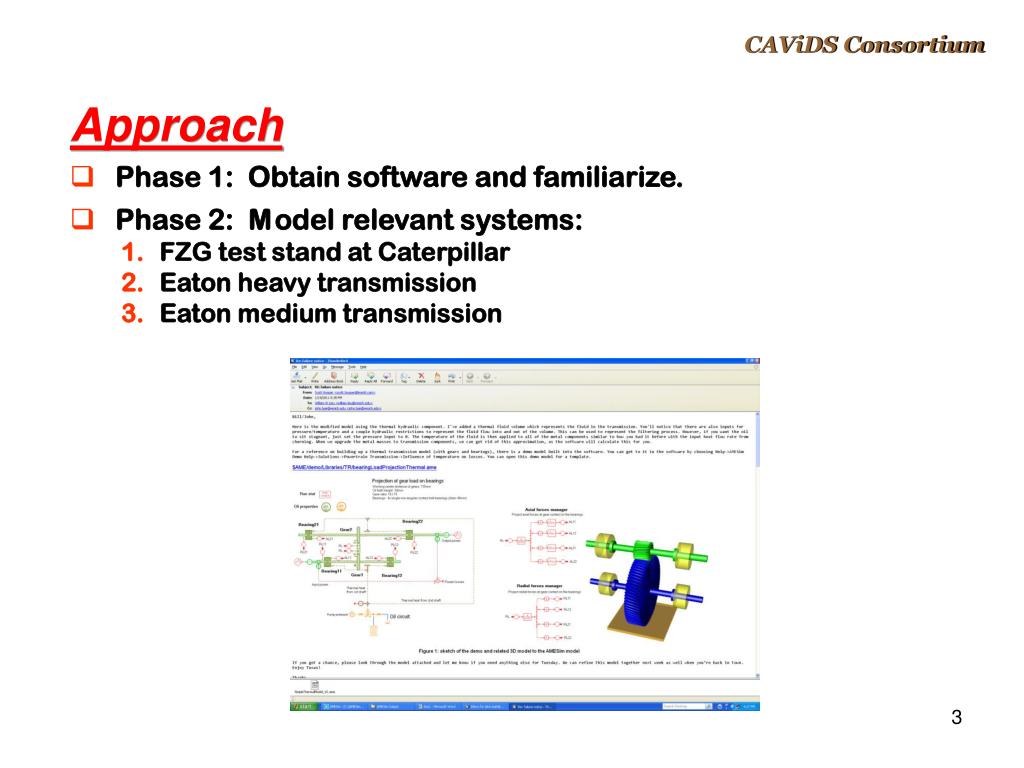

  3. CAViDS Consortium Approach • Phase 1: Obtain software and familiarize. • Phase 2: M odel relevant systems: • FZG test stand at Caterpillar • Eaton heavy transmission • Eaton medium transmission

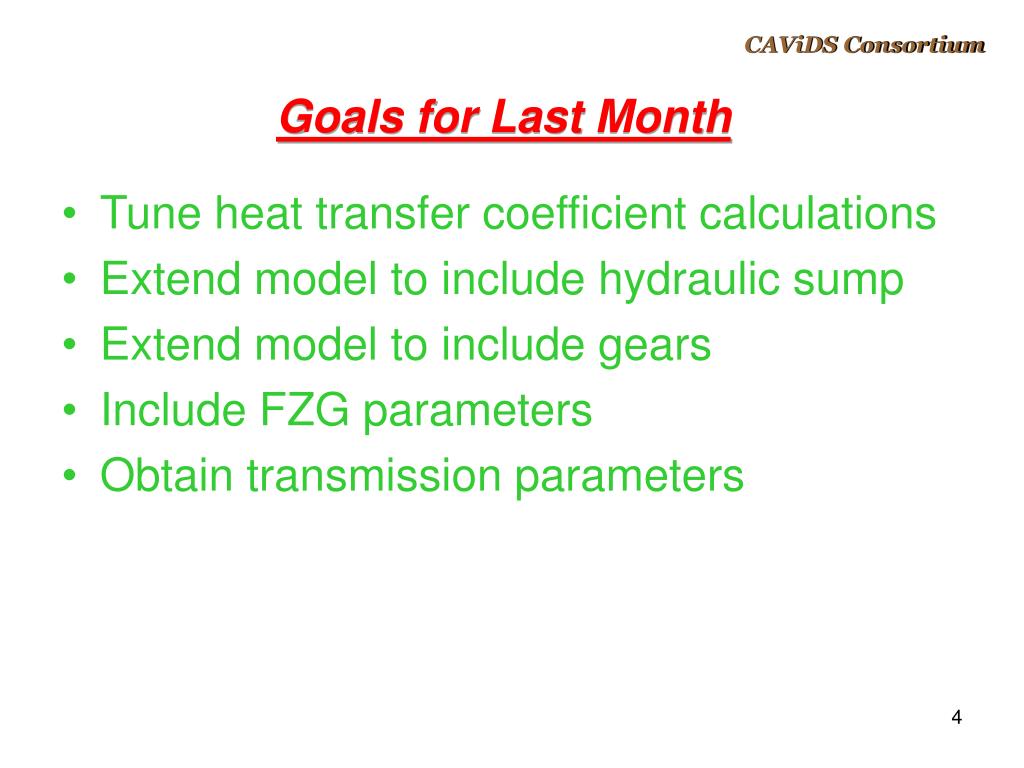

  4. CAViDS Consortium Goals for Last Month • Tune heat transfer coefficient calculations • Extend model to include hydraulic sump • Extend model to include gears • Include FZG parameters • Obtain transmission parameters

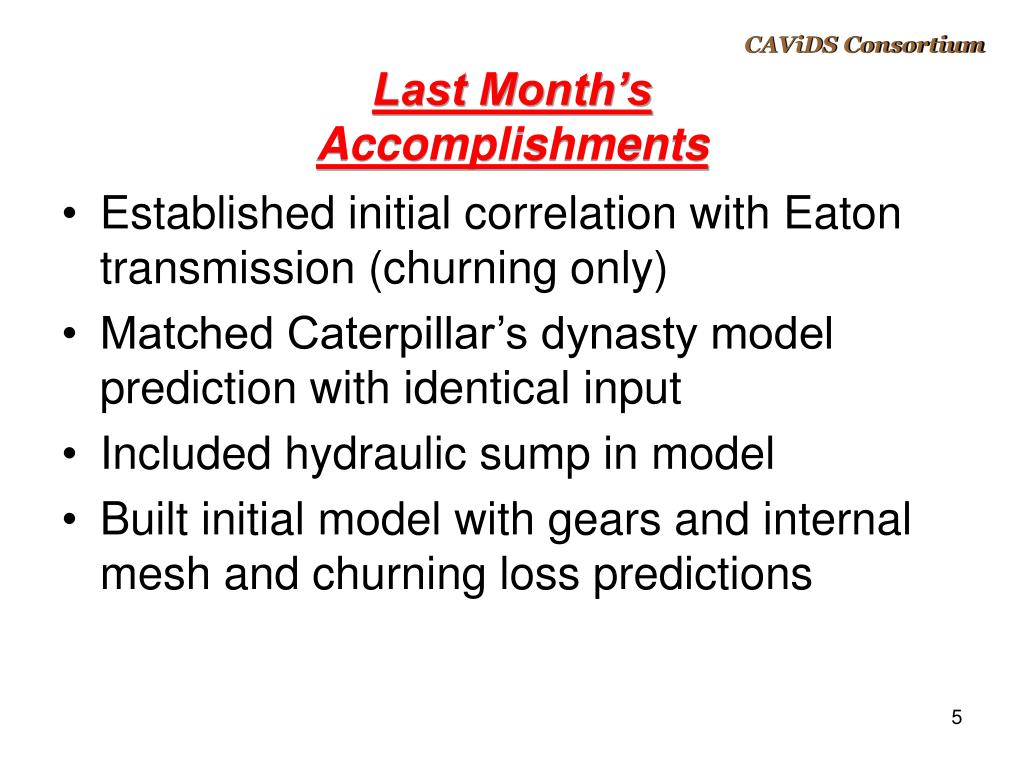

  5. CAViDS Consortium Last Month’s Accomplishments • Established initial correlation with Eaton transmission (churning only) • Matched Caterpillar’s dynasty model prediction with identical input • Included hydraulic sump in model • Built initial model with gears and internal mesh and churning loss predictions

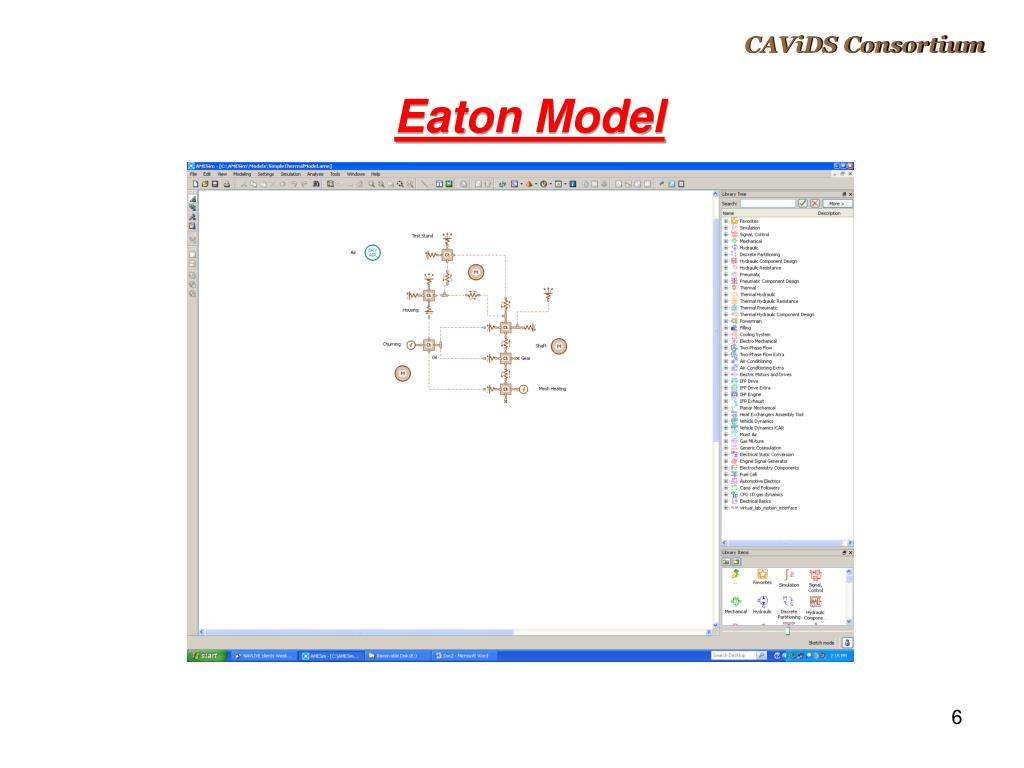

  6. CAViDS Consortium Eaton Model

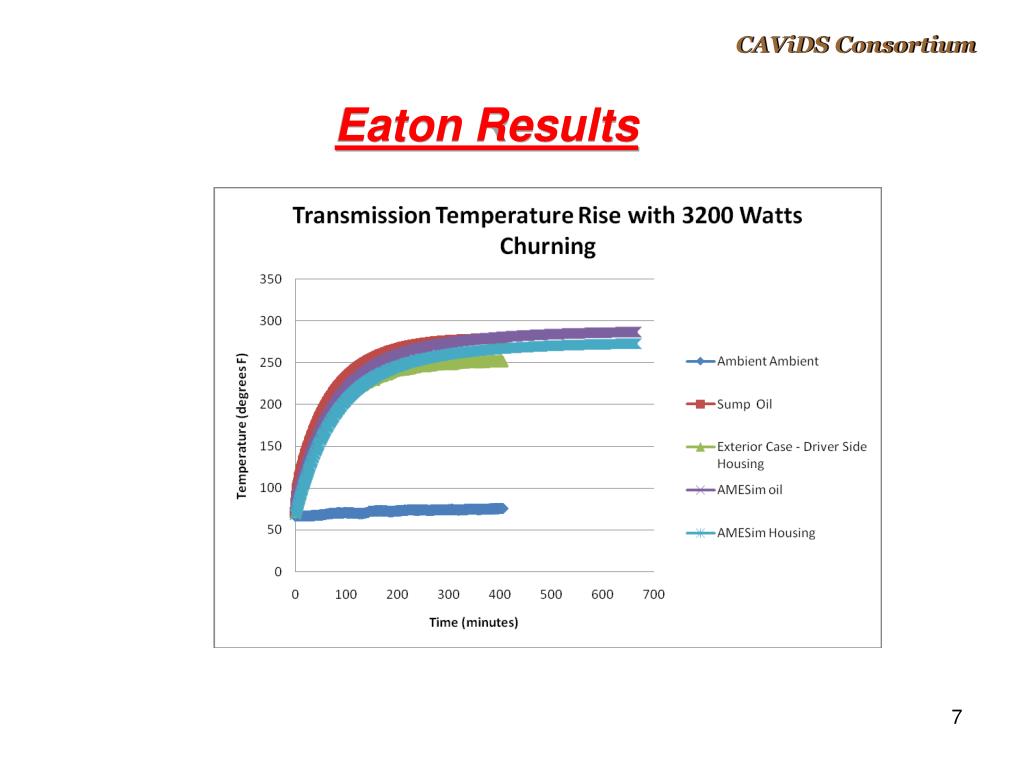

  7. CAViDS Consortium Eaton Results

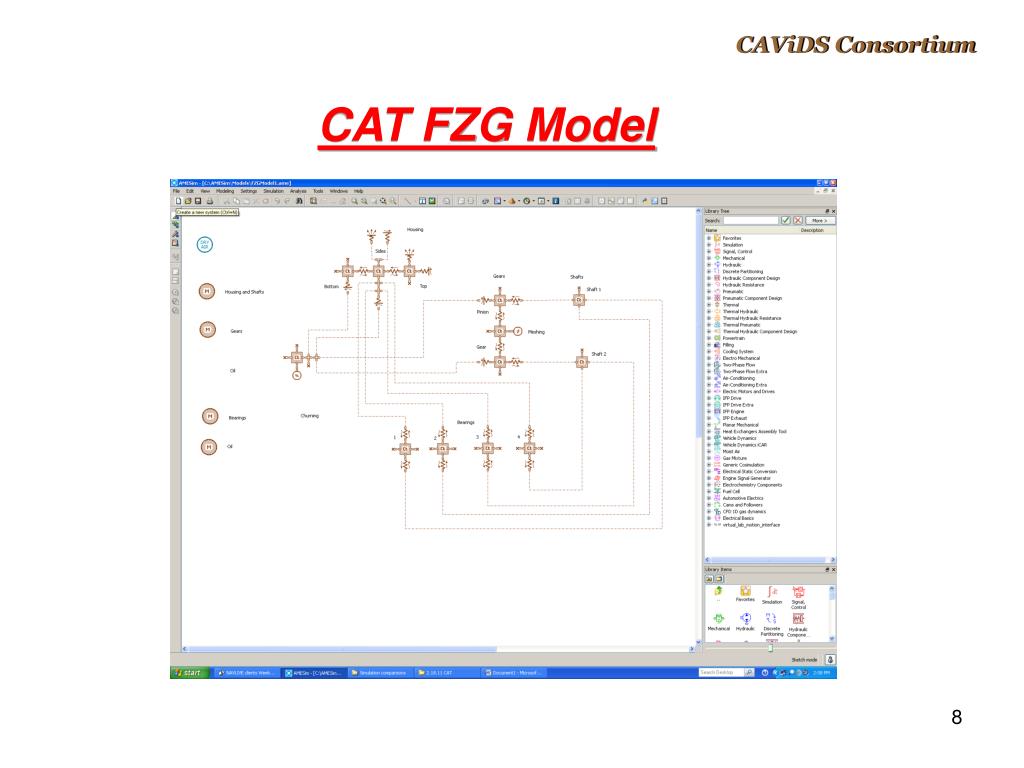

  8. CAViDS Consortium CAT FZG Model

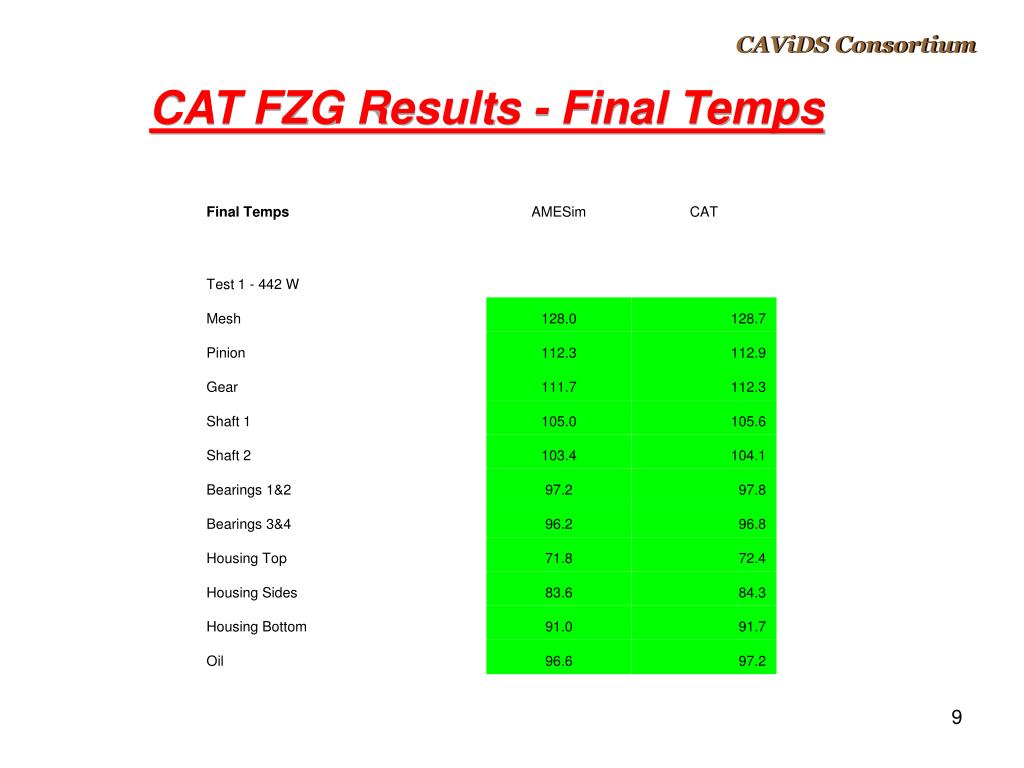

  9. CAViDS Consortium CAT FZG Results - Final Temps

  10. CAViDS Consortium CAT FZG ResultsTemp Rise Test 1

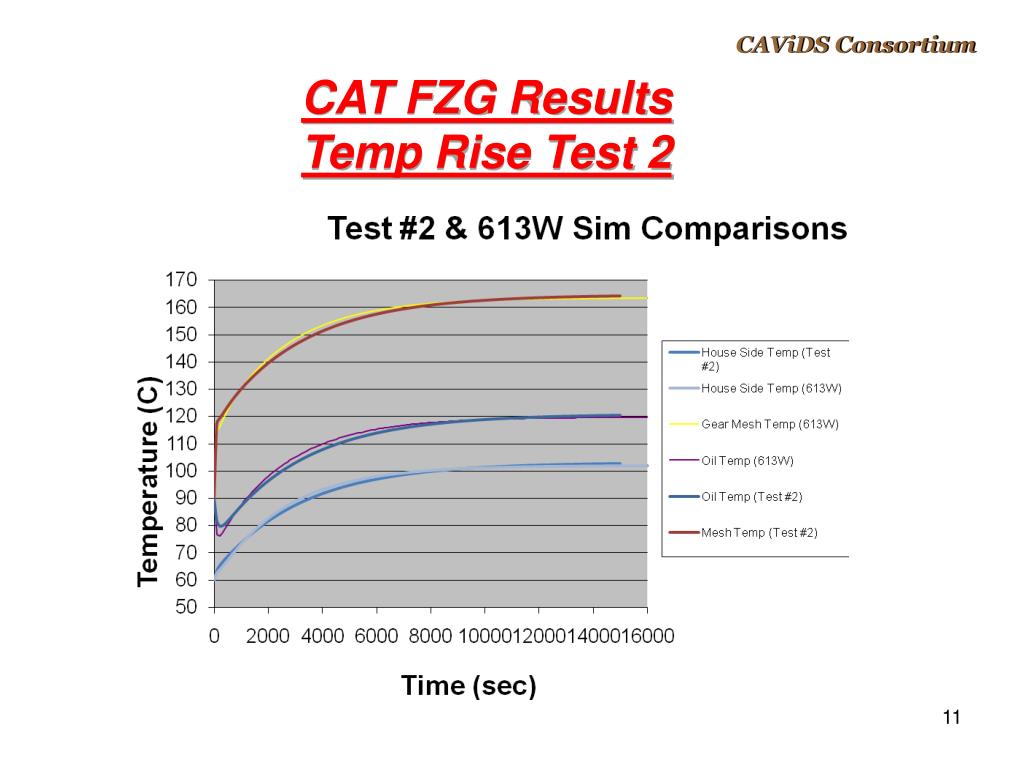

  11. CAViDS Consortium CAT FZG Results Temp Rise Test 2

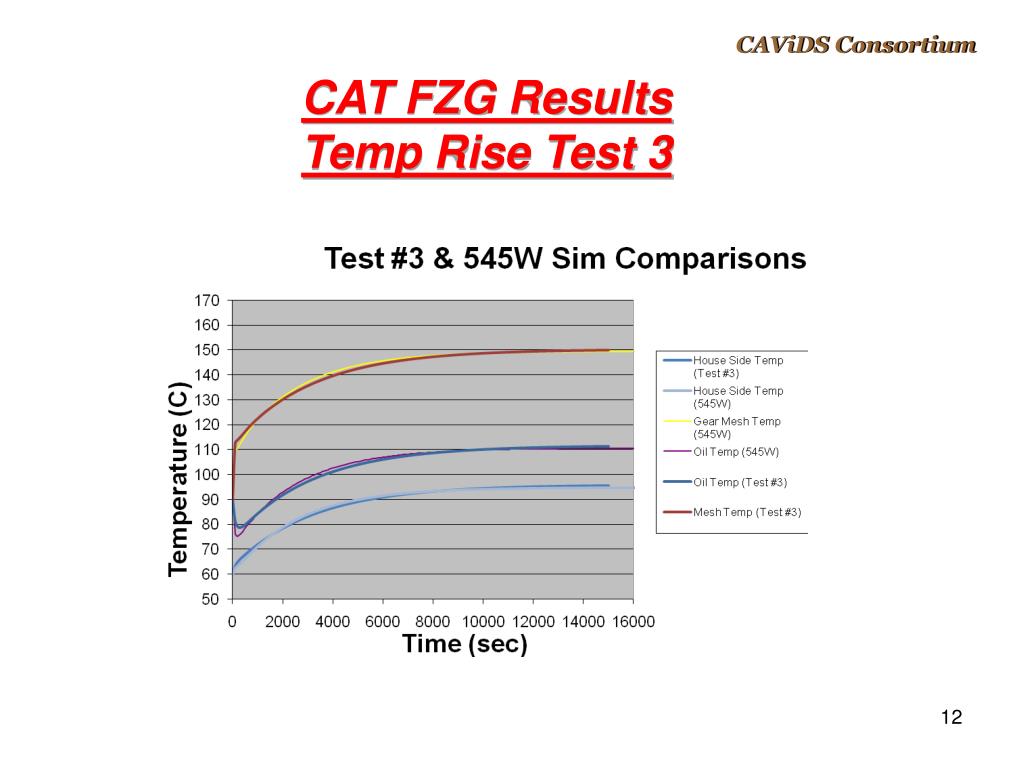

  12. CAViDS Consortium CAT FZG Results Temp Rise Test 3

  13. CAViDS Consortium Hydraulic Sump

  14. CAViDS Consortium Geared Model

  15. CAViDS Consortium Next Month • Build detailed Eaton transmission model • Correlate with Eaton data (if available)

  16. CAViDS Consortium Notes • Software easy to use • LMS has great support • Capabilities will meet our needs • University license $3000 for year
