  1. Transformer MerzaJehadAl-khunaizi Abdul-Rahman AL-Dabal Ali Zohair Al-Alawi

  2. History of Transformer • The first AC power system that used the modern transformer was in 1886 • By William Stanley.

  3. Three Phase Transformer • Two of the early Three-Phase Transformer.

  4. Why do we use high voltages? • The voltage transmitted by the power plant is very high. • The voltage in houses is 110-220 V. • Electric devices need less voltage.

  5. How does Transformer Work?

  6. Types of Transformer • Step-Up Convert from low voltage to high voltage.

  7. Types of Transformer • Step-Down Convert from high voltage to low voltage.

  8. Transformer Applications • Mobile Charger

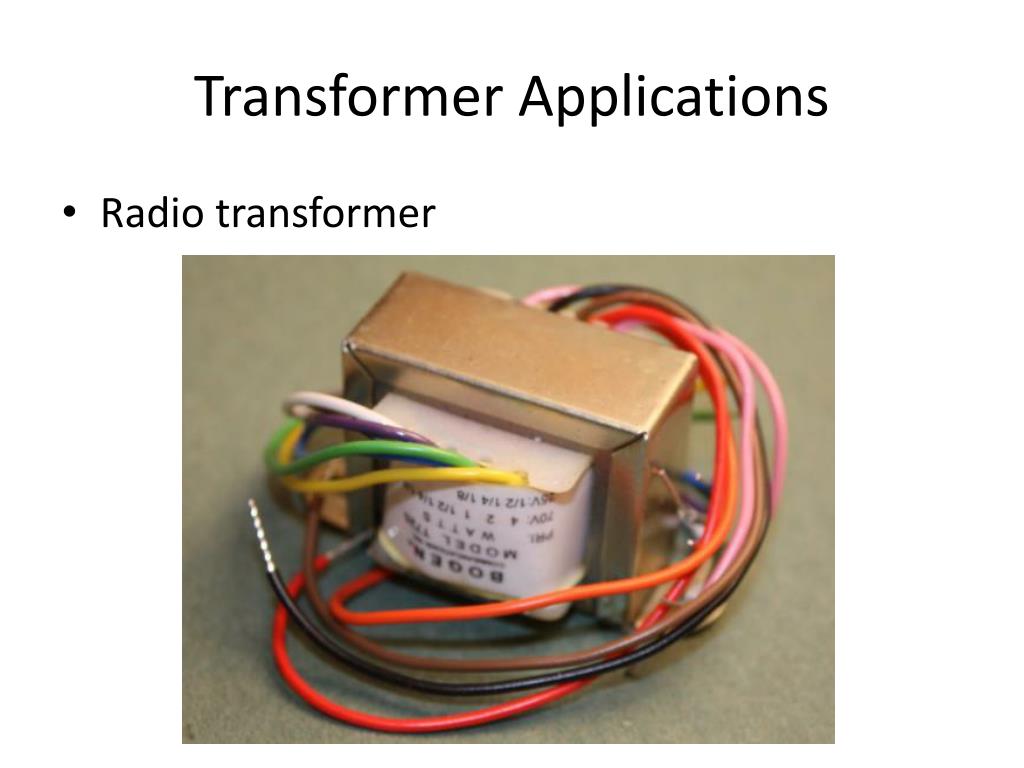

  9. Transformer Applications • Radio transformer

  10. Transformer Applications • Car power supply transformer

  11. Transformer Manufacturing

  12. Transformer Manufacturing Component of the transformer:- • Paper coded with Epoxy Glue. • Lamina strips.

  13. Transformer Manufacturing Component of the transformer:- • Cooper wire (Coil). • Electrical steel (Core). • Metal strapping.

  14. References • http://www.Explainthatstuff.com/transformers.html • http://www.edisontechcenter.org/Transformers.html • http://www.dave-cushman.net/elect/transformers.html • How does transformer work? • http://www.youtube.com/watch?v=VucsoEhB0NA • Transformer Manufacturing • http://www.youtube.com/watch?v=ANK--5Fu518
