  1. Congestion Control Algorithms: Open Questions Benno Overeinder NLnet Labs

  2. What This Talk is Not About • Details of TCP congestion avoidance and control algorithms • Research on improvements of TCP congestion avoidance algorithms • Measurements of TCP congestion avoidance algorithm performance • None of this, but • highlight current open question and future research

  3. Congestion Control Over the Years • Global congestion collapse (1986) • TCP Tahoe (1988) and TCP Reno (1990) • TCP New Reno (1998) • … • TCP over long fat networks (2002–2003) • TCP and bufferbloat (2011)

  4. Common Congestion Control Algorithms • FreeBSD/Solaris • TCP New Reno • Reno: “classic” congestion avoidance • improves retransmission during the fast-recovery phase • Linux • TCP CUBIC • BIC: optimized congestion control algorithm for LFN • CUBIC: less aggressive and more systematic derivative • Windows • Compound TCP • achieve good performance for LFNs, while not harm fairness

  5. Fairness One mechanism at a time Mixed mechanisms

  6. Shape of Congestion Window Increase Function

  7. Shape of Congestion Window Increase Function

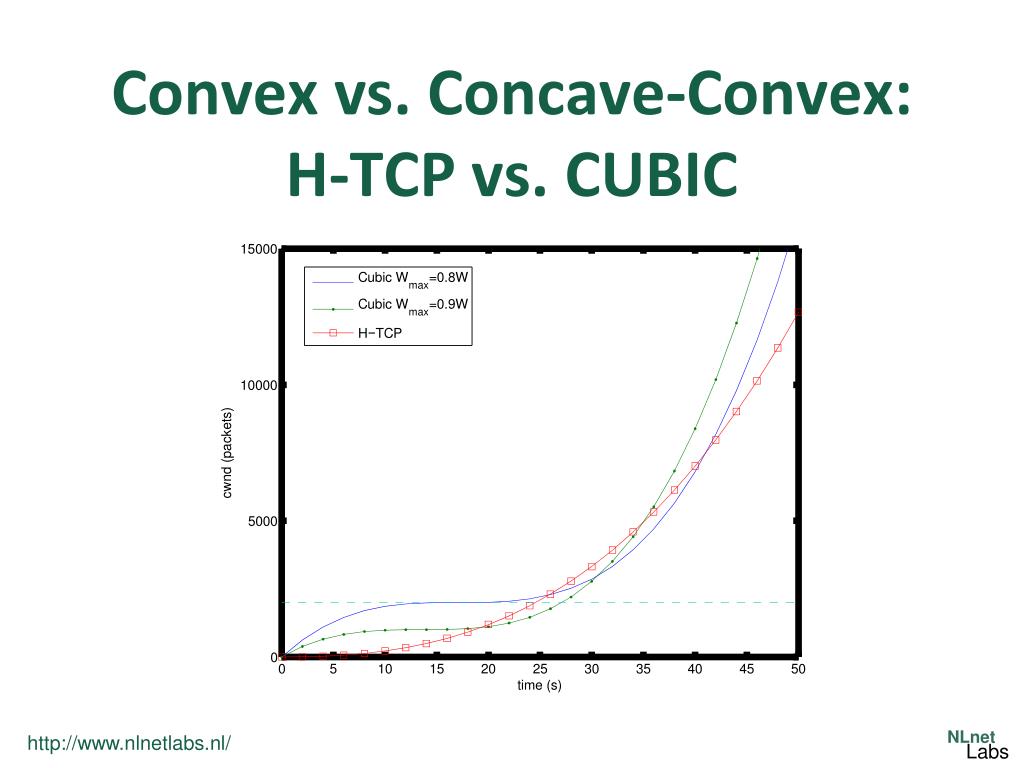

  8. Convex vs. Concave-Convex: H-TCP vs. CUBIC

  9. Distribution of cwnd for Convex and Concave Increase Distribution of cwnd at back-off for convex and concave updates versus loss probability. Key: + convex, o concave-convex

  10. Buffering and Bufferbloat

  11. Impact of Buffering Throughput and cwnd for Reno, buffer size 1 x BPD, 10 MBps link, 100 ms RTT. With buffering, flow throughput and cwnd are fundamentally different quantities, and only weakly related.

  12. Bufferbloat • Trend to provide large buffers to network equipment • rule of thumb buffer to accommodate 250 ms traffic • e.g., 1 Gb/s interface requires 32 MB buffer • Flow of packets slows down traveling from fast to slow network • buffer absorbs, temporary delay packets • packets queued in network only drops if buffer is full • TCP congestion algorithm • relies on packet drops to determine available bandwidth • keeps speeding up and slowing down the transmission rate to find equilibrium • packet drops must occur in a timely manner • …

  13. Active Queue Management (AQM) • Random Early Detection (RED) • random and early notification of congestion • variants FRED, SRED, with notion of flows • no synchronisationà la drop-tail • CHOKe • penalize misbehaving flows • similar to SRED, but less complex • CoDel • improve overall performance of RED • easier to manage, does not require manual configuration

  14. Congestion Control, Latency, and AQM

  15. Concluding

  16. Remy Computer-Generated Congestion Control • Specify • prior knowledge and assumptions of network • objective to achieve (e.g., throughput and delay) • Outperforms existing (w/ ns2 simulations) • TCP New Reno, TCP Cubic, Compound (at end-points) • in many cases outperforms Cubic/FQ-CoDeL (requires network changes) Results for dumbbell topology, n=12, 15 Mbps.

  17. Summary • Congestion control problem has changed • from: there is congestion, what do we do? • via: networks are empty, what do we do? • to: how do we get all this stuff deployed and let it interoperate? • After 20+ years still interesting and important problem • One size does not fit all? • FreeBSD modCC dynamic load/unload CC algorithm • For discussion: Internet at large might agree on model to prepare a “one-size-fits-all” Remy? • IETF/IRTF • IETF: AQM, CONEX, RMCAT • IRTF: ICCRG
