Sequence comparison and Phylogeny. based on Chapter 4 Lesk, Introduction to Bioinformatics. Contents. Motivation Sequence comparison and alignments Dot plots Dynamic programming Substitution matrices Dynamic programming: Local and global alignments and gaps BLAST
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation
Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement.Téléchargez la présentation en cliquant sur ce lien.Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.
Contents Motivation Sequence comparison and alignments Dot plots Dynamic programming Substitution matrices Dynamic programming: Local and global alignments and gaps BLAST Significance of alignments Multiple sequence alignments Phylogenetic trees

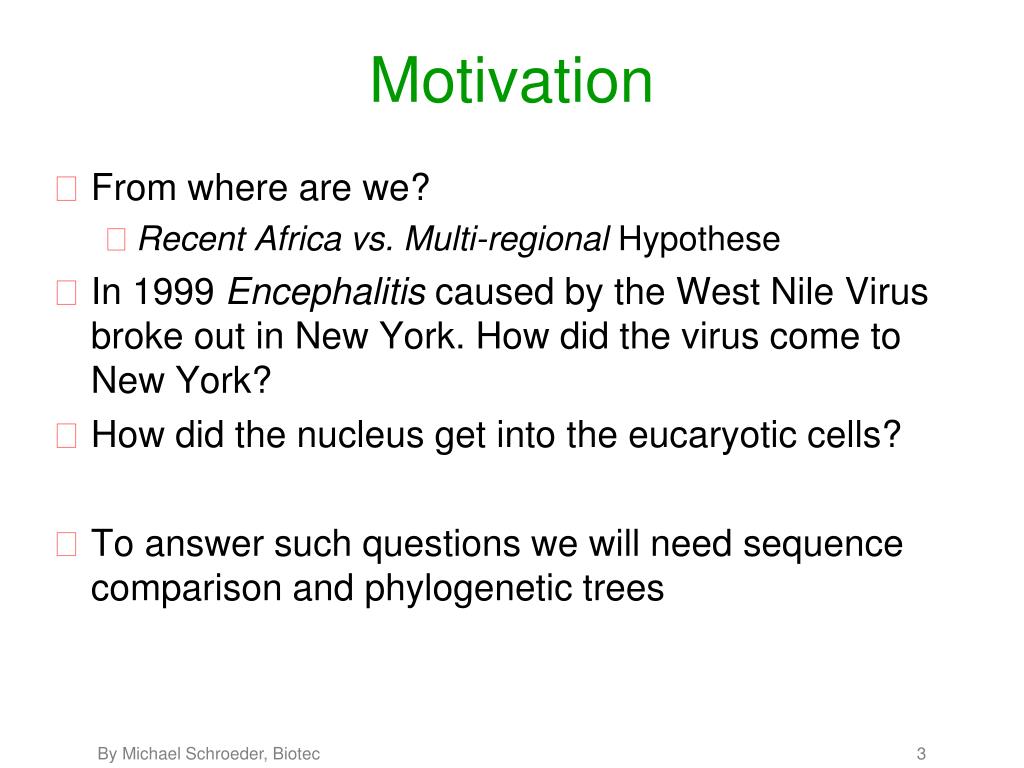

Motivation From where are we? Recent Africa vs. Multi-regional Hypothese In 1999 Encephalitis caused by the West Nile Virus broke out in New York. How did the virus come to New York? How did the nucleus get into the eucaryotic cells? To answer such questions we will need sequence comparison and phylogenetic trees
Sequence Similarity Searches Sequence similarity can be due to a common evolutionary ancestor… E.g. globin genes in chimpanzees and humans … or common function E.g. v-sys oncogene in simian sarcoma virus leading to cancer in monkeys and the seemingly unrelated growth stimulating protein PDGF, which stimulates cell growth (first success of similarity idea, 1983) In general: If an unknown sequence is found, deduce its function/structure indirectly by finding similar sequences, whose function/structure is known Assumption: Evolution changes sequences “slowly” often maintaining main features of a sequence’s function/structure

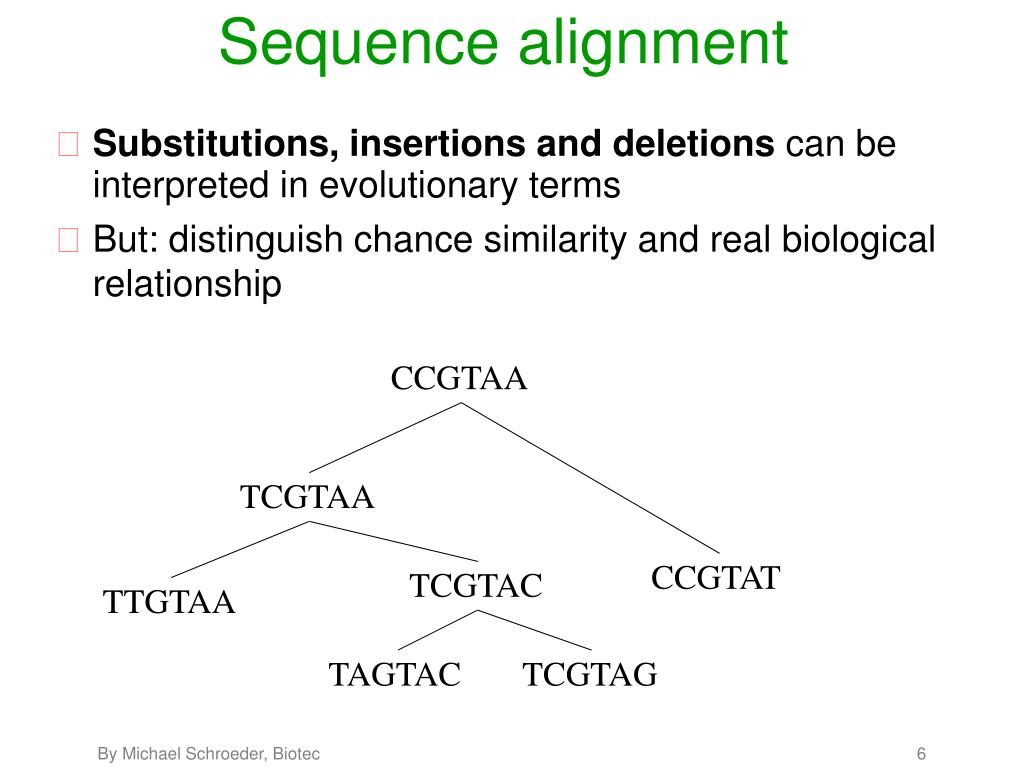

Sequence alignment Substitutions, insertions and deletions can be interpreted in evolutionary terms But: distinguish chance similarity and real biological relationship CCGTAA TCGTAA CCGTAT TCGTAC TTGTAA TAGTAC TCGTAG
Evolution Convergent evolution: same sequence evolved from different ancestors Back evolution - mutate to a previous sequence CCGTAA TCGTAA CCGTAT TAGTAA TCGTAC TAGTAC TAGTAC TCGTAG CCGTAA
Similarity vs. Homology Any sequence can be similar Sequences homologues if evolved from common ancestor Homologous sequences: Orthologs: similar biological function Paralogs: different biological function (after gene duplication), e.g. lysozyme and α-lactalbumin, a mammalian regulatory protein Assumption: Similarity indicator for homology Note, altered function of the expressed protein will determine if the organism will survive to reproduce, and hence pass on the altered gene
Sequence alignments Given two or more sequences, we wish to Measure their similarity Determine the residue-residue correspondences Observe patterns of conservation and variability Infer evolutionary relationships

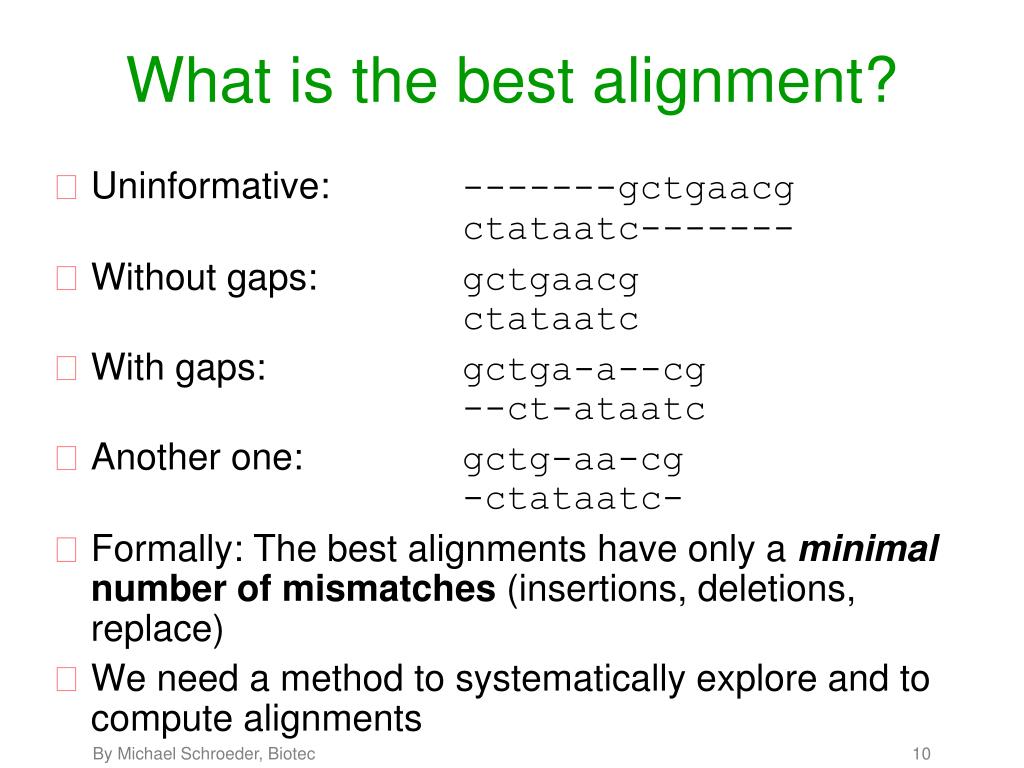

What is the best alignment? Uninformative: -------gctgaacgctataatc------- Without gaps: gctgaacgctataatc With gaps: gctga-a--cg --ct-ataatc Another one: gctg-aa-cg -ctataatc- Formally: The best alignments have only a minimal number of mismatches (insertions, deletions, replace) We need a method to systematically explore and to compute alignments
Scores for an alignment Sequence Identity: Percentage of matches Score each match, mismatch, gap opening, gap extension [attg] a t t g [accc] a c - - Example match +1 mismatch -1 Gap opening -3 Gap extension -1 Uninformative: 0%, score= -19-------gctgaacgctataatc------- Without gaps: 25%, score= -4 gctgaacgctataatc With gaps: 0%, score= -19gctga-a--cg --ct-ataatc Another one: 50%, score= -8 gctg-aa-cg -ctataatc-
Scores for an alignment Sequence Identity: Percentage of matches Score each match, mismatch, gap opening, gap extension [attg] a t t g [accc] a c - - Example match +2 mismatch -1 Gap opening -1 Gap extension -1 Uninformative: 0%, score= -15-------gctgaacgctataatc------- Without gaps: 25%, score= -2gctgaacgctataatc With gaps: 0%, score= -11gctga-a--cg --ct-ataatc Another one: 50%, score= 5gctg-aa-cg -ctataatc-

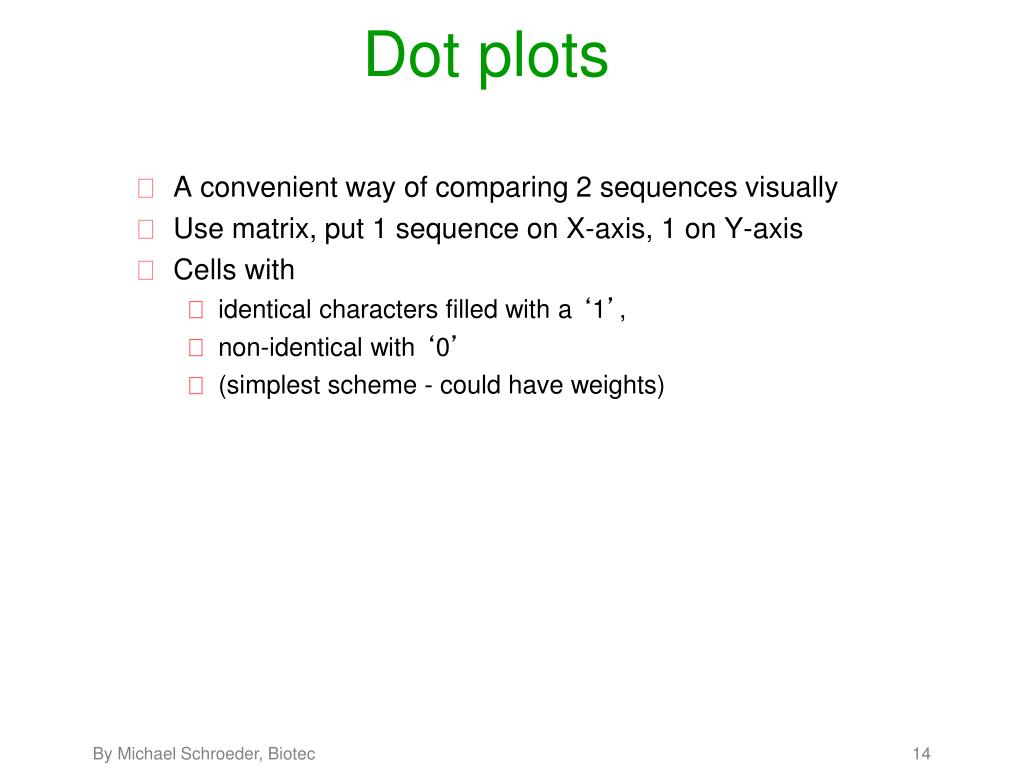

Dot plots A convenient way of comparing 2 sequences visually Use matrix, put 1 sequence on X-axis, 1 on Y-axis Cells with identical characters filled with a ‘1’, non-identical with ‘0’ (simplest scheme - could have weights)
Dot plots D O R O T H Y C R O W F O O T H O D G K I N D O R O T H Y H O D G K I N
Dot plots D O R O T H Y C R O W F O O T H O D G K I N D D D O O O O O O O R R R O O O O O O O T T T H H H Y Y H H H O O O O O O O D D D G G K K I I N N

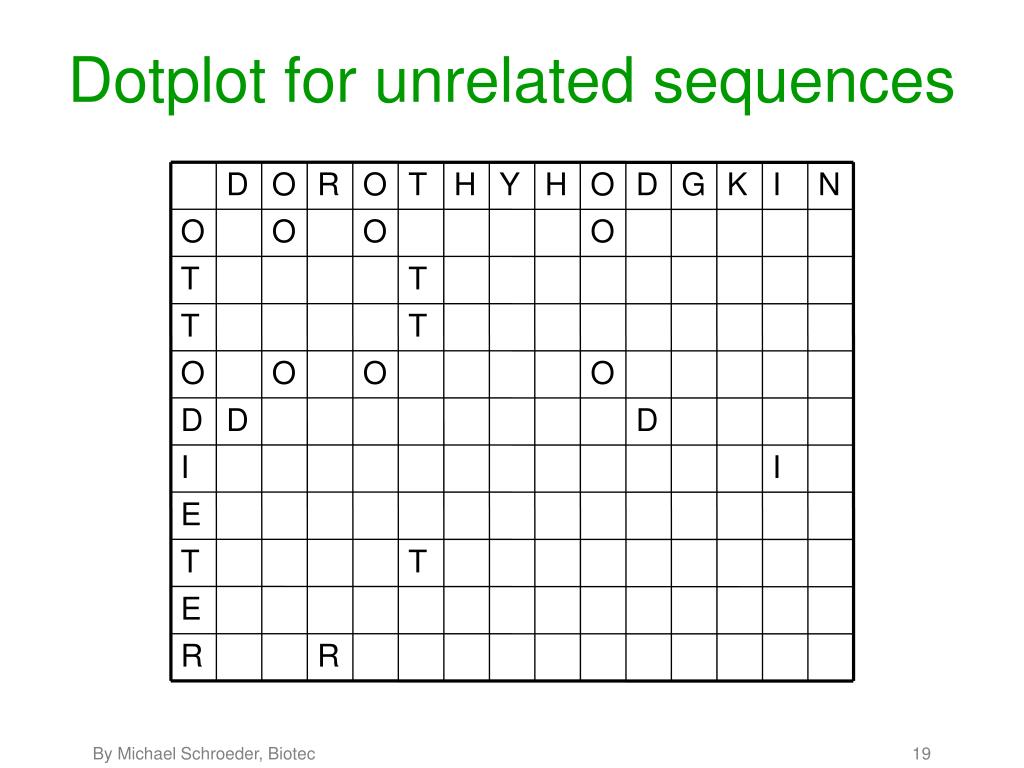

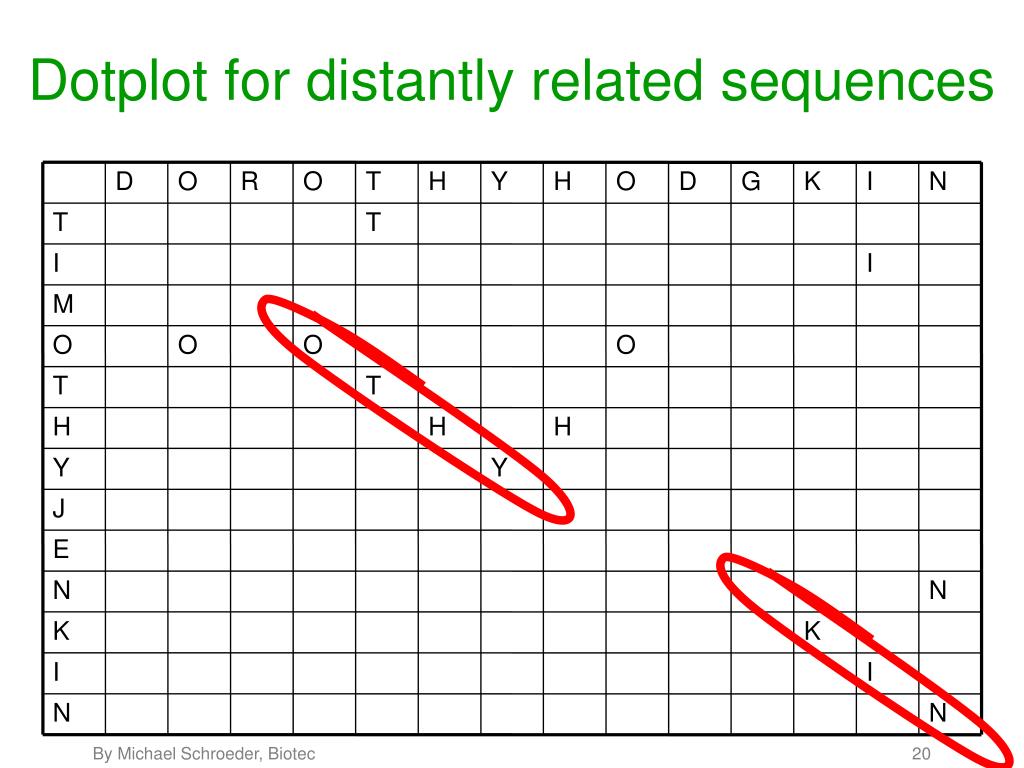

Interpreting dot plots What do identical sequences look like? What do unrelated sequences look like? What do distantly related sequences look like? What does reverse sequence look like? Relevant for detections of stems in RNA structure What does a palindrome look like? Relevant for restriction enzymes What do repeats look like? What does a protein with domains A and B and another one with domains B and C look like?

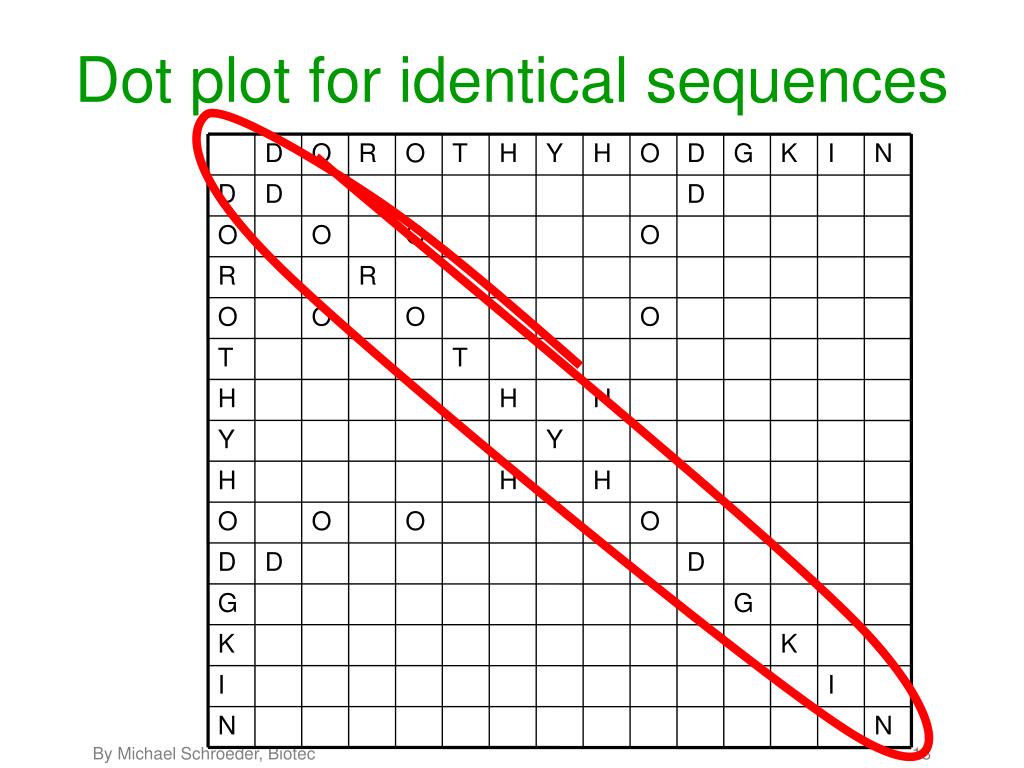

Dot plot for identical sequences D O R O T H Y H O D G K I N D D D O O O O R R O O O O T T H H H Y Y H H H O O O O D D D G G K K I I N N
Dotplot for reverse sequences Relevant to identify stems in RNA structures Plot sequence against its reverse complement

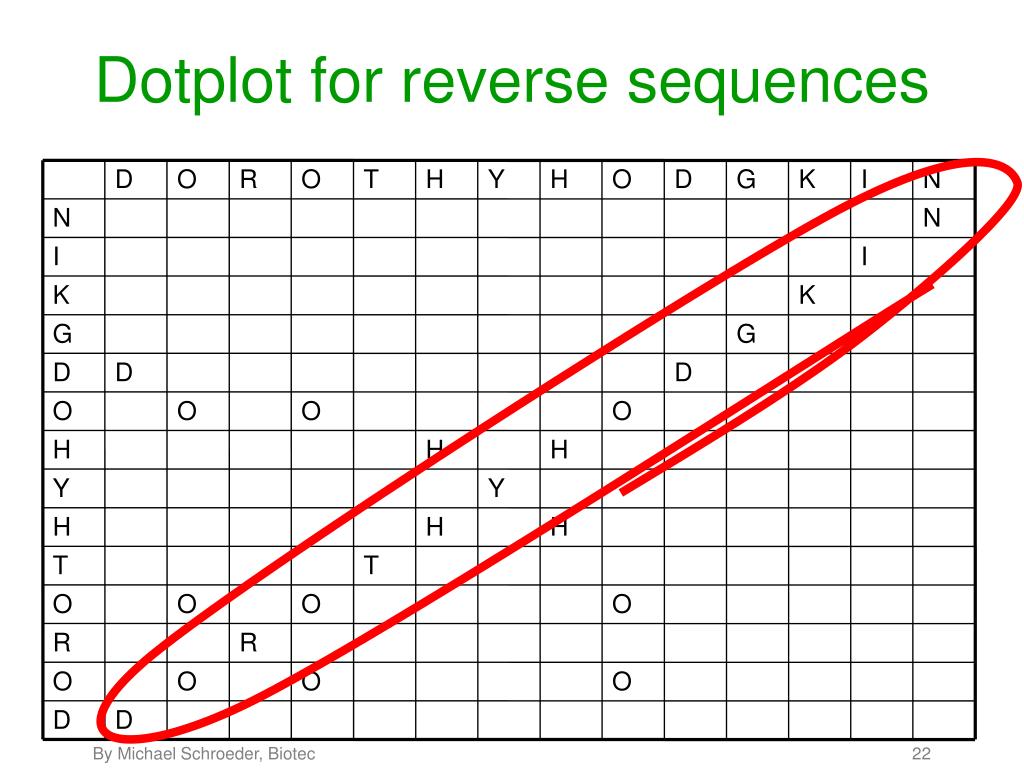

Dotplot for reverse sequences D O R O T H Y H O D G K I N N N I I K K G G D D D O O O O H H H Y Y H H H T T O O O O R R O O O O D D
Palindromes and restriction enzymes Madam, I'm Adam Able was I ere I saw Elba (supposedly said by Napoleon) Doc note I dissent, a fast never prevents a fatness, I diet on cod. Because DNA is double stranded and the strands run antiparallel, palindromes are defined as any double stranded DNA in which reading 5’ to 3’ both are the same The HindIII cutting site: 5'-AAGCTT-3' 3'-TTCGAA-5' The EcoRI cutting site: 5'-GAATTC-3' 3'-CTTAAG-5'
Dotplot of repeats T W E N T Y O N E T W E N T Y T W O T T T T T T W W W W E E E E N N N N T T T T T T Y Y Y T T T T T T W W W W O O O T T T T T T W W W W E E E E N N N N T T T T T T Y Y Y O O O N N N N E E E E

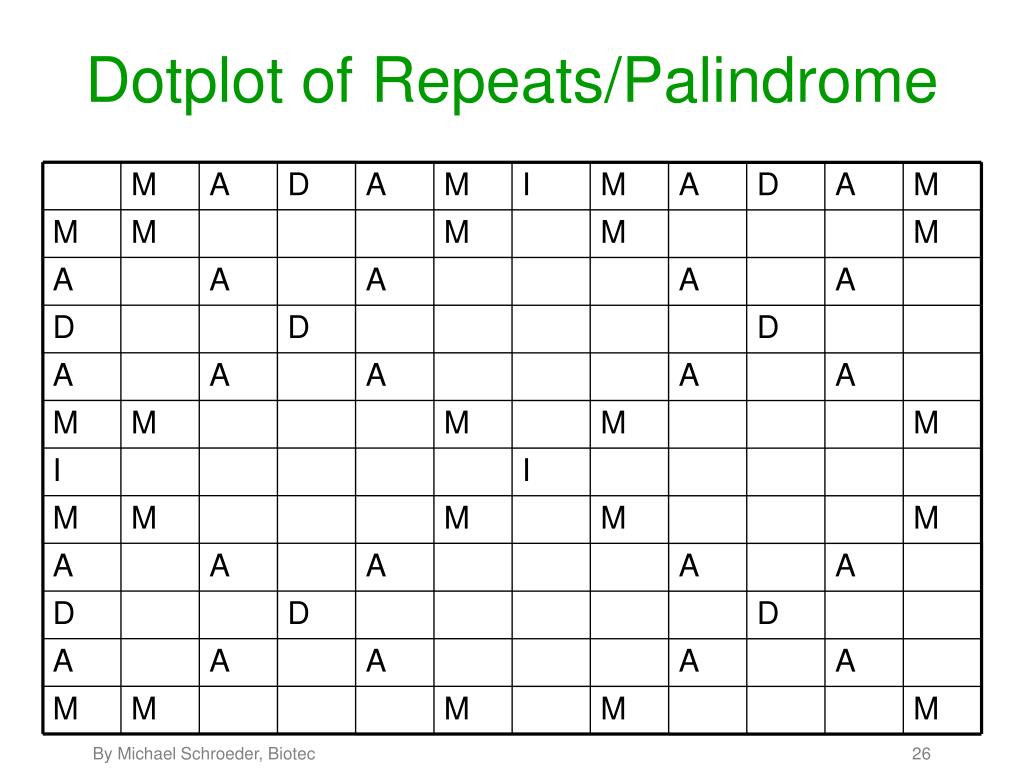

Dotplot of Repeats/Palindrome M A D A M I M A D A M M M M M M A A A A A D D D A A A A A M M M M M I I M M M M M A A A A A D D D A A A A A M M M M M

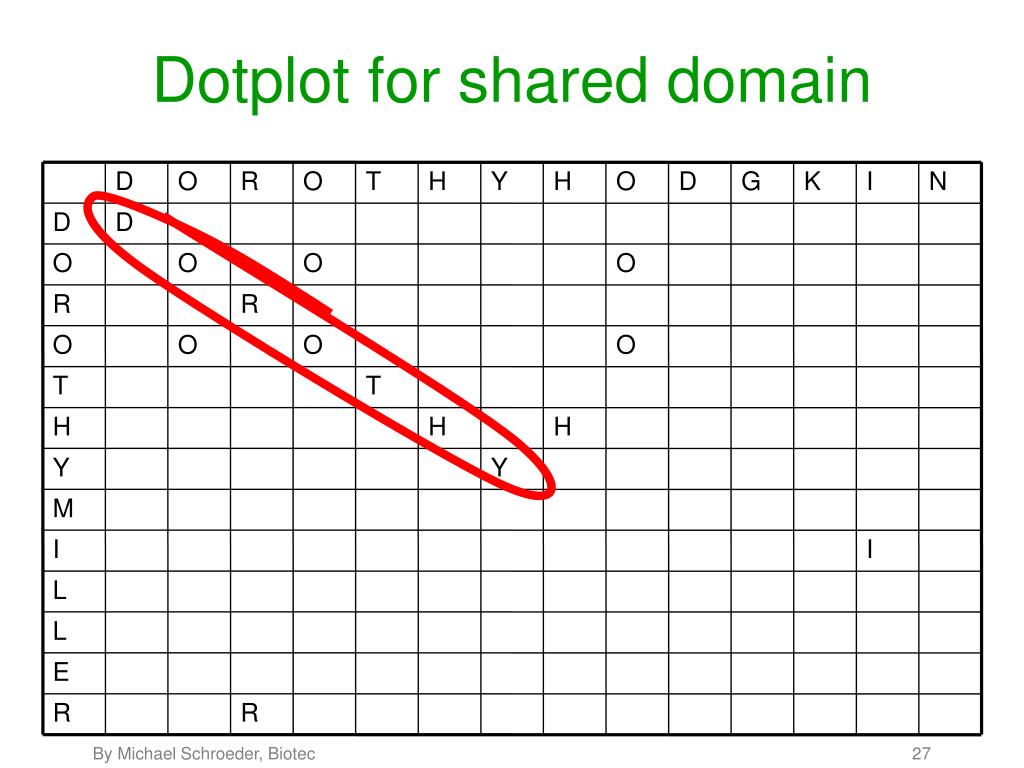

Dotplot for shared domain D O R O T H Y H O D G K I N D D O O O O R R O O O O T T H H H Y Y M I I L L E R R
Result Dot plot dorothycrowfoothodgkin d* * o * * * ** * r * * o * * * ** * t * * h * * y * h * * o * * * ** * d* * g * k * i * n *

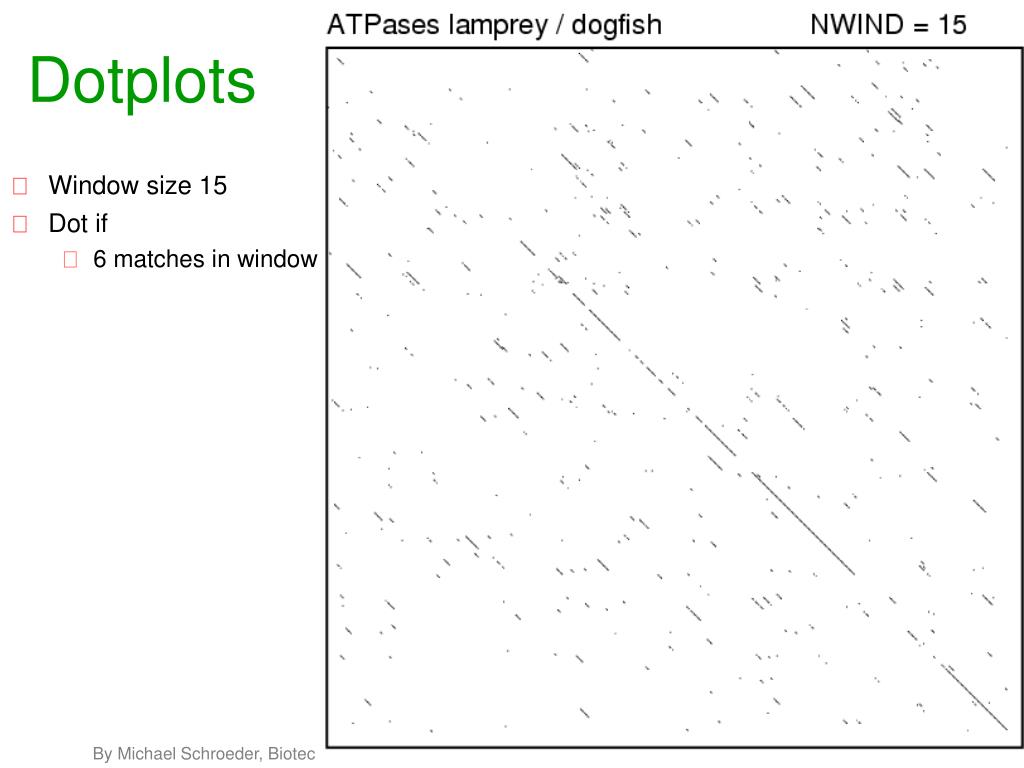

Dotplots Window size 15 Dot if 6 matches in window
Window size 15 • Dot if • 6 matches in window Cacain and Caricain, two proteases from papaya
From Dotplots to Alignments Obvious best alignment: DOROTHYCROWFOOTHODGKIN DOROTHY--------HODGKIN D O R O T H Y C R O W F O O T H O D G K I N D D D O O O O O O O R R R O O O O O O O T T T H H H Y Y H H H O O O O O O O D D D G G K K I I N N
From Dotplots to Alignments Find “best” path from top left corner to bottom right Moving “east” corresponds to “-” in the second sequence Moving “south” corresponds to “-” in the first sequence Moving “southeast” corresponds to a match (if the characters are the same) or a mismatch (otherwise) Can we automate this?

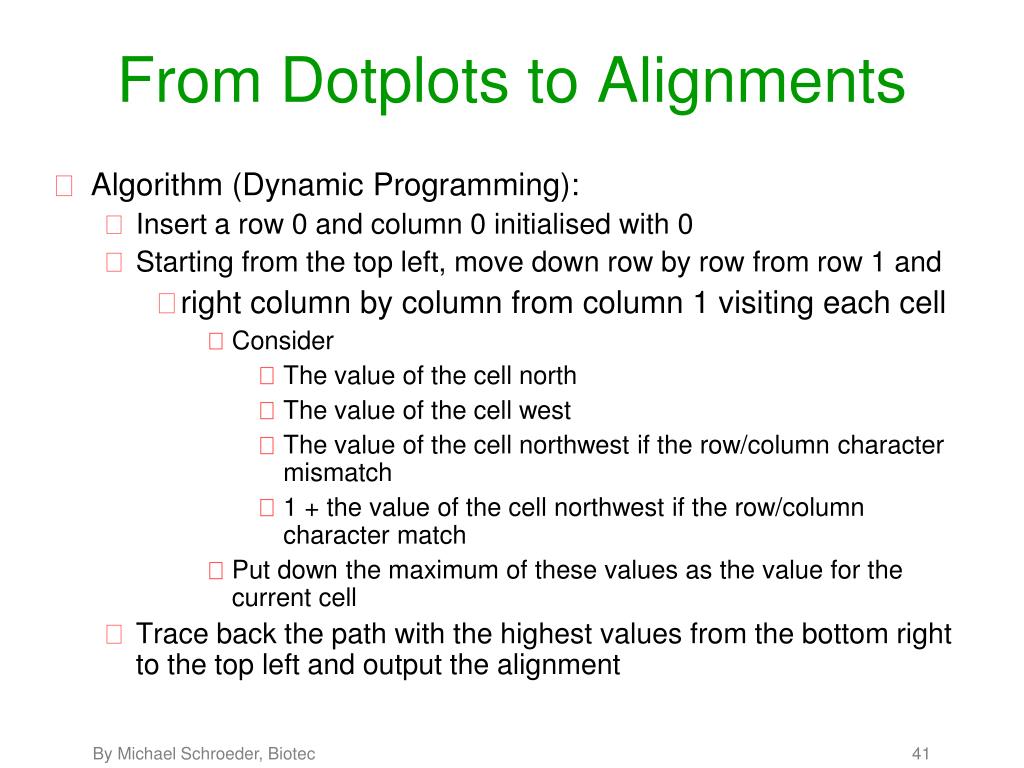

From Dotplots to Alignments Algorithm (Dynamic Programming): Insert a row 0 and column 0 initialised with 0 Starting from the top left, move down row by row from row 1 and right column by column from column 1 visiting each cell Consider The value of the cell north The value of the cell west The value of the cell northwest if the row/column character mismatch 1 + the value of the cell northwest if the row/column character match Put down the maximum of these values as the value for the current cell Trace back the path with the highest values from the bottom right to the top left and output the alignment
From Dotplots to Alignments 0 1 2 3 4 5 6 T G C A T A0 0 0 0 0 0 0 01 A 02 T 03 C 04 T 05 G 06 A 07 T 0 Insert a row 0 and column 0 initialised with 0
From Dotplots to Alignments 0 1 2 3 4 5 6 T G C A T A0 0 0 0 0 0 0 01 A 0 0 2 T 03 C 04 T 05 G 06 A 07 T 0 0 0 1 1 1 • Consider • Value north • Value west • Value northwest if the row/column character mismatch • 1 + value northwest if the row/column character match • Put down the maximum of these values for current celll
From Dotplots to Alignments 0 1 2 3 4 5 6 T G C A T A0 0 0 0 0 0 0 01 A 0 0 0 0 1 1 12 T 0 1 1 1 1 2 23 C 0 1 1 2 2 2 24 T 0 1 1 2 2 3 35 G 0 1 2 2 2 3 36 A 0 1 2 2 3 3 47 T 0 1 2 2 3 4 4

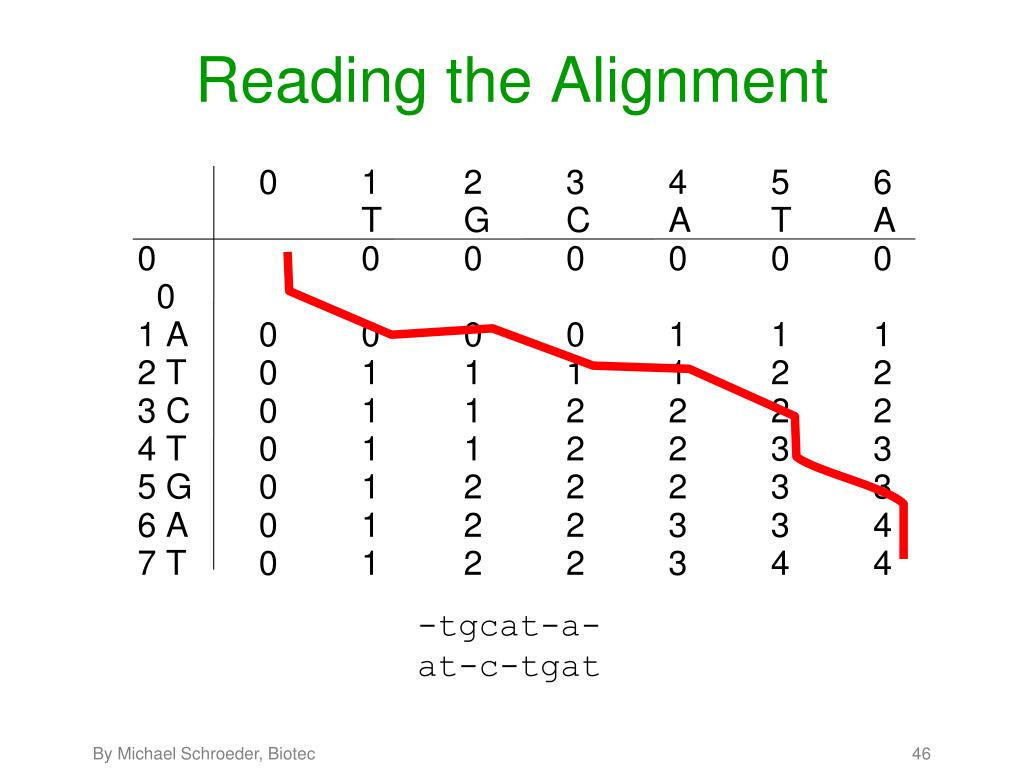

Reading the Alignment 0 1 2 3 4 5 6 T G C A T A0 0 0 0 0 0 0 01 A 0 0 0 0 1 1 12 T 0 1 1 1 1 2 23 C 0 1 1 2 2 2 24 T 0 1 1 2 2 3 35 G 0 1 2 2 2 3 36 A 0 1 2 2 3 3 47 T 0 1 2 2 3 4 4 -tgcat-a- at-c-tgat

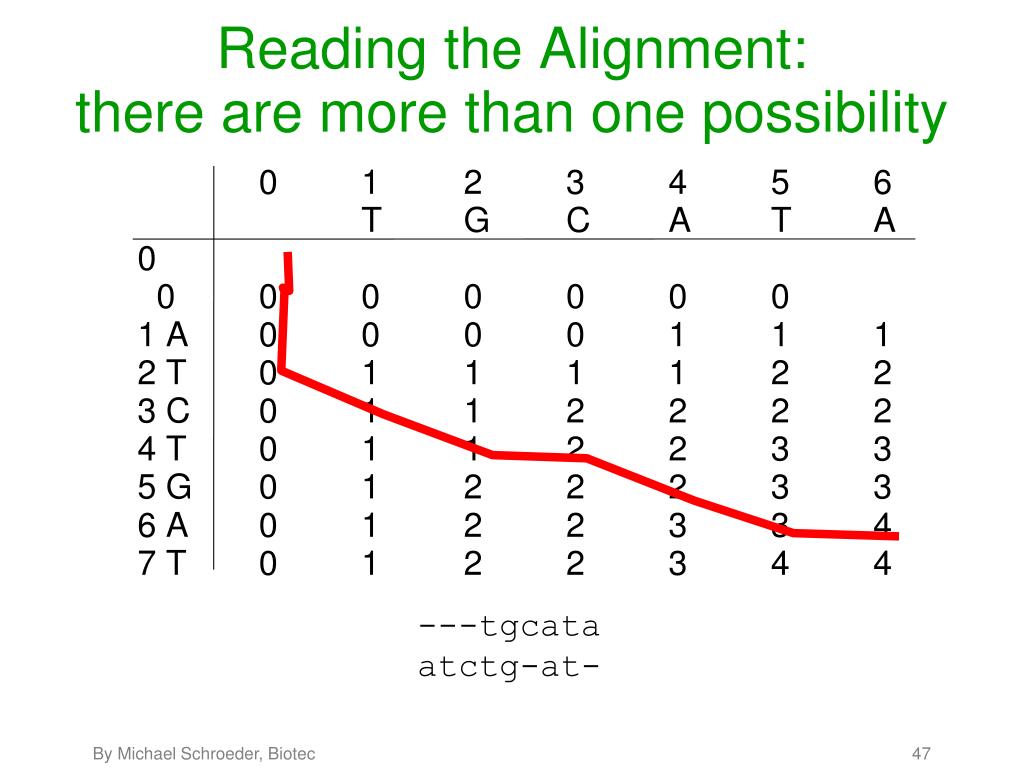

Reading the Alignment: there are more than one possibility 0 1 2 3 4 5 6 T G C A T A0 0 0 0 0 0 0 01 A 0 0 0 0 1 1 12 T 0 1 1 1 1 2 23 C 0 1 1 2 2 2 24 T 0 1 1 2 2 3 35 G 0 1 2 2 2 3 36 A 0 1 2 2 3 3 47 T 0 1 2 2 3 4 4 ---tgcata atctg-at-
Formally:Longest Common Subsequence LCS What is the length s(V,W) of the longest common subsequence of two sequencesV=v1..vn and W=w1..wm ? Find sequences of indices1 ≤ i1 < … < ik ≤ n and 1 ≤ j1 < … < jk ≤ msuch that vit = wjt for 1 ≤ t ≤ k How? Dynamic programming: si,0 = s0,j = 0 for all 1 ≤ i ≤ n and 1 ≤ j ≤ m and si-1,jsi,j = maxsi,j-1si-1,j-1 + 1, if vi = wj Then s(V,W) = sn,m is the length of the LCS {
Example LCS 0 1 2 3 4 5 6 T G C A T A0 1 A2 T3 C4 T5 G6 A7 T
Example LCS: 0 1 2 3 4 5 6 T G C A T A0 0 0 0 0 0 0 01 A 02 T 03 C 04 T 05 G 06 A 07 T 0 Initialisation: si,0 = s0,j = 0 for all 1 ≤ i ≤ n and 1 ≤ j ≤ m
