Breakthrough in Internet Land Speed Record: 4226 Mbit/s Achieved on July 20, 2004

chiku avatar
chiku
13 diapositives · 292 Views · Sep 11, 2014

On July 20, 2004, a joint effort by SUNET and ISP Anders Magnusson set an impressive Internet Land Speed Record, achieving a remarkable speed of 4226 Mbit/s. This milestone involved a network setup utilizing GigaSunet and Sprintlink, spanning over 16,343 kilometers from Luleå, Sweden to San Jose, CA. Key highlights include transferring 840 GB in under 30 minutes, along with significant improvements over the previous record. Despite using less powerful end-hosts and a challenging MTU size, this achievement marks a 12% increase in the IPv4 single-stream class record.

#breakthrough in internet land speed record: 4226 mbit/s achieved on july 20, 2004 #breakthrough in internet land speed record: 4226 mbit/s achieved on july 20, 2004 ppt #powerpoint #presentation
Breakthrough in Internet Land Speed Record: 4226 Mbit/s Achieved on July 20, 2004 - slide 1
01 / 13Breakthrough in Internet Land Speed Record: 4226 Mbit/s Achieved on July 20, 2004
1 / 17

Télécharger la présentation

Breakthrough in Internet Land Speed Record: 4226 Mbit/s Achieved on July 20, 2004
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

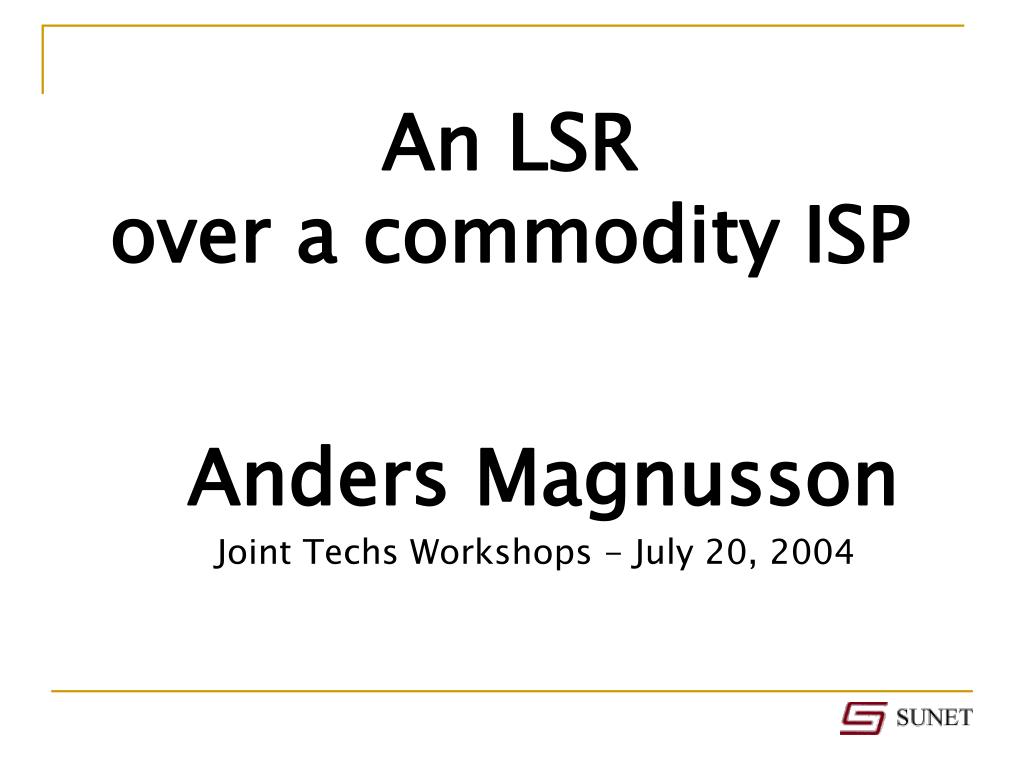

  1. An LSR over a commodity ISP Anders Magnusson Joint Techs Workshops - July 20, 2004

  2. SUNET Internet Land Speed Record - Network setup GigaSunet OC-192 core 10GE OC192 Sprintlink OC-192 core End host in Luleå, Sweden 10GE Network path consists of 40(!) router hops, using paths shared with other users of the networks. End host in San Jose, CA July 20, 2004

  3. Records submitted April 14 • 838 860 800 000 bytes in 1588 real seconds = 4226 Mbit/second • 840 Gbytes in less than 30 minutes • Record submitted for the IPv4 single stream class is 69.073 Petabit-meters/second (which is a 12% increase of the previous record) July 20, 2004

  4. Compared with others Compared to the previous record, we can note thatwe achieved this, using • Less powerful end hosts • 150% longer distance • Less than half the MTU size (which generates heavier CPU-load on the end-hosts) • The normal GigaSunet and Sprintlink production infrastructures July 20, 2004

  5. Fiber path for the Internet LSR Distance from Luleå, Sweden to San Jose, CA is approximately 16,343 km (10,157 miles) Actual fiber path exceeds 18,600 km (11,560 miles) July 20, 2004

  6. Network load July 20, 2004

  7. Benefits with an ISP • World-wide network, no need to involve many different network providers • High-quality network • Good service level, short lead time from error report until problem fixed July 20, 2004

  8. Problems with an ISP • May not be able to run network tests anytime, it may disturb other traffic • Other traffic may use significant bandwidth at certain times, must find timeslots to have enough bandwidth available July 20, 2004

  9. Interesting observations • Due to long RTT the TCP startup phase may generate large data bursts on the communication link • The bursts can generate heavier network load during short periods than expected July 20, 2004

  10. Traffic example #1 In a perfect world without packet loss… July 20, 2004

  11. Traffic example #2 TCP startup phase on loaded link July 20, 2004

  12. Traffic example #3 TCP startup phase over a longer period of time July 20, 2004

  13. More to read… • http://proj.sunet.se/LSR2 • Describes how the Land Speed Record was achieved • http://proj.sunet.se/E2E • About end-to-end performance in GigaSunet July 20, 2004
