Turbo PMAC CPU with Optional DPRAM

Turbo PMAC Clipper One Board Control Solution Low Cost , 4 Axis controller with I/O and Ethernet A Turbo PC/104 with Acc-2P combined for a 30% cost reduction. Turbo PMAC CPU with Optional DPRAM USB, Ethernet and RS-232 Communications (optional Ethernet Modbus)

chogan
Télécharger la présentation

Turbo PMAC CPU with Optional DPRAM

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

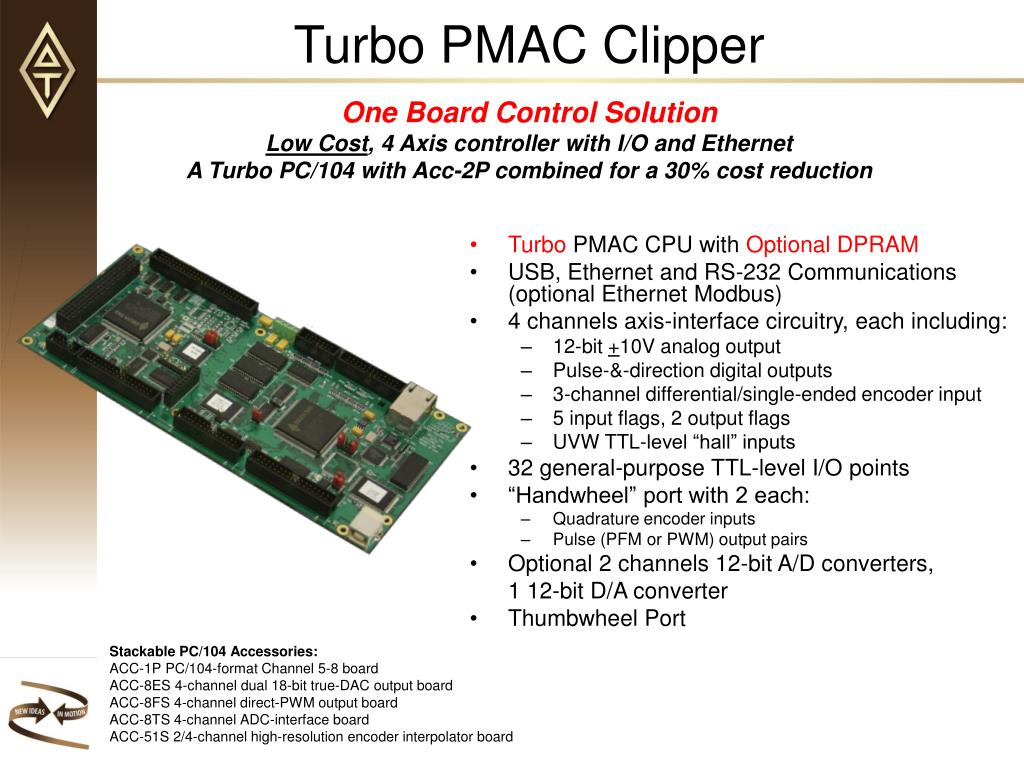

  1. Turbo PMAC ClipperOne Board Control SolutionLow Cost, 4 Axis controller with I/O and EthernetA Turbo PC/104 with Acc-2P combined for a 30% cost reduction • Turbo PMAC CPU with Optional DPRAM • USB, Ethernet and RS-232 Communications (optional Ethernet Modbus) • 4 channels axis-interface circuitry, each including: • 12-bit +10V analog output • Pulse-&-direction digital outputs • 3-channel differential/single-ended encoder input • 5 input flags, 2 output flags • UVW TTL-level “hall” inputs • 32 general-purpose TTL-level I/O points • “Handwheel” port with 2 each: • Quadrature encoder inputs • Pulse (PFM or PWM) output pairs • Optional 2 channels 12-bit A/D converters, 1 12-bit D/A converter • Thumbwheel Port Stackable PC/104 Accessories: ACC-1P PC/104-format Channel 5-8 board ACC-8ES 4-channel dual 18-bit true-DAC output board ACC-8FS 4-channel direct-PWM output board ACC-8TS 4-channel ADC-interface board ACC-51S 2/4-channel high-resolution encoder interpolator board

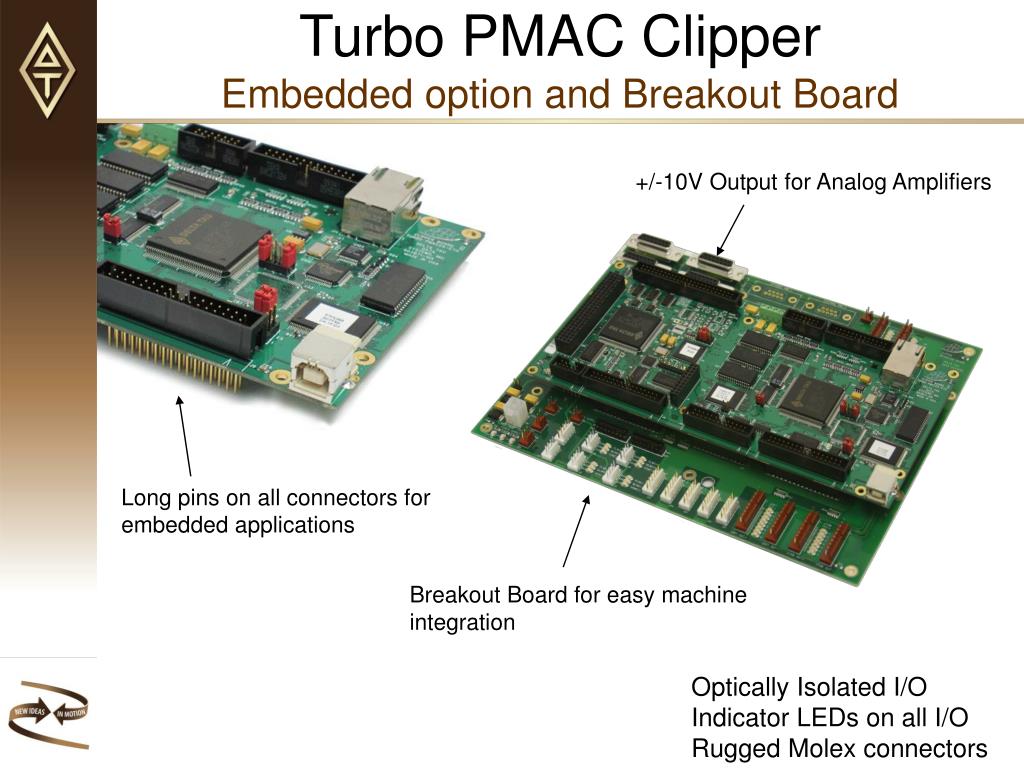

  2. Turbo PMAC ClipperEmbedded option and Breakout Board +/-10V Output for Analog Amplifiers Long pins on all connectors for embedded applications Breakout Board for easy machine integration Optically Isolated I/O Indicator LEDs on all I/O Rugged Molex connectors

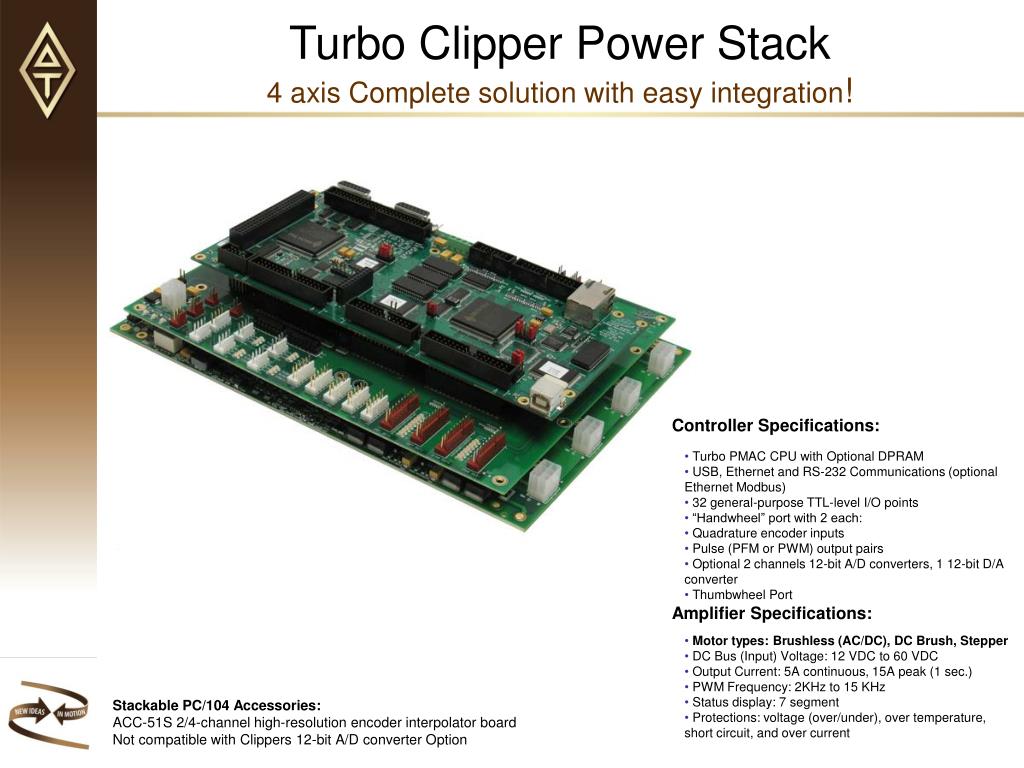

  3. Turbo Clipper Power Stack4 axis Complete solution with easy integration! Controller Specifications: • Turbo PMAC CPU with Optional DPRAM • USB, Ethernet and RS-232 Communications (optional Ethernet Modbus) • 32 general-purpose TTL-level I/O points • “Handwheel” port with 2 each: • Quadrature encoder inputs • Pulse (PFM or PWM) output pairs • Optional 2 channels 12-bit A/D converters, 1 12-bit D/A converter • Thumbwheel Port • Motor types: Brushless (AC/DC), DC Brush, Stepper • DC Bus (Input) Voltage: 12 VDC to 60 VDC • Output Current: 5A continuous, 15A peak (1 sec.) • PWM Frequency: 2KHz to 15 KHz • Status display: 7 segment • Protections: voltage (over/under), over temperature, short circuit, and over current Amplifier Specifications: Stackable PC/104 Accessories: ACC-51S 2/4-channel high-resolution encoder interpolator board Not compatible with Clippers 12-bit A/D converter Option

  4. 24VDC Logic PS Bus PS 12-60VDC DELTA TAU Clipper CNC4 axis Complete solution with easy integration! Encoders Electrical Enclosure (NEMA-12) Breakout Board Clipper Controller General Purpose I/O (8in) General Purpose I/O (8 out) Servo/Stepper Motors Auxiliary Inputs I/O (2 Handwheel inputs, 2 DAC outputs, 2 Pulse and Direction Outputs, 2 high Speed Programmable Outputs) Control Panel I/O (8in/8out) for membrane keypad Geo Brick LV (4-axis) Power Stage (12-60V) Can drive Brushless, DC Brush and Stepper, Limits and Flags AC Input 120/220 VAC AMPLIFIER BASE SPECIFICATIONS: • Motor types: Brushless (AC/DC), DC Brush, Stepper • DC Bus (Input) Voltage: 12 VDC to 60 VDC • Output Current: 5A continuous, 15A peak (1 sec.) • PWM Frequency: 2KHz to 15 KHz • Status display: 7 segment • Protections: voltage (over/under), over temperature, short circuit, and over current

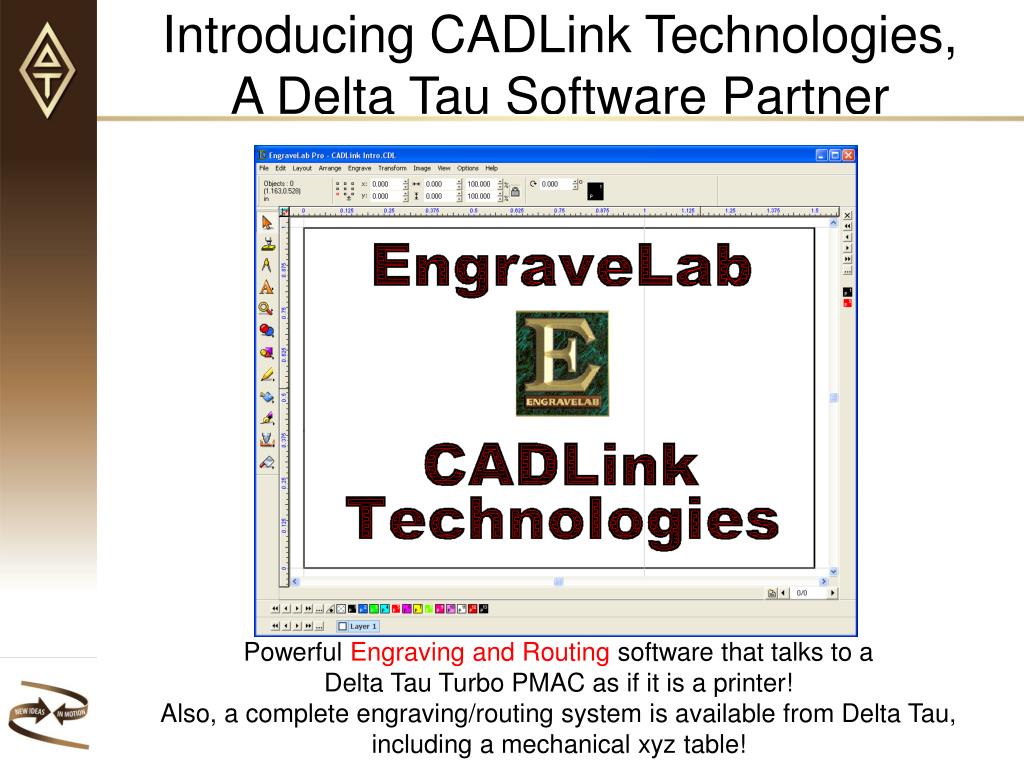

  5. Introducing CADLink Technologies,A Delta Tau Software Partner Powerful Engraving and Routing software that talks to aDelta Tau Turbo PMAC as if it is a printer! Also, a complete engraving/routing system is available from Delta Tau,including a mechanical xyz table!

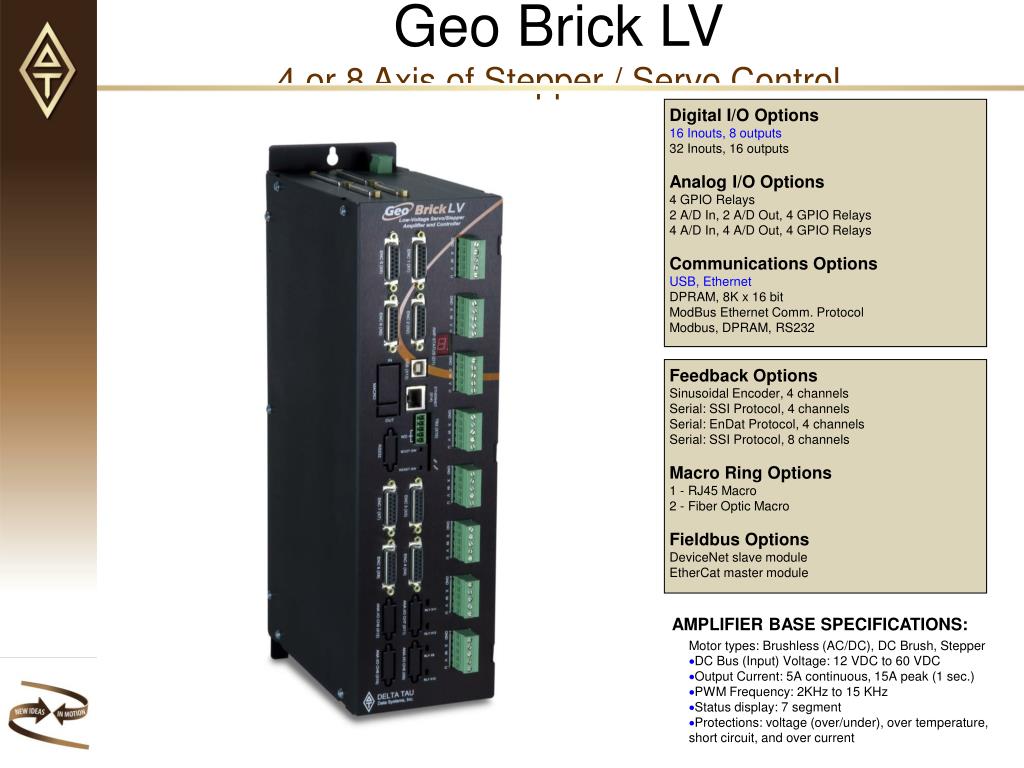

  6. Geo Brick LV4 or 8 Axis of Stepper / Servo Control Digital I/O Options 16 Inouts, 8 outputs 32 Inouts, 16 outputs Analog I/O Options 4 GPIO Relays 2 A/D In, 2 A/D Out, 4 GPIO Relays 4 A/D In, 4 A/D Out, 4 GPIO Relays Communications Options USB, Ethernet DPRAM, 8K x 16 bit ModBus Ethernet Comm. Protocol Modbus, DPRAM, RS232 Feedback Options Sinusoidal Encoder, 4 channels Serial: SSI Protocol, 4 channels Serial: EnDat Protocol, 4 channels Serial: SSI Protocol, 8 channels Macro Ring Options 1 - RJ45 Macro 2 - Fiber Optic Macro Fieldbus Options DeviceNet slave module EtherCat master module AMPLIFIER BASE SPECIFICATIONS: • Motor types: Brushless (AC/DC), DC Brush, Stepper • DC Bus (Input) Voltage: 12 VDC to 60 VDC • Output Current: 5A continuous, 15A peak (1 sec.) • PWM Frequency: 2KHz to 15 KHz • Status display: 7 segment • Protections: voltage (over/under), over temperature, short circuit, and over current
