  1. SProUT Shallow Processing with Unificationand Typed Feature Structures Jakub PiskorskiLanguage Technology LabDFKI GmbH

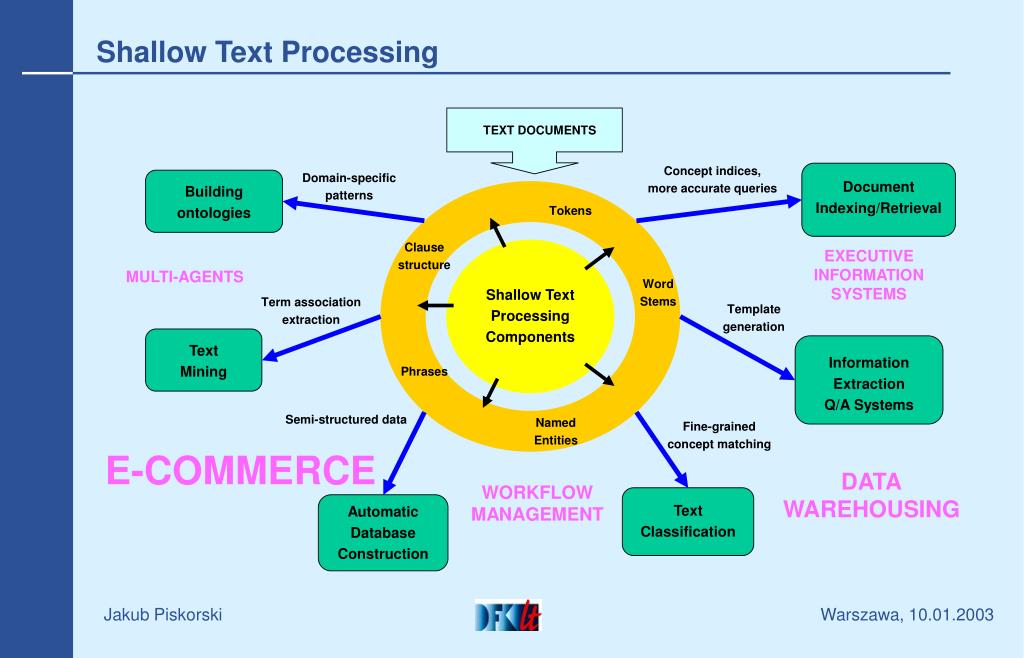

  2. Concept indices, more accurate queries Domain-specific patterns Building ontologies Document Indexing/Retrieval Tokens EXECUTIVEINFORMATIONSYSTEMS Clause structure MULTI-AGENTS Word Stems Term association extraction Shallow Text Processing Components Template generation Phrases Text Mining Information Extraction Q/A Systems Semi-structured data Fine-grained concept matching Named Entities E-COMMERCE DATAWAREHOUSING WORKFLOWMANAGEMENT Text Classification Automatic Database Construction Shallow Text Processing TEXT DOCUMENTS

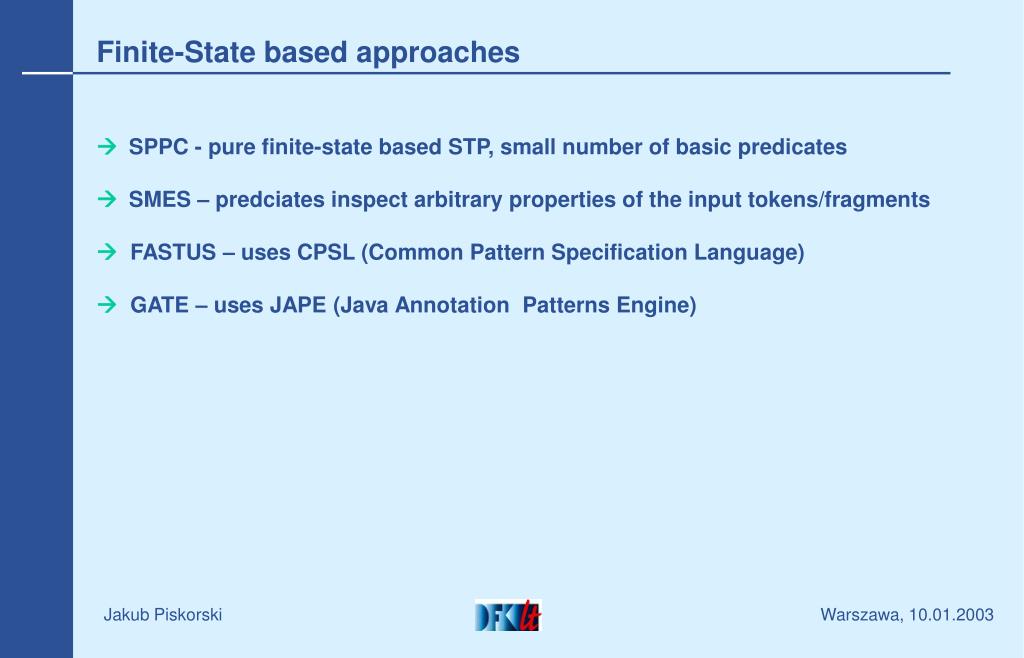

  3. Finite-State based approaches  SPPC - pure finite-state based STP, small number of basic predicates SMES – predciates inspect arbitrary properties of the input tokens/fragmentsFASTUS – uses CPSL (Common Pattern Specification Language)GATE – uses JAPE (Java Annotation Patterns Engine)

  4. Motivation for SProUT  One System for Multilingual and Domain Adaptive Shallow Text Processing Trade-off between efficiency and expressivenessModularityFlexible integration of different processing modules Portability Industrial standards

  5. SProUT is a joint work by: Markus Becker, Witold Drożdżyński, Ulrich KriegerJakub Piskorski, Ulrich Schäfer, FeiyuXu

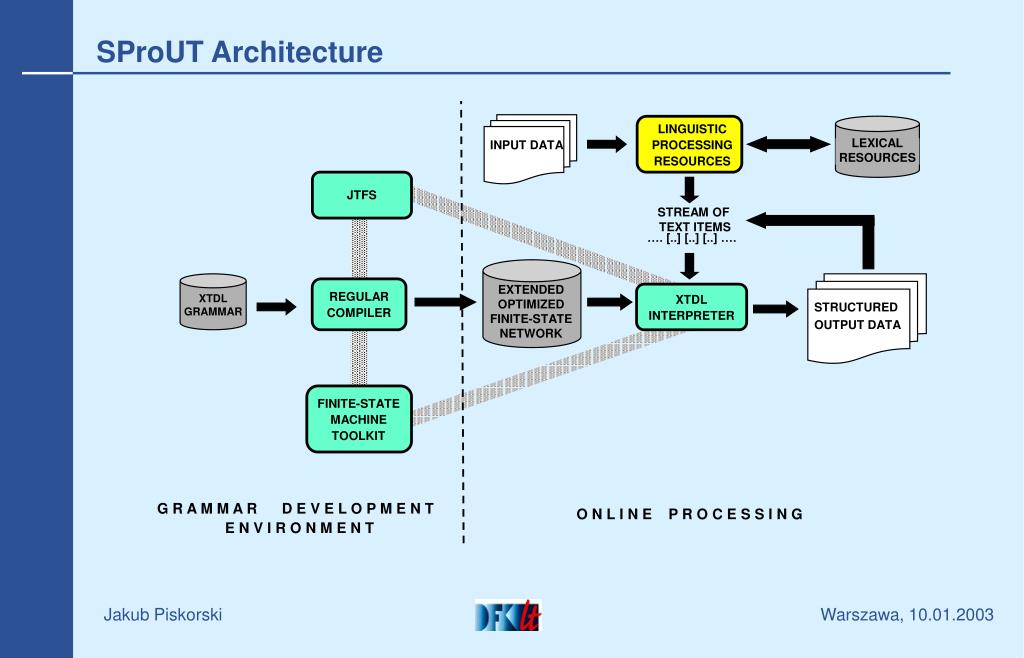

  6. LEXICAL RESOURCES INPUT DATA JTFS STREAM OFTEXT ITEMS …. [..] [..] [..] …. STRUCTURED OUTPUT DATA FINITE-STATE MACHINE TOOLKIT SProUT Architecture LINGUISTIC PROCESSING RESOURCES EXTENDED OPTIMIZED FINITE-STATE NETWORK REGULAR COMPILER XTDL INTERPRETER XTDL GRAMMAR G R A M M A R D E V E L O P M E N T E N V I R O N M E N T O N L I N E P R O C E S S I N G

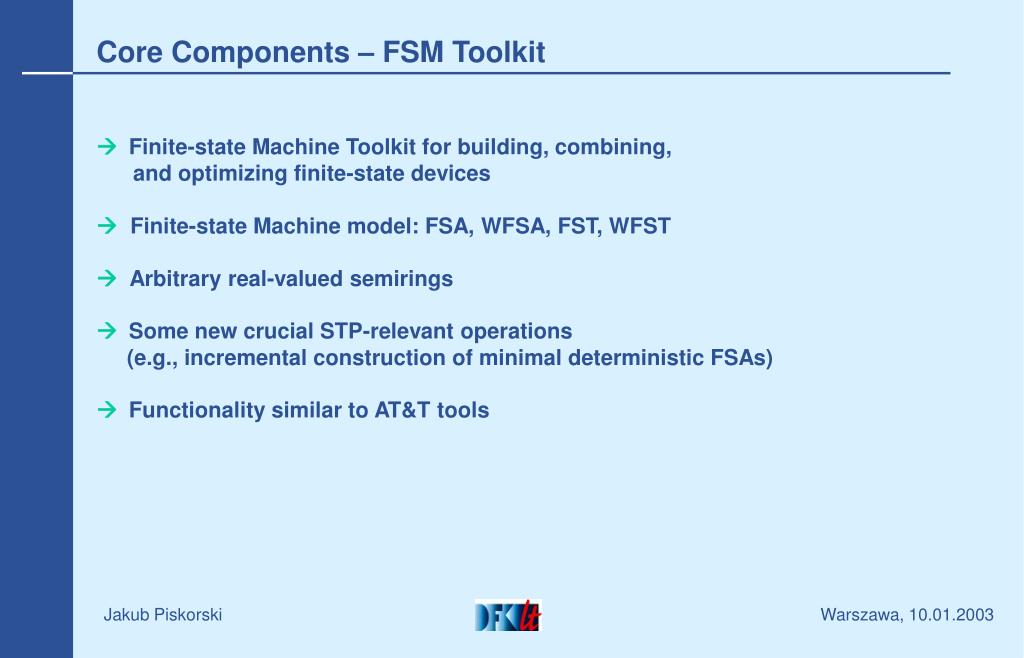

  7. Core Components – FSM Toolkit  Finite-state Machine Toolkit for building, combining, and optimizing finite-state devices Finite-state Machine model: FSA, WFSA, FST, WFST Arbitrary real-valued semirings Some new crucial STP-relevant operations (e.g., incremental construction of minimal deterministic FSAs) Functionality similar to AT&T tools

  8. Core Components – Regular Compiler  Definition and configuration via XML Unicode compatible Extendible set of circa 20 operations Scanner definitions vs. general regular expressions Biasing optimization process Various ways of handling ambiguities Direct database connection for flexible pattern-based transformation of linguistic resources into optimized FS representation  Regular expressions over TFSs (SProUT) with restrictions

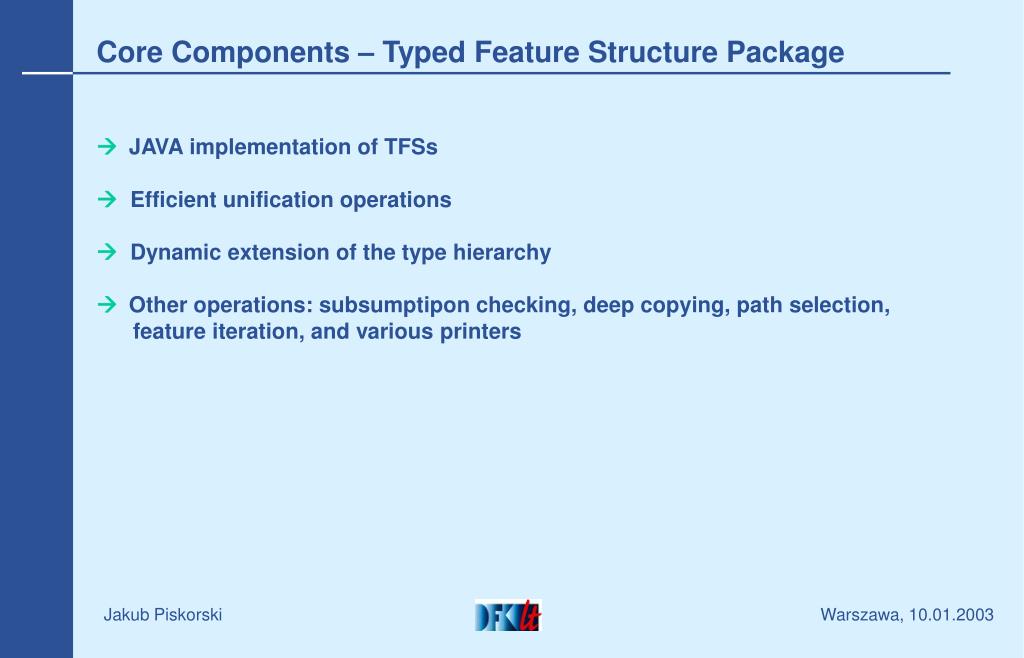

  9. Core Components – Typed Feature Structure Package  JAVA implementation of TFSs Efficient unification operations  Dynamic extension of the type hierarchy Other operations: subsumptipon checking, deep copying, path selection, feature iteration, and various printers

  10. XTDL Formalism  Combines typed feature structures (TFS) and regular expressions, including coreferences and functional application XTDL grammar rules – production part on LHS, and output description on RHS TDL used for establishment of a type hierarchy of linguistic entities *top* atom *avm* *rule* tense sign infl index-avm present token morph lang tokentype de en separator url morph := sign & [POS atom, STEM atom, INFL infl]

  11. XTDL Formalism  Couple of standard regular operators: concatenation optionality ?disjunction | Kleene star *Kleene plus + n-fold repetition {n}m-n span repetition {m,n} Unidirectional coreference under Kleene star (and restricted iteration) [POS Det, ...] ([POS Adj, ..., RELN %LIST])* [POS Noun, ...] -> [..., RELN %LIST]

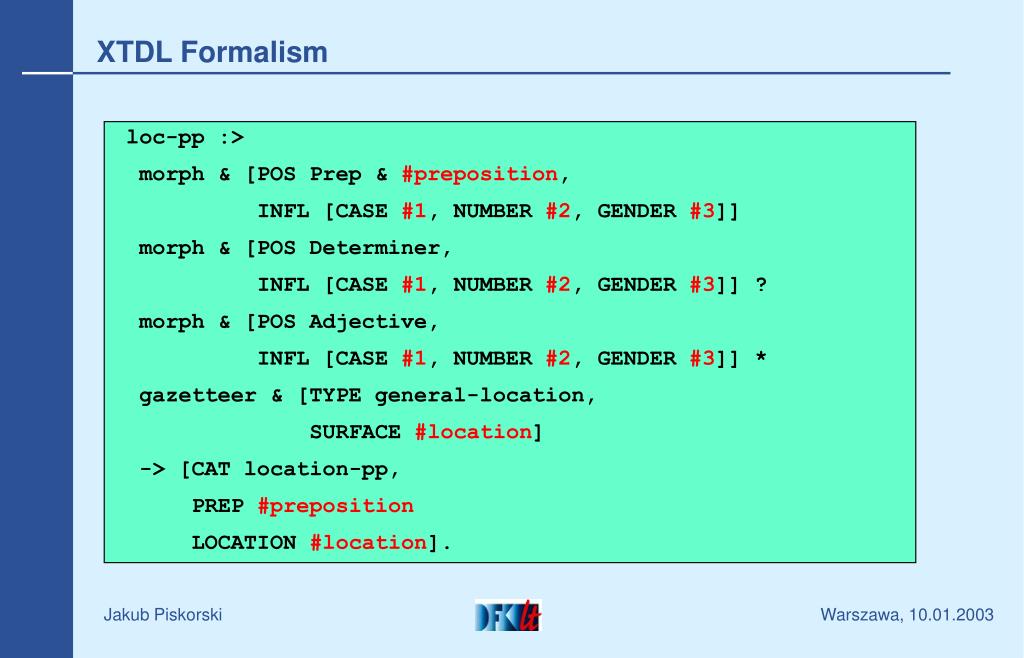

  12. XTDL Formalism loc-pp :> morph & [POS Prep & #preposition, INFL [CASE #1, NUMBER #2, GENDER #3]] morph & [POS Determiner, INFL [CASE #1, NUMBER #2, GENDER #3]] ? morph & [POS Adjective, INFL [CASE #1, NUMBER #2, GENDER #3]] * gazetteer & [TYPE general-location, SURFACE #location] -> [CAT location-pp, PREP #preposition LOCATION #location].

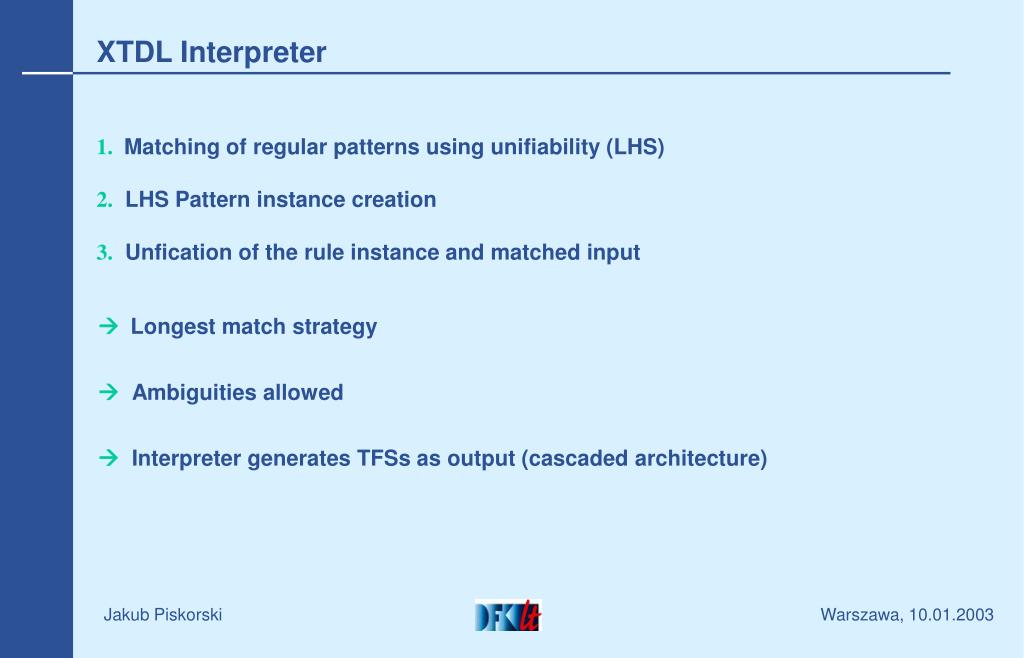

  13. XTDL Interpreter 1. Matching of regular patterns using unifiability (LHS)2. LHS Pattern instance creation3. Unfication of the rule instance and matched input  Longest match strategy Ambiguities allowed Interpreter generates TFSs as output (cascaded architecture)

  14. XTDL Interpreter  Matched input sequence “im sonnigen Rom” (in sunny Rome)

  15. XTDL Interpreter  Rule with an instantiated pattern on the LHS

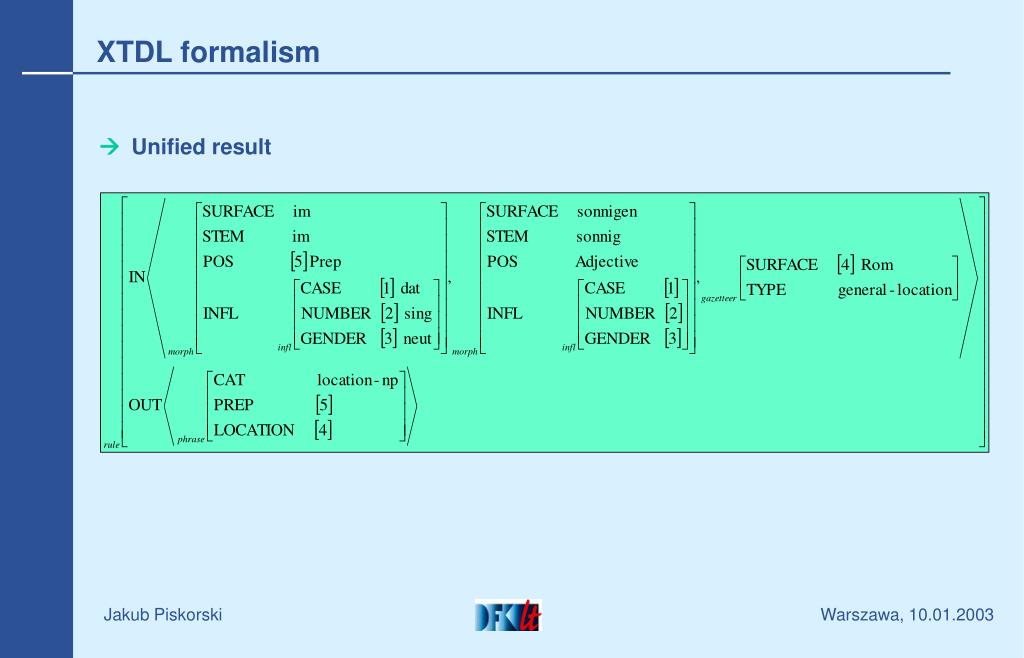

  16. XTDL formalism  Unified result

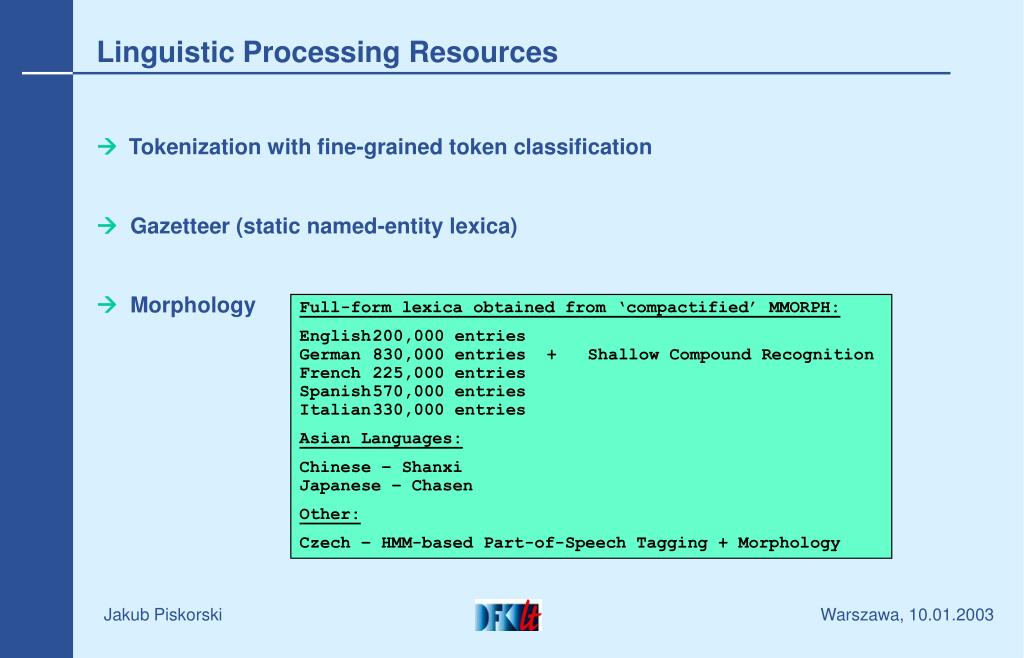

  17. Linguistic Processing Resources  Tokenization with fine-grained token classification Gazetteer (static named-entity lexica) Morphology Full-form lexica obtained from ‘compactified’ MMORPH: English 200,000 entriesGerman 830,000 entries + Shallow Compound RecognitionFrench 225,000 entriesSpanish 570,000 entriesItalian 330,000 entries Asian Languages: Chinese – ShanxiJapanese – Chasen Other: Czech – HMM-based Part-of-Speech Tagging + Morphology

  18. System Description Language  Construction of a concrete system instance via definition of a regular expression of module specifications  All lingusitic modules must implement a specific JAVA interface  Automatic compilation of system description into a single JAVA class

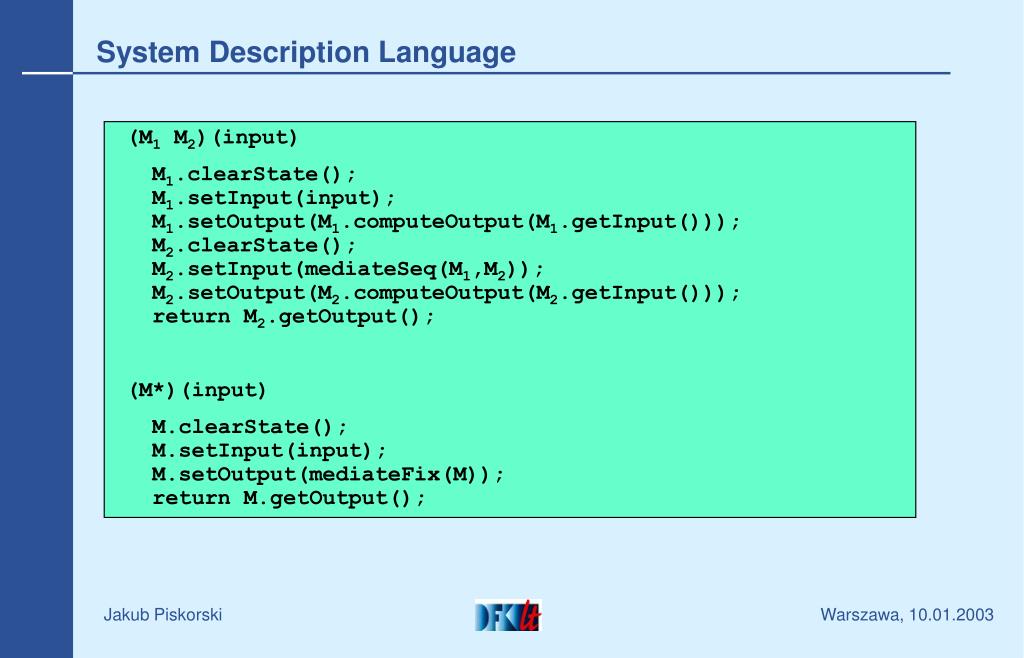

  19. System Description Language (M1 M2)(input) M1.clearState(); M1.setInput(input); M1.setOutput(M1.computeOutput(M1.getInput())); M2.clearState(); M2.setInput(mediateSeq(M1,M2)); M2.setOutput(M2.computeOutput(M2.getInput())); return M2.getOutput(); (M*)(input) M.clearState(); M.setInput(input); M.setOutput(mediateFix(M)); return M.getOutput();

  20. Future Work  Optimization of grammar interpretation Various search strategiesAdditional linguistic processing resourcesReal data testing: large grammars and real-world texts
