SEMI-SYNTHETIC CIRCUIT GENERATION FOR TESTING INCREMENTAL PLACE AND ROUTE TOOLS David Grant Guy Lemieux University of British Columbia Vancouver, BC

Overview • Introduction • Circuit Generation Method 1 (FPL) doesn’t work well • Circuit Generation Method 2 (FPT) simple, works very well • Circuit Scaling Extension • Conclusions 2

Introduction • Problem • (Free) Large digital circuits are rare • FPGA CAD tools need large circuits • Solution • Generate random circuits • But is random realistic? • Goal • Generate realistic random circuits (synthetic) • Useful for testing place and route tools 3

Introduction • Past approaches • Generate a complete synthetic circuit • Tools: ccirc+cgen, gnl • New problem • Real world development is iterative, incremental • FPGA tools commonly used in incremental mode • Need circuits with incremental changes 4

Introduction • Our Approach • Start with a real circuit • Generate a small synthetic change • Result is a semi-synthetic circuit • Four steps to generate a semi-synthetic circuit • Identify • Remove • Generate • Stitch (difficult?) 5

Introduction • Problem: Blindly stitching a circuit can create combinational loops • Cannot arbitrarily insert new latches to break loops 6

Overview • Introduction • Circuit Generation Method 1 (FPL) • Circuit Generation Method 2 (FPT) • Circuit Scaling • Conclusions 7

Method 1: Introduction • Four steps to generate a semi-synthetic circuit • Identify sub-circuit (T-VPack) • Remove sub-circuit • Generate clone (ccirc+gnl, ccirc+cgen) • Stitch • Steps 1, 2, 3 are easy… • Stitching is difficult !! 8

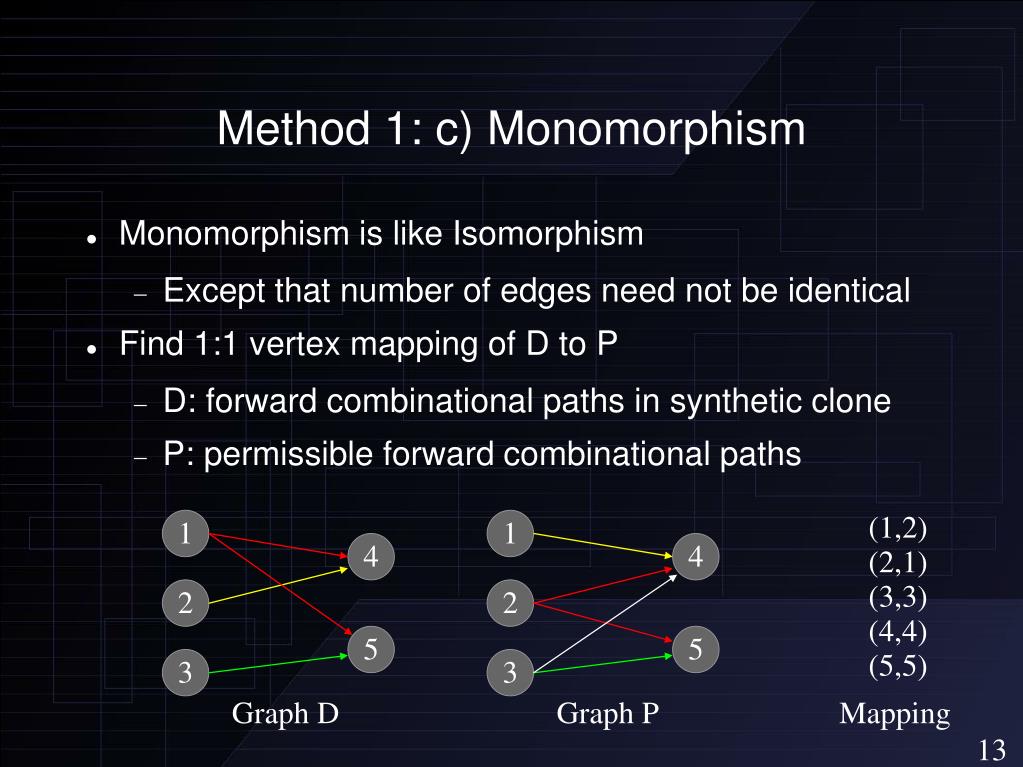

Method 1: c) Monomorphism • Monomorphism is like Isomorphism • Except that number of edges need not be identical • Find 1:1 vertex mapping of D to P • D: forward combinational paths in synthetic clone • P: permissible forward combinational paths 1 1 (1,2) (2,1) (3,3) (4,4) (5,5) 4 4 2 2 5 5 3 3 Graph D Graph P Mapping 13

Method 1: d) Stitch • Take the mapping solution and merge the clone into the hole left in the original circuit • Mapping: (2,1), (1,2), (3,3), (4,4), (5,5) 14

Method 1: Discussion • Good results for small cutout regions • Unacceptably long run times for subcircuits > 50 I/Os • Monomorphism solver is non-deterministic • Preserved most key circuit characteristics • Logic depth increases by factor 2-3x • …because method is unconstrained ! • Conclusion • Stitching is not a trivial problem to solve (in a cycle-free way) 15

Method 2: Introduction • Four steps to generate a semi-synthetic circuit • Identify sub-circuit (T-VPack) • Remove sub-circuit • Generate clone (perturber) • Stitch • The perturber does not “profile and generate” • Instead, it “perturbs” the existing circuit • Stitching is trivialized using this method 17

Method 2: Perturbing a Circuit • Perturber Algorithm • Levelize the complete circuit • Select a random edge in the sub-circuit (1 source and 1 sink) • Select a second edge in sub-circuit under certain constraints * • Swap the sinks • Repeat 18

Method 2: Perturbing a Circuit • Perturber Algorithm (cont'd) * Constraints guiding second edge selection • Source and sink levels must match • Source node cannot be sub-circuit input 19

Method 2: Advantages of Perturber Algorithm • Key circuit characteristics are exactlypreserved • Number of nodes and edges • Fanout distribution • Depth profile • Strengths • No combinational loops are created • Because the levelization is preserved • Very fast execution time • Very simple approach 20

Method 2: Ancestor Control • Method to preserve locality • Add additional edge selection constraint • Source and sink levels must match • Source node may not be sub-circuit input • Both edges must share a common ancestor through combinational logic within a certain ancestor depth • Stop at sub-circuit inputs and flops 22

Method 2: Testing • Know all the key circuit characteristics are preserved • Focus comparisons on post-routing results • Test 20 largest MCNC circuits • Metrics: channel width, delay, and wirelength • goodness of result == closeness to original MCNC result • Test 1: Sanity test, full-circuit compare w/ ccirc+cgen • Test 2: Incremental semi-synthetic circuits 23

Method 2: Discussion • Sanity Check • Complete circuit result error < ccirc+cgen error(error reduced by ~1/3) • Incremental Circuits • Close to original (1%-6%) using 5%, 10% cutouts • More deviation (4%-9%) at 20% cutout 31

Circuit Scaling • Scaling • Reduce the size of the cutout region • so the tools have to fill in holes • Increase the size of the cutout region • so the tools have to make room for larger circuit • Approach • Scale a circuit (mutator), then perturb it 33

Circuit Scaling • Reduction • Shotgun approach: delete nodes at random • Sometimes need to delete chains of logic • Enlargement • Duplicate circuit in parallel • Multiplex inputs and outputs with LUTs • Doubles (…, triples, etc) circuit • Enlargement+reduction to achieve arbitrary scaling 34

Circuit Scaling: Results • Test 5%, 10%, 20% cutout • Scale cutout size to 50%, 75%, 200%, 400% original • No unexpected changes in post-routing characteristics from MCNC original • Some expected changes • Eg, wirelength increased as cutout size enlarged 35

Conclusions • Have shown how to create a semi-synthetic circuit • Method 2 is a superior method over past approaches • Runtime, simplicity • Preservation of key circuit properties • Preserve them first, find ways to alter them later… • Quality of result • Scaling is able to change the circuit size without changing the post-routing characteristics in unexpected ways 36

Future Work • Critical Path • Lengthen the critical path to force the tools to shuffle nodes along the critical path • Mutate other circuit properties? • Node depth profile • Fanout distribution • Fanin distribution • Wire lengths 37

It's Over • Questions? • Comments? • Concerns? 38
