Valence Bond Theory

Valence Bond Theory. Linus Carl Pauling (February 28, 1901 – August 19, 1994). Valence Bond Theory. The half filled orbital of one atom overlaps a half filled orbital of a second atom to form a full orbital with two electrons spinning in opposite directions .

cicada
Télécharger la présentation

Valence Bond Theory

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Valence Bond Theory Linus Carl Pauling (February 28, 1901 – August 19, 1994)

  2. Valence Bond Theory • The half filled orbital of one atom overlaps a half filled orbital of a second atom to form a full orbital with two electrons spinning in opposite directions. • The bonding atoms arrange themselves in order to maximize the overlap of the half-filled orbitals. • Maximum overlapping of the orbitals creates a bonding orbital with a lower energy and increased stability.

  3. Valence Bond Theory • The combination of electrostatic repulsion and opposing magnetic fields (due to the electron’s spin) creates the stability associated with a bonding orbital. Electron Spin Electron Spin Electrostatic repulsion Negative charge Negative charge Magnetic attraction “North” magnetic field “South” magnetic field

  4. Valence Bond Theory • During this process, two atoms approach each other and allow their half filled orbitals to overlap and form the stability of a filled bonding orbital.

  5. PROBLEMS WITH LEWIS THEORY

  6. Hybrid Orbitals • In some situations a more advantageous bonding scenario can be established by promoting electrons from a full orbital to a similar empty orbital to create two half filled orbitals that are available for bonding. • The resulting orbital is a mixture of the two original orbitals and is called a hybrid orbital. • For eg. What is the simplified energy level diagram (ie. Valence electrons) for Carbon?

  7. One s e-is promoted to the empty p orbital • This causes the energy of all 4 orbitals to shift: • The energy of the p orbitals is reduced slightly • The energy of the s orbital is increased slightly • Each orbital is a hybrid of 1 “s” and 3 “p” orbitals • Each hybrid orbital is called an “sp3” orbital

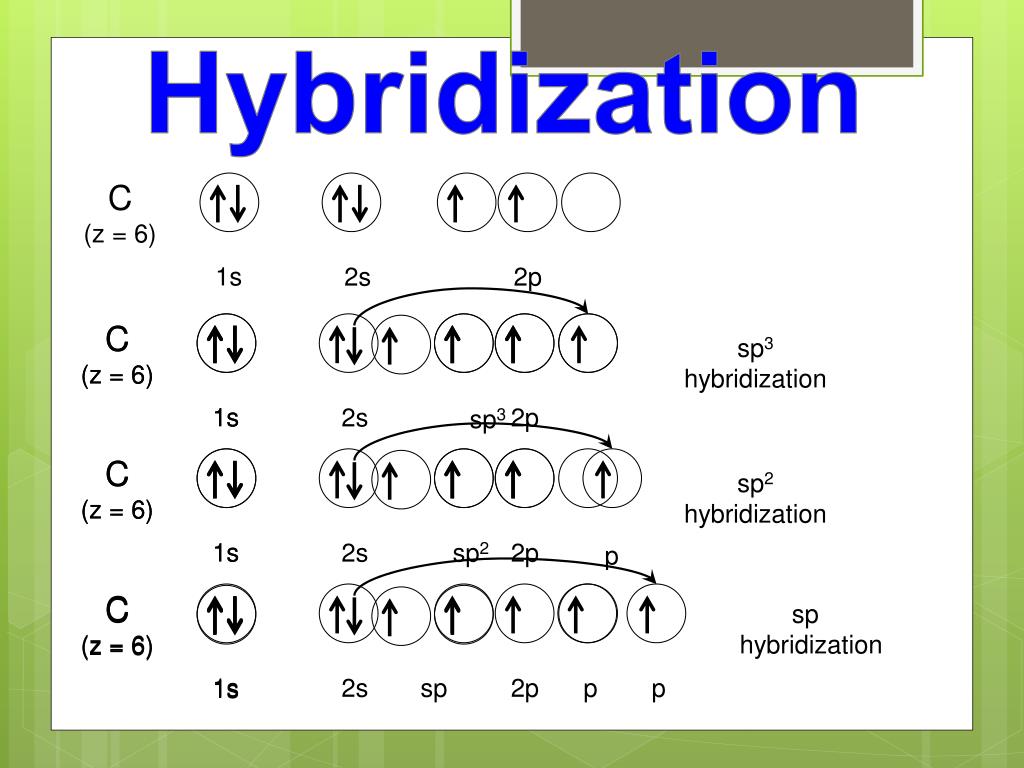

  8. C(z = 6) 1s 2s 2p C(z = 6) C(z = 6) C(z = 6) C(z = 6) 1s 1s 1s 2s 2s 2s 2p 2p 2p sp2 hybridization C(z = 6) sp3 hybridization 1s sp2 p C(z = 6) 1s sp3 sp hybridization sp p p 1s Hybridization

  9. Linus Pauling and Hybrid Orbitals

  10. Remember VSEPR…

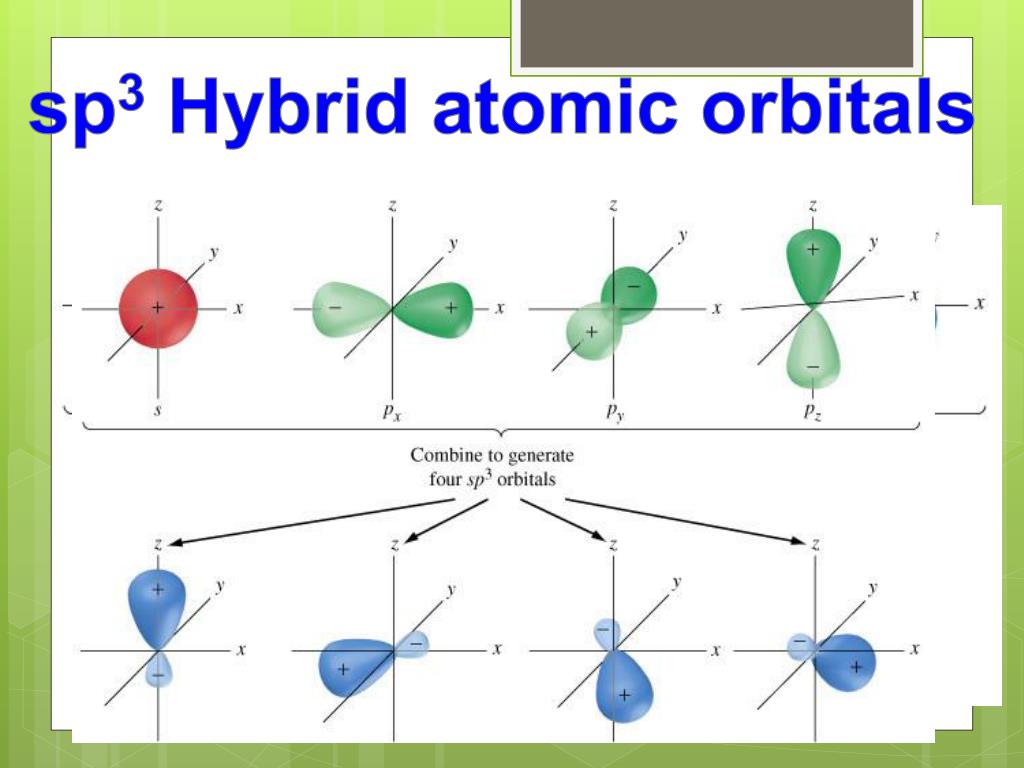

  11. sp3 Hybrid atomic orbitals

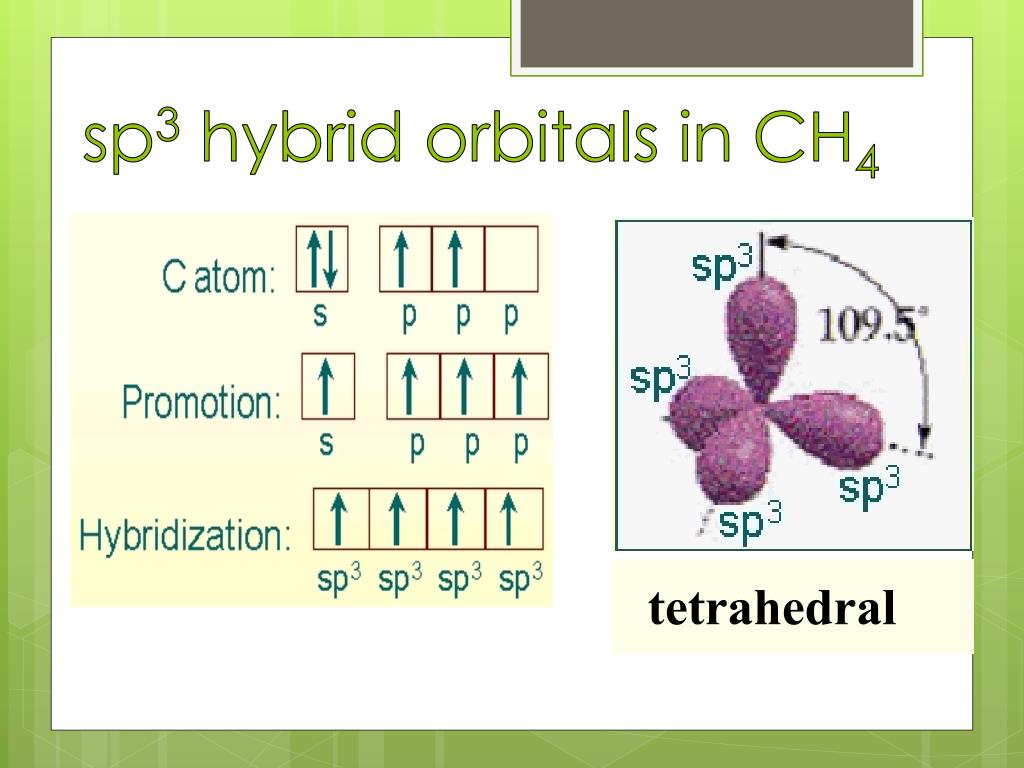

  12. sp3 hybrid orbitals in CH4

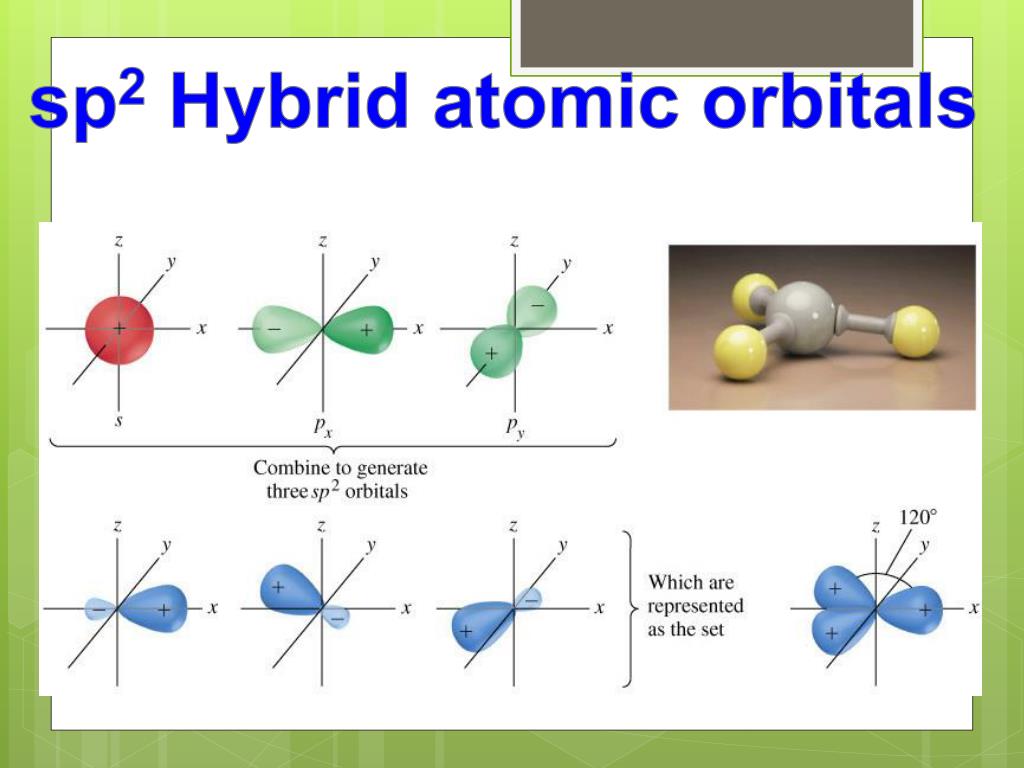

  13. sp2 Hybrid atomic orbitals

  14. sp2 hybrid orbitals in BF3

  15. sp hybrid orbitals in BeF2

  16. sp3d and sp3d2 hybridization

  17. Double & Triple Bonds • Sigma (s) bonds – The “end-to-end” overlapping of half filled orbitals to make a full bonding orbital of lower energy level (i.e. – more stable) They occur between “s”, “p” and hybrid orbitals (“sp”,“sp2” & “sp3”) to make single covalent bonds.

  18. Double & Triple Bonds • Pi (p) bonds – The “side-to-side” overlapping of half filled “p” orbitals to make more stable filled bonding orbitals.

  19. Double & Triple Bonds • A combination of “p” and “s” bonds makes double and triple bonds. Single bonds Sigma only (s) Double bonds 1 Sigma (s) and 1 Pi (p)

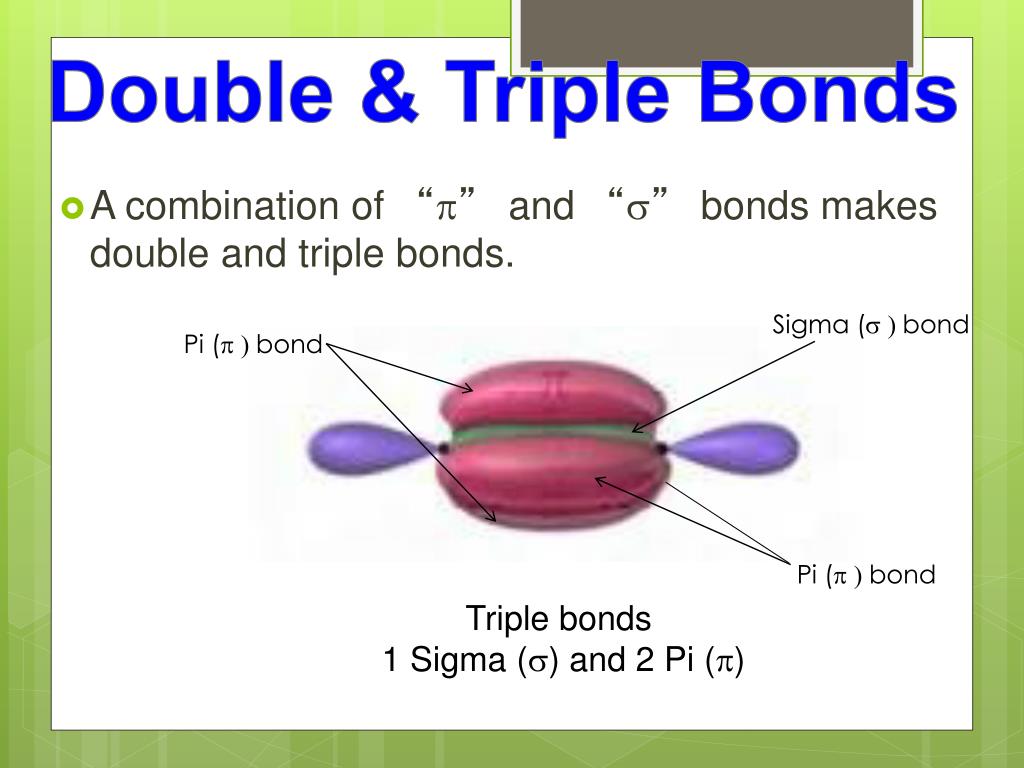

  20. Double & Triple Bonds • A combination of “p” and “s” bonds makes double and triple bonds. Sigma (s ) bond Pi (p ) bond Pi (p ) bond Triple bonds 1 Sigma (s) and 2 Pi (p)
