  1. Image indexing and retrieving using histogram based methods 03/7/15 資工研所 陳慶鋒

  2. Outline • Histogram based methods • Image retrieval using the three methods • Experimental result • Library of Image formats • Future work • References

  3. Histogram based features • Color Histogram • Histogram Refinement • Color Correlogram

  4. Color histogram • For a nn with m colors image I, the color histogram is where p為屬於I的pixel, I(p)為其顏色 , ,for

  5. Color histogram (cont.) • Advantages -trivial to compute -robust against small changes in camera viewpoint • Disadvantages -without any spatial information

  6. Histogram refinement The pixels of a given bucket are subdivided into classes based on local feature. Within a given bucket , only pixels in the same class are compared. The local feature which this paper used: Color Coherence Vectors(CCVs)

  7. Histogram refinement (cont.) • CCVs For the discretized color ci, the pixels with color ci are coherence if the number of connected component>= , indicated as ci, otherwise are incoherence, indicated as ci, and total pixel with color ci= ci+ ci, a threshold  is defined as the condition of coherence or not for color j, the coherence pair is (ci, ci)

  8. Histogram refinement (cont.)

  9. Histogram refinement (cont.) • Example

  10. Histogram refinement (cont.) • Example(cont.)

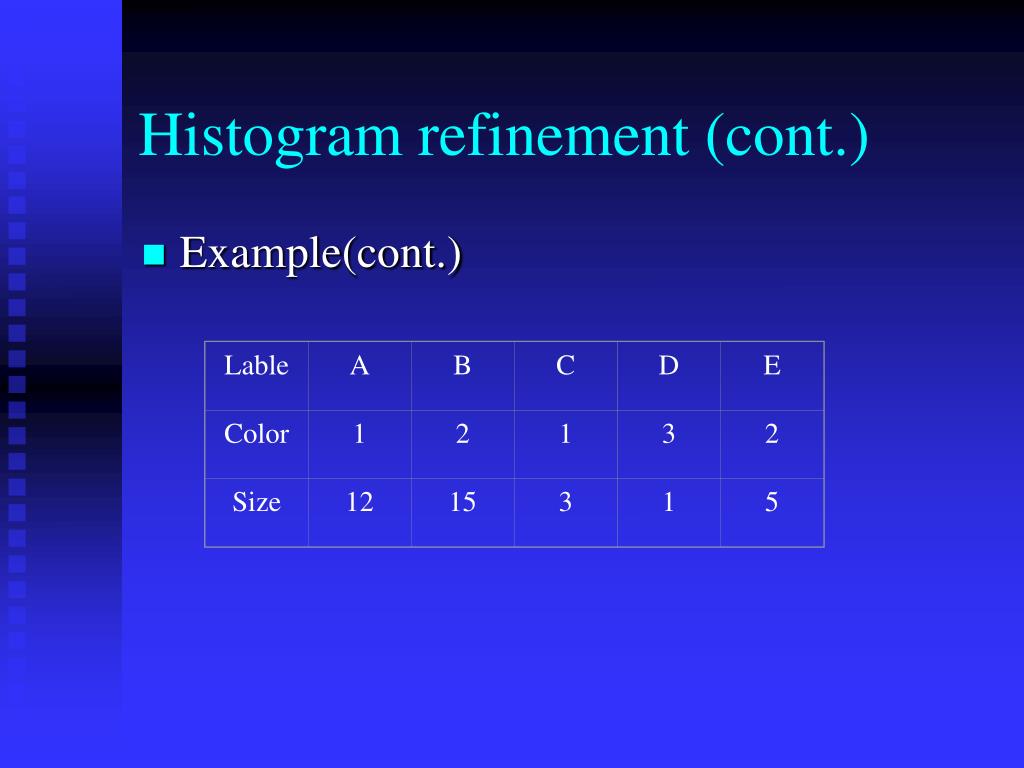

  11. Lable A B C D E Color 1 2 1 3 2 Size 12 15 3 1 5 Histogram refinement (cont.) • Example(cont.)

  12. Color 1 2 3 α 12 20 0 β 3 0 1 Histogram refinement (cont.) • Example(cont.)

  13. Color correlograms • A table indexed by color pairs, where the k-th entry for color pair <i, j> specifies the probability of finding a pixel of color j at a distance k from a pixel of color i in the image. The correlogram is 1 0 0 1 1 1 1 1 1

  14. Color correlograms(cont.) The autocorrelogram is

  15. Color correlograms (cont.) • Example

  16. Color correlograms (cont.) • Example(cont.)

  17. Color correlograms (cont.) • Example(cont.)

  18. Image retrieval using the three methods • Similarity measure -L1 distance similarity -relative distance • Performance measure -ranking measure

  19. Similarity measure • L1 distance similarity Sim() Sim(I,I’)愈大，兩張圖的相似度愈高

  20. Similarity measure(cont.) • Relative distance 愈小，兩張圖的相似度愈高

  21. Performance measure • Ranking measures 令 為query images的集合，Q’i為Qi的 answer image r-measure: average r-measure: p1-measure: average p1-measure:

  22. Experimental result • Experimental setup -Image database of 180 gray level images with size 192x128 -Quantize gray level to 16 bins -Set  of CCV as 1500 -Set d of autocorrelogram as 30 -A query set which consists 25 query images and 25 answer images

  23. Experimental result(cont.) • Results similarity hist: 1 ccv: 1 auto: 1 relative distance hist: 1 ccv: 1 auto: 1 similarity hist: 32 ccv: 26 auto: 44 relative distance hist: 33 ccv: 38 auto: 31

  24. Experimental result(cont.) • Results(cont.) similarity hist: 41 ccv: 11 auto: 77 relative distance hist: 10 ccv: 3 auto: 7 similarity hist: 55 ccv: 26 auto: 80 relative distance hist: 2 ccv: 10 auto: 1

  25. Similarity Relative distance Color histogram Color histogram ccv ccv auto auto r-measure r-measure 266 155 185 203 387 133 avg r-measure avg r-measure 6.2 10.64 8.12 7.4 5.32 15.48 p1-measure p1-measure 15.27 15.77 14.53 14.68 16.54 15.57 avg p1-measure avg p1-measure 0.61 0.63 0.59 0.58 0.66 0.62 Experimental result(cont.) • Results(cont.) performance measure in similarity and relative distance

  26. Similarity Relative distance Color histogram Color histogram ccv ccv auto auto r-measure r-measure 266 155 185 203 387 133 avg r-measure avg r-measure 6.2 10.64 8.12 7.4 5.32 15.48 p1-measure p1-measure 15.27 15.77 14.53 14.68 16.54 15.57 avg p1-measure avg p1-measure 0.61 0.63 0.59 0.58 0.66 0.62 Experimental result(cont.) • Results(cont.) performance measure in similarity and relative distance

  27. Experimental result(cont.) • Factors which affect performance - choice of image database - choices between query images and answer images -  of CCV - d of color autocorrelogram

  28. Library of Image formats • Include: imgdata.h • Formats: pgm, jpg, png, bmp • We can get: width, height, and raw data

  29. Library of Image formats(cont.) • Functions GetPGM(char, int*, int*, unsigned char**) GetPNG(char, int*, int*, unsigned char**) GetBMP(char, int*, int*, unsigned char**) GetJPEG(char, int*, int*, unsigned char**)

  30. Library of Image formats(cont.) • Example int width, height unsigned char* data GetJPEG(“1.jpg”, &width, &height, &data)

  31. Future work • Image indexing and retrieving of color images (debugging) • Further study

  32. References • [1] M. Swain and D. Ballard, “Color indexing,” International Journal of Computer Visioin, 7(1):11-32, 1991 • [2]G. Pass and R.Zabih, “Histogram refinement for content based image retrieval,” IEEE Workshop on Applications of Computer Vision, pp.96-102, 1996 • [3] G Pass and R. Zabih, “Compare images using color coherence vectors,” Applications of Computer Vision, 1996. WACV '96., Proceedings 3rd IEEE Workshop on , 2-4 Dec 1996 , Page(s): 96 -102 • [4] J. Huang, S. R. Kumar, M. Mitra, W. J. Zhu, and R.Zabih, “Image indexing using color correlograms,” Conf. Computer Vision and Pattern Recognit., pp.762-768,1997
