  1. Overview of Vacuum Systems Tejas Deshpande 24 July, 2014

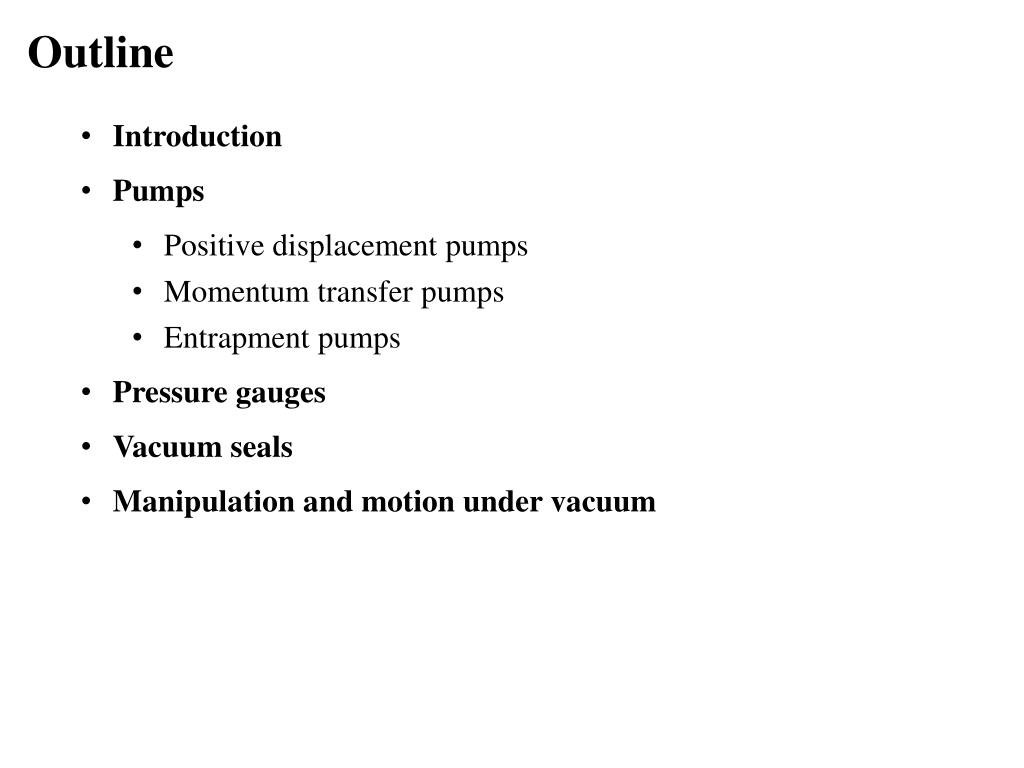

  2. Outline • Introduction • Pumps • Positive displacement pumps • Momentum transfer pumps • Entrapment pumps • Pressure gauges • Vacuum seals • Manipulation and motion under vacuum

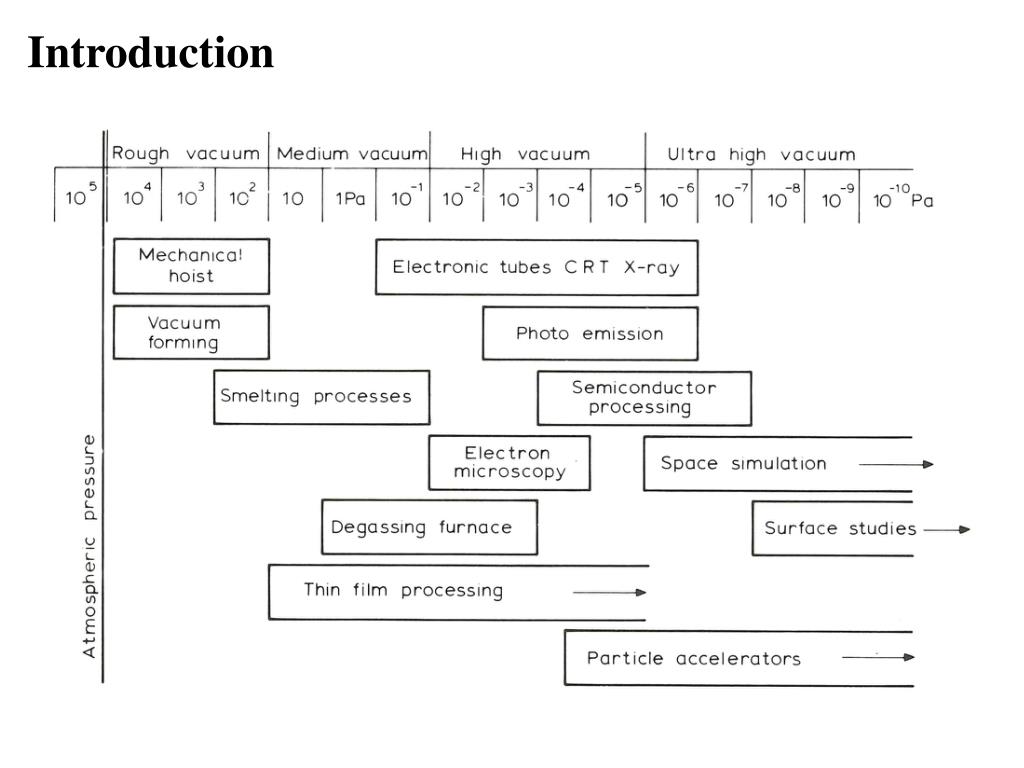

  3. Introduction

  4. Introduction: definitions Kinetic Theory of Gases • Ideal gas equation • Velocity of molecules hitting chamber walls

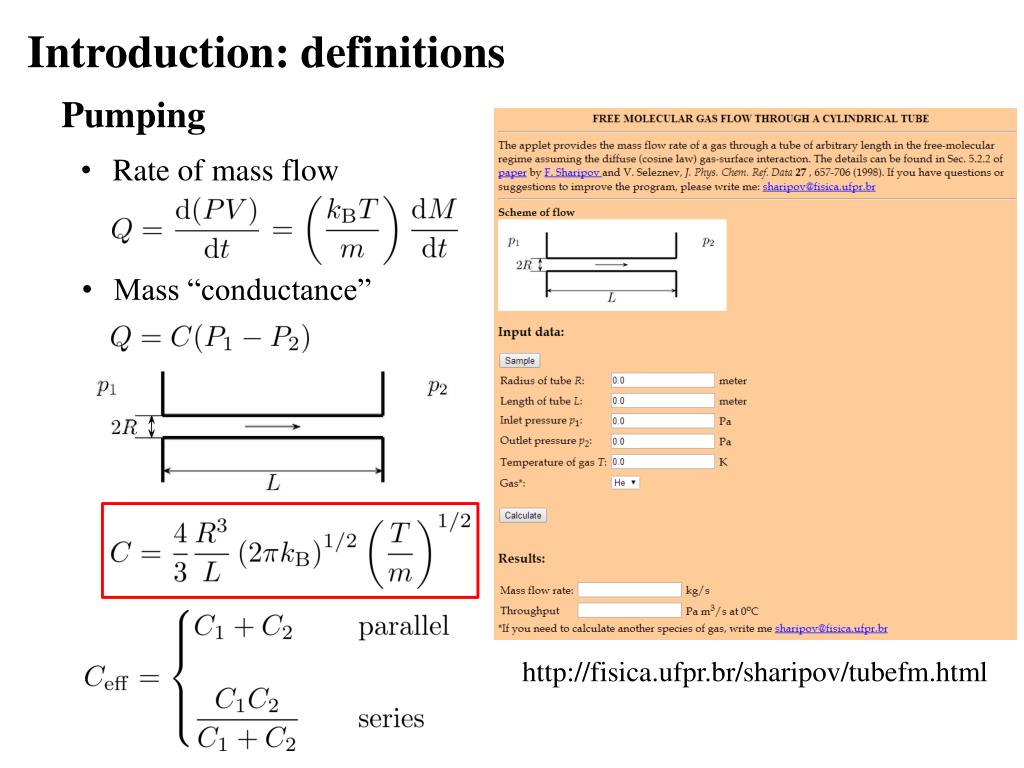

  5. Introduction: definitions Pumping • Rate of mass flow • Mass “conductance” http://fisica.ufpr.br/sharipov/tubefm.html

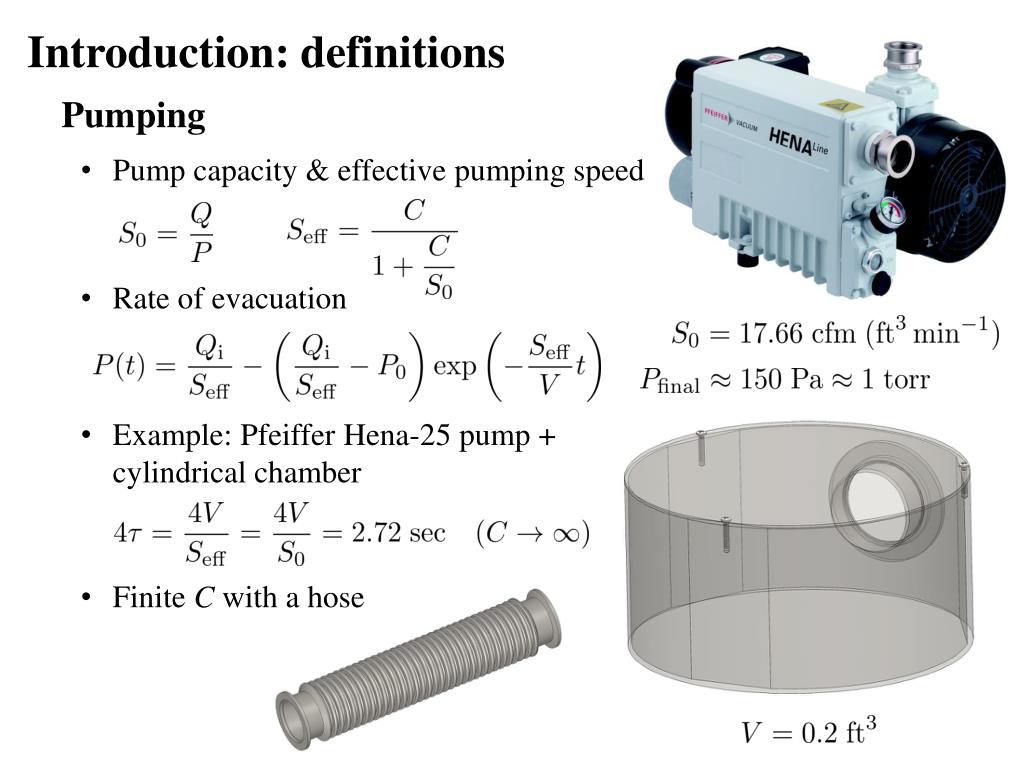

  6. Introduction: definitions Pumping • Pump capacity & effective pumping speed • Rate of evacuation • Example: Pfeiffer Hena-25 pump + cylindrical chamber • Finite C with a hose

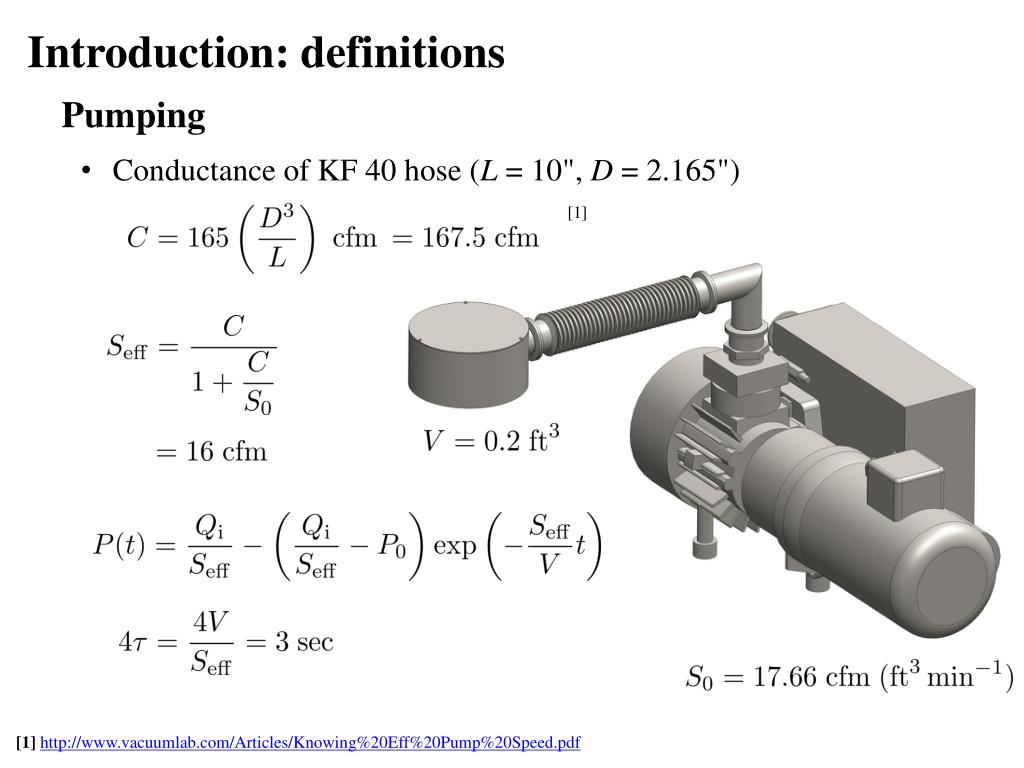

  7. Introduction: definitions Pumping • Conductance of KF 40 hose (L = 10", D= 2.165") [1] [1]http://www.vacuumlab.com/Articles/Knowing%20Eff%20Pump%20Speed.pdf

  8. Positive displacement pumps Rotary vane pumps • Principle of operation

  9. Positive displacement pumps Scroll pumps • Principle of operation

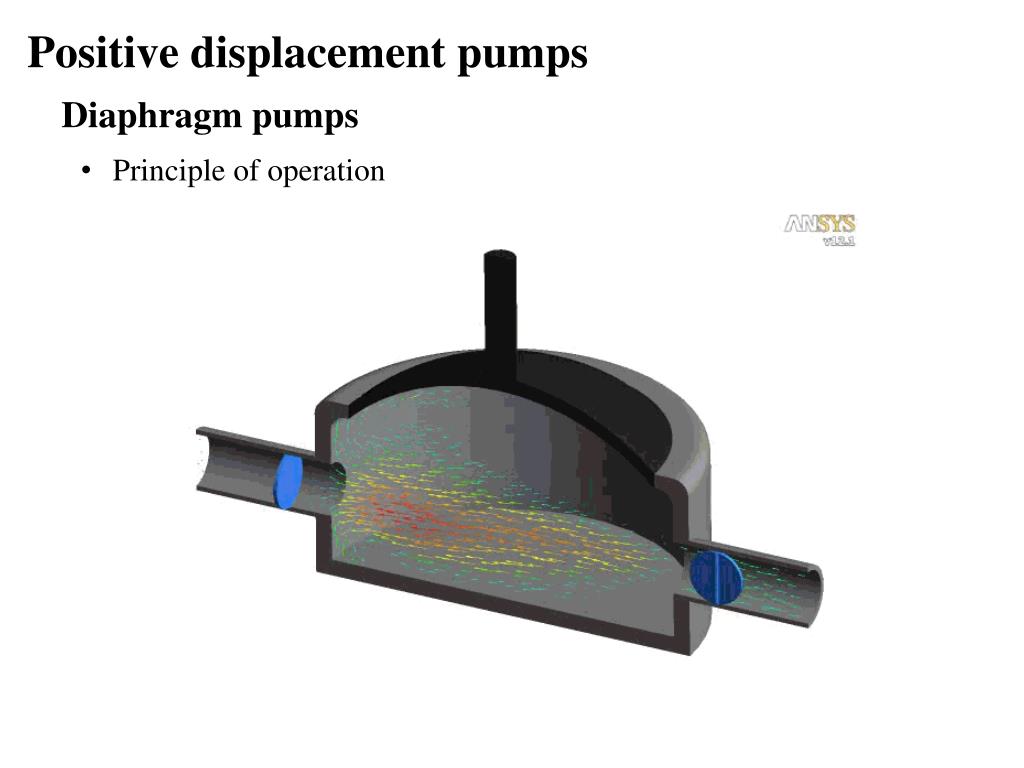

  10. Positive displacement pumps Diaphragm pumps • Principle of operation

  11. Positive displacement pumps Roots “blower” • Principle of operation

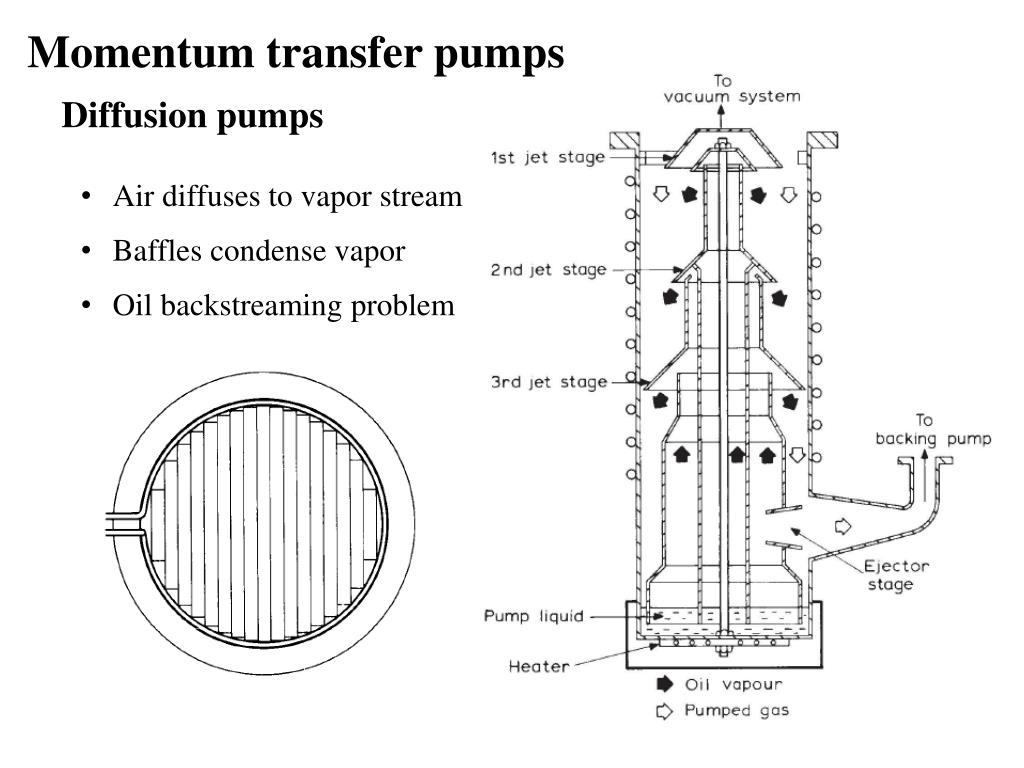

  12. Momentum transfer pumps Diffusion pumps • Air diffuses to vapor stream • Baffles condense vapor • Oil backstreaming problem

  13. Momentum transfer pumps Turbomolecular pumps • Principle of a molecular “drag” pump • Mechanically similar to rotary pump • Good compression ratio • Poor pumping speed • Turbo pump

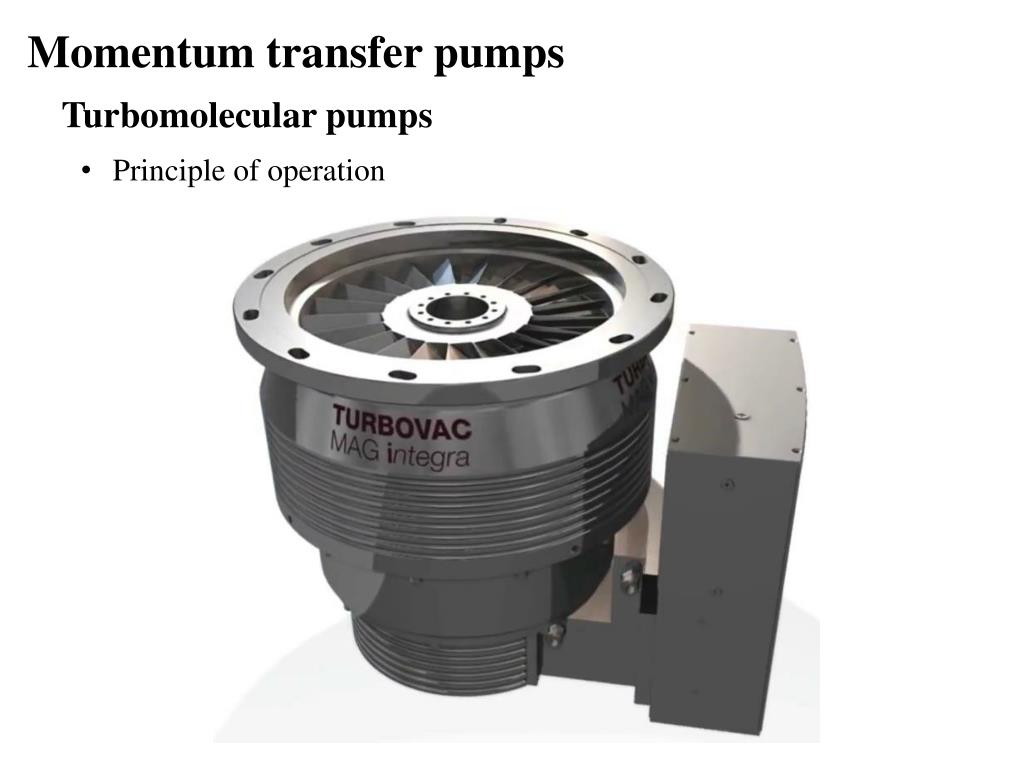

  14. Momentum transfer pumps Turbomolecular pumps • Principle of operation

  15. Entrapment pumps Ion pumps • Penning cell • Magnetic field acts as electron trap  cyclotron orbits • Ions deposit on Cathode

  16. Entrapment pumps Titanium sublimation pumps • Titanium as evaporatable “getter” material • Chemical sorption • 40-50 Ampere current evaporates Ti

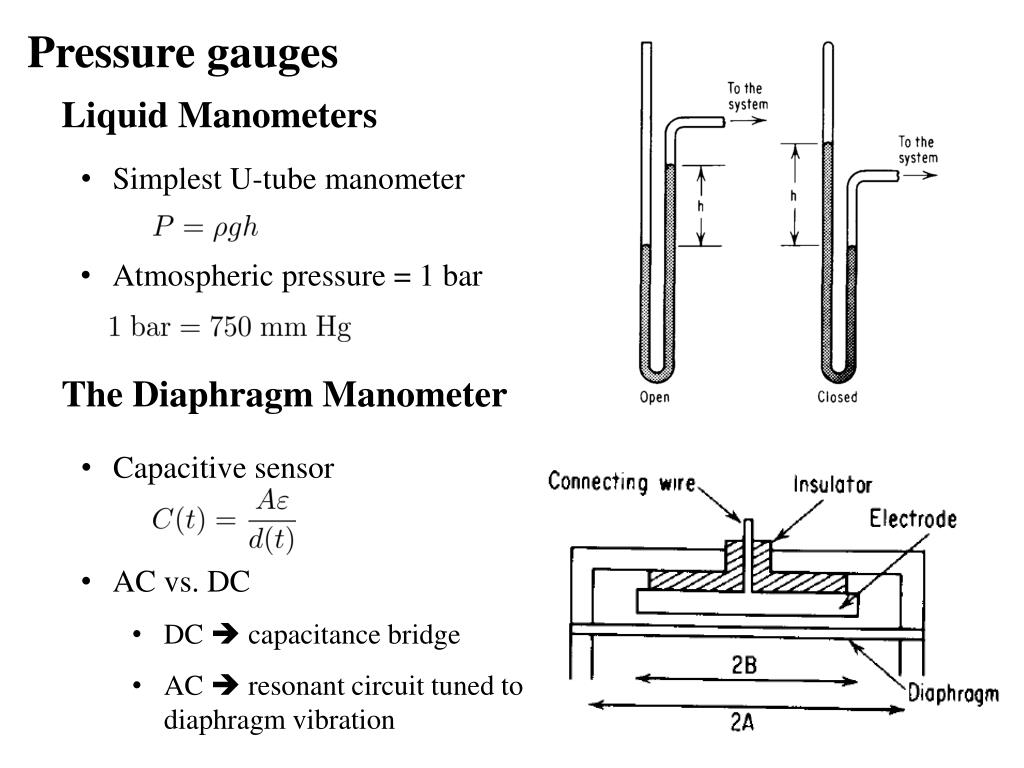

  17. Pressure gauges Liquid Manometers • Simplest U-tube manometer • Atmospheric pressure = 1 bar The Diaphragm Manometer • Capacitive sensor • AC vs. DC • DC  capacitance bridge • AC  resonant circuit tuned to diaphragm vibration

  18. Pressure gauges Thermal Conductivity Gauges • Convection of heat through the gas • Other heat losses • Radiation ~ T4 • Solid conduction • Operating conditions • Free molecular flow • > 10-3torr

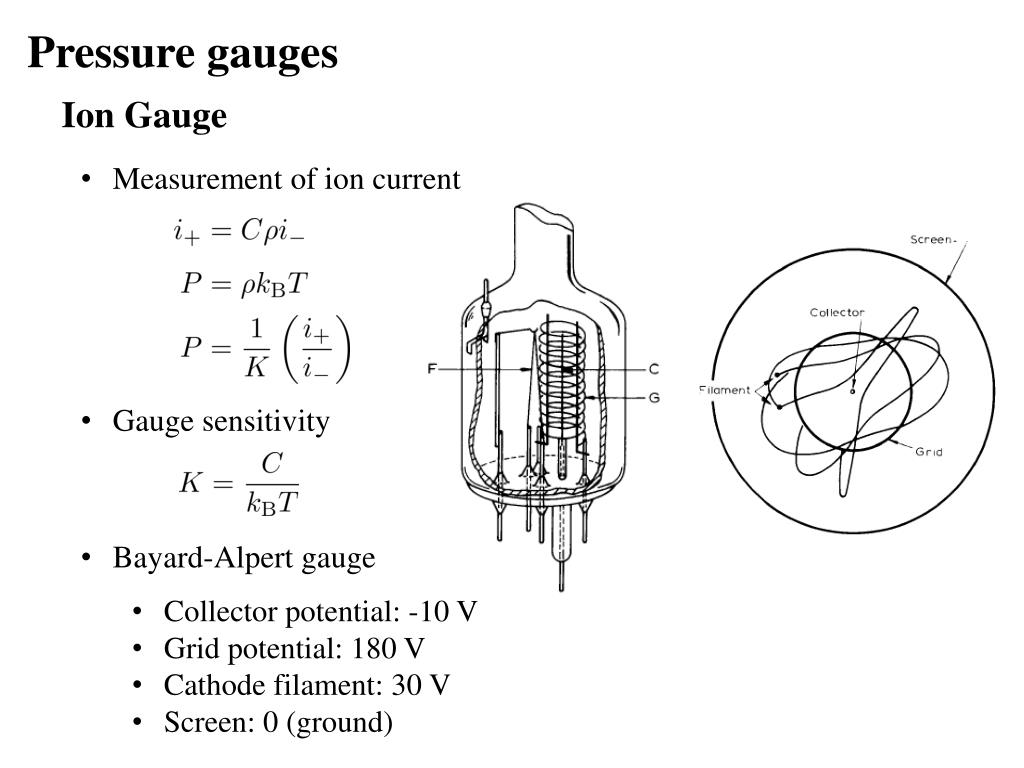

  19. Pressure gauges Ion Gauge • Measurement of ion current • Gauge sensitivity • Bayard-Alpert gauge • Collector potential: -10 V • Grid potential: 180 V • Cathode filament: 30 V • Screen: 0 (ground)

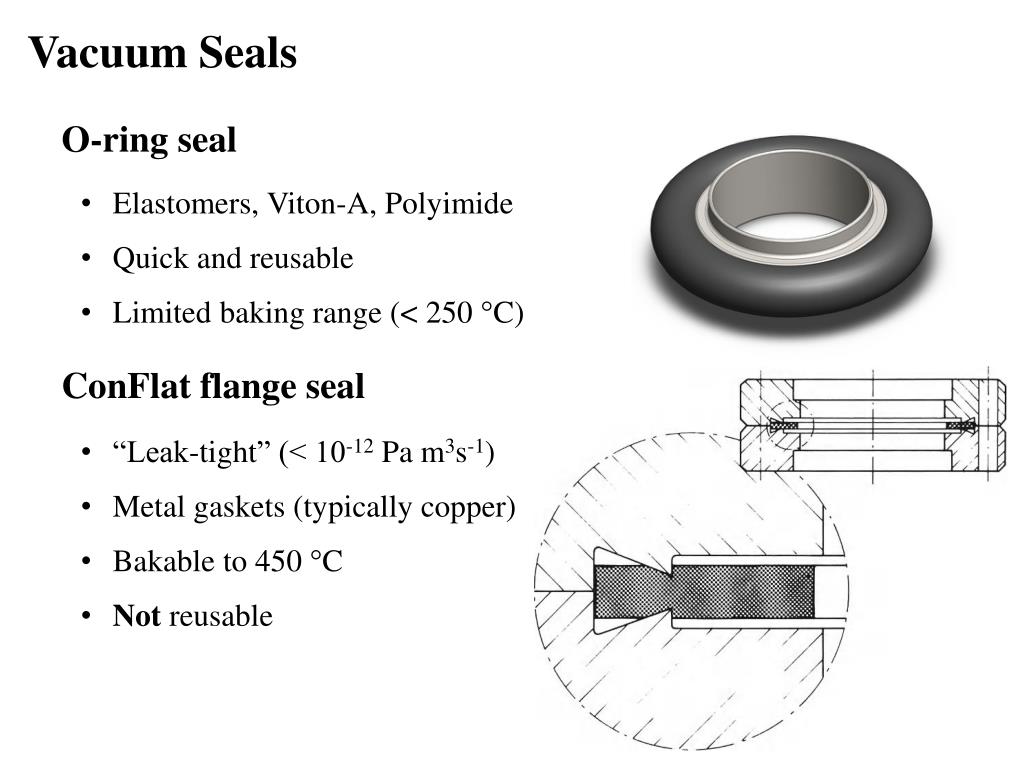

  20. Vacuum Seals O-ring seal • Elastomers, Viton-A, Polyimide • Quick and reusable • Limited baking range (< 250 °C) ConFlat flange seal • “Leak-tight” (< 10-12 Pa m3s-1) • Metal gaskets (typically copper) • Bakable to 450 °C • Not reusable

  21. Manipulation and motion under vacuum Metal bellows • Mechanical feedthroughs • Bakable to 450 °C • Limited linear/angular stroke Continuous rotation • Speeds up to 2000 RPM • High torque  bellows • Low torque  magnets

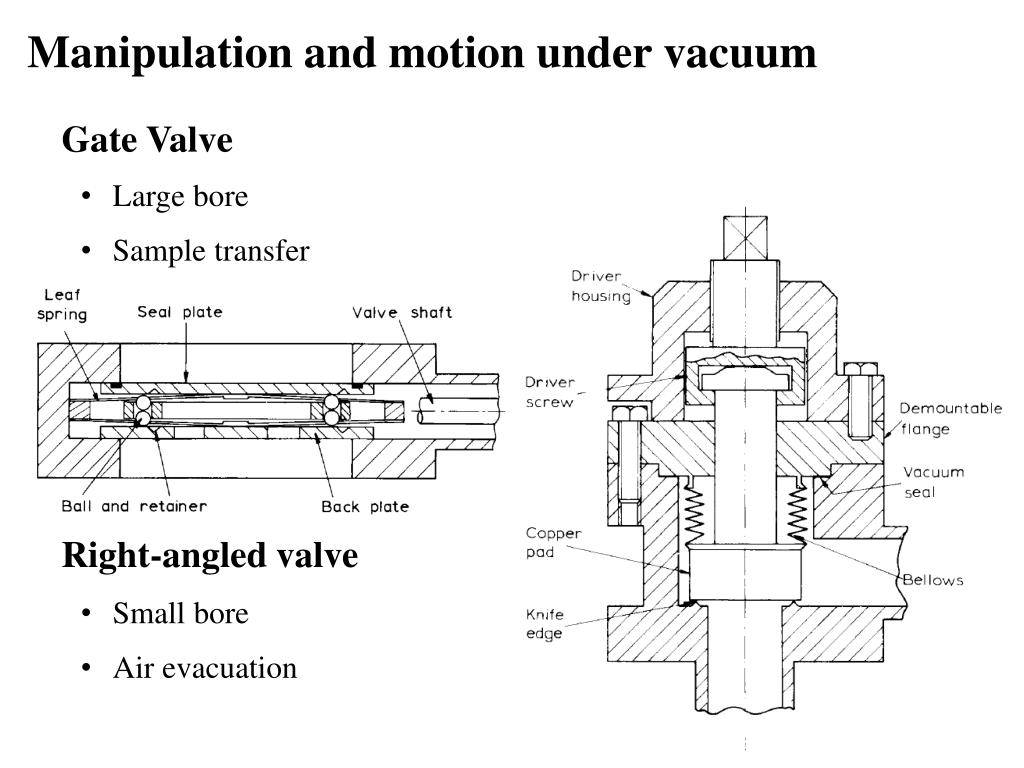

  22. Manipulation and motion under vacuum Gate Valve • Large bore • Sample transfer Right-angled valve • Small bore • Air evacuation

  23. Manipulation and motion under vacuum Transfer arm • Significantly greater stroke than bellow-sealed manipulator • Magnetic power transmission

  24. Summary • Introduction • Pumps • Positive displacement pumps • Momentum transfer pumps • Entrapment pumps • Pressure gauges • Vacuum seals • Manipulation and motion under vacuum
