ASP- Additional Sidewall Protection

Informal document No . GRRF-62-02 (62nd GRRF, 25-28 September 2007, agenda item 9.(e)). ASP- Additional Sidewall Protection. Presentation for GRRF 62nd session 25–28 September 2007. Definition ASP.

claus
Télécharger la présentation

ASP- Additional Sidewall Protection

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Informal document No. GRRF-62-02 (62nd GRRF, 25-28 September 2007, agenda item 9.(e)) ASP- Additional Sidewall Protection Presentation for GRRF 62nd session 25–28 September 2007 BIPAVER

  2. Definition ASP • "Additional Sidewall Protection (ASP)" is an additional protective rubber layer applied to one sidewall only of the casing for improving resistance against sidewall abrasion." • Purpose of ASP: …”enhancing safety and durability of tyres in urban use”….“to provide additional abrasion protection of the sidewall in aggressive urban usage” BIPAVER

  3. How does it work? • Casing sidewall is inspected and buffedPRECURE: MOLDCURE: • Cushion is applied • Pre-cured ASP is applied - Un-vulcanized wear rubber applied ASP- wearing rubber Cushion-binding rubber BIPAVER

  4. Application cushion BIPAVER

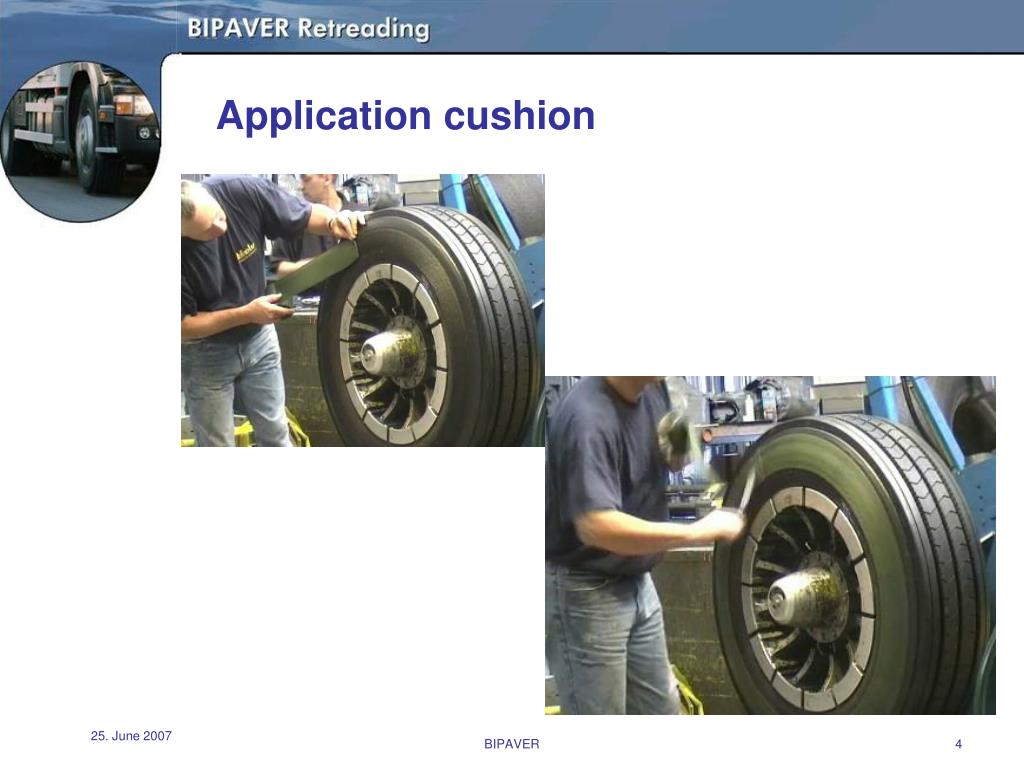

  5. Application of ASP BIPAVER

  6. ASP ready for vulcanization BIPAVER

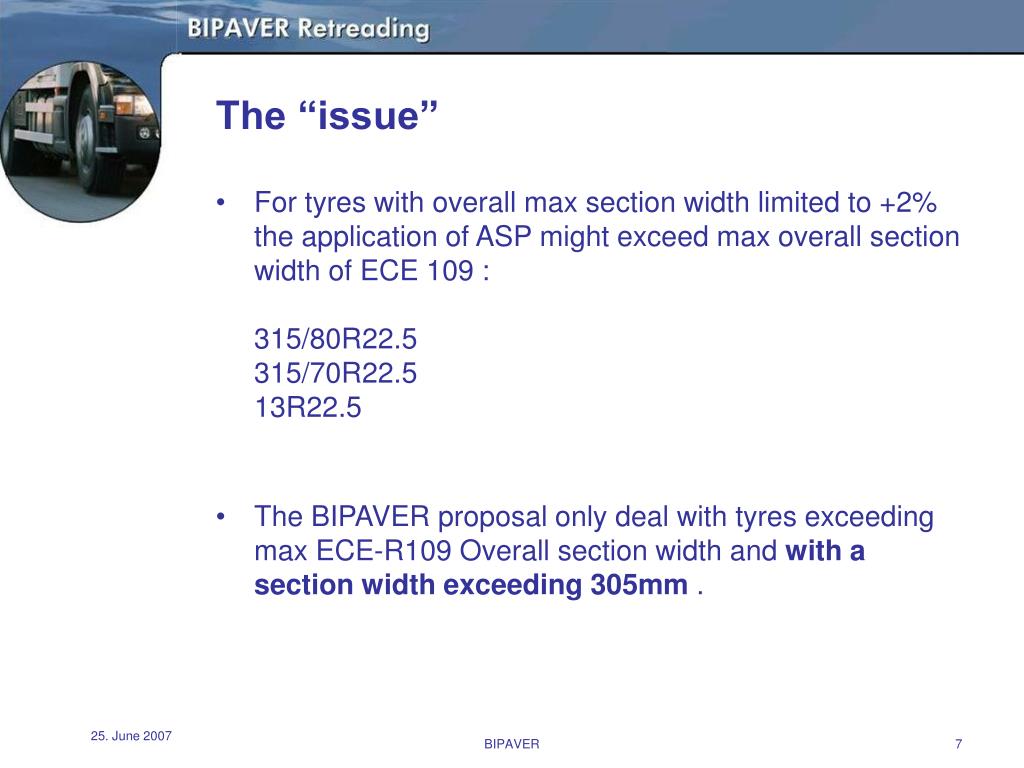

  7. The “issue” • For tyres with overall max section width limited to +2% the application of ASP might exceed max overall section width of ECE 109 :315/80R22.5315/70R22.513R22.5 • The BIPAVER proposal only deal with tyres exceeding max ECE-R109 Overall section width and with a section width exceeding 305mm . BIPAVER

  8. Final Product • Total section width is Max 8 mm wider than max section width of a new original tire permitted by Reg. 54. Additional thickness max 8mm BIPAVER proposal:Max Overall width up to max 8mm BIPAVER

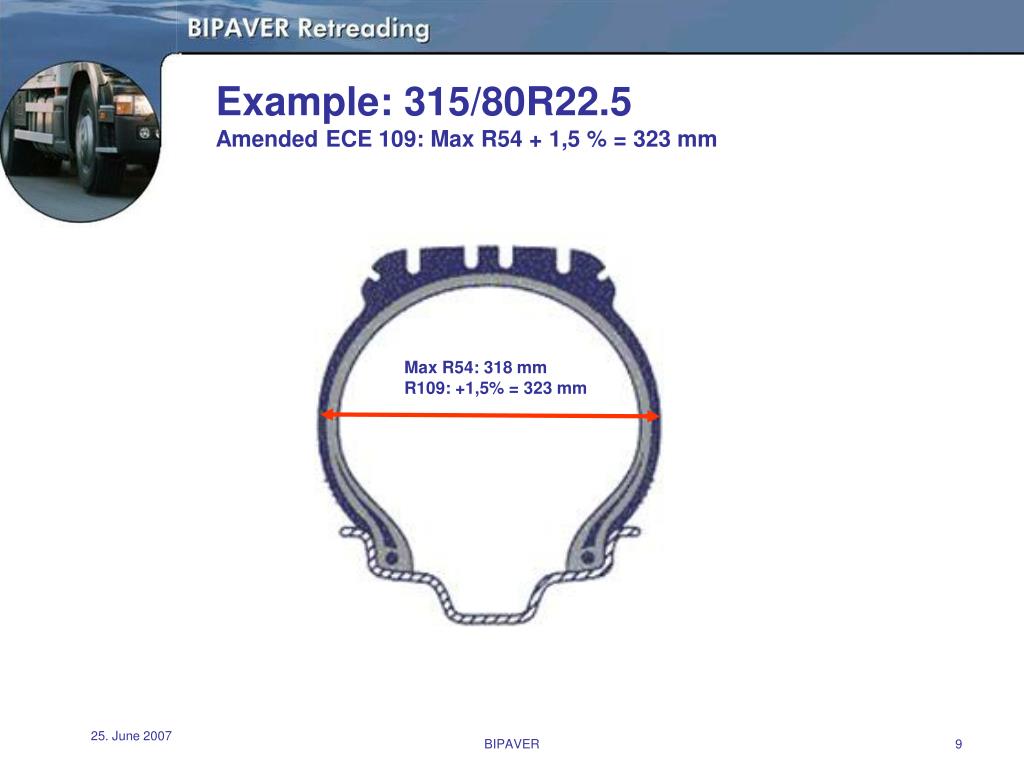

  9. Example: 315/80R22.5Amended ECE 109: Max R54 + 1,5 % = 323 mm Max R54: 318 mm R109: +1,5% = 323 mm BIPAVER

  10. Example: 315/80R22.5Amended ECE 109: Max R54 + 1,5 % = 323 mmASP only on one side permissible, when tyre is exceeding 323 mm ! Facing outwards: The word ASP Marking OUTSIDE Facing inwards: The word ASP Max R54: 318 mm R109: +1,5% = 323 mm No additional reductionof dual spacing vs. amended ECE 109 ASP: Max R54 + 8 mmASP: Max 326 mm BIPAVER
