  1. ADV784x EDID FEATUREOVERVIEW

  2. What is an EDID? (VGA or HDMI) • Describes the capabilities of the sink • Video resolution • Color Spaces • Maximum Pixel Clock Frequency • Audio Format (PCM, DSD, DST, HBR) (HDMI Only) • Audio Sampling Frequency (HDMI Only) • Maximum Pixel Clock Frequency • EDID is generally stored in an external storage device • EDID storage device connected to the following • DDC port for HDMI • SCL/SDA signals on VGA connector • EDID size for VGA application • 128 bytes (typical VGA EDID size)

  3. EDID On HDMI Link SINK SOURCE HDMI link TMDS clock, data HPD 5V CEC DDC E-EDID

  4. E-EDID On VGA link SINK SOURCE SOURCE VGA Cable R, G, B channels HS, VS signals 5V (Pin 9) SCL (Pin 15) SDA (Pin12) E-EDID

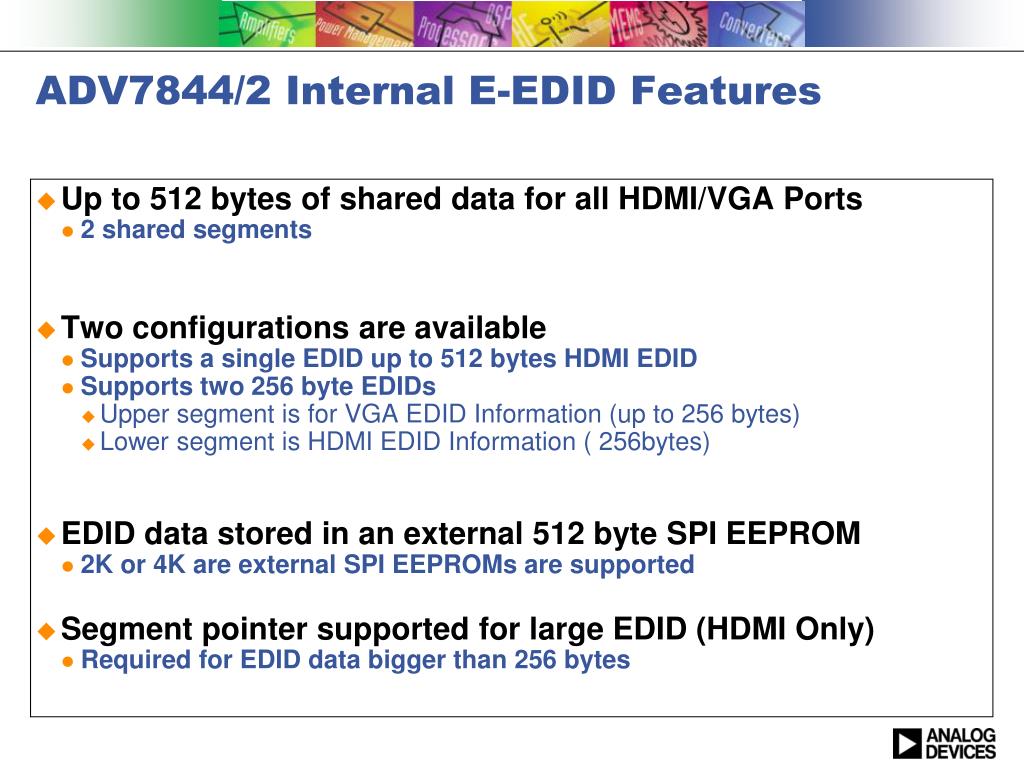

  5. ADV7844/2 Internal E-EDID Features • Up to 512 bytes of shared data for all HDMI/VGA Ports • 2 shared segments • Two configurations are available • Supports a single EDID up to 512 bytes HDMI EDID • Supports two 256 byte EDIDs • Upper segment is for VGA EDID Information (up to 256 bytes) • Lower segment is HDMI EDID Information ( 256bytes) • EDID data stored in an external 512 byte SPI EEPROM • 2K or 4K are external SPI EEPROMs are supported • Segment pointer supported for large EDID (HDMI Only) • Required for EDID data bigger than 256 bytes

  6. HDMI EDID Data Structure EDID 1.3 128 bytes Block 1 – Segment 0 Mandatory Map Block 128 bytes Block 2 – Segment 0 Mandatory CEA Extensions ver. 3 128 bytes Block 3 - Segment 1 CEA Extensions ver. 3 128 bytes Block 3 - Segment 1 CEA Extensions ver. 3 128 bytes Block 3 - Segment 1 CEA Extensions ver. 3 128 bytes Block 3 - Segment 1 CEA Extensions ver. 3 128 bytes Block 4 - Segment 1 Optional

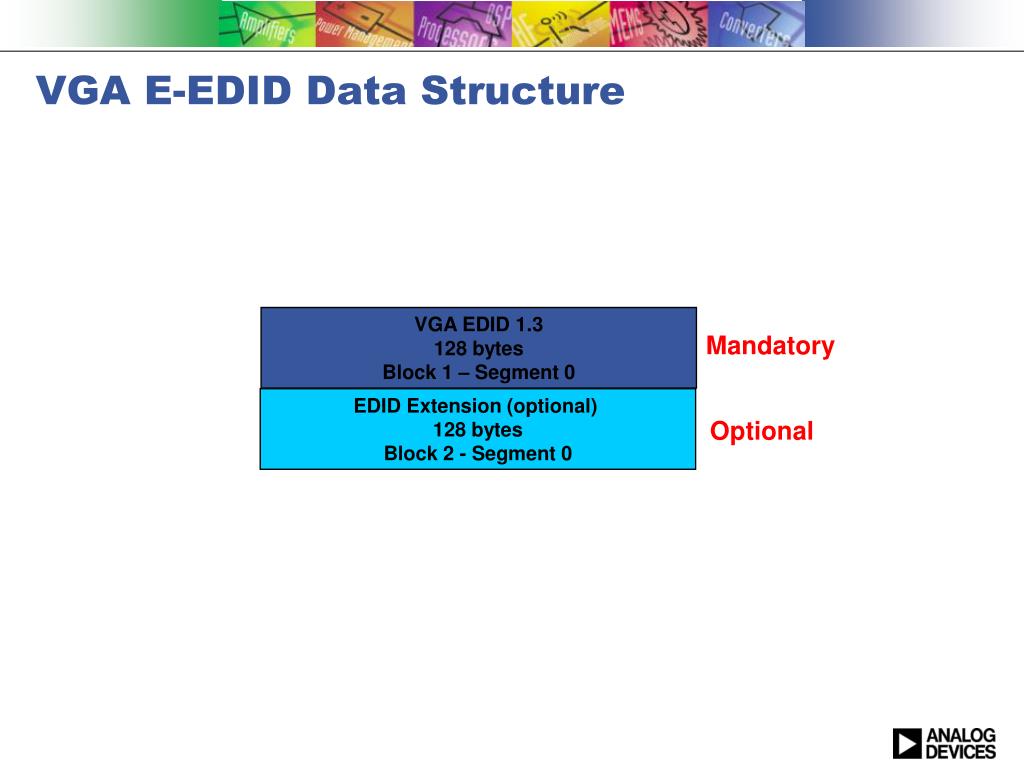

  7. VGA E-EDID Data Structure VGA EDID 1.3 128 bytes Block 1 – Segment 0 Mandatory EDID Extension (optional) 128 bytes Block 2 - Segment 0 Optional

  8. Internal EDID Controller • EDID Controller • The EDID controller handles all I2C requests from the DDC and the I2C ports • DVDD is the supply for the EDID Controller • Internal clock oscillator generates clock for the EDID controller. • This allows the EDID controller to be active in power down mode • Power On reset • A power on reset circuitry generates a reset to the EDID controller when DVDD is applied • The EDID controller can also be reset through I2C HDCP_REPT_EDID_RESET control.

  9. VGA / HDMI External connections VGA Port ADV7844/2 +5V SPI EEPROM 512byte(4kbit) 4 +5V (TV supply) SPI interface +3.3V +5V DVDDIO TVDD LDO HDMI Port A DVDD CVDD PVDD AVDD +1.8V LDO +5V HDMI Port B 10K +2.5V LDO DVDDIO_SDRAM +5V HDMI Port C +5V HDMI Port D PWRDNB RXD_5V_DET RXC_5V_DET RXB_5V_DET RXA_5V_DET

  10. Power Supply • +5V power supply from HDMI connector • Each HDMI connector can source up to 50mA • Current only flows from +5V signal toward the part • Each supply on the ADV7844/2 must be supplied power when reading internal EDID even in power down state • Main power supply • Source all current when available • Current always flows from main supply toward the part • PMOSFET Transistor • Transistor is non conducting when the main supply is present • Current is drawn from the HDMI connector in power down mode

  11. SPI Interface • Clock speed is ~3MHz • The CPU reads the EEPROM when the supply is available • In power down mode • Normal power mode • 2kb or 4kb EEPROMs supported from the following vendors • ATMEL • Thomson • Microchip • EP_MISO has an internal pull-down • If not required - all pins can be left unconnected

  12. Reading from/Writing to the SPI EEPROM • Reading from SPI EEPROM • The CPU reloads the data from the SPI EEPROM to the internal EDID RAM • On reset (if powerdown pin is set low) EDID power-down mode • When the self clearing bit LOAD_EDID is set • Storing data to SPI EEPROM • In-system-programming of the SPI EEPROM • The internal CPU program the external SPI EEPROM with data from the internal EDID RAM • Steps • Program the EDID RAM through the main I2C port • Load the data from the EDID RAM into SPI EEPROM with bit STORE_EDID

  13. Supporting EDID in Powerdown Chassis supply removed • When powering the ADV784x from the cable the following requirements need to be met. • Power should be supplied to each of the supplies and the PSS sequence should be adhered to. • In order to ensure that the ADV784x goes into power down mode correctly the following condition must be met. • When entering power down mode, the RESET pin should go low at /or before the PWRDNB pin. • This ensures that the part is fully reset/powered down as EDID power down mode is enabled. • Not adhering to above recommendation will cause the ADV784x to drawn more current than the 50mA HDMI Specification.

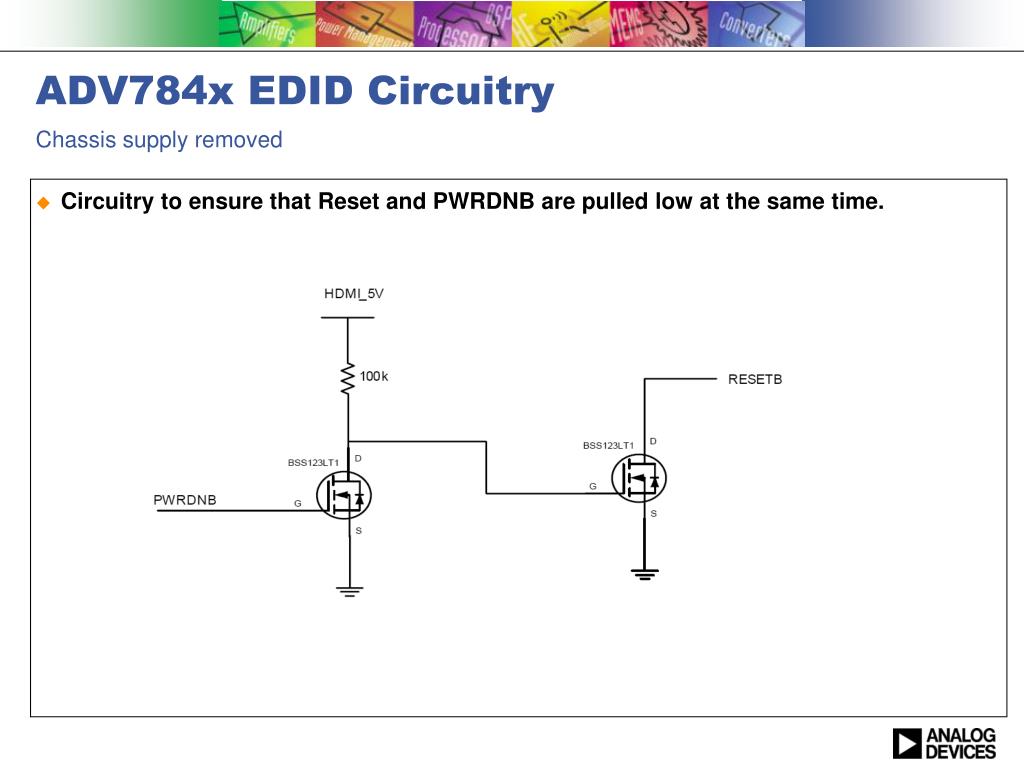

  14. ADV784x EDID CircuitryChassis supply removed • Circuitry to ensure that Reset and PWRDNB are pulled low at the same time.
