Lecture 24. Chemical Reaction Engineering (CRE) is the field that studies the rates and mechanisms of chemical reactions and the design of the reactors in which they take place. Today’s lecture. Normal Pentene  Iso -Pentane Langmuir Adsorption Isotherm Catalytic Converters for Automobiles.

cloris
Télécharger la présentation

Lecture 24

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

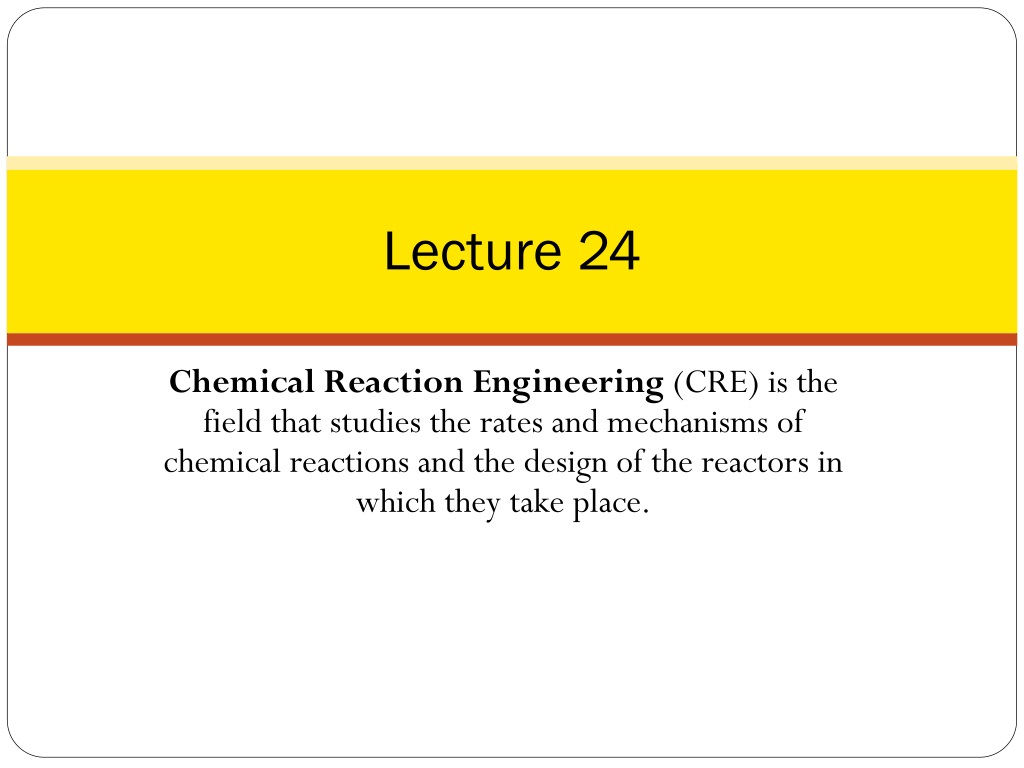

  1. Lecture 24 Chemical Reaction Engineering (CRE) is the field that studies the rates and mechanisms of chemical reactions and the design of the reactors in which they take place.

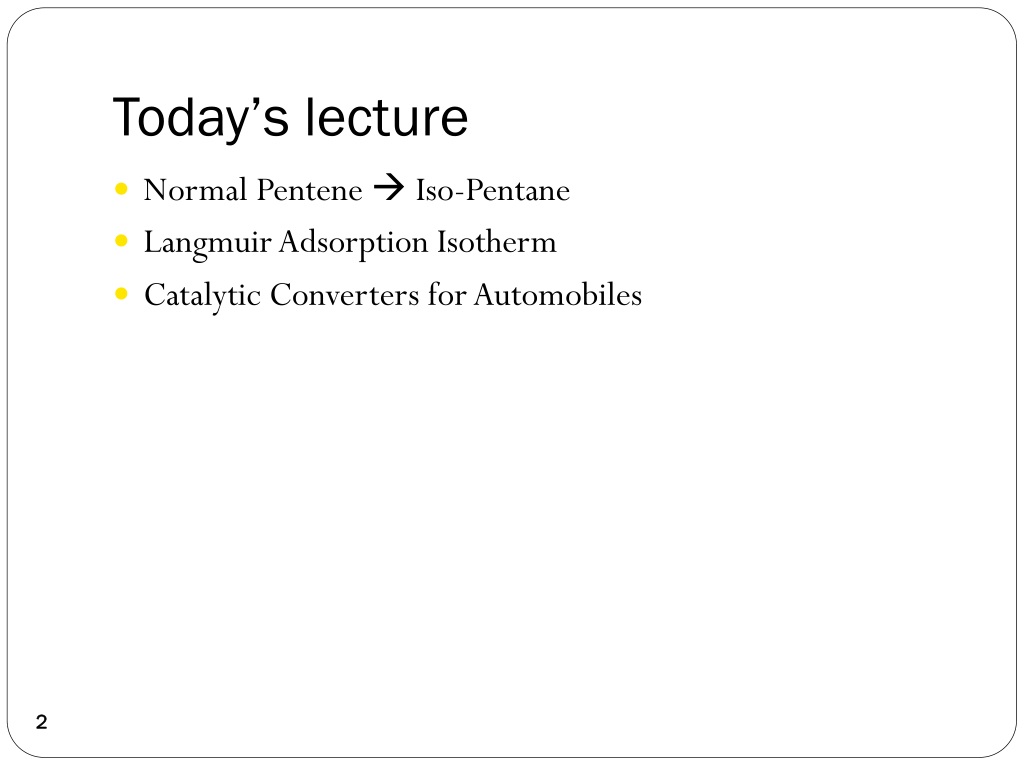

  2. Today’slecture • Normal Pentene Iso-Pentane • Langmuir Adsorption Isotherm • Catalytic Converters for Automobiles

  3. Last Lecture • Catalytic Reforming Reaction (Gasoline) • Normal Pentane Octane Number=62 • Iso-Pentane Octane Number=90 • Normal Pentane  Iso-Pentane

  4. Steps in a CatalyticReaction

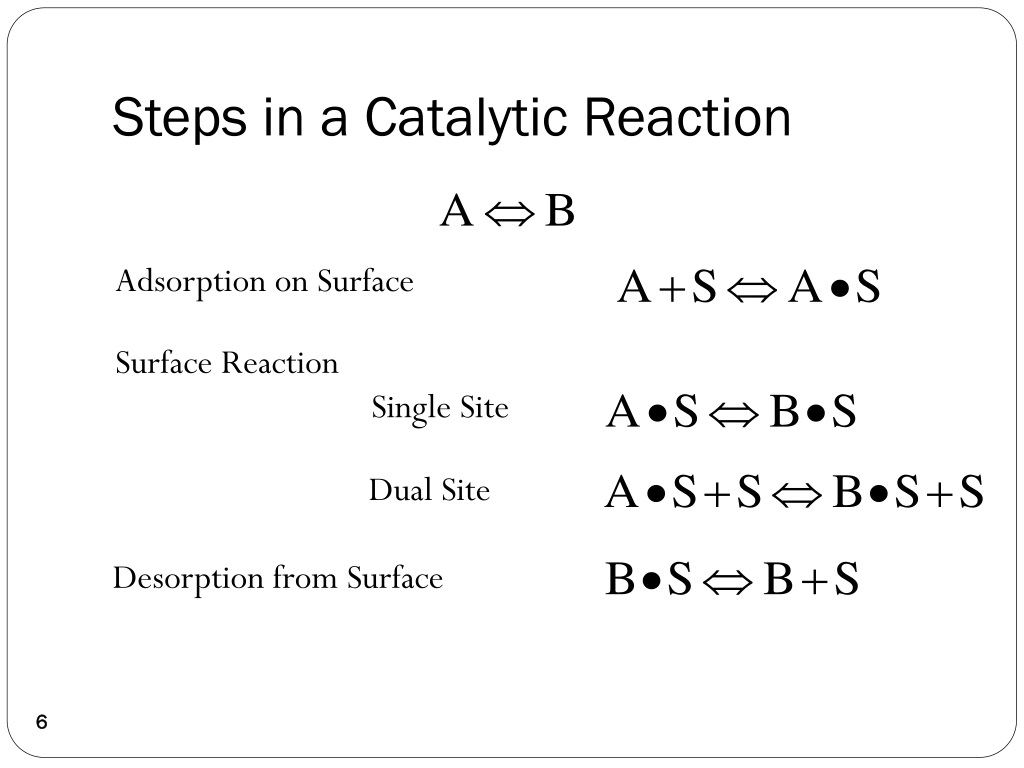

  5. Steps in a CatalyticReaction Adsorption on Surface Surface Reaction Single Site Desorption from Surface Dual Site

  6. Al2O3 -H2 0.75 wt% Pt n-pentenei-pentene n-pentanen-pentene NI n-pentanei-pentane Al2O3 Pt +H2 i-pentane Pt Al2O3 i-pentene

  7. Isomerization of n-pentene (N) to i-pentene (I) over alumina N I Surface Reaction: Adsorption on Surface: Desorption: 1. Select a mechanism (Mechanism Dual Site) Al2O3 Treateachreaction step as an elementaryreactionwhenwriting rate laws.

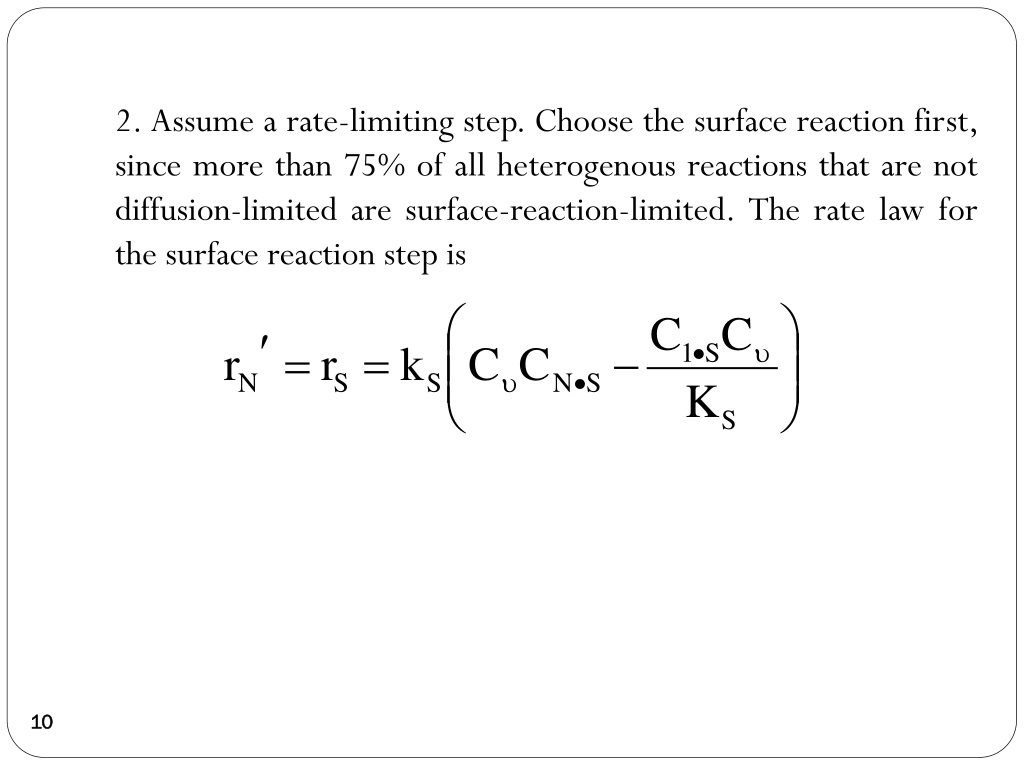

  8. 2. Assume a rate-limiting step. Choose the surfacereaction first, sincemorethan 75% of all heterogenousreactions that are not diffusion-limited are surface-reaction-limited. The rate law for the surfacereaction step is

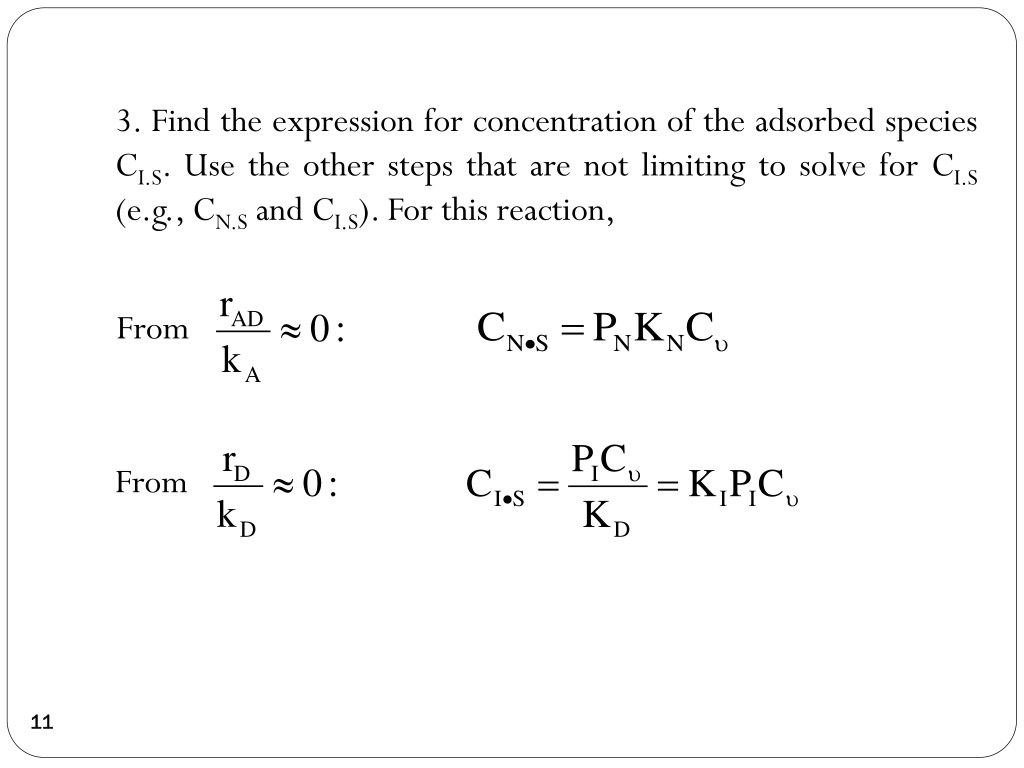

  9. 3. Find the expression for concentration of the adsorbed species CI.S. Use the other steps that are not limiting to solve for CI.S (e.g., CN.S and CI.S). For this reaction, From From
