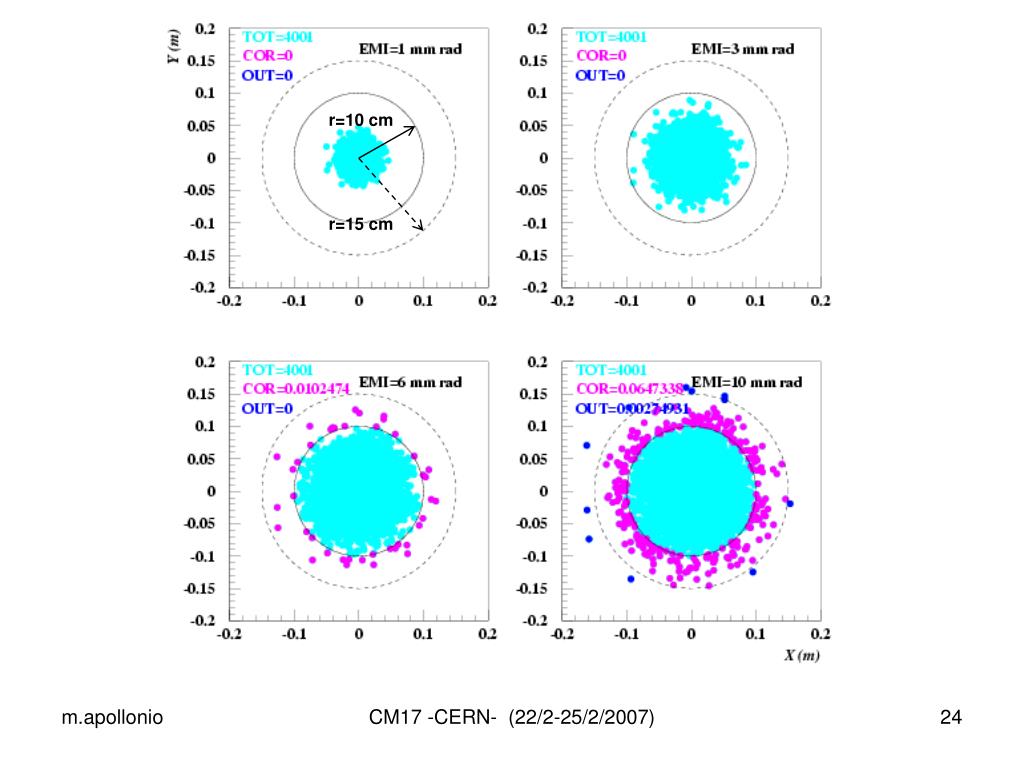

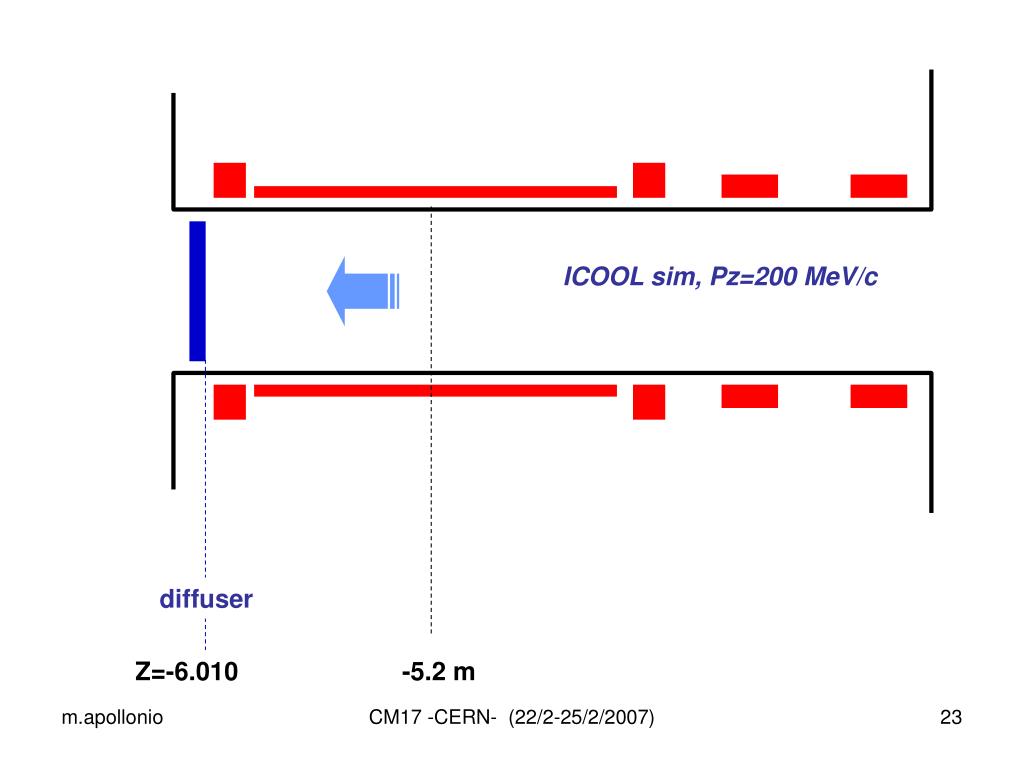

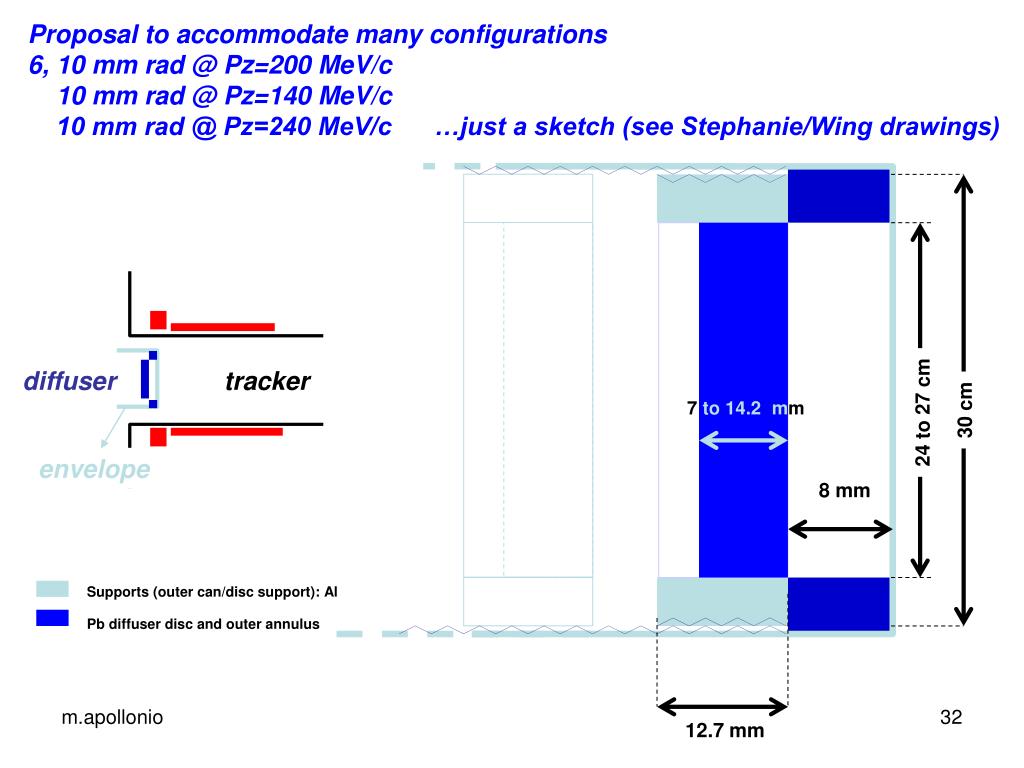

**sizes for PID & shields**M. Apollonio – University of Oxford CM17 -CERN- (22/2-25/2/2007)**Consider different optics for MICE**• Consider the maximum radius a particle can reach in the tracker (TK) = 15 cm the absorber (ABS) = 15 cm the RF windows (RF) = 21.3 cm It can be shown that b ~ <R2> • Propagate the radius throughout MICE according to • These curves represent the ENVELOPE of the beam which just touches the TK, the ABS, the RF and the diffuser == muons with a given amplitude == MIN size of diffuser MIN radii in the downstream region CM17 -CERN- (22/2-25/2/2007)**CAVEAT: Z_diff=-6.010 m (corrected w.r.t. the original**presentation given at a previous an.meeting) CM17 -CERN- (22/2-25/2/2007)**current diffuser position**ideal minimum RD RD-TRK= 15.1 cm RD-ABS= 13.5 cm RD-RF= 11.9 cm CM17 -CERN- (22/2-25/2/2007)**Wang-200-42**Z-downstream: shield-in shield-out SW TOF KL CM17 -CERN- (22/2-25/2/2007)**inside TKs**• inside ABS • inside RF current diffuser position ideal minumum RD RD-TRK= 15.2 cm RD-ABS= 13.8 cm RD-RF= 11.9 cm Every m in the TKs will traverse both ABS and RF RD must be as large as possible 10 cm is definitely too small !!! CM17 -CERN- (22/2-25/2/2007)**Wang 207-200-193 (with energy loss)**R grows linearly far from the solenoid (beta ~ z2) CM17 -CERN- (22/2-25/2/2007)**Wang-240-42**RD-TRK= 15.1 cm RD-ABS= 14.8 cm RD-RF= 13.0 cm CM17 -CERN- (22/2-25/2/2007)**Wang-240-42**CM17 -CERN- (22/2-25/2/2007)**NF-200-42**RD-TRK= 15.2 cm RD-ABS= 13.5 cm RD-RF= 10.5 cm CM17 -CERN- (22/2-25/2/2007)**NF-200-42**CM17 -CERN- (22/2-25/2/2007)**SFOFO-170-15**RD-TRK= 15.3 cm RD-ABS= 22.1 cm RD-RF= 10.8 cm CM17 -CERN- (22/2-25/2/2007)**SFOFO-170-15**CM17 -CERN- (22/2-25/2/2007)**RD-TRK= 14.6**RD-ABS= 30.9 RD-RF= 11.5 SFOFO-140-7 CM17 -CERN- (22/2-25/2/2007)**SFOFO-140-7**CM17 -CERN- (22/2-25/2/2007)**Summary of min R – DIFFUSER (cm)**CM17 -CERN- (22/2-25/2/2007)**Definition of MIN Radius for PIDs and SHIELD holes**!!! NOT IN SCALE (but figures should be correct) 250 100 100 50 250 solenoid end plate 40 750 650 40 700 KL SW m max radius 50 TOF 6399.5 6499.5 6574.5 6649.5 6729.5 7429.5 6524.5 6599.5 6689.5 CM17 -CERN- (22/2-25/2/2007)**According to the defs given in previous slides these are the**min radii (a) for the shield (to let every m pass) and (b) for the PIDs (to accept every m) Slightly out ? tolerances Within tolerances 600x600 700x700 mm2 iron shield 1000x1000 mm2 Is it a problem? CM17 -CERN- (22/2-25/2/2007)**Wang-200-42**like having a 20 cm shorter SW calorimeter But only for the outer muons Z-downstream: shield-in shield-out SW TOF KL CM17 -CERN- (22/2-25/2/2007)**conclusions**the maximum radii for particles traversing MICE are propagated (from the max R in 3 different places) through the apparatus (TKs, ABS, RF) Considering several optics: min Radius (at fixed position z=-6010 mm) for the diffuser is defined: in order to have particles in the TKs it turns out Rd should be as large as possible (compatible with mechanical contraints) In any case RD=10 cm seems to be small ! min radii for downstream shield holes are computed upon the requirement of accepting every m from trackers min radii for PIDs are computed upon the requirement of having the maximal acceptance within the detector: this condition can be probably relaxed Real B field in the “shield area” should take into account real map. This is just an approximation whose purpose is giving some initial figures CM17 -CERN- (22/2-25/2/2007)**radial size for the diffuser**M. Apollonio – University of Oxford CM17 -CERN- (22/2-25/2/2007)**Z=-6010 mm for the upstream face of the diffuser. This is**• a figure established long time ago (CR, CM14 Osaka - 2006) • I focussed on the radial size of it • propagate muons back from centre tracker to the diffuser • record x,y position and check whether they fall within the • diffuser • generate beams upstream with proper ALPHA/BETA and • go through the diffuser • compute emittances check bias due to r_cut • would like to convince you that R=10 cm is a bit tight and • propose some solution CM17 -CERN- (22/2-25/2/2007)**ICOOL sim, Pz=200 MeV/c**diffuser Z=-6.010 -5.2 m CM17 -CERN- (22/2-25/2/2007)**r=10 cm**r=15 cm CM17 -CERN- (22/2-25/2/2007)**Beam fraction within radius R0**CM17 -CERN- (22/2-25/2/2007)**try to see it another way …**generate (gaussian) beams BEFORE DIFFuser: 1- thickness of 7 mm inflation: 2.7 6.5 mm rad (BETA=76 cm / ALPHA=.20 ) 2- thickness of 12.7 mm inflation: 2.7 10 mm rad (BETA=127cm / ALPHA=.37 ) 3- thickness of 8 mm inflation: 1.9 10 mm rad (BETA=189 cm / ALPHA=1.14 ) 4- thickness of 14.2 mm inflation: 3.4 10 mm rad (BETA=128 / ALPHA=.4) calculate emi before/after diffuser for several radii (compare with a large radius case) Pz=209 MeV/c +/- 10% Pz=148 MeV/c +/- 10% Pz=267 MeV/c +/- 10% CM17 -CERN- (22/2-25/2/2007)**ICOOL sim**diffuser Z=-6.010 CM17 -CERN- (22/2-25/2/2007)**A tentative scheme for the diffuser**trying to exploit all the radial space (15 cm) within the tin can envelope being compatible with mechanical contraints CM17 -CERN- (22/2-25/2/2007)**Muons selected on the overall channel**ideal disc 7mm 15.5cm 7mm Emi inflation in single layer lead diffuser: 2.8 6.1 mm rad emi(after diff)=6 mm rad CM17 -CERN- (22/2-25/2/2007)**realistic diffuser**7mm 7mm 5cm 15.5cm 7mm 7mm Emi inflation in a staggered lead diffuser: 2.8 6.1 mm rad fixed annulus movable disc + support CM17 -CERN- (22/2-25/2/2007)**7mm**7mm 5cm 15.5cm 7mm Emi inflation with a single layer of lead (small radius): 2.8 5.3 mm rad CM17 -CERN- (22/2-25/2/2007)**Proposal to accommodate many configurations**6, 10 mm rad @ Pz=200 MeV/c 10 mm rad @ Pz=140 MeV/c 10 mm rad @ Pz=240 MeV/c …just a sketch (see Stephanie/Wing drawings) diffuser tracker 7 to 14.2mm 30 cm 24 to 27 cm envelope 8 mm Supports (outer can/disc support): Al Pb diffuser disc and outer annulus CM17 -CERN- (22/2-25/2/2007) 12.7 mm**emi(R)/emi(R=30 cm)**single disc staggered discs Pz=148 MeV/c, emi=10mm rad, B=2.9 T Pz=209 MeV/c, emi=10mm rad, B=4 T Pz=267 MeV/c, emi=10mm rad, B=4 T Emittance bias as a function of R_diff (partial inflation) R_diff CM17 -CERN- (22/2-25/2/2007)**SUMMARY**• a diffuser with R=10 cm is too small. We • should try to use all the space available • the choice of R_diff can be inspired by • the emi_bias plot, in which case you can • choose between 12 and 13.5 cm • the “staggered” solution provide uniform • inflation (till R~15 cm) and is equivalent • to the ideal full disc case. Important for • high emittances and low momenta CM17 -CERN- (22/2-25/2/2007)
