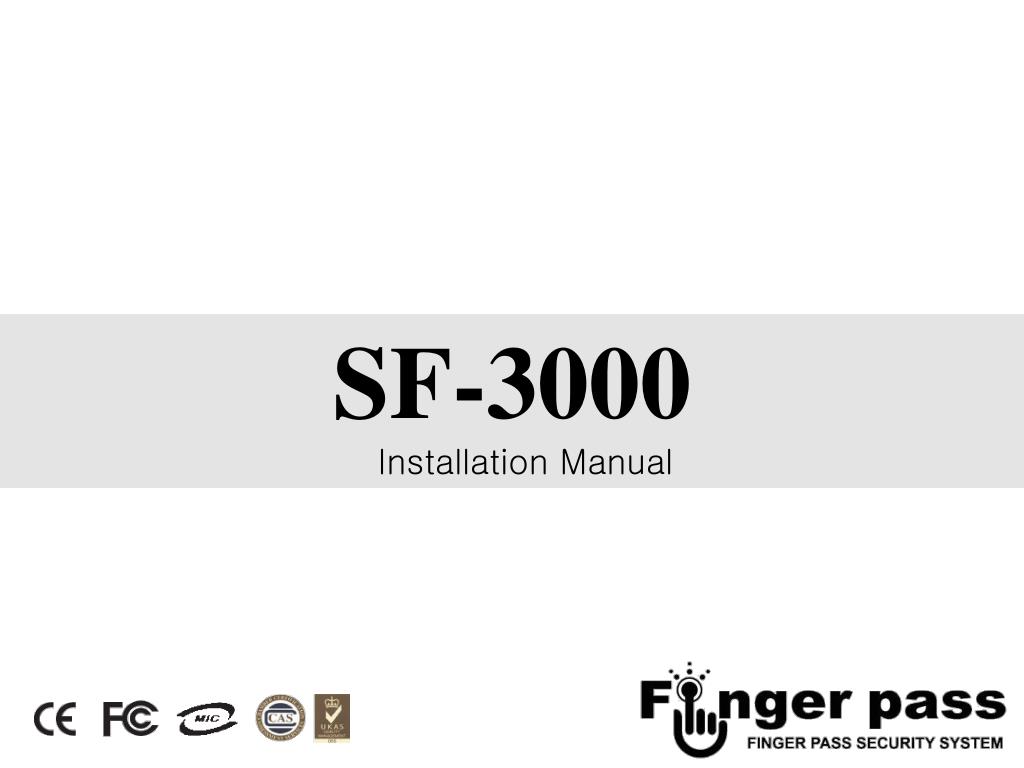

  1. SF-3000 Installation Manual

  2. Back of SF-3000

  3. Some important factors prior to connection (Internal) CON400) USB connector - User can use USB memory stick after connect USB connector of key PCB. CON500) LCD Connector - It is connected with LCD cable in front cover CON501) Speaker Connector - It is connected with speaker in front cover CON503) Finger-Module Connector - It is connected with fingerprint module in front cover. CON504) Cardreader Connector - When user needs to use RF card reader, can be connected with necessary PCB in this area. (In this case, only 1 external card reader can be possibly installed) CON505) LED Connector - It is connected with 3 LEDs placed in the upper right of front cover. CON506) KEY Connector - It is connected with KEY PCB in front cover

  4. Some important factors prior to connection (External) VR500) LCD Switch - It controls the brightness of LCD screen. VR501) Speaker volume switch - Controls speaker volume. CN500) Serial Port - 232, 485 communication Port CN501) Relay 1, 2 - It is connected with doorlock and alarm devices CN502) Relay 3,4 - Same as Relay 1, 2 as above (Reserve purpose) CN503) Card connector - Can be connected with external card reader CN505) Sensor - Connects various sensors (door contact, alarm sensor, etc) and Out button CN506) Wiegand output - Outputs user ID as Wiegand data. (It is used is used when SF-3000 needs to be connected with other main controller) CN700) Power Input - It sends 12V power received by power supply to SF-3000 LAN_RJ45) TCP/IP Connector - It is used for connection of TCP/IP RJ45 JACK.

  5. Some important factors prior to connection(RS-232) • This figure shows the connection from PC to controller via RS-232. • Maximum distance using the RS-232 is 15m.

  6. Some important factors prior to connection (RS-485) As drawing in left, It is possible to connect several additional SF-3000 with cable which connects SF-3000 and computer But the Max. no of SF-3000 which can be connected with 1 direct port is 16 The Max. no of SF-3000 connection per each port is 16’ At that time, address should be serup per each product. Please refer to user manual how to setup address. If address is not setup, communication doesn’t work due to communication collision.

  7. Some important factors prior to connection (RS-485 Max. connection) 1) As drawing in left, If main computer controls more than 16 SF-3000’s, the No. of port should be more than one 2) Number of ports needed for SF-3000

  8. Some important factors prior to connection (LAN) - The drawing above shows the LAN composition that connects the SF-3000 using the TCP/IP converter. - Maximum of 64 units can be connected using the TCP/IP communication. Please refer to the program manual or the user manual for further instructions for the setup.

  9. Some important factors prior to connection (WAN) • The drawing shows the connection of LV-5000(Max. of 64) using WAN • - Each LV-5000 should have its own IP address and maximum of 64 IP is needed.

  10. Guide for cable connection (Power 1) CN700 power connector • CN700 is on the backside of PCB, and connect DC12V power into Power supply. • The direction of the GND and VCC does not matter.

  11. Guide for cable connection(RS-232, RS-485) No. 1 PIN : RS232 Rx No. 2 PIN : RS232 Tx No. 3 PIN : RS485 B No. 4 PIN : RS485 A No. 5 PIN : GND CN500 1 2 3 4 5 pin • Needs to connect RS-232 connection of PC with No. 1, 2, 5 PIN of CN500 connector • - Needs to connect RS-485 connection of 485 connection converter with No. 3 & 4 PIN • of CN500 connector.

  12. Guide for cable connection(TCP/IP) LAN_RJ45 - In case of TCP/IP connection, there is no distance limit and it can be used for LAN as well as WAN. - The drawing shows the TCP/IP connection with LV-5000 using the HUB. - For instructions for set up please refer to the program manual.

  13. Guide for cable connection(WIEGAND OUT) No. 1 PIN : DC 12V No. 2 PIN : GND No. 3 PIN : Wiegand DATA0 OUTPUT No. 4 PIN : Wiegand DATA1 OUTPUT No. 5 PIN : GND CN506 1 2 3 4 5 pin • -If LV-5000 is connected to another main controller, it plays a role as a card & fingerprint reader only. • -At this moment, if it needs to relay the information stored in SF-3000 to main controller, it • needs to use ‘Wiegand Out’ (CN506). • For cable connection, it needs to connect CN506 of SF-3000 with card reader connection of main controller

  14. Guide for cable connection (RF card reader) CN503 - If LV-5000 is connected with a RF Card Reader, it needs to be connected to the J10 - The drawing above shows the connection with K10/20. - Cable connection may be different from each product and user needs to check the manual for each device.

  15. Guide for cable connection (sensor 1) CN505 • Besides reader, SF-3000 can controls with connection of many sensors. • - This shows that the connection of door contact (detector of door open/close) and out button. • - Connect the cable coming out of door contact and out button to J12 • like the above.

  16. Guide for cable connection (sensor 2) CN505 -The drawing shows the LV-5000 controlling the sliding auto-door and its related devices. - The cable coming from the door contact, door sensor, out button, and IR sensor needs to be connected like the drawing above.

  17. Guide for cable connection (relay ½) No.1 PIN : N.O No. 2 PIN : N.C No. 3 PIN : COM No. 4 PIN : N.O No. 5 PIN : N.C No. 6 PIN : COM CN501 RELAY1 1 2 3 4 5 6 pin RELAY2 RELAY1/2 - LV-5000 physically controls access by connecting many devices which can detect certain situations by using various sensors installed in the front. - Electric Strike or alarm devices can be operated with LV-5000 using the connection of CN4.

  18. Guide for cable connection (relay 3/4) 1번 PIN : N.O 2번 PIN : N.C 3번 PIN : COM 4번 PIN : N.O 5번 PIN : N.C 6번 PIN : COM CN502 RELAY3 1 2 3 4 5 6 pin RELAY4 RELAY3/4 • The RELAY3/4 of CN502 is for the purpose of reserve and it can be used when Relay ½ does not work properly or it can be used as a additional Relay.
