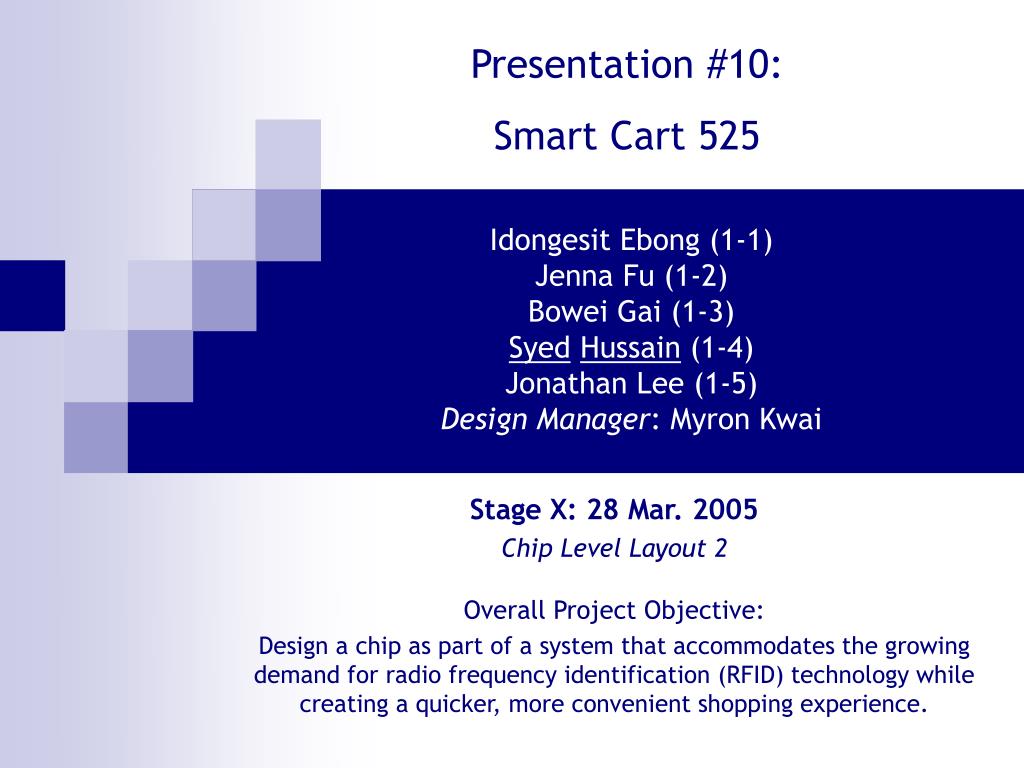

  1. Presentation #10: Smart Cart 525 Idongesit Ebong (1-1)Jenna Fu (1-2)Bowei Gai (1-3)SyedHussain (1-4)Jonathan Lee (1-5)Design Manager: Myron Kwai Overall Project Objective: Design a chip as part of a system that accommodates the growing demand for radio frequency identification (RFID) technology while creating a quicker, more convenient shopping experience. Stage X: 28 Mar. 2005 Chip Level Layout 2

  2. Status • Design Proposal • Project chosen • Verilog obtained/modified • Architecture Proposal • Behavioral Verilog simulated • Size estimates/floorplanning • Gate-level implementation simulated in Verilog • Floorplan and more accurate transistor count • Schematic Design • Component Layout • Functional Block Layout • DRC of functional blocks • LVS of functional blocks • Chip Level Layout • Full chip LVS!!!! • Simulations (50%) • Schematic with loaded inputs/outputs • Extracted, ExtractedRC view

  3. Design Decisions • Changed register type after having problems with Analog Simulation • Adding more buffers to design

  4. Previously (320.220 x 293.355)

  5. Currently (323.955 x 296.1)

  6. Design Specifications

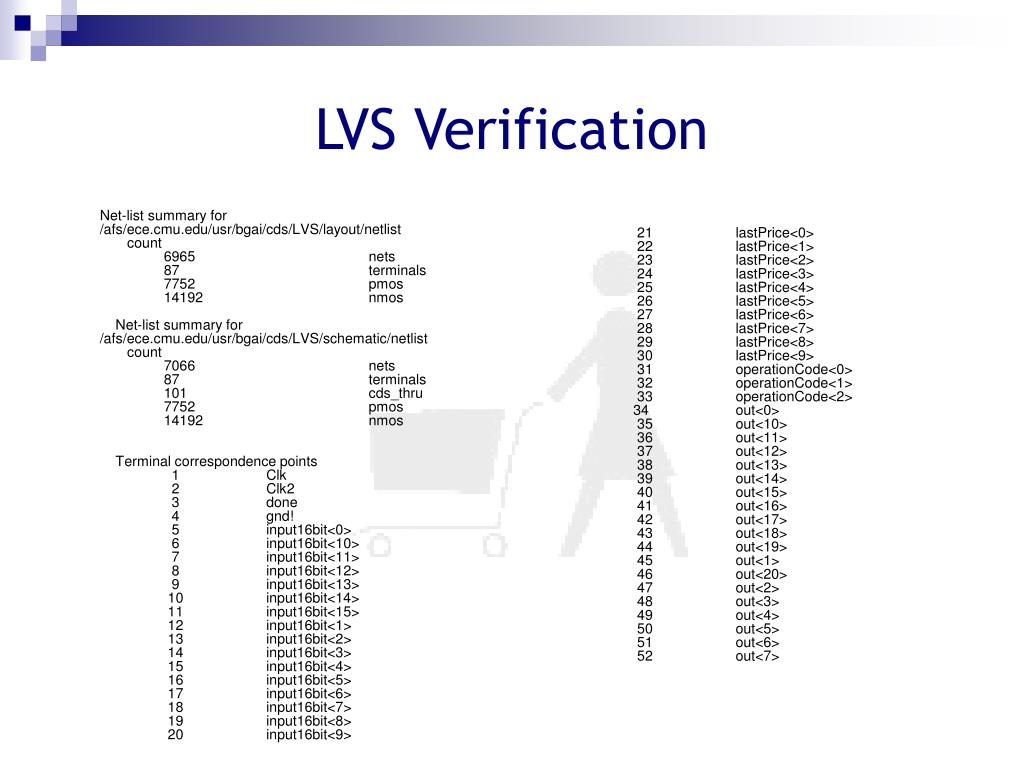

  7. Net-list summary for /afs/ece.cmu.edu/usr/bgai/cds/LVS/layout/netlist count 6965 nets 87 terminals 7752 pmos 14192 nmos Net-list summary for /afs/ece.cmu.edu/usr/bgai/cds/LVS/schematic/netlist count 7066 nets 87 terminals 101 cds_thru 7752 pmos 14192 nmos Terminal correspondence points 1 Clk 2 Clk2 3 done 4 gnd! 5 input16bit<0> 6 input16bit<10> 7 input16bit<11> 8 input16bit<12> 9 input16bit<13> 10 input16bit<14> 11 input16bit<15> 12 input16bit<1> 13 input16bit<2> 14 input16bit<3> 15 input16bit<4> 16 input16bit<5> 17 input16bit<6> 18 input16bit<7> 19 input16bit<8> 20 input16bit<9> 21 lastPrice<0> 22 lastPrice<1> 23 lastPrice<2> 24 lastPrice<3> 25 lastPrice<4> 26 lastPrice<5> 27 lastPrice<6> 28 lastPrice<7> 29 lastPrice<8> 30 lastPrice<9> 31 operationCode<0> 32 operationCode<1> 33 operationCode<2> 34 out<0> 35 out<10> 36 out<11> 37 out<12> 38 out<13> 39 out<14> 40 out<15> 41 out<16> 42 out<17> 43 out<18> 44 out<19> 45 out<1> 46 out<20> 47 out<2> 48 out<3> 49 out<4> 50 out<5> 51 out<6> 52 out<7> LVS Verification

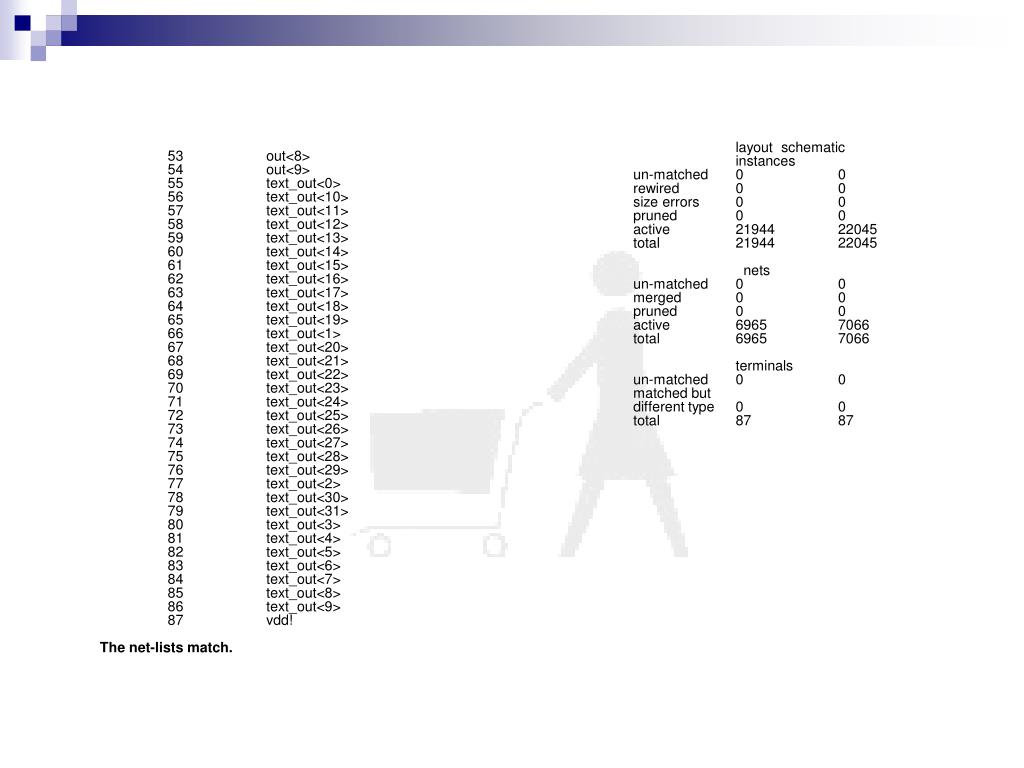

  8. 53 out<8> 54 out<9> 55 text_out<0> 56 text_out<10> 57 text_out<11> 58 text_out<12> 59 text_out<13> 60 text_out<14> 61 text_out<15> 62 text_out<16> 63 text_out<17> 64 text_out<18> 65 text_out<19> 66 text_out<1> 67 text_out<20> 68 text_out<21> 69 text_out<22> 70 text_out<23> 71 text_out<24> 72 text_out<25> 73 text_out<26> 74 text_out<27> 75 text_out<28> 76 text_out<29> 77 text_out<2> 78 text_out<30> 79 text_out<31> 80 text_out<3> 81 text_out<4> 82 text_out<5> 83 text_out<6> 84 text_out<7> 85 text_out<8> 86 text_out<9> 87 vdd!The net-lists match. layout schematic instances un-matched 0 0 rewired 0 0 size errors 0 0 pruned 0 0 active 21944 22045 total 21944 22045 nets un-matched 0 0 merged 0 0 pruned 0 0 active 6965 7066 total 6965 7066 terminals un-matched 0 0 matched but different type 0 0 total 87 87

  9. Simulations: Top (Total Output--Schematic)

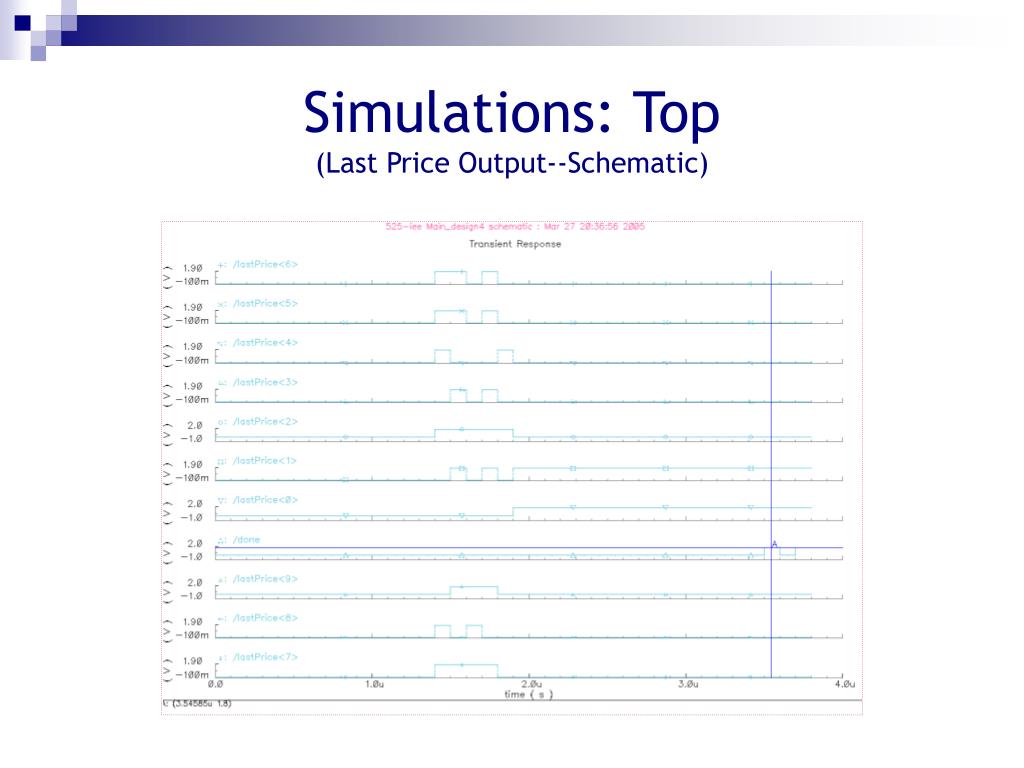

  10. Simulations: Top (Last Price Output--Schematic)

  11. Simulations: Encryption (Final Output--Schematic)

  12. Simulations: Encryption (ROM) Extracted Rise Time: 941.308 ps Fall Time: 698.145 ps

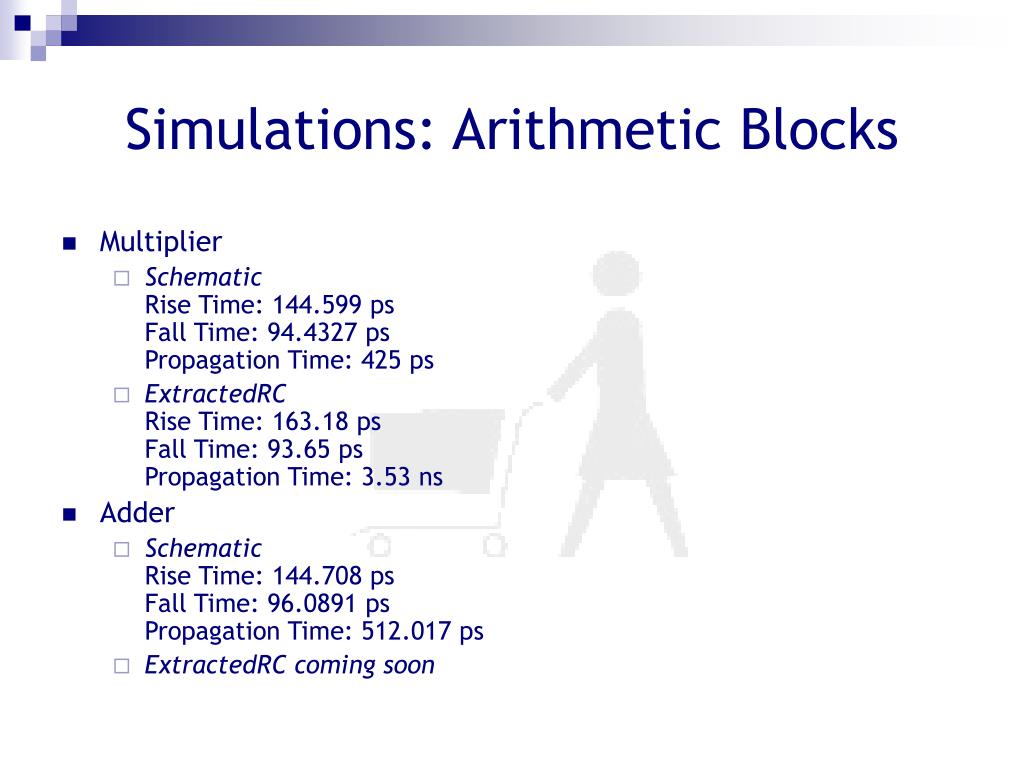

  13. Simulations: Arithmetic Blocks • Multiplier • SchematicRise Time: 144.599 psFall Time: 94.4327 psPropagation Time: 425 ps • ExtractedRCRise Time: 163.18 psFall Time: 93.65 psPropagation Time: 3.53 ns • Adder • SchematicRise Time: 144.708 psFall Time: 96.0891 psPropagation Time: 512.017 ps • ExtractedRC coming soon

  14. Simulations: SRAM Schematic Rise Time: 192.883 psFall Time: 103.013 psProp. Time: 1.112 ns ExtractedRC Rise Time: 275.000 psFall Time: 147.000 psProp. Time: 947.000 ps

  15. Problems & Questions • White space reduction • Buffers expected to fill some of this space • Adder is weird • Having to go through so many transmission gates may be a problem
