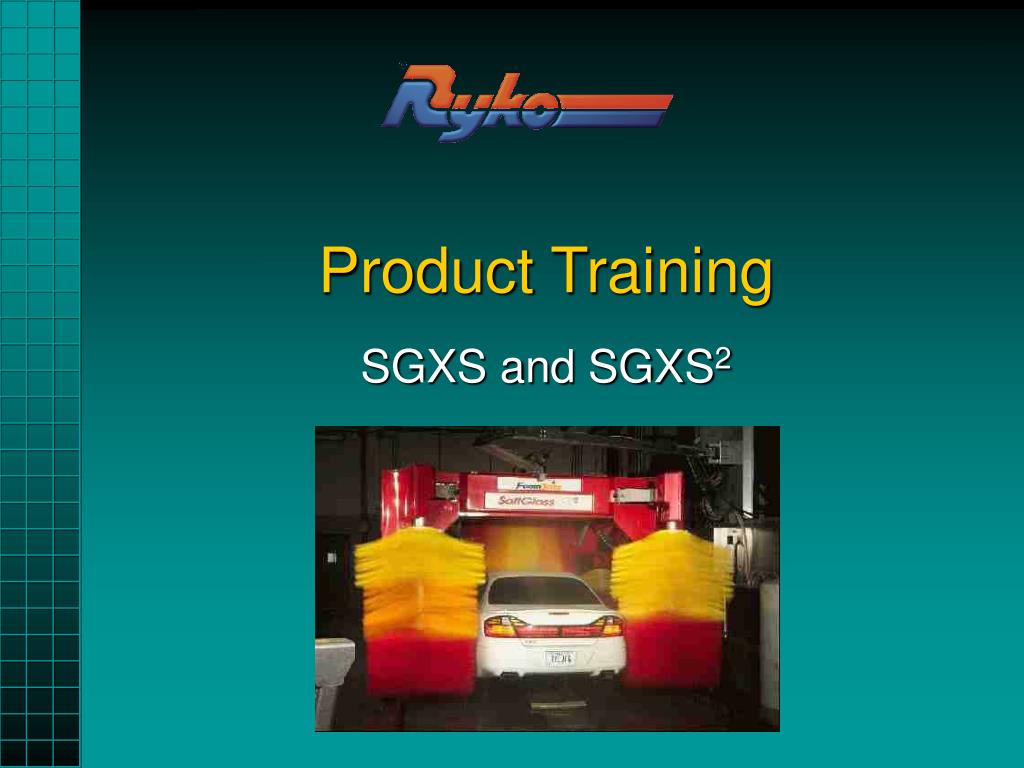

  1. Product Training SGXS and SGXS2

  2. Industry Benchmark • SGXS • Commercial, high volume, high quality wash • 5,000+ vehicles per month • Benchmark rollover friction car wash for RYKO • Benchmark rollover friction car wash for the car wash industry • Original RYKO rollover using FoamBrite wash system • Drove the vehicle wash industry towards friction

  3. How it works and What is it designed to do • 86” height clearance • Washes cars vans and pickup trucks • Vehicle pulls into the bay between the gantry • Red, Green and Yellow lights guide the vehicle to pull in, stop and back up • Vehicle properly positions on the bay plate • Pull to far forward, requested to back up • SGXS moves back and forth over the vehicle completing the desired wash package

  4. SoftGloss Design • Five brush rollover • Front arms • Tall rear arms • Top washer • Designed to wash cars vans, SUVs and pick up trucks with standard original equipment options, fast

  5. How it works and What is it designed to do • Powered by electric motors for: • Machine Drive • Spin FoamBrite brushes • Create proper speed of FB against the vehicle • No hydraulics • Pneumatic air cylinders control: • Movement of FoamBrite arms • Pressure of FoamBrite material against the vehicle • Top brush retraction

  6. Limitations • Duallies • Hummers • Trucks and vans with racks • Vehicles with non OEM/standard options

  7. Life Cycle • Long life cycle • Mechanically could last 30 years and up to a million washes • Typical marketable life is seven to ten years

  8. SGXS Standard Features • Five Red FoamBrite brushes • Light grey covers to retain clean appearance • FoamBrite Wash System • System diagnostics • Dual bay plates • Short guide rails

  9. Super Gentle Wash • Ultrasonic measuring the contour of the vehicle enables the computer to determine vehicle type • Split hub tall rear arms • Air clutch systems causes top of arm to disengage and free wheel instead of spinning out when it is near an antenna or mirror • Top Brush interrupt • Detergent provides lubricity

  10. Very Gentle Wash • Amp sensing • Brush component gets hung up • Sends amp spike signal to computer • Brush component shuts down for remainder of the wash • Components automatically reset for the next wash • Visor sensor • Dual Bay Plates • Short Guide Rails

  11. Ultimate Wash Quality • FoamBrite Clean and Shine • Actually increases the reflectivity and shine • Great at removing road film • Thoroughly cleans windshields • Cleans up wheels and tires • Satisfies customer demands of clean • Perfect for ever increasing menu prices • The next generation after touch free

  12. Options • Tire chemical cleaner

  13. Options • Tire chemical cleaner • Wheel scrub

  14. Options • Tire chemical cleaner • Wheel scrub • Rocker panel/wheel blaster

  15. Options • Tire chemical cleaner • Wheel scrub • Rocker panel/wheel blaster • Foam bath/Wax/Clear Coat/Tri Foam detergent and/or Tri Foam wax

  16. Options • Tire chemical cleaner • Wheel scrub • Rocker panel/wheel blaster • Foam bath/Wax/Clear Coat/Tri Foam detergent and/or Tri Foam wax • Two-step pre soak • Backlit custom image

  17. Options • Tire chemical cleaner • Wheel scrub • Rocker panel/wheel blaster • Foam bath/Wax/Clear Coat/Tri Foam detergent and/or Tri Foam wax • Two-step pre soak • On-board water heater • Multi-colored FoamBrite

  18. Options • Tire chemical cleaner • Wheel scrub • Rocker panel/wheel blaster • Foam bath/Wax/Clear Coat/Tri Foam detergent and/or Tri Foam wax • Two-step pre soak • Backlit custom logo • Multi-colored FoamBrite • Painted panels

  19. Accessories • On board, Thrust-Pro, or Slimline dryer • Short bay kit • Remote equipment diagnostics • Undercar wash options • Variable Wash Speed Option • Environmentalist II reclaim • Rainmaker and Envi R/O spot-free rinse systems • Off-board CMD • Activation systems

  20. Short Bay Kit • With a short bay kit installed there is an additional proximity switch added to the bottom left of the machine, and an additional target mounted on the left track riser near the rear of the track. • When the setup question " Short Bay?" is answered yes, the machine will monitor the additional proximity switch. • When the short bay prox switch is activated during the rearward pass of those parts of the wash cycle that have the arms retracted away from the vehicle (rinse, wax, trifoam, dry, spot free, ), the machine will pause, close the rear arms together behind the vehicle, and continue to the rear. • This gains travel distance to the rear for the amount of difference between rear arms open and rear arms closed. • This kit only makes sense if the machine is installed in a bay that does not allow the minimum clearance from the rear of the track to the nearest obstruction.

  21. SGXS2 • New and improved • Over 100 engineered improvements • Introduction of color! • New standard features: • Bay plate buzzer • Tall front arms • Soft Rear Oscillate • FoamBrite and side panel color • Backlit custom image

  22. SGXS Performance • SGXS wash more cars • Provide higher quality clean • Lower cost of chemicals and operation • Higher profitability • More customer satisfaction • Real industry trend

  23. Wash Packages and Menus • Good, Better, Best and more • Options are used to build better wash packages in the Wash Menu! • Menu design is to encourage customers to the Top Wash Package! • Increase revenue Per Wash and Make More Money!

  24. SGXS Wash Package Speeds

  25. Installation • Bay dimensions: • Width • Optimum-16’ • Min 14’6” w/equip room • 15’6”w/o equip room, • Height • Opt-12’ • Min-11’ • Length • Opt- 34’ • Min 30’ with short bay kit, w/o 32’

  26. Electrical Requirements • 208/230/460V • 30amp-basic machine • 100 amp with on board dry • 130 amp with separate dryer • Hot wax, boost pump, and dryers will add additional amp requirements • (See Pre Installation Manual for details)

  27. Water and Air Requirements • Water • I” line • 40 to 100 PSI • 40 gallons per minute • Air • 100 PSI • 4 to 6 CFM • Call Customer Service for individual sites

  28. Drawings, Utilities and Specifications • Available in FST • Info Reference • Utilities

  29. Installation • Installation of SGXS-about 5 - 7 work days • Utilities are in place • RYKO installation includes connecting to utilities in place • More typical installation is two to three weeks

  30. Variable Wash Speed • Standard feature with the CAW IV • Provides for three pre-programmed menus • Manually or automatically changes speeds • Perfect for busy or slow wash days to build wash volume

  31. Markets the SGXS and SGXS2 Serves • Gas • Non gas • Investor • Auto dealer

  32. Marketing Tools for Selling the SGXS and SGXS2 • Literature • Video • Virtual tour • Website • SGXS and SGXS2 color designer • Referrals • Factory visits and tours • RYKO Pro-Forma • Direct mailers • Power point library of presentations • Accessory brochures and videos

  33. SGXS and SGXS2 • Benchmark wash • Safe and gentle • High performance • Long life • Higher profitability

  34. Product Training SGXS and SGXS2
