  1. Scope:What’s in a Name? CMSC 11500 Introduction to Computer Programming October 16, 2002

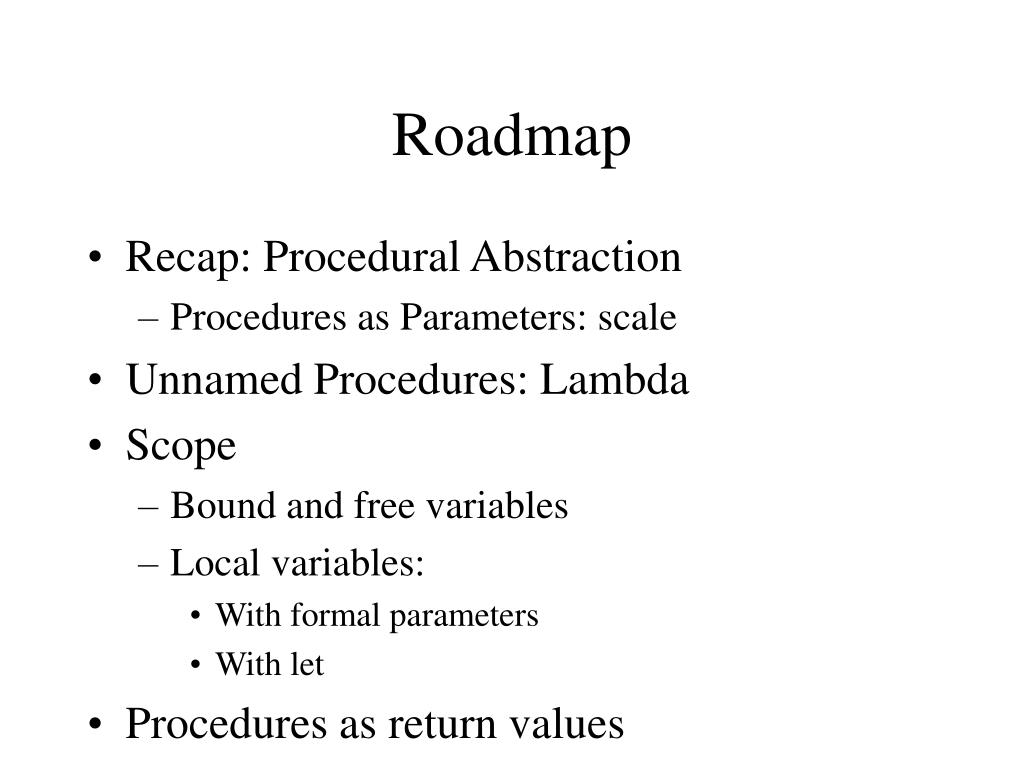

  2. Roadmap • Recap: Procedural Abstraction • Procedures as Parameters: scale • Unnamed Procedures: Lambda • Scope • Bound and free variables • Local variables: • With formal parameters • With let • Procedures as return values

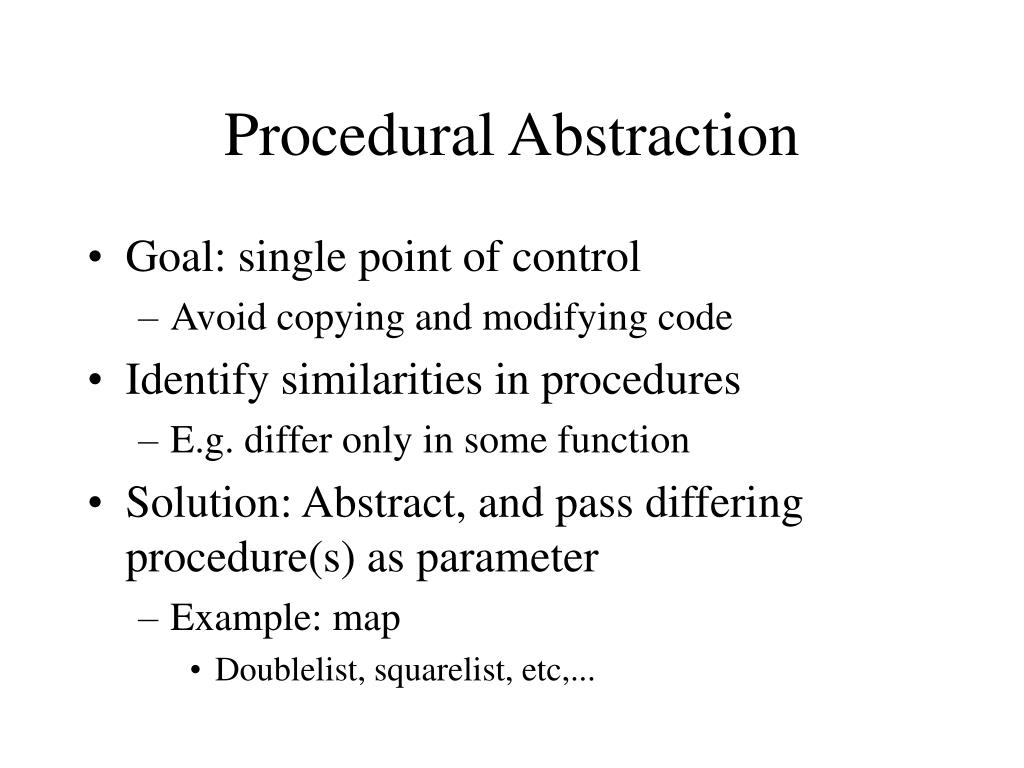

  3. Procedural Abstraction • Goal: single point of control • Avoid copying and modifying code • Identify similarities in procedures • E.g. differ only in some function • Solution: Abstract, and pass differing procedure(s) as parameter • Example: map • Doublelist, squarelist, etc,...

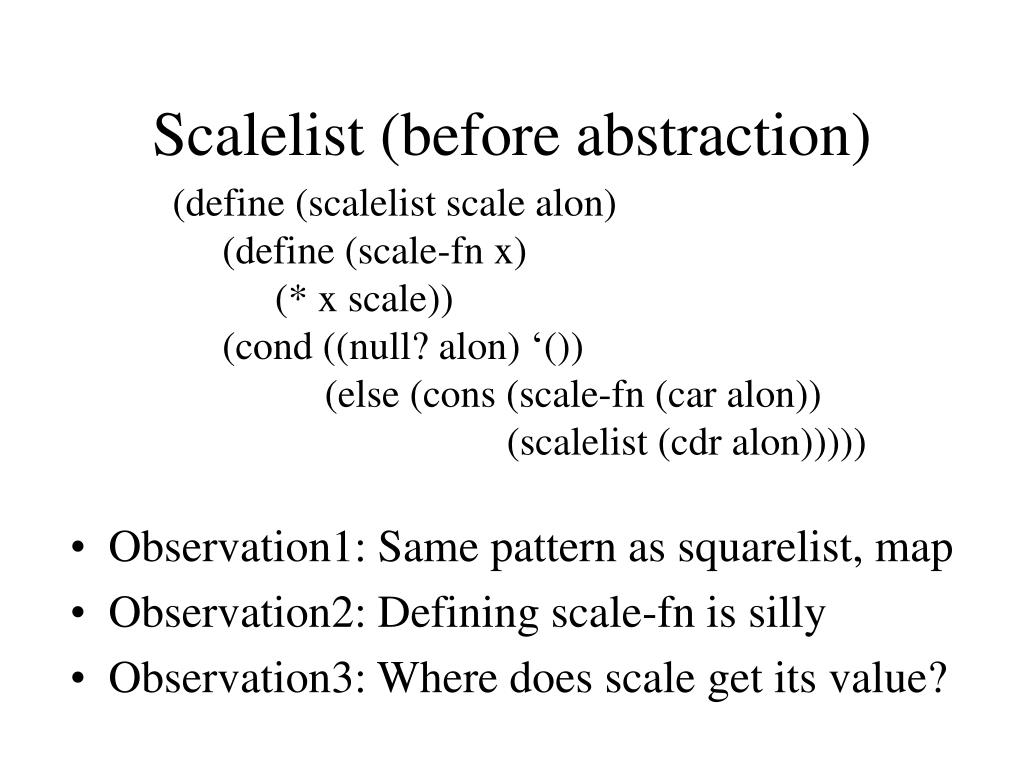

  4. Scalelist (before abstraction) (define (scalelist scale alon) (define (scale-fn x) (* x scale)) (cond ((null? alon) ‘()) (else (cons (scale-fn (car alon)) (scalelist (cdr alon))))) • Observation1: Same pattern as squarelist, map • Observation2: Defining scale-fn is silly • Observation3: Where does scale get its value?

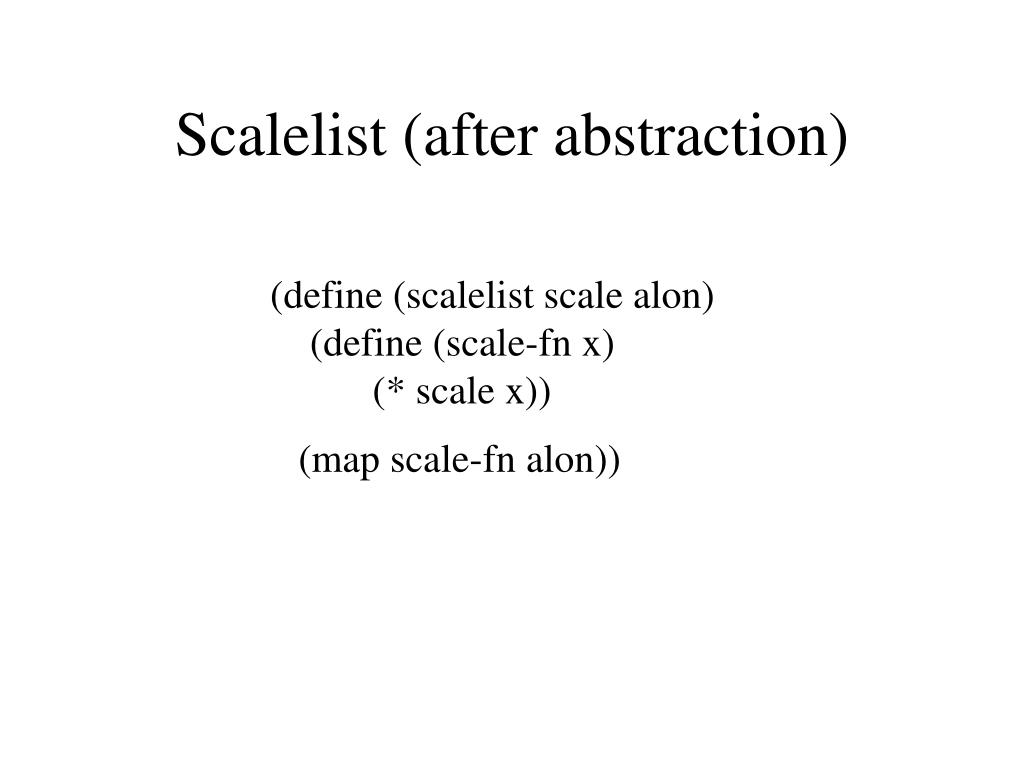

  5. Scalelist (after abstraction) (define (scalelist scale alon) (define (scale-fn x) (* scale x)) (map scale-fn alon))

  6. Unnamed Functions: Lambda • Issue: Defining lots of trivial procedures • E.g. add2, double, triple… • Solution: unnamed function • Can’t be recursive • (lambda (<par1>{<par2>..<parn>}) exp) • E.g. “Add2” (lambda (x) (+ x 2)) • Apply like other procedures • ((lambda (x) (+ x 2)) 10) -> 12

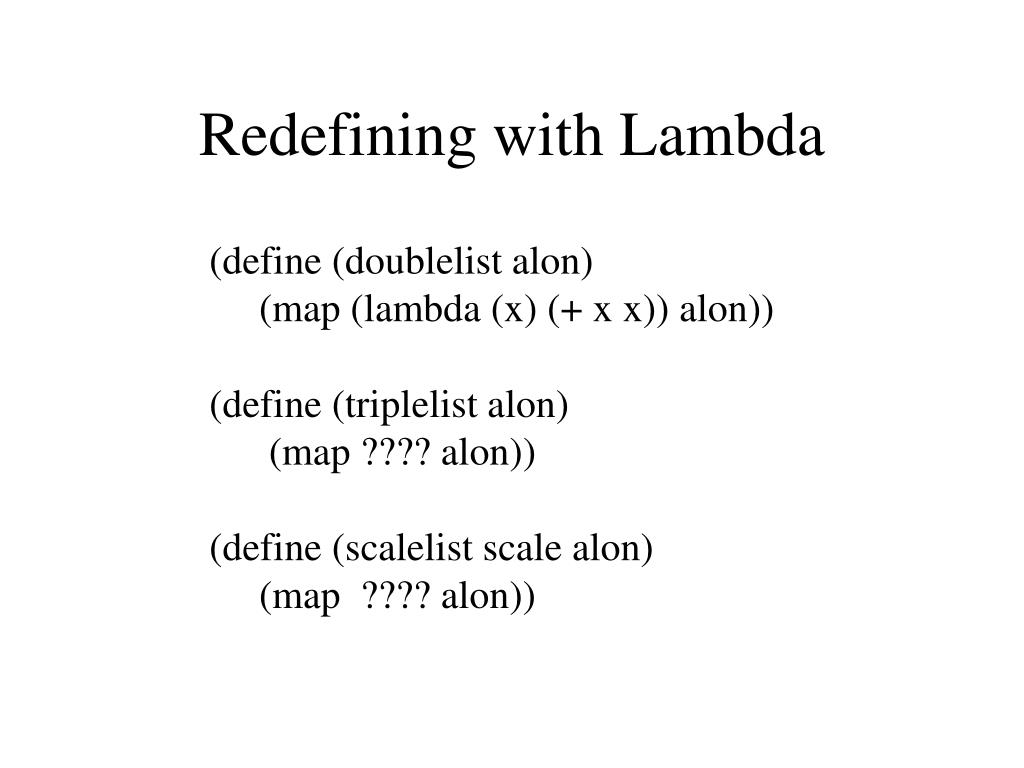

  7. Redefining with Lambda (define (doublelist alon) (map (lambda (x) (+ x x)) alon)) (define (triplelist alon) (map ???? alon)) (define (scalelist scale alon) (map ???? alon))

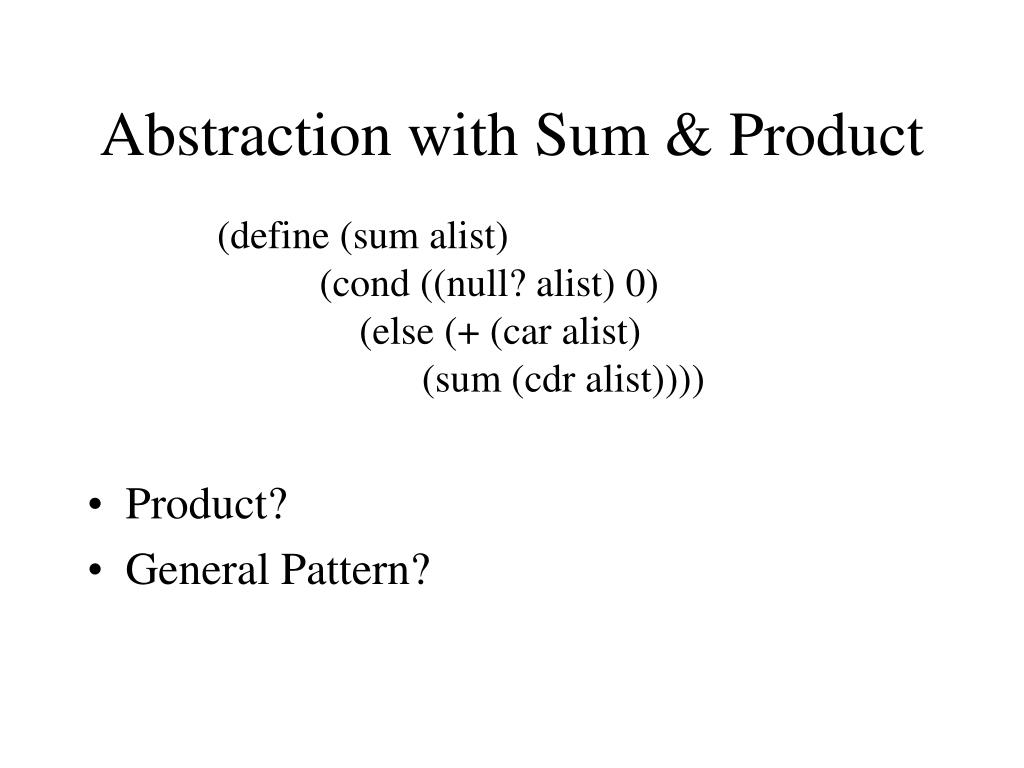

  8. Abstraction with Sum & Product (define (sum alist) (cond ((null? alist) 0) (else (+ (car alist) (sum (cdr alist)))) • Product? • General Pattern?

  9. Observation 3: Value of Scale (define (scalelist scale alon) (define (scale-fn x) (* scale x)) • Lexical scope: • Variable binding: Parameters • Binding occurrence: Formal parameter of procedure BINDS to value in procedure call • Bound occurrence: Appearances of variable inside procedure def’n get value • “free” variable: Global scope: top-level define (map scale-fn alon))

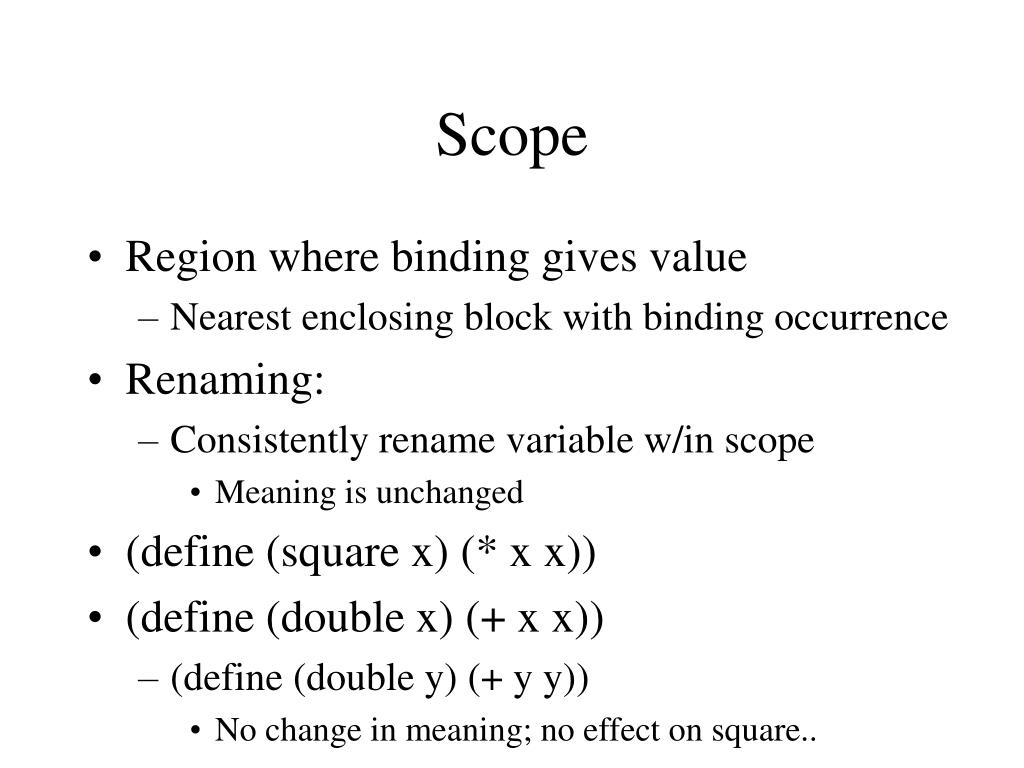

  10. Scope • Region where binding gives value • Nearest enclosing block with binding occurrence • Renaming: • Consistently rename variable w/in scope • Meaning is unchanged • (define (square x) (* x x)) • (define (double x) (+ x x)) • (define (double y) (+ y y)) • No change in meaning; no effect on square..

  11. Scope Examples (define (p1 x y) (+ (* x y) (+ (* 2 x) (+ (* 2 y) 22)))) (define (p2 x) (+ (* 55 x) (+ x 11))) (define (p3 x) (+ (p1 x 0) (+ (p1 x 1) (p2 x))))

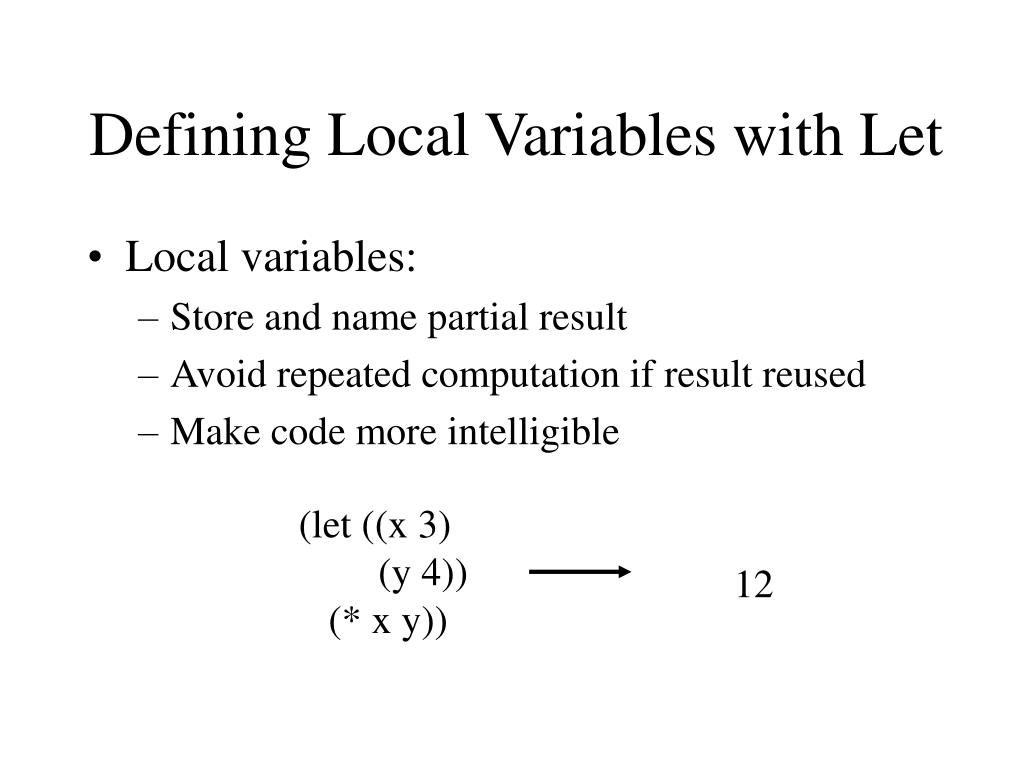

  12. Defining Local Variables with Let • Local variables: • Store and name partial result • Avoid repeated computation if result reused • Make code more intelligible (let ((x 3) (y 4)) (* x y)) 12

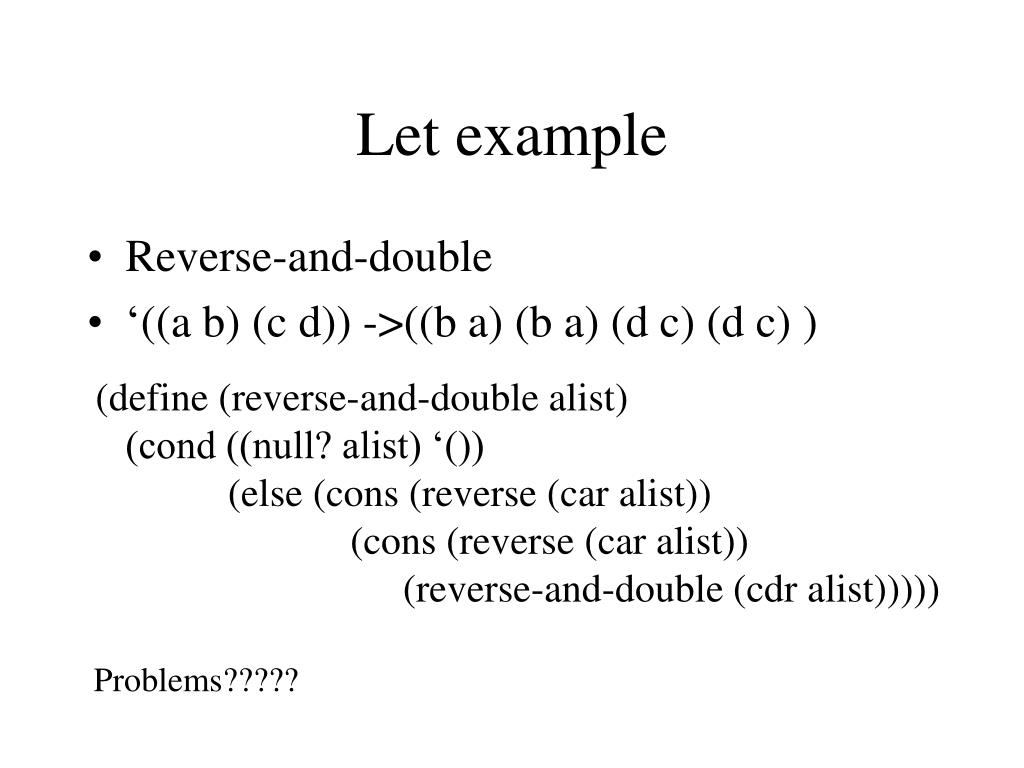

  13. Let example • Reverse-and-double • ‘((a b) (c d)) ->((b a) (b a) (d c) (d c) ) (define (reverse-and-double alist) (cond ((null? alist) ‘()) (else (cons (reverse (car alist)) (cons (reverse (car alist)) (reverse-and-double (cdr alist))))) Problems?????

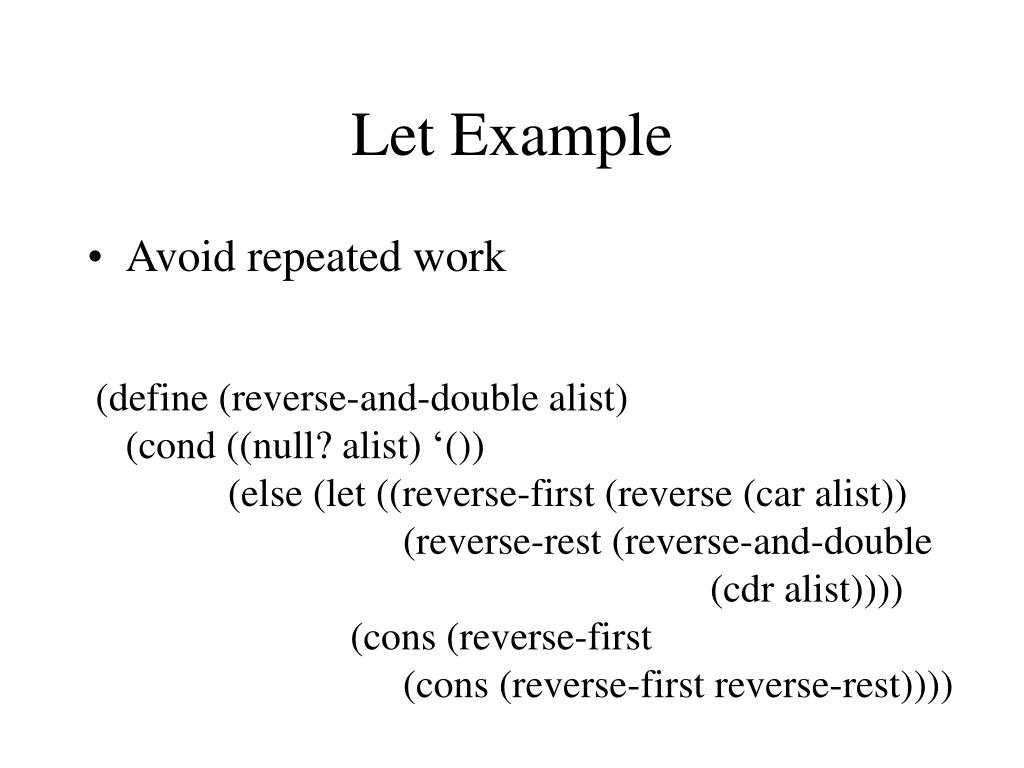

  14. Let Example • Avoid repeated work (define (reverse-and-double alist) (cond ((null? alist) ‘()) (else (let ((reverse-first (reverse (car alist)) (reverse-rest (reverse-and-double (cdr alist)))) (cons (reverse-first (cons (reverse-first reverse-rest))))

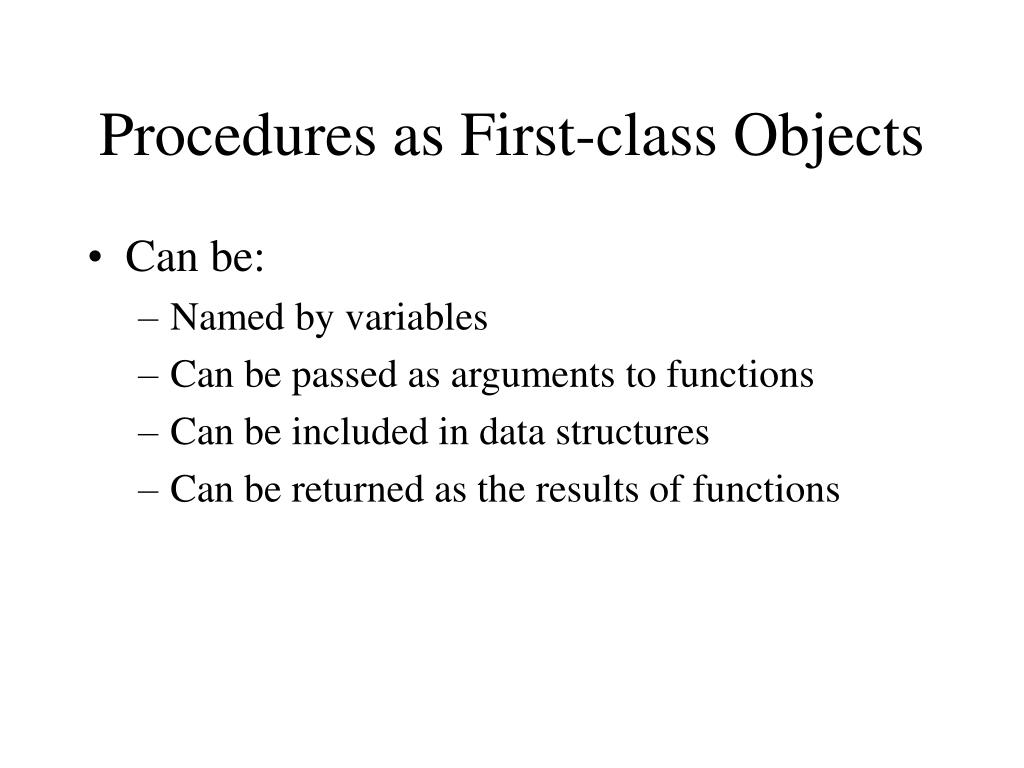

  15. Procedures as First-class Objects • Can be: • Named by variables • Can be passed as arguments to functions • Can be included in data structures • Can be returned as the results of functions

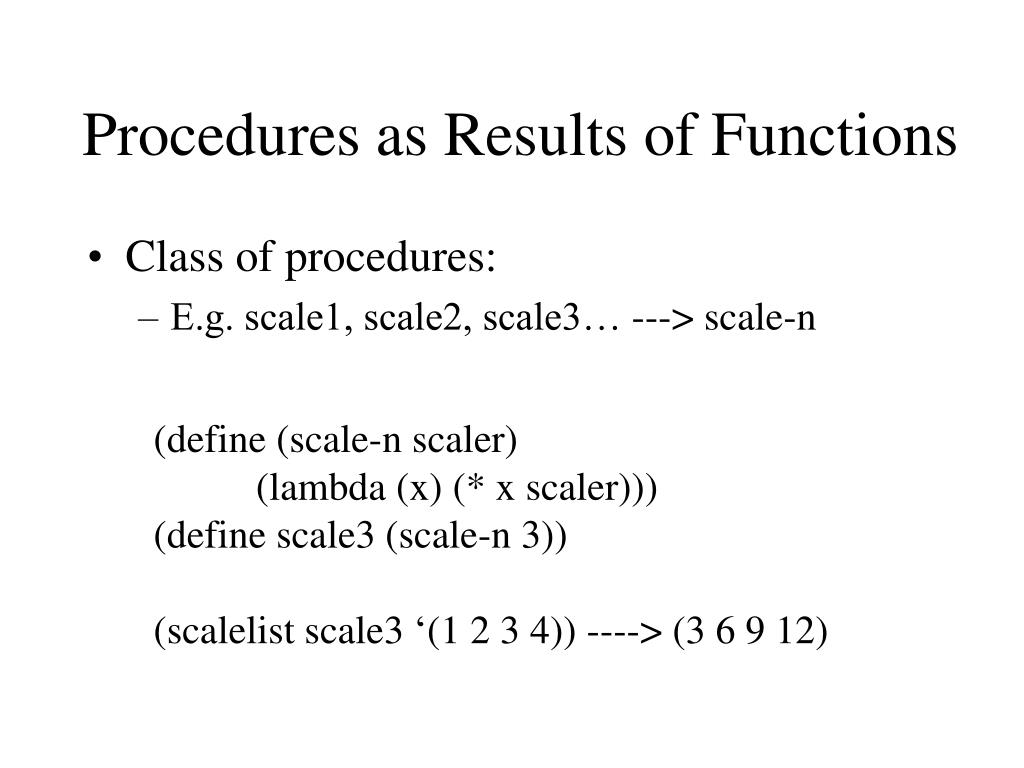

  16. Procedures as Results of Functions • Class of procedures: • E.g. scale1, scale2, scale3… ---> scale-n (define (scale-n scaler) (lambda (x) (* x scaler))) (define scale3 (scale-n 3)) (scalelist scale3 ‘(1 2 3 4)) ----> (3 6 9 12)

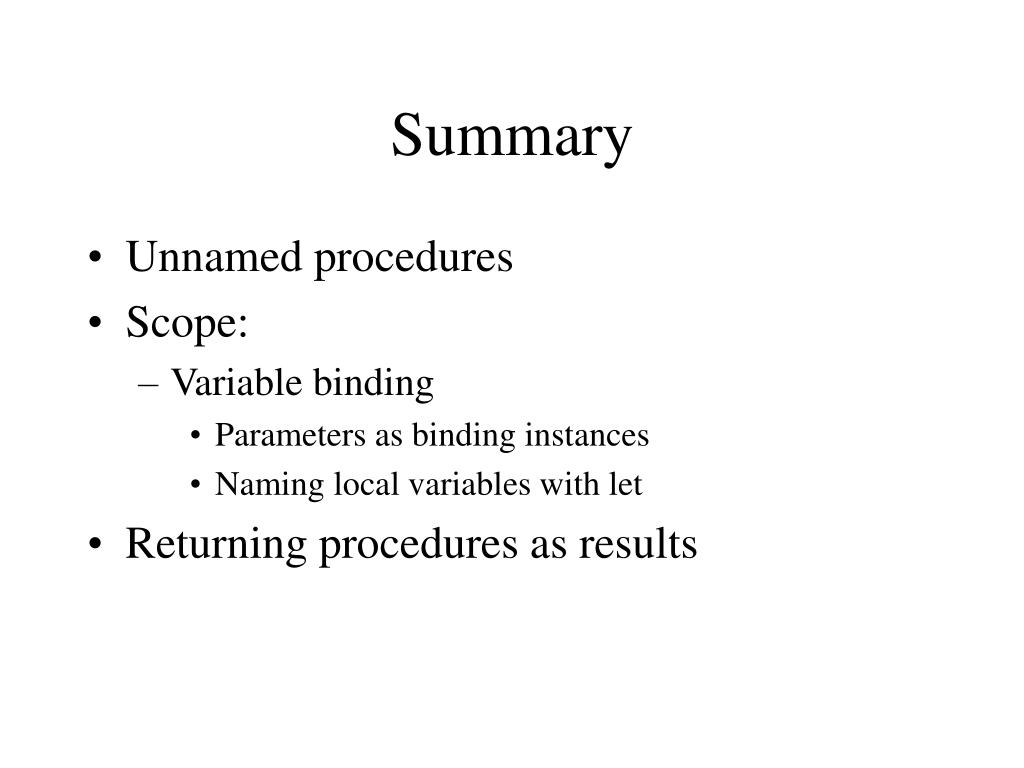

  17. Summary • Unnamed procedures • Scope: • Variable binding • Parameters as binding instances • Naming local variables with let • Returning procedures as results

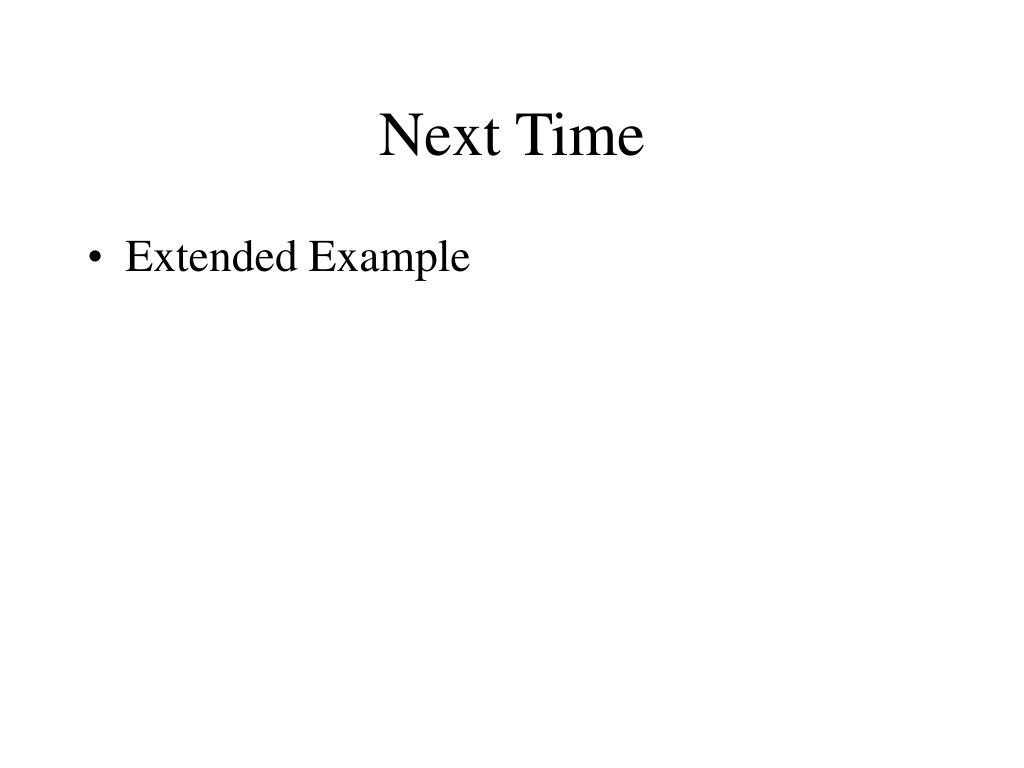

  18. Next Time • Extended Example
