  1. Microsoft Azure Virtual Machines

  2. Microsoft Azure Virtual Machines VM Sizes Supported Workloads Software Licensing VM Portability VM’s & Cloud Services Data & Access Applications Runtime Operating System Virtual Machine Provision & Manage Compute Networking Storage

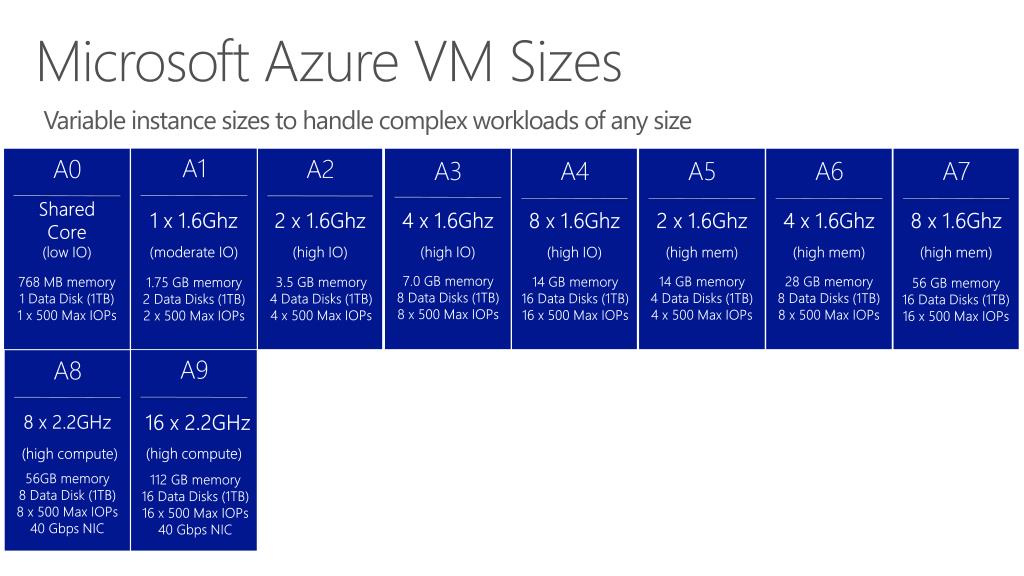

  3. Microsoft Azure VM Sizes • Variable instance sizes to handle complex workloads of any size • A8 • A0 • A1 • A9 • A2 • A3 • A4 • A7 • A6 • A5 4 x 1.6Ghz 2 x 1.6Ghz 8 x 1.6Ghz 8x 1.6Ghz 4 x 1.6Ghz Shared Core 8 x 2.2GHz 2 x 1.6Ghz 1 x 1.6Ghz 16 x 2.2GHz (high IO) (high mem) (high mem) (high mem) (high IO) (high compute) (low IO) (high IO) (moderate IO) (high compute) 14 GB memory 16 Data Disks (1TB) 16 x 500 Max IOPs • 768 MB memory • 1 Data Disk (1TB) • 1 x 500 Max IOPs 3.5 GB memory 4 Data Disks (1TB) 4 x 500 Max IOPs 1.75 GB memory 2 Data Disks (1TB) 2 x 500 Max IOPs 56 GB memory 16 Data Disks (1TB) 16 x 500 Max IOPs • 56GB memory • 8 Data Disk (1TB) • 8 x 500 Max IOPs • 40 Gbps NIC 112 GB memory 16 Data Disks (1TB) 16 x 500 Max IOPs40 Gbps NIC 7.0 GB memory 8 Data Disks (1TB) 8 x 500 Max IOPs 14 GB memory 4 Data Disks (1TB) 4 x 500 Max IOPs 28 GB memory 8 Data Disks (1TB) 8 x 500 Max IOPs

  4. Microsoft Windows Server 2008 R2 Windows Server 2012 Windows Server 2012 R2 SQL Server 2008 SQL Server 2012 SQL Server 2014 BiztalkServer 2013 SharePoint 2013 Visual Studio 2013 Platform Images Available Open Source OpenSUSE12.3 CentOS 6.3 Ubuntu 12.04/12.10/13.04 SUSE Linux Enterprise Server 11 SP3 Enterprise or Standardversions of Web Logic Server 12c or 11g Database 12c or 11g Oracle Linux 6.4

  5. Supported Microsoft Applications SQL Server 2008 SQL Server 2008 R2 SQL Server 2012 SharePoint 2010 & 2013 Windows Server 2008 R2 Windows Server 2012 Windows Server 2012 R2 BizTalk 2010 & 2013 System Center 2012 System Center 2012 R2 http://support.microsoft.com/kb/2721672

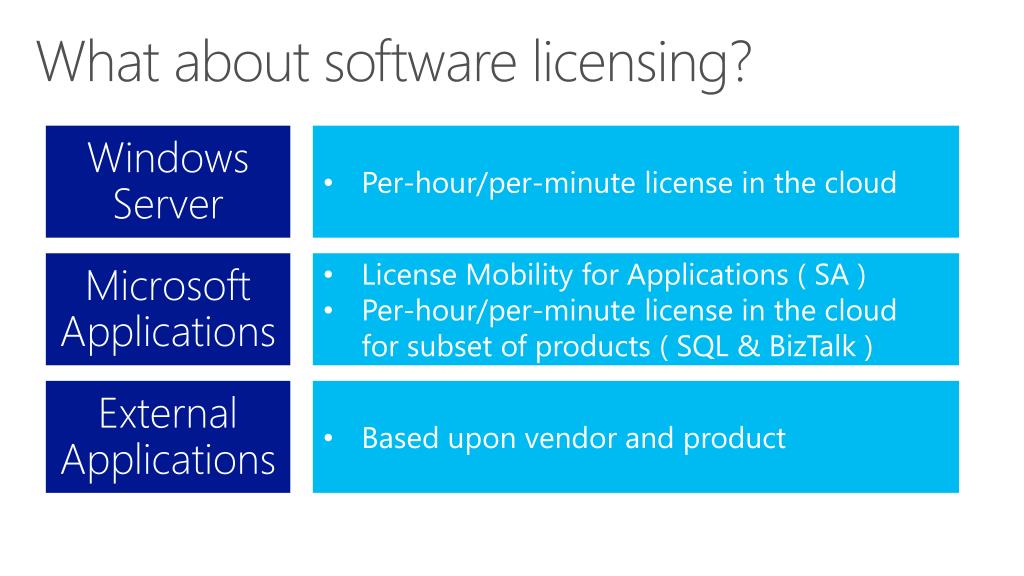

  6. What about software licensing? Windows Server • Per-hour/per-minute license in the cloud Microsoft Applications • License Mobility for Applications ( SA ) • Per-hour/per-minute license in the cloud for subset of products ( SQL & BizTalk ) External Applications • Based upon vendor and product

  7. Virtual Machines & Cloud ServicesVMs exist within a Cloud Service Cloud Service VM 1 • Cloud Service is a… • Public IP Address • Public DNS Name • Internet Firewall • Load Balancing • boundary

  8. Virtual Machines & Cloud ServicesMultiple VMs can be hosted within the same cloud service Cloud Service • Cloud Service is a… • Public IP Address • Public DNS Name • Internet Firewall • Load Balancing • boundary VM 2 VM 1 VM 3 VM 4

  9. Port Forwarding Input Endpoints Cloud App / Hosted Service Endpoint Public Port Local Port Protocol (TCP/UDP) Name PORT 3389 PORT 5587 PORT 5586 PORT 3389 LB/IP VM1 VM2 Single Public IP Per Cloud Service

  10. DEMO Provision a New VM on a Virtual Network

  11. Availability & Service Level Agreements Availability set 99.95% Monthly SLA for VM’s 4.38 hours of downtime per year for VM’s in an availability set VM 2 What’s included Compute Hardware failure (disk, cpu, memory) Datacenter failures - Network failure, power failure Hardware upgrades, Software maintenance – Host OS Updates VM 1 What is not included VM Guest OS & Applications, VM Guest OS Updates Customer on-premises network connectivity and intermediary Internet connectivity SLA 99.95

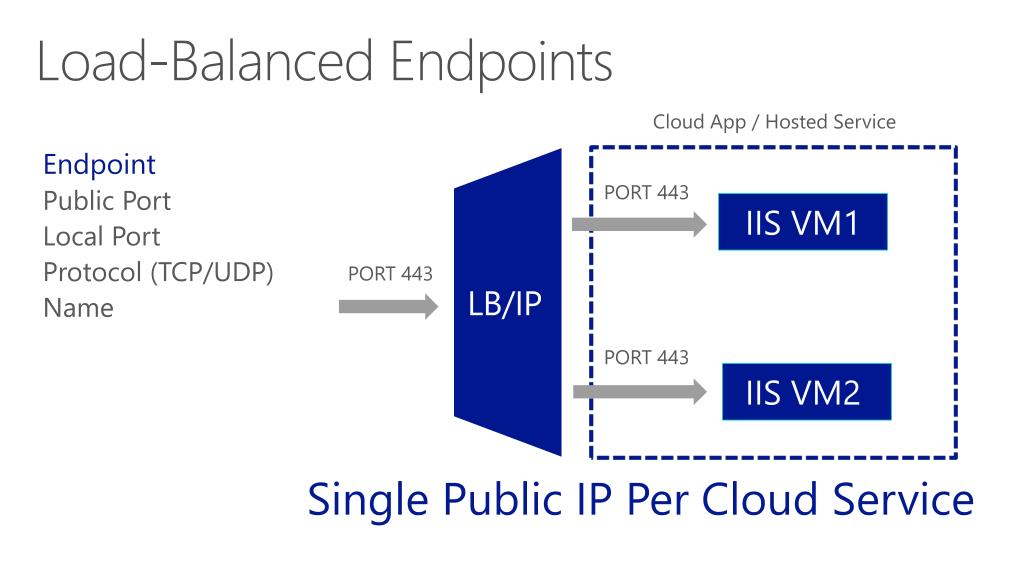

  12. Load-Balanced Endpoints Cloud App / Hosted Service Endpoint Public Port Local Port Protocol (TCP/UDP) Name PORT 443 PORT 443 PORT 443 LB/IP IIS VM1 IIS VM2 Single Public IP Per Cloud Service

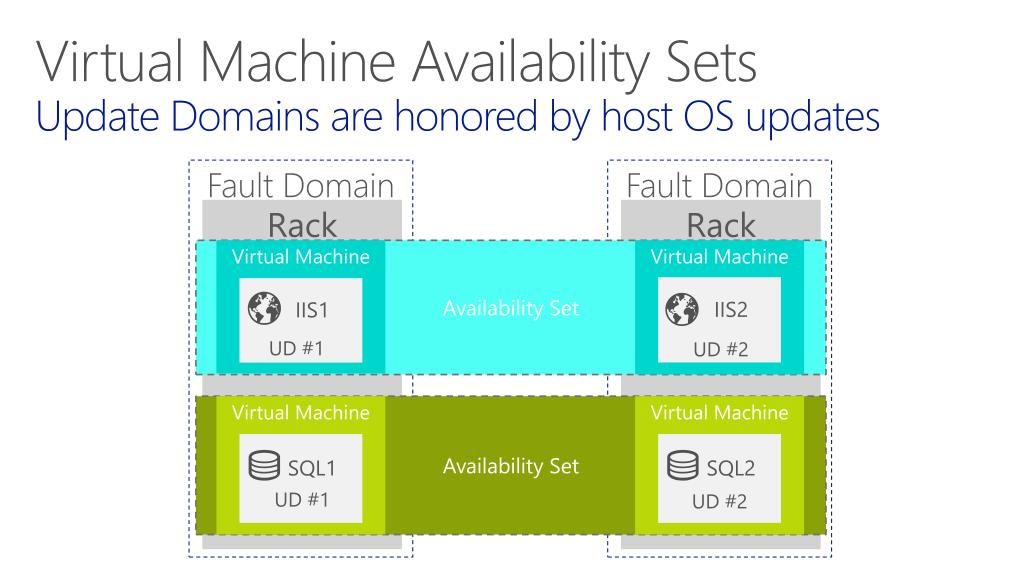

  13. Virtual Machine Availability SetsUpdate Domains are honored by host OS updates Fault Domain Fault Domain Rack Rack Virtual Machine Virtual Machine Availability Set IIS2 IIS1 UD #2 UD #1 Availability Set Virtual Machine Virtual Machine SQL1 SQL2 UD #1 UD #2

  14. End-to-End Highly Available SolutionRedundancy at every level SQL Server VM1 DB-AVSET Internet Web-AVSET IIS Web Application • IIS VM1 • SQL Mirroring LB IIS Web Application SQL Server VM2 • IIS VM2

  15. auto-scaling Auto-scaling Microsoft Azure VM’s Based on CPU Utilization Thresholds Scale-up: Start VMs Scale-down: Stop VMs Cloud Service IIS VM1 IIS VM2 IIS VM3 :-) :-) :-)

  16. DEMO Configure Availability Sets, Load Balancing and Auto-scaling

  17. Imaging VMs in the Cloud Cloud Identical/similar deployment instances using common OS image as start Base.VHD Boot VM Customize VHD Generalize VHD Capture VM Capture VM Saves Customized Image to Your Image Library

  18. Virtual Machine Portability • On-Premises Cloud MyApp.vhd

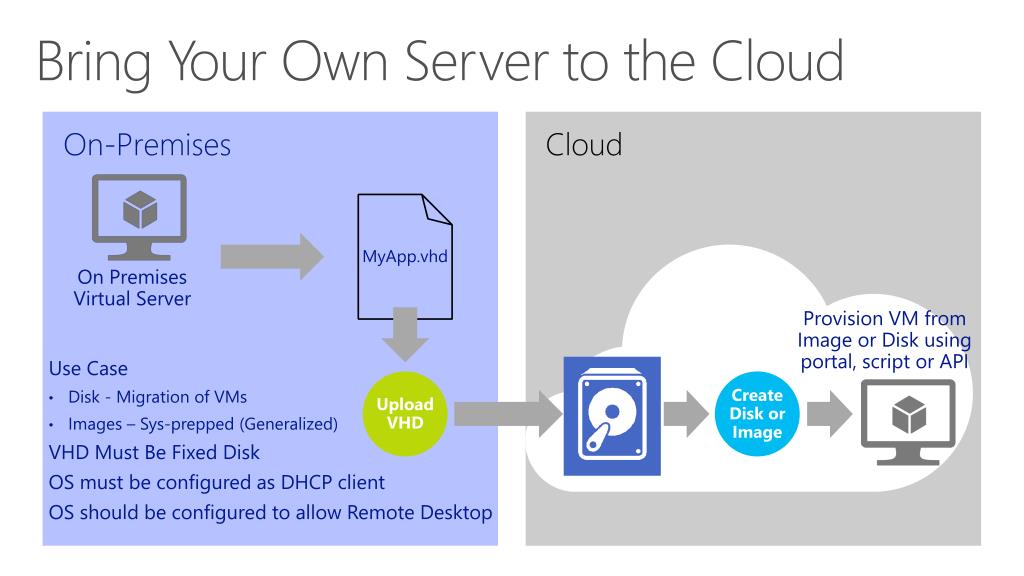

  19. Bring Your Own Server to the Cloud Cloud • On-Premises MyApp.vhd Provision VM from Image or Disk using portal, script or API Upload VHD Create Disk or Image On Premises Virtual Server Use Case • Disk - Migration of VMs • Images – Sys-prepped (Generalized) VHD Must Be Fixed Disk OS must be configured as DHCP client OS should be configured to allow Remote Desktop

  20. DEMO Capturing Custom VM Images

  21. Virtual Machine Scenarios Disaster Recovery On-Demand Dev/Test

  22. Disaster Recovery Scenario S S S AD Repl AD/DNS Web AD/DNS File SQL SQL DB Mirroring / AlwaysOn 80/443 VPN Tunnel SQL Distributed Filesystem Replication ( DFS-R ) Xcopy / Robocopy based Deployments File Web Cloud Service On-Premises Microsoft Azure Virtual Network

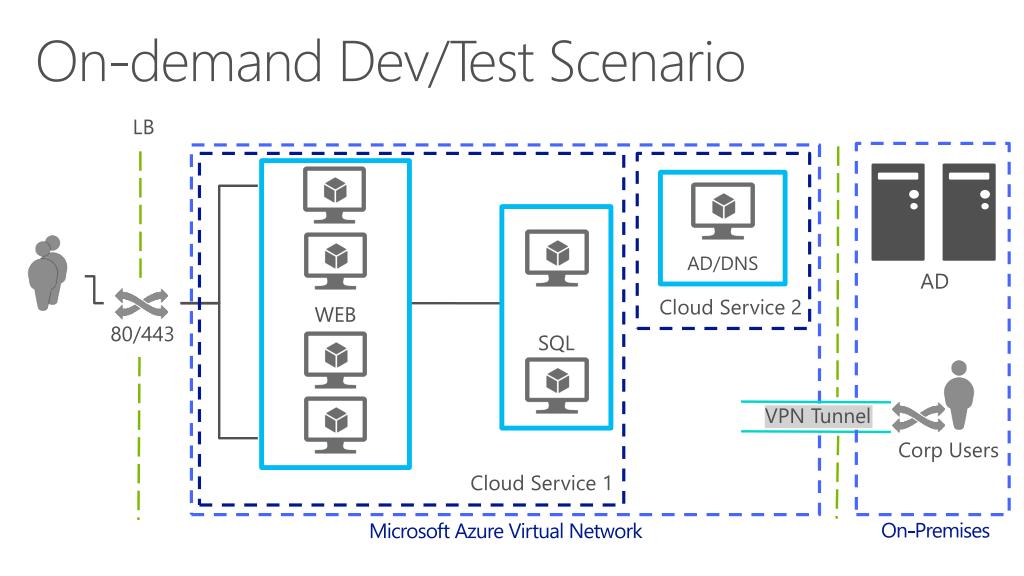

  23. On-demand Dev/Test Scenario LB WEB AD/DNS SQL AD Cloud Service 2 80/443 VPN Tunnel Corp Users Cloud Service 1 On-Premises Microsoft Azure Virtual Network

  24. Accelerating Cloud Content with BranchCache Secure IPSec Site-to-Site VPN Tunnel Hosted Cache Server Encrypted Content Cache 4 Content Server 2 \\SERVER\SHARE 3 VPN Gateway VPN Gateway AD / DNS 1 AD / DNS / DHCP Windows 8.1 Enterprise On-Premises Network Microsoft Azure Virtual Network

  25. Automating On-demand Scenarios with Windows PowerShell • Automation •  Query, manage and configure – at scale: • Virtual Machines • Storage across multiple subscriptions and storage accounts • Tiered deployment workflows • Virtual Machines • Configure storage and networking • Domain join to AD on-premises • Bring your own machine images or disks • Use remote PowerShell • Virtual Network • Configure Virtual Network • Manage configuration and gateway • Connect to on-premises networks Storage  Upload & download VHDs from storage accounts to on-premises  Copy VHDs between storage accounts and subscriptions

  26. DEMO Automating On-demand Scenarios with Windows PowerShell

  27. Automating On-demand Scenarios with System Center 2012 R2 Service Manager & Orchestrator Orchestrator External Cloud Azure Integration Pack Runbooks Service Manager CMDB PowerShell Knowledge base Data warehouse Workflows Service Offerings Catalog Work Items Knowledge Templates Configuration Items Manual and repetitive processes automated by the power of runbooks and PowerShell, using information stored in the centralized CMDB App Controller SM Portal Application Owner Tenant Admin

  28. DEMO Automating On-demand Scenarios with System Center 2012 R2

  29. Review: Microsoft Azure Virtual Machines VM Sizes Supported Workloads Software Licensing VM Portability VM’s & Cloud Services
