  1. Microsoft Azure Virtual Networks

  2. Microsoft Azure Virtual Networks Secure, Isolated Virtual Networks Bring Your Own DNS Hybrid, Cross-Premises Networking Site-to-Site VPN Point-to-Site VPN Data & Access Applications Runtime Operating System Virtual Machine Compute Networking Provision Storage

  3. Microsoft Azure Virtual Networks A protected, private virtual network in the cloud • Secure, Isolated virtualized networks in Azure • Create Subnets with Private IP Address ranges • Bring Your Own DNS – Supports Enterprise workloads A virtual branch office ordatacenter in the cloud • Securely Extend Enterprise Networks to Azure • On-ramp for migratingapps and services to Azure • Enables “hybrid” apps that span cloud and on-premises • Site-to-Site VPN and Point-to-Site VPN functionality Microsoft Azure VM 1 VM 2 Subnet 1 VM 3 Subnet 2

  4. Options for On-Premises VPN Gateways Generic VPN devices must support New: Software based VPN gateway • Windows Server • Routing and Remote Access Service (RRAS) • IKE v1, IKE v2 • AES 128, 256 • SHA1, SHA2

  5. DEMO Build a Virtual Network in the Cloud

  6. Virtual Network Scenarios Hybrid Cross-Premises Network Remote User Access

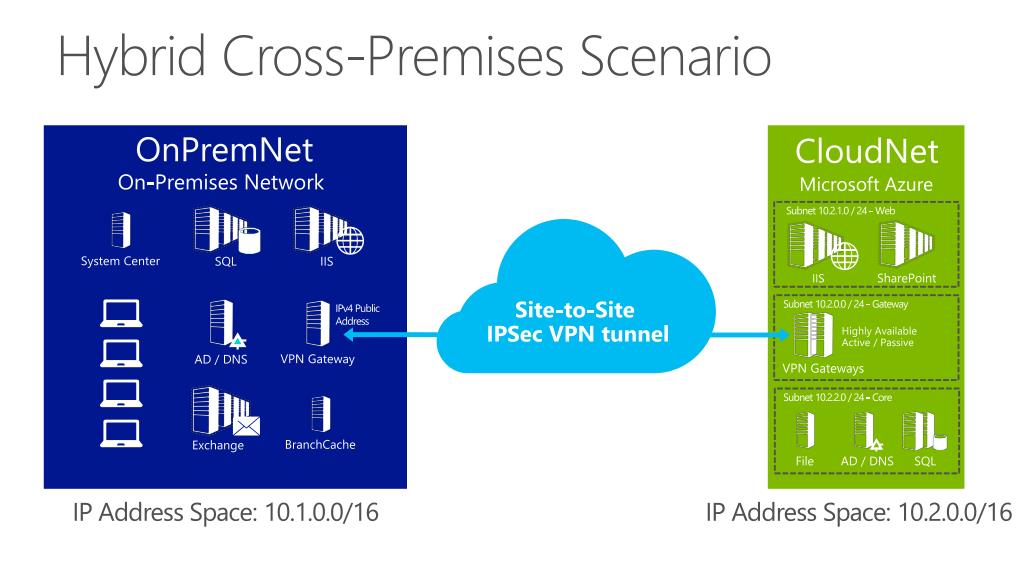

  7. Hybrid Cross-Premises Scenario OnPremNet Microsoft Azure CloudNet On-Premises Network Subnet 10.2.1.0 / 24 - Web SQL IIS System Center SharePoint IIS Site-to-Site IPSec VPN tunnel Subnet 10.2.0.0 / 24 - Gateway IPv4 Public Address Highly Available Active / Passive AD / DNS VPN Gateway VPN Gateways Subnet 10.2.2.0 / 24 - Core Exchange BranchCache File AD / DNS SQL IP Address Space: 10.1.0.0/16 IP Address Space: 10.2.0.0/16

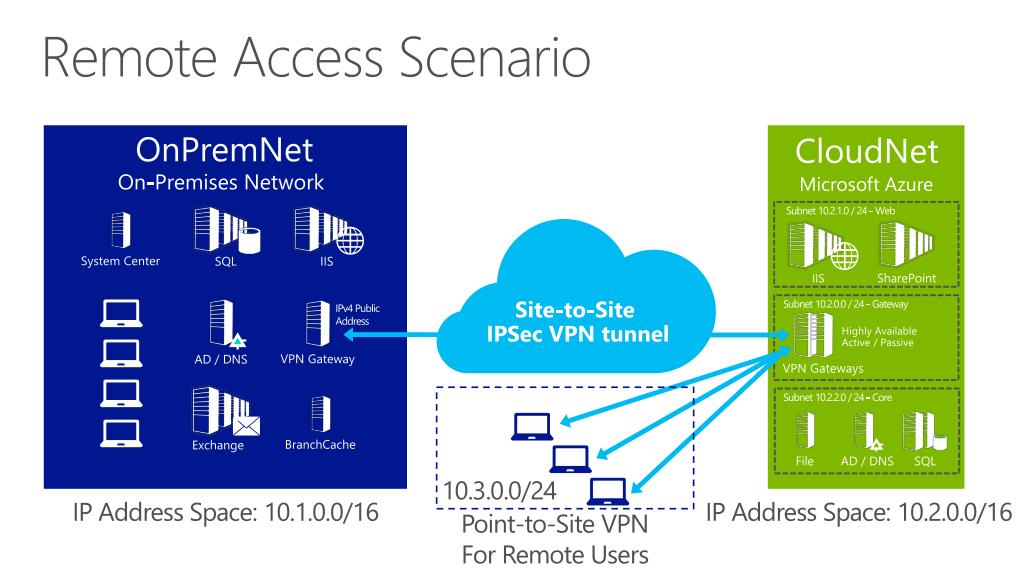

  8. Remote Access Scenario OnPremNet Microsoft Azure CloudNet On-Premises Network Subnet 10.2.1.0 / 24 - Web SQL IIS System Center SharePoint IIS Site-to-Site IPSec VPN tunnel Subnet 10.2.0.0 / 24 - Gateway IPv4 Public Address Highly Available Active / Passive AD / DNS VPN Gateway VPN Gateways Subnet 10.2.2.0 / 24 - Core Exchange BranchCache File AD / DNS SQL 10.3.0.0/24 IP Address Space: 10.1.0.0/16 IP Address Space: 10.2.0.0/16 Point-to-Site VPN For Remote Users

  9. DEMO Build a Hybrid Cross-Premises Network

  10. Introducing ExpressRoute Site-to-Site VPN Exchange Provider MPLS Network Service Provider Public internet Public internet Public internet Customer site 3 Microsoft Azure Microsoft Azure Customer site 2 WAN Microsoft Azure ExpressRoute partner location Customer DC Customer site Customer site 1 Connect via an encrypted link over public internet Peer at an ExpressRoute location, an Exchange Provider facility Connection from a WAN provided by Network Service Provider (e.g. telco). Azure becomes another site on the customer’s WAN network. Virtual Network - Compute only. ExpressRoute - Provides customer choice and include access to compute, storage, and other Azure services.

  11. Review: Microsoft Azure Virtual Networks Secure, Isolated Virtual Networks Bring Your Own IP Addresses Hybrid, Cross-Premises Networking Site-to-Site VPN Point-to-Site VPN Microsoft Azure VM 1 VM 2 Subnet 1 VM 3 Subnet 2

  12. TechNet Virtual Labs Hands-on deep technical labs Deep technical content and free product evaluations Free, online, technical courses At the TechNet Evaluation Center you can download free, trial versions of Microsoft software, with no feature limits. Dozens of trials are available – all at no cost. Try Windows Server 2012 for up to 180 days. Download the Windows 8 Enterprise 90-day evaluation. Or try Windows Azure at no-cost for up to 90 days. Microsoft Virtual Academy provides free online training on the IT scenarios that are important to your company and your career. Learn at your own pace and boost your IT skills with over 100 courses across more than 15 Microsoft technologies including Windows Server, Windows 8, Windows Azure, Office 365, virtualization, Windows Phone, and more. Microsoft Hands On Labs offer virtual environments that will take you through guided, technically deep product learning experience. Learn at your own pace in labs that you can complete in 90 minutes or less. There is no complex setup or installation is required to use TechNet Virtual Labs. Download Microsoft software trials today. Find Hand On Labs. Take a free online course. microsoftvirtualacademy.com Technet.microsoft.com/evalcenter Technet.microsoft.com/virtuallabs
