  1. Bentley and ESRI Interoperability

  2. Bentley and ESRI Interoperability • Designed to serve all types of workflows • Desktop Interoperability • Server Interoperability

  3. Desktop Interoperability

  4. Bentley ESRI Desktop Interoperability • Bentley Map supports referencing ArcGIS formats • MXD • SHP • Import/Export into Bentley GIS applications • Import to/from XML Feature Modeling (XFM) DGN’s • DGNs with attribution and metadata stored as XML

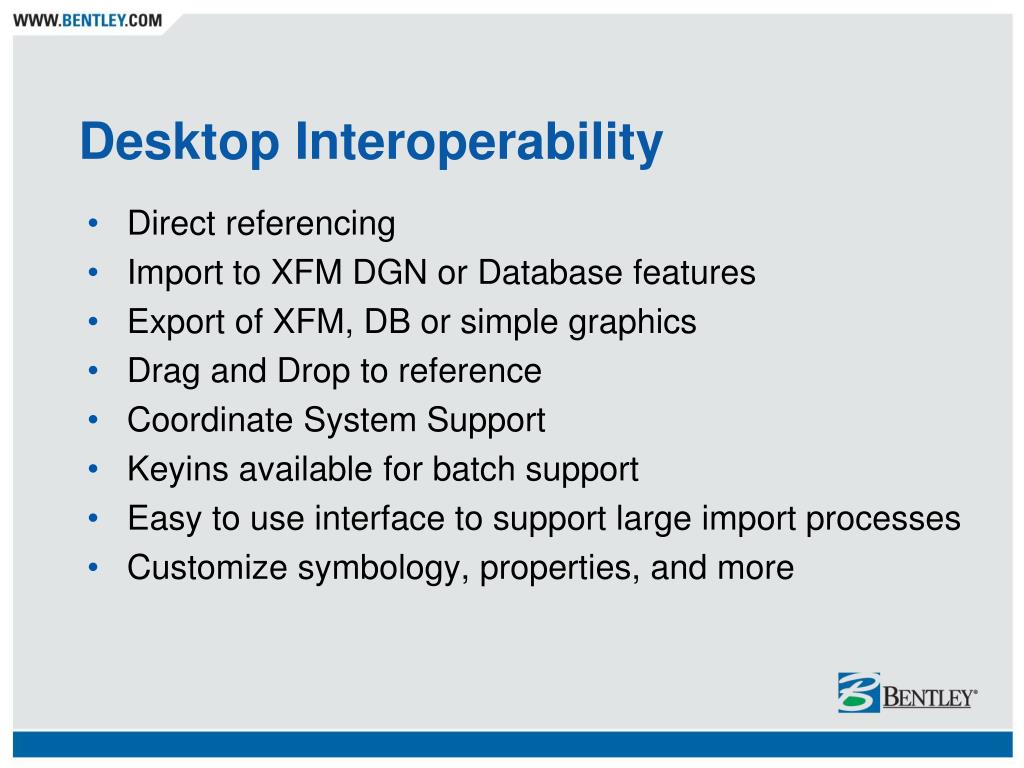

  5. Desktop Interoperability • Direct referencing • Import to XFM DGN or Database features • Export of XFM, DB or simple graphics • Drag and Drop to reference • Coordinate System Support • Keyins available for batch support • Easy to use interface to support large import processes • Customize symbology, properties, and more

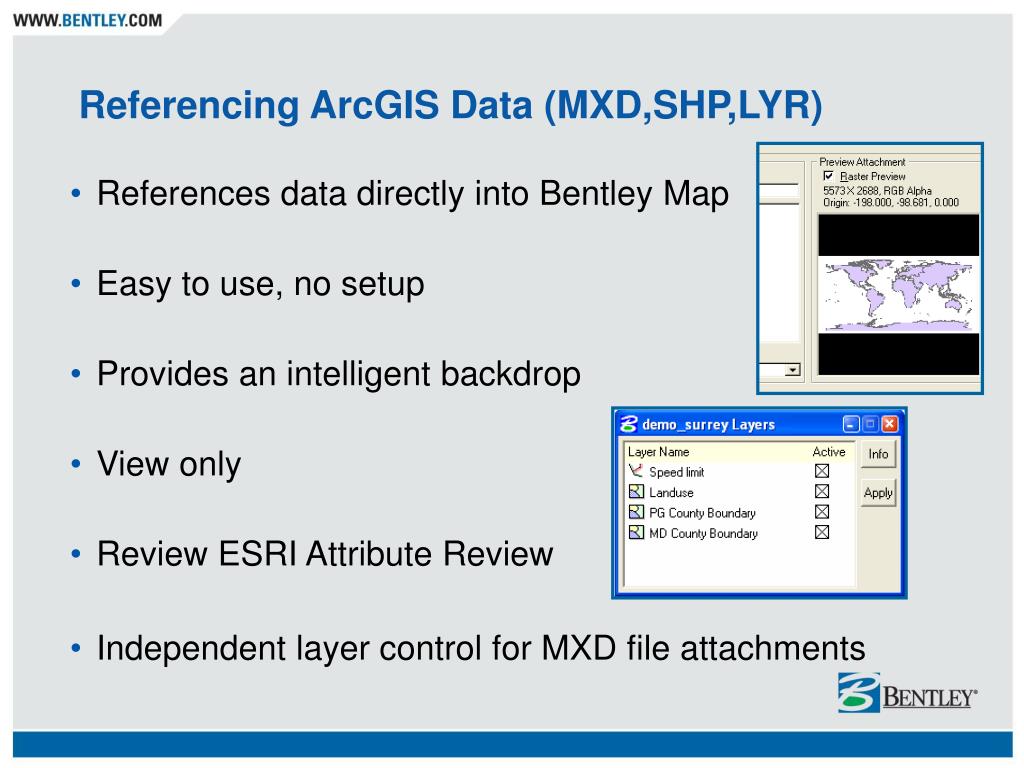

  6. Referencing ArcGIS Data (MXD,SHP,LYR) • References data directly into Bentley Map • Easy to use, no setup • Provides an intelligent backdrop • View only • Review ESRI Attribute Review • Independent layer control for MXD file attachments

  7. Importing ArcGIS Data into a MicroStation Applications (SHP, E00) • Included with Bentley Map V8 XM Edition and MicroStation GeoGraphics 2004 Edition • Allows for full functionality – the ability to query data, create thematic maps, et.al. • Full editing capabilities

  8. Available from Map Manager or File -> Import/Export menu Import File Feature Attributes Properties

  9. Import/Export ArcGIS data with XFM DGNs • Included with the Bentley Map V8 XM Edition or MicroStation GeoGraphics (2004 Edition) • No need for a GeoGraphics project or database • Everything stored inside DGN

  10. Server Interoperability

  11. Bentley Geospatial Server and ESRI • Manages and integrates ESRI file based information with DGN, DWG, Raster and other • Allows all the workflow, security, and versioning capabilities of ProjectWise

  12. Work Environment defined in XML Bentley ESRI Server Interoperability • Import from an enterprise Geodatabase into XFM DGN using the Projectwise Connector for ArcGIS Software • Bring across all data, domains, and feature definitions from GeoDatabase into MicroStation applications • Provides a default set of placement methods based on geometry type • Easy for the user • Everything stored inside DGN as XML(compatible with ProjectWise) • Takes advantages of ProjectWise and Bentley Geospatial Server

  13. Easy as 1,2,3 • User is guided through extraction process by a handy wizard driven by the intelligence in the Geodatabase • Data creation and modifications take place in the MicroStation application • User is guided through posting to the Geodatabase with entire process managed by Bentley Geospatial Server

  14. Step 1: Extract Extraction Setup

  15. Step 2: Modify Editing in MicroStation Application

  16. Step 3: Post Posting to Geodatabase version

  17. Bentley and ESRI Interoperability
