  1. Linear Regulator Fundamentals 2.2 NPN

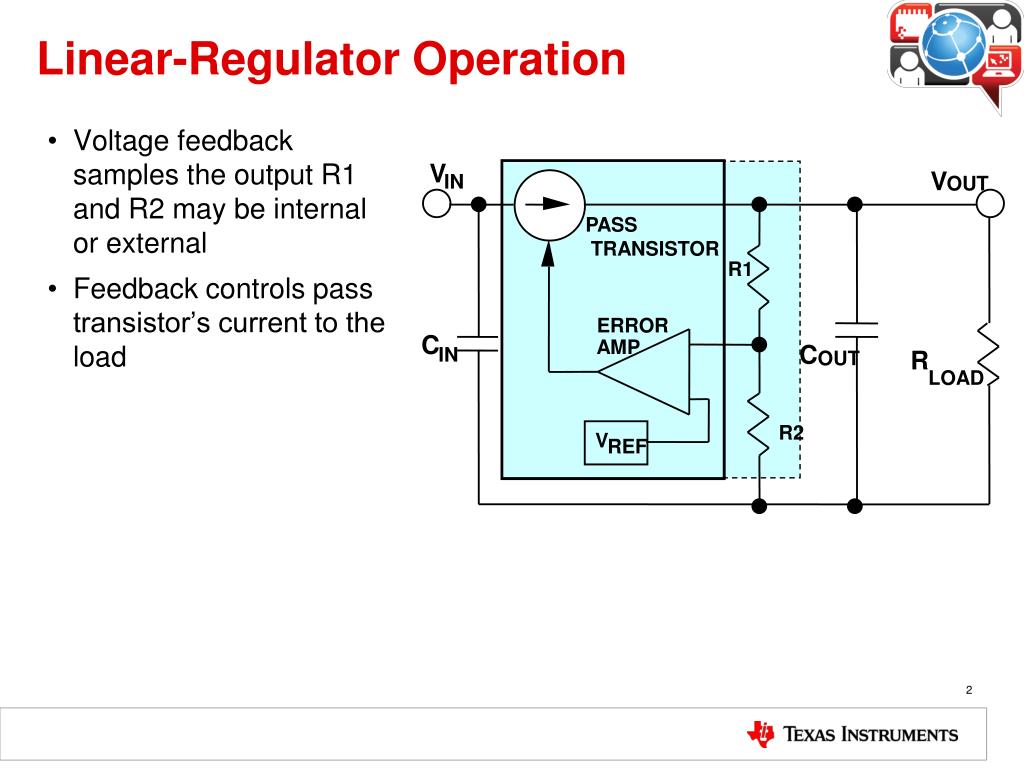

  2. Linear-Regulator Operation • Voltage feedback samples the outputR1 and R2 may be internal or external • Feedback controls pass transistor’s current to the load V V IN OUT PASS TRANSISTOR R1 ERROR C AMP C IN R OUT LOAD R2 V REF

  3. NPN "Quasi-LDO" Voltage Regulator • The NPN-Quasi-LDO has the following Characteristics: • Requires the input voltage to be at least 0.9V to 1.5V higher than the output voltage • Has higher Ground pin current than the NPN-Darlington, but less than the PNP-LDO Voltage Regulators • Requires an output capacitor, but, generally, has no specific ESR requirement like the PNP-LDO

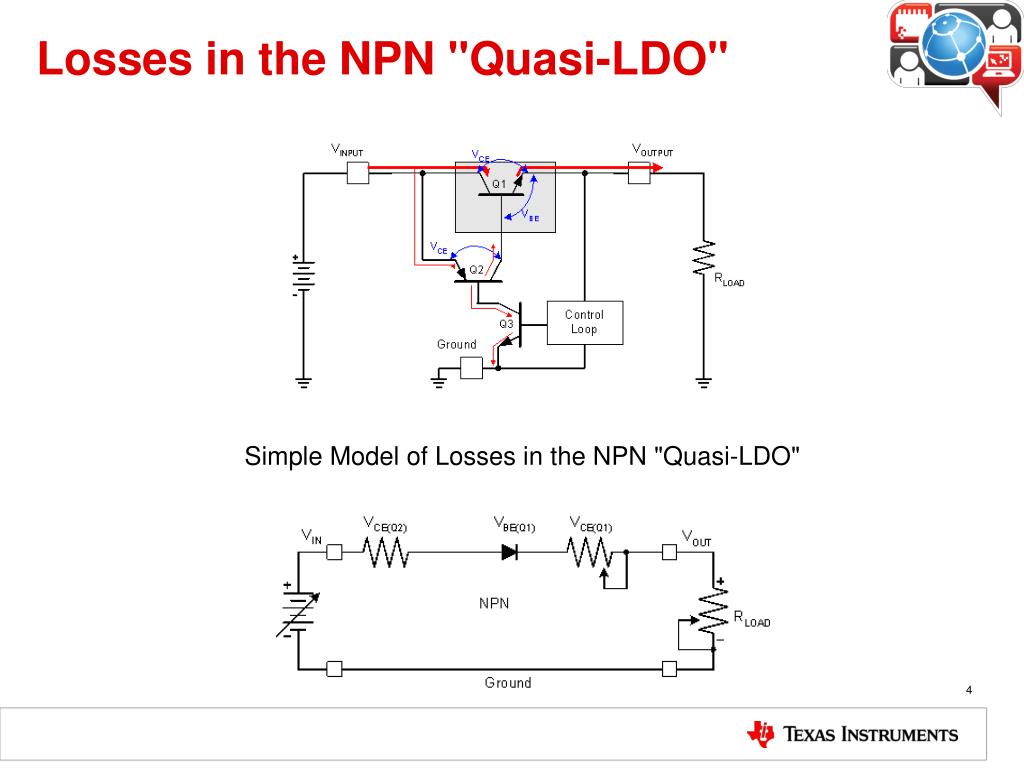

  4. Losses in the NPN "Quasi-LDO" Simple Model of Losses in the NPN "Quasi-LDO"

  5. Driving the NPN "Quasi-LDO" Pass Element

  6. The drive current for a load current requirement of 5mA Drive Current vs. Low/High Load Current Increasing the load current requirement to 500mA

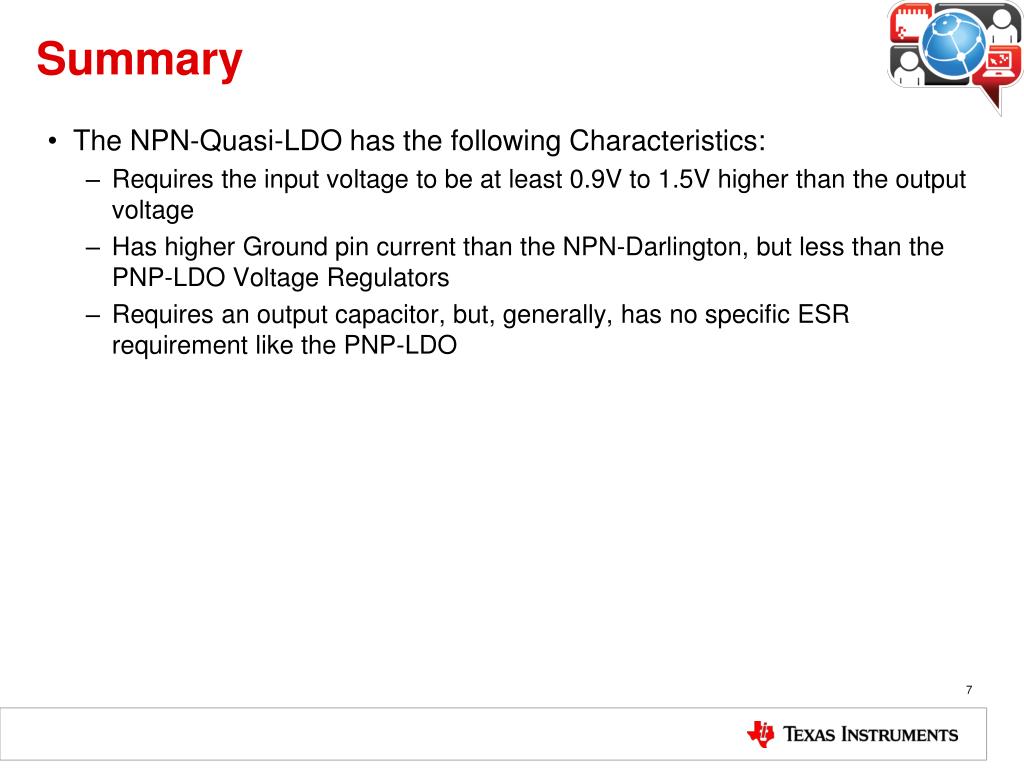

  7. Summary • The NPN-Quasi-LDO has the following Characteristics: • Requires the input voltage to be at least 0.9V to 1.5V higher than the output voltage • Has higher Ground pin current than the NPN-Darlington, but less than the PNP-LDO Voltage Regulators • Requires an output capacitor, but, generally, has no specific ESR requirement like the PNP-LDO

  8. Thank you!
