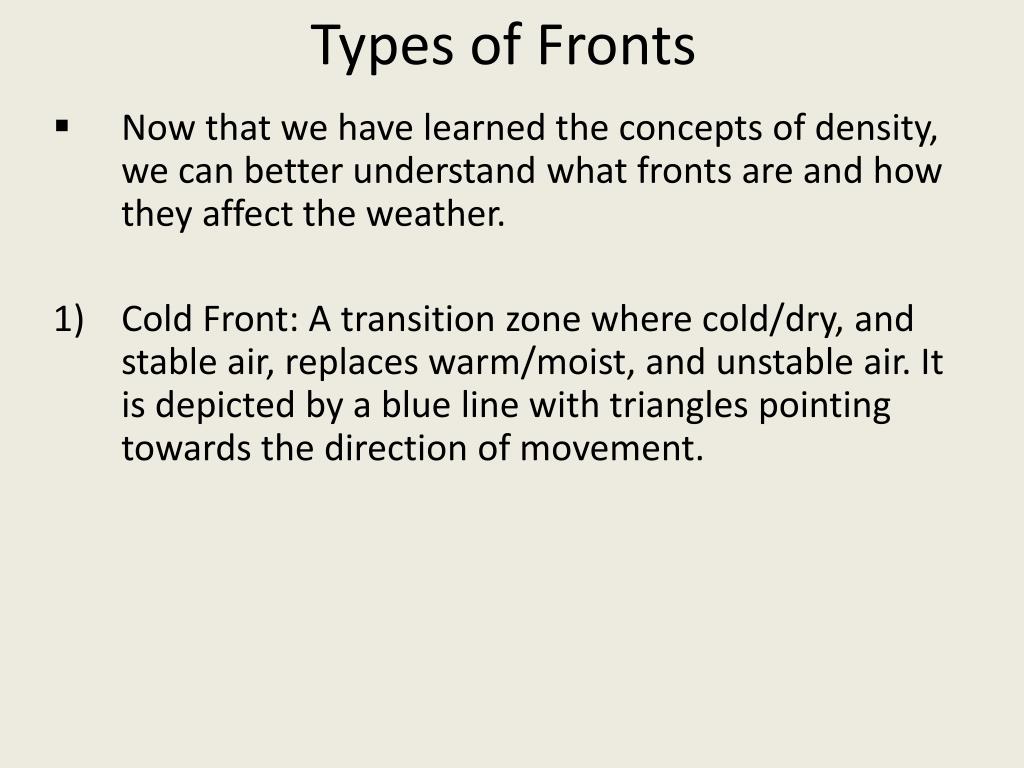

  1. Types of Fronts • Now that we have learned the concepts of density, we can better understand what fronts are and how they affect the weather. • Cold Front: A transition zone where cold/dry, and stable air, replaces warm/moist, and unstable air. It is depicted by a blue line with triangles pointing towards the direction of movement.

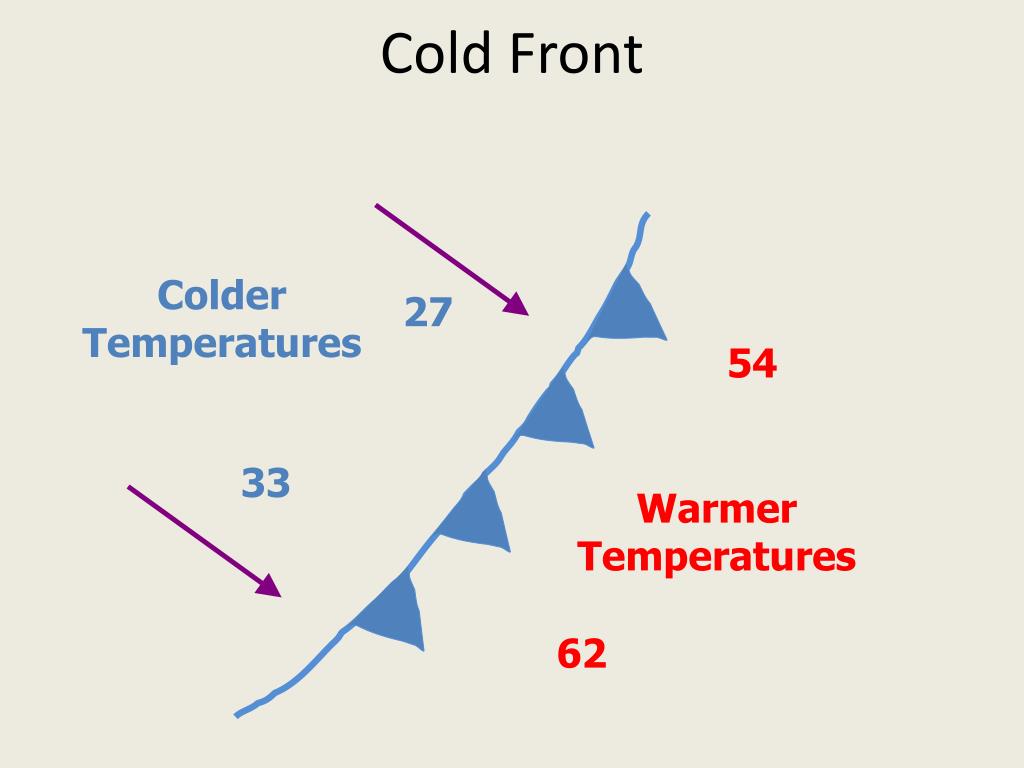

  2. Cold Front Colder Temperatures 27 54 33 Warmer Temperatures 62

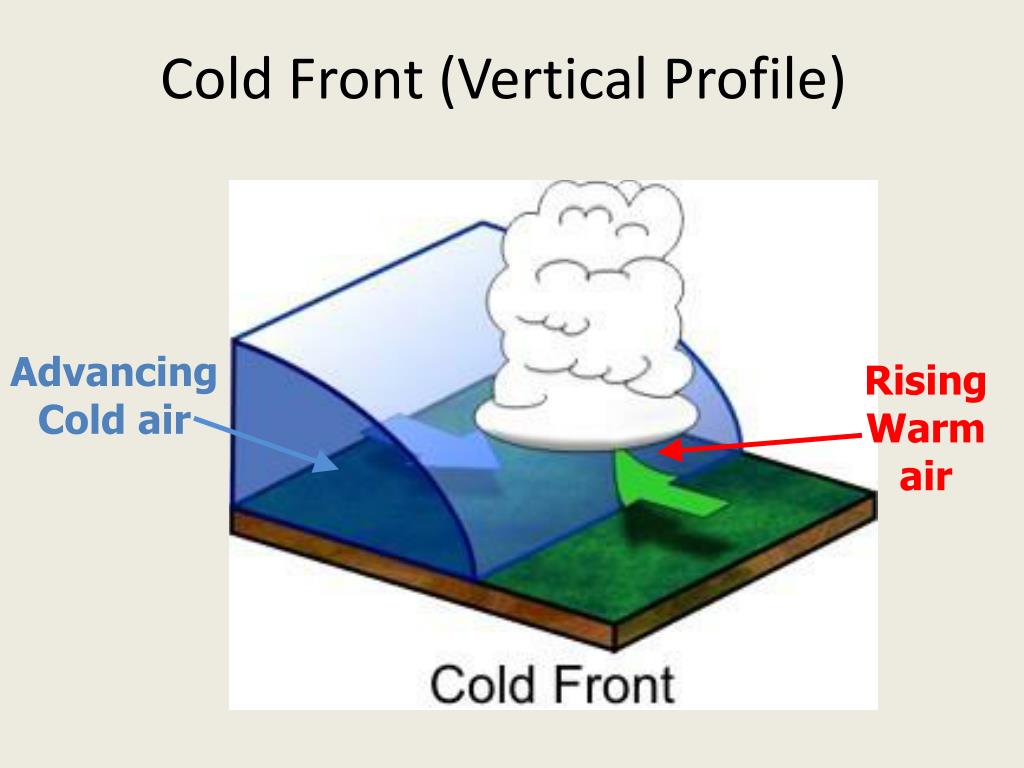

  3. Cold Front (Vertical Profile) Advancing Cold air Rising Warm air

  4. Warm Front Colder Temperatures 45 Warm Front 38 55 Warmer Temperatures 62

  5. Warm Front (Vertical Profile) Warm air Cold air

  6. Stationary Front Cold Air Warm Air

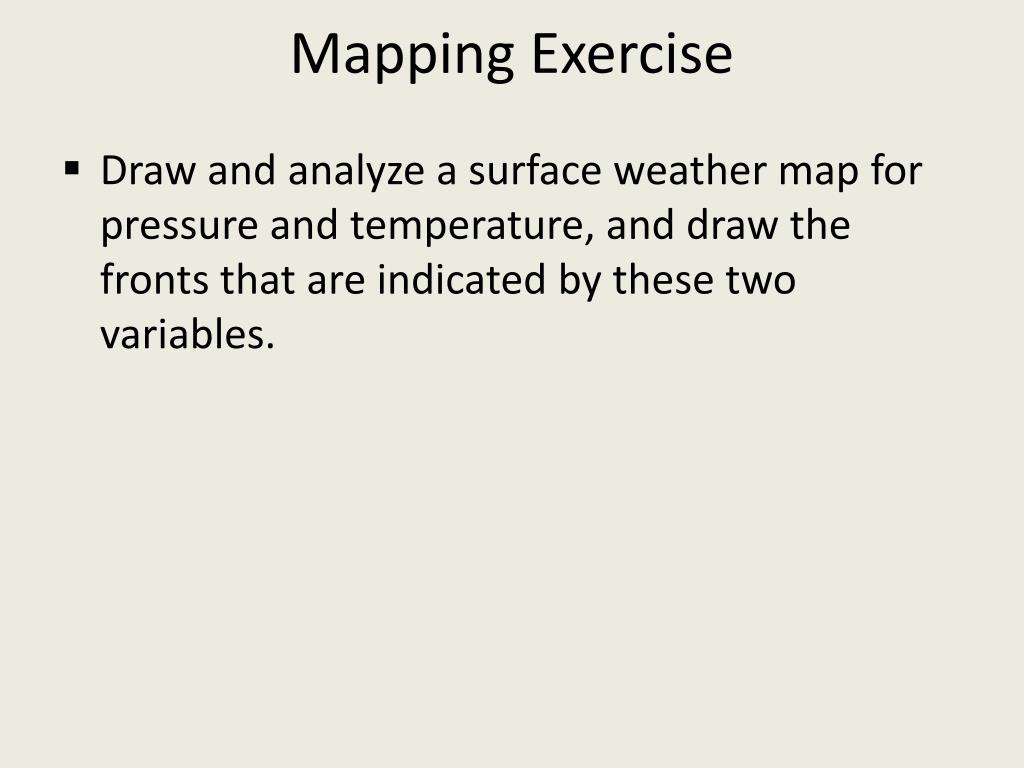

  7. Mapping Exercise • Draw and analyze a surface weather map for pressure and temperature, and draw the fronts that are indicated by these two variables.

  8. Pressure/Front Map

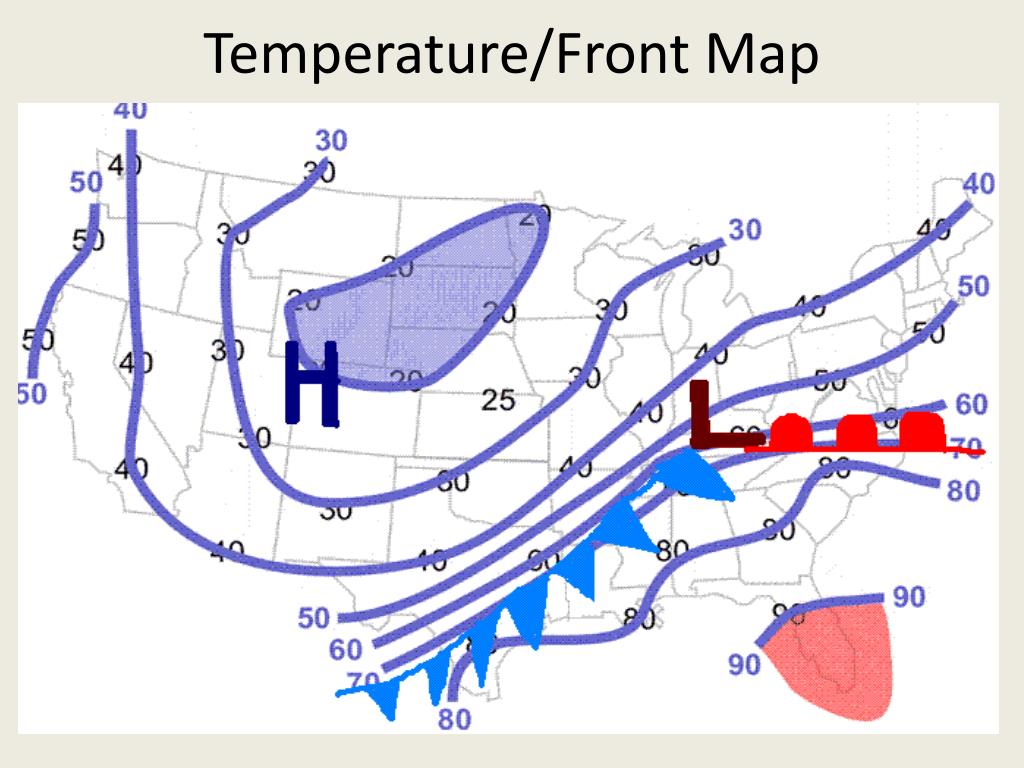

  9. Temperature/Front Map

  10. Wind directionThe wind barb (parts ff and dd combined) is like an arrow and points in the direction the wind is blowing. The suffix -erly means the wind is blowing from that direction. Here are a few examples of how to describe wind direction:

  11. Sky CoverThe total amount of clouds in tenths.

  12. Which direction is the wind blowing and at what speed?
