  1. GBC_022_E0_1ZXG10-B8018 description ZTE University GSM BSS Team

  2. Contents General Introduction Structure Introduction New Features Configuration Introduction Networking modes

  3. General Introduction General Introduction What does B8018 mean? Specification explanation

  4. General Introduction General Introduction • ZXG10 B8018 is new type of ZXG10-BTS, based on ZXG10-BTS (V2) • It not only has inherited all advantages of ZXG10-BTS (V2), but also has added many new functions and services to satisfy market requirements. In addition, it also reduces hardware and networking cost. • It is one of the most perfect serial BS and solve the problem that cannot be solved by current ZXG10-BTS (V2).

  5. General Introduction General Introduction • The main functions of ZXG10 B8018 are shown below: • Employs DTRU technology, i.e. two carriers in each physical transceiver module; • Supports parallel connection with ZXG10-BTS (V2) cabinet to realize capacity expansion; • Supports DPCT, downlink delay diversity (DDT) transmission, IRC and so on; • Supports 4 diversities reception; • Supports 8 E1/T1 interface; • Supports 75Ω/E1 and 120Ω/E1 transmission; • Supports intelligent power on/off; • Supports IP Abis-interface.

  6. General Introduction General Introduction Rack Layout of B8018 Cabinet size 1600mm×600mm×550mm (H×W×D)

  7. General Introduction System Indices • Frequency Range GSM900, EGSM900, 850, 1800, 1900MHz band • Power Amplifier Output: For GMSK=60W For 8PSK= 40W • Static Receiving Sensitivity -112dBm • Voltage -48V DC • Allowed Change Range -40 ~ -57 • Maximum Power Consumption 3750 W • Working Temperature -15 ~ 45 C • Relative Humidity 5% ~ 90% • Grounding Resistance <5 ohm • Capacity Single rack=18 TRX/Rack • Largest Site Type S18/18/18 or O54

  8. S6/6/6 S12/12/12 S18/18/18 General Introduction BTS Expansion

  9. General Introduction Single Cabinet with Full Configuration

  10. General Introduction General Introduction • Rear Board • Grounding Screw • Cabinet Top • Top-Layer Shelf • Fan Plug-in Box • Carrier Shelf • Side Baffle • Front Door • Horizontal Cabling Rack • Cabinet Main Body • Base • Air Filter Plug-in Box Cabinet Structure

  11. General Introduction General Introduction Cabinet Top Layout

  12. General Introduction General Introduction Interfaces on the Cabinet Top

  13. General Introduction General Introduction Interfaces on the Cabinet Top

  14. General Introduction General Introduction DIP Switch

  15. General Introduction General Introduction • BTS Type • 1100 : B8018 • 1101 : B8112 • 1110 : M8202 • 1111 : M8204 • BTS_NO : Cabinet number in the same site • 00 : Basic Cabinet • 01 : Extended Cabinet 1 • 10 : Extended Cabinet 2 • SLAVE1_PORT : The E1 port of the basic cabinet to connect extended • cabinet 1 • 00 : Port E of the basic cabinet • 01 : Port F of the basic cabinet • 10 : Port G of the basic cabinet • 11 : Port H of the basic cabinet

  16. General Introduction General Introduction • SLAVE2_PORT : The E1 port of the basic cabinet to connect extended • cabinet 2 • 00 : Port E of the basic cabinet • 01 : Port F of the basic cabinet • 10 : Port G of the basic cabinet • 11 : Port H of the basic cabinet • SATE : Whether to use the satellite Abis link or not • 0 : Common Abis • 1 : Satellite Abis • ABIS_PORT : O&M port number • 00 : Port A • 01 : Port B • 10 : Port C • 11 : Port D

  17. General Introduction General Introduction ABIS_TS : The O&M Lapd timeslot on Abis interface 000 : TS16 001 : TS31 010 : TS30 011 : TS29 100 : TS28 101 : TS27 110 : TS26 111 : TS25

  18. General Introduction General Introduction Ventilation scheme

  19. Contents General Introduction Structure Introduction New Features Configuration Introduction Networking modes

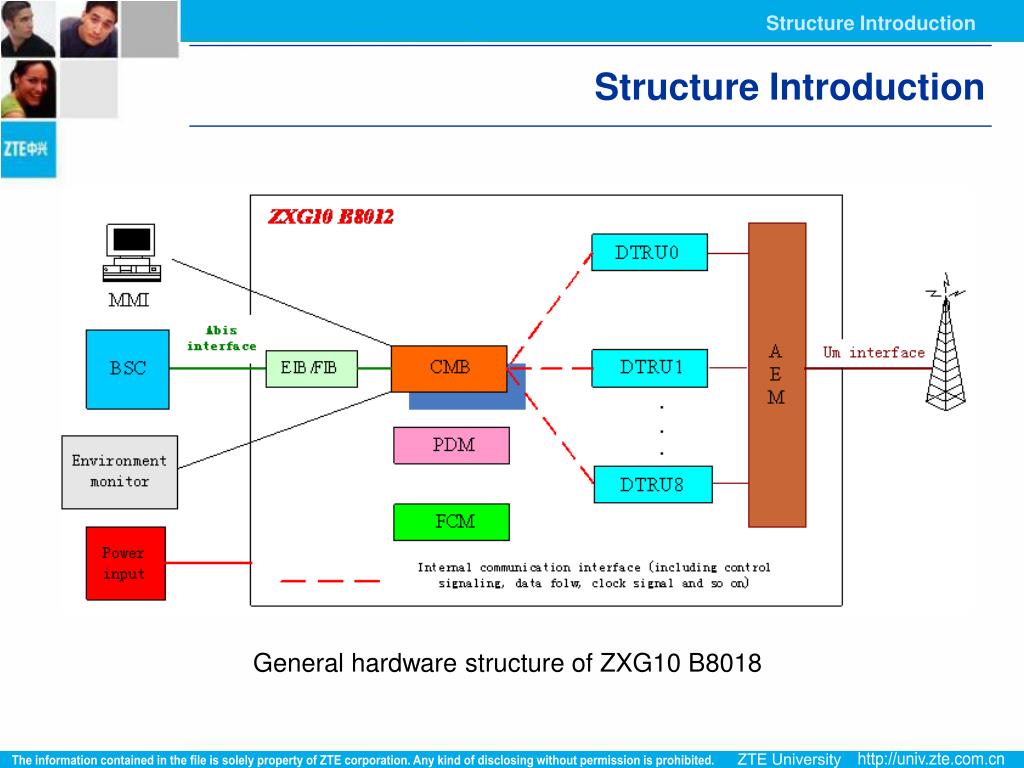

  20. Structure Introduction Structure Introduction General hardware structure of ZXG10 B8018

  21. CMB FPWR M/S RST PWR RUN SYN CLK MST STA Structure Introduction Structure Introduction • Controller & Maintenance Board (CMB) • CMB is a major digital board in ZXG10 B8018 (V1.00) providing interface and central control functions. CMB works in active/standby mode, to avoid interruption and give protection to the services.

  22. Structure Introduction Structure Introduction • CMB Function: • Provides eight E1/T1 interfaces. • Overall radio clock and transmission clock synchronization can be achieved by configuring CMB for overall network synchronization at background. • Provides transparent passage for external environment alarm. • Supports star, chain, tree, and ring networking at Abis interface.

  23. Structure Introduction Time Slot Switching in B8018 System

  24. Structure Introduction Structure Introduction • Implements, and reads various hardware management IDs of system includes: detect in-position indication, send control command by control link ,software reset each board in system, implement power switch of each board in system, implement power switch of each board in system. • Monitoring and control of each board running status.

  25. EIB Structure Introduction Structure Introduction • E1/T1 Interface Board (EIB) • EIB Board provides the Abis interface connecting to the BSC.

  26. Structure Introduction Structure Introduction EIB hardware sub-system of ZXG10 B8018

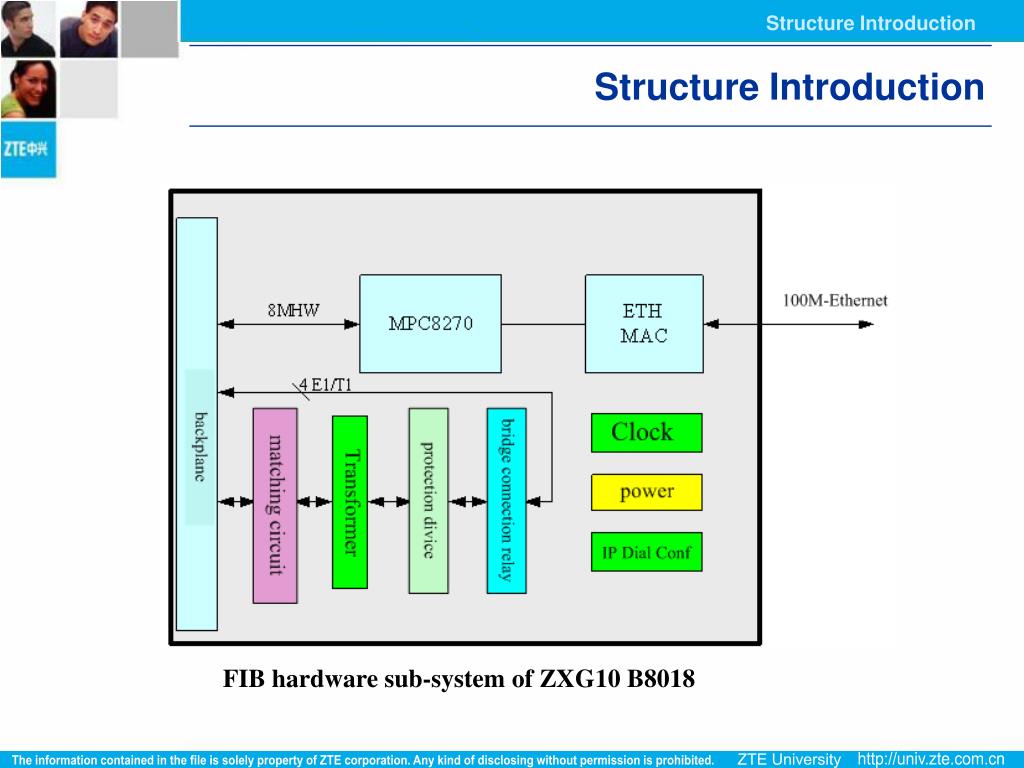

  27. Structure Introduction Structure Introduction FIB hardware sub-systemof ZXG10 B8018

  28. Structure Introduction Structure Introduction • Transceiver Module for EDGE (DTRU) • DTRU means dual TRX，one DTRU consist of two TRXs in ZXG10-8000 series BTS. • The DTRU controls and processes radio channels in the GSM system, sends/receives radio channel data, modulates/demodulates baseband signals on the radio carrier, sends/receives radio carrier signals, and collects alarms of the fans and AEMs.

  29. Structure Introduction Structure Introduction DTRU Front panel Compared with BTS(V2.9), there are Another ACT indicator, ACT1 and ACT2 Indicate the channel status of 2 TRX Separately.

  30. Tx TRM GROUP AEM Rx RxD Structure Introduction Structure Introduction Antenna Equipment Module (AEM) Antenna Equipment Module

  31. Antenna Equipment Module Types Structure Introduction Structure Introduction

  32. Antenna Equipment Module Structure Introduction Structure Introduction

  33. Antenna Equipment Module Structure Introduction Structure Introduction

  34. Antenna Equipment Module Structure Introduction Structure introduction

  35. Antenna Equipment Module Structure Introduction Structure Introduction

  36. Difference between CEUs and CENUs Structure Introduction Structure Introduction

  37. Introduction of CDU (1) Structure Introduction Structure Introduction

  38. Introduction of CDU (2) Combiner Input CDU TX1 TX2 Test Port D U P L E X E R Indicator 1 to 4 Divider TEST ANT Antenna RX1 2 to 1 Combiner Divider Output RX2 RX3 Divider Ext Output RX4 EX1 EX2 Structure Introduction Structure Introduction Ext Receive

  39. Introduction of ECDU Structure Introduction Structure Introduction

  40. Introduction of RDU Structure Introduction Structure Introduction

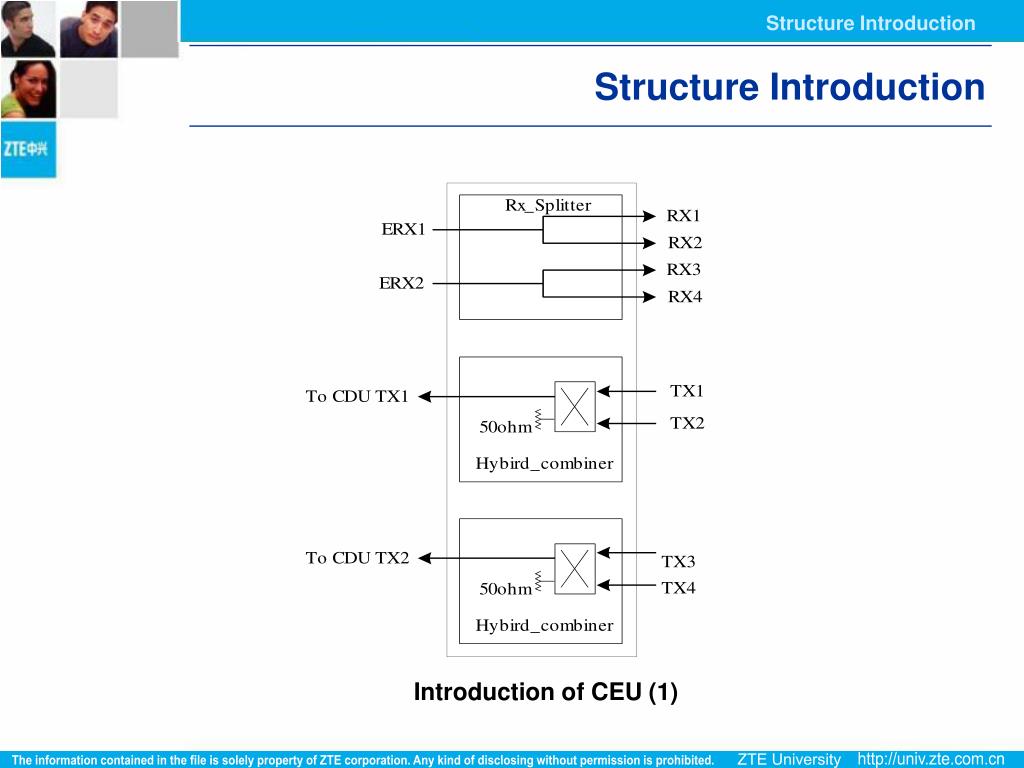

  41. Introduction of CEU (1) Structure Introduction Structure Introduction

  42. Introduction of CEU (2) CEU Combiner Input TX1 TX2 Combiner Output Indicator OTX1 1 to 2 Divider TX3 Divider Output 1 to 2 Divider TX4 OTX2 RX1 2 to 1 Combiner RX2 Divider Ext Output RX3 RX4 2 to 1 Combiner EX1 EX2 Structure Introduction Structure Introduction

  43. Introduction of CENU Structure Introduction Structure Introduction

  44. Introduction of CENU/2 Structure Introduction Structure Introduction

  45. Structure Introduction Structure Introduction PDM of ZXG10 B8018

  46. Contents General Introduction Structure Introduction New Features Configuration Introduction Networking modes

  47. New Features New Features • The main features of ZXG10 B8018 is shown below: • DTRU technology; • DPCT-dual power combining Transmission; • DDT-delay diversity transmission • 4-way diversity reception; • IRC-Interference Rejection Combining; • intelligent power on/off; • IP Abis-interface.

  48. New Features New Features • The DTRU is very flexible and can be used for several purposes . Its two TRXs, for instance, can be used separately (the same with ever)or both,both refers to by DPCT to improve the downlink and by four-way diversity to improve the uplink, they can be configured to create a super TRX.

  49. New Features New Features One DTRU can easily be used to extend coverage

  50. New Features New Features • DPCT---- Dual Power Combining Transmission: • When seeking greater cell range it is crucial to have a strong signal from the BTS to the handset. This is often referred to as downlink capability. This is what a handset presents as signal strength in the display. In configurations intended for maximum coverage, Dual Power Combining Transmission (DPCT) feature doubles the output power from the BTS cabinet, resulting in a significantly larger coverage area.
