1. DAQ/FLES Summary Walter F.J. Müller, GSI, Darmstadt CBM Collaboration Meeting16 April 2010

2. Scope of Summary Joint summary of DAQ aspects of • FEE/DAQ Workshop, 22/23 February at GSI • DAQ/FLES Working Group this CBM week FEE/DAQ WS DAQ/FLES WG CBM Collaboration Meeting -- Walter F.J. Müller, GSI

3. The CBM Generic Read-out Chain Detector Sub-System DAQ FLES Front-EndBoard Detector Read-OutController Active BufferBoard Data CombinerBoard First LevelEvent Selector FEB ROC DCB ABB FLES Data &Control Data Control Data Sync TNet FEE DAQInterface Local Pre-Processing DigitizationCustom ASIC DAQFLESInterface FPGA Coprocessor Buffering SystemSynchronization Event Selection CPU Farm CBM Collaboration Meeting -- Walter F.J. Müller, GSI

4. FEE/DAQ WS Mission Statement FEE/DAQ Workshop • Focus is on system aspects of the final system • Interim solutions, like n-XYTER, should only be covered in a 'lessons learned from' context. CBM Collaboration Meeting -- Walter F.J. Müller, GSI

5. FEE/DAQ WS Agenda FEE/DAQ Workshop • Monday • morning: TOF (PADI/GET4 readout) • afternoon: TRD/MUCH ('Gas'-XYTER readout) • Tuesday • morning: STS ('Si'-XYTER readout) • afternoon: MVD/RICH DAQ/FLES Full program and presentations seehttp://cbm-wiki.gsi.de/cgi-bin/view/DAQ/Workshop-2010-02 CBM Collaboration Meeting -- Walter F.J. Müller, GSI

6. FLES CBM Collaboration Meeting -- Walter F.J. Müller, GSI

7. Options for CBM FLES Location CBM ServiceBuilding 'Green Cube' ~350m linear dist. Distance is preliminary!! CBM Collaboration Meeting -- Walter F.J. Müller, GSI

8. DAQ/FLES WG CBM Collaboration Meeting -- Walter F.J. Müller, GSI Slide: J. de Cuveland

9. DAQ/FLES WG CBM Collaboration Meeting -- Walter F.J. Müller, GSI Slide: J. de Cuveland

10. DAQ/FLES WG CBM Collaboration Meeting -- Walter F.J. Müller, GSI Slide: J. de Cuveland

11. DAQ/FLES WG CBM Collaboration Meeting -- Walter F.J. Müller, GSI Slide: J. de Cuveland

12. DAQ/FLES WG CBM Collaboration Meeting -- Walter F.J. Müller, GSI Slide: J. de Cuveland

13. DAQ/FLES WG CBM Collaboration Meeting -- Walter F.J. Müller, GSI Slide: J. de Cuveland

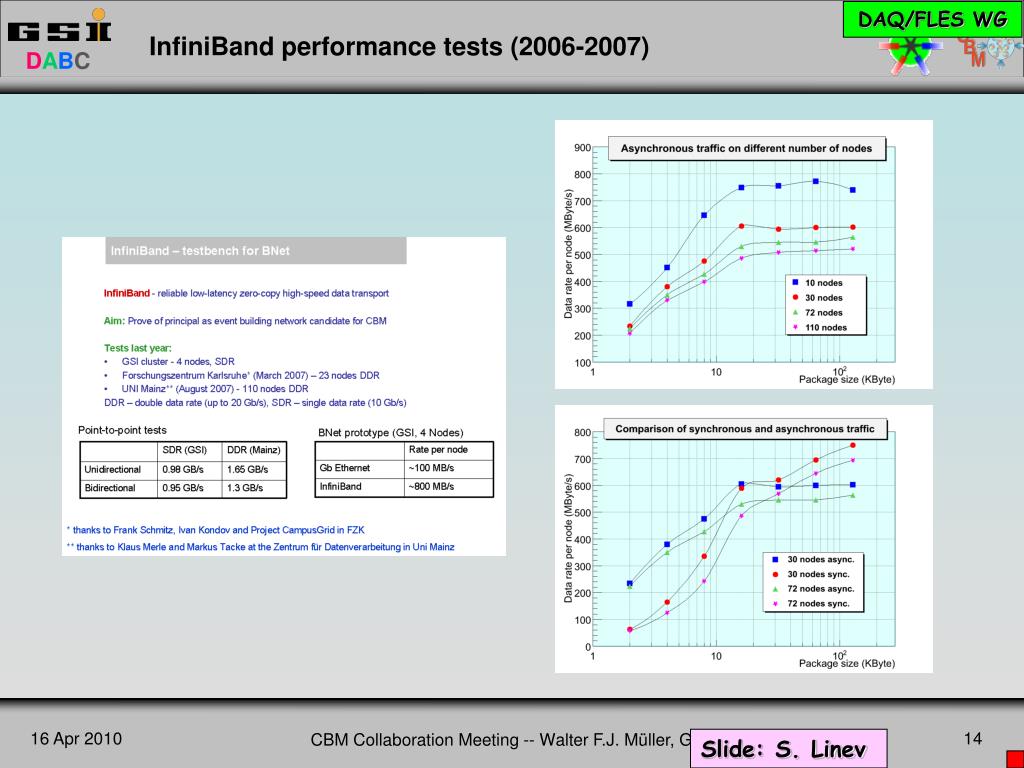

14. DAQ/FLES WG InfiniBand performance tests (2006-2007) CBM Collaboration Meeting -- Walter F.J. Müller, GSI Slide: S. Linev

15. CBM RadiationEnvironment CBM Collaboration Meeting -- Walter F.J. Müller, GSI

16. FEE/DAQ WS STS Plane 1 (30cm) – TID at FEE: ~200krad/yr at Aux: ~50krad/yr Aux FEE no MUCH CBM Collaboration Meeting -- Walter F.J. Müller, GSI Proviso: preliminaryFLUKA calculations !

17. FEE/DAQ WS 2·103 h/cm2/s 2·104 h/cm2/s 2·105 h/cm2/s STS Plane 8 (100cm) – fast hadron flux at FEE: ~105 h/cm2/s FEE with MUCH CBM Collaboration Meeting -- Walter F.J. Müller, GSI Proviso: preliminaryFLUKA calculations !

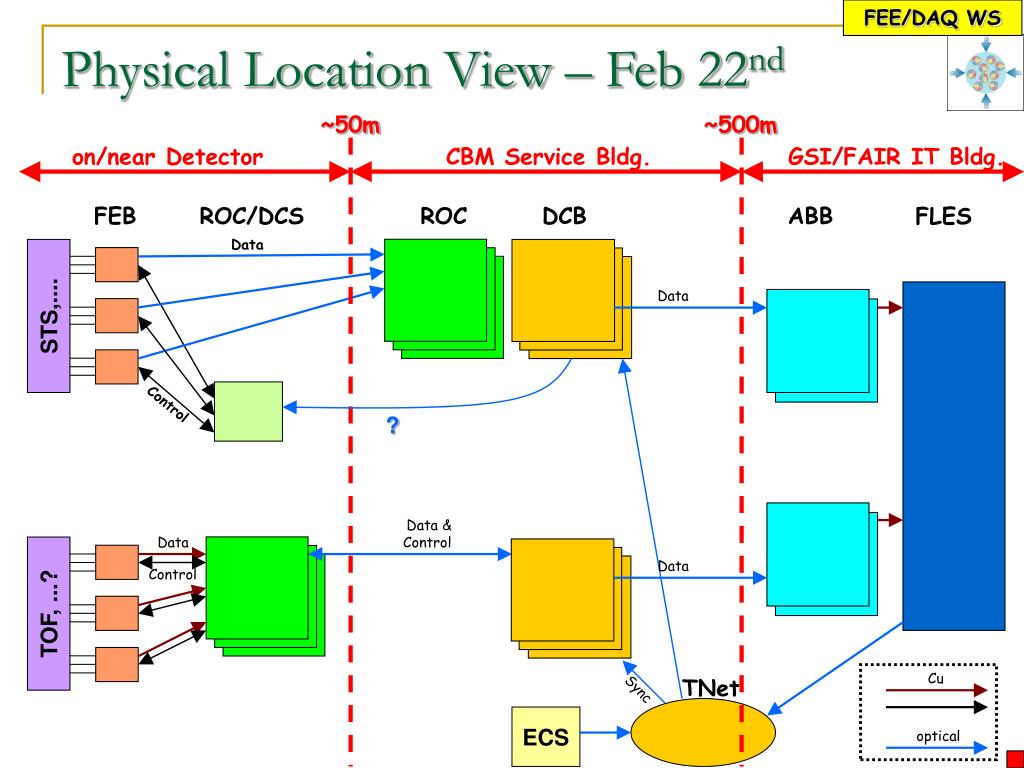

18. FEE/DAQ WS Physical Location View – Feb 22nd ~50m ~500m on/near Detector CBM Service Bldg. GSI/FAIR IT Bldg. FEB ROC/DCS ROC DCB ABB FLES Data Data STS,.... Control ? Data &Control Data Data Control TOF, ...? Cu TNet Sync ECS optical CBM Collaboration Meeting -- Walter F.J. Müller, GSI

19. Closer lookat STS readout CBM Collaboration Meeting -- Walter F.J. Müller, GSI

20. FEE/DAQ WS STS Hit Rates per 128 Channel Chip Au+Au @ 25 AGev107 evt/sec • Very few chip in inner region have hit rate > 32 MHz • >90% of chips have hit rates in 2...16 MHz range Hit rate per chip Statistics SIM-Data: A. Kotynia CBM Collaboration Meeting -- Walter F.J. Müller, GSI

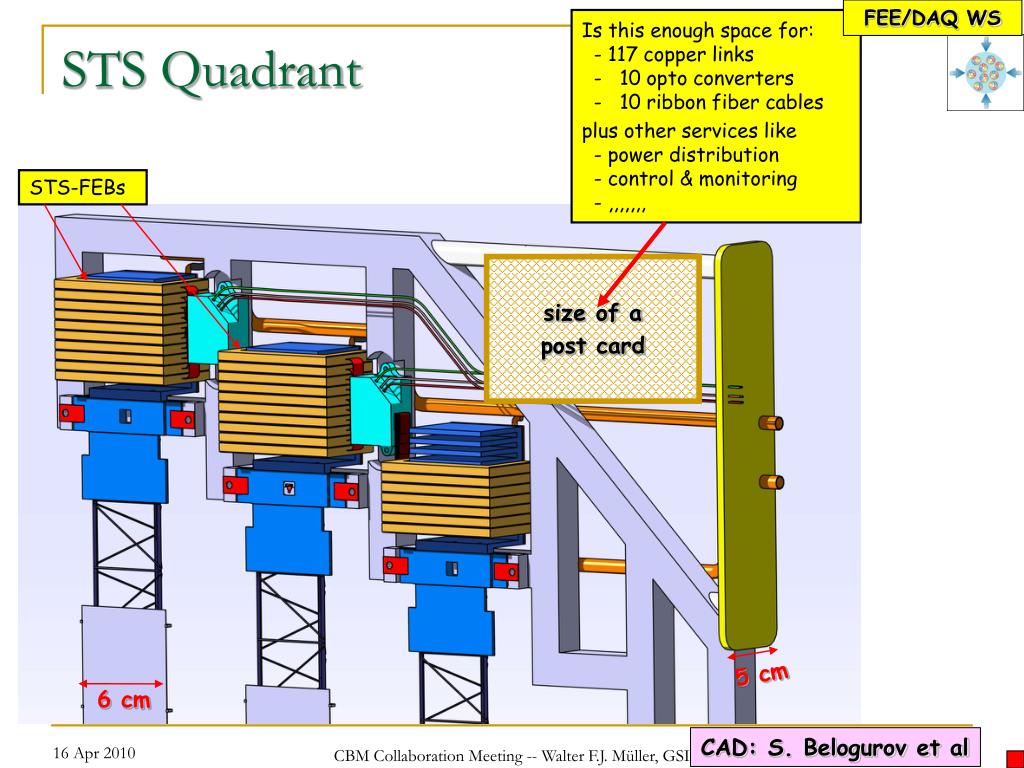

21. FEE/DAQ WS Is this enough space for: - 117 copper links - 10 opto converters - 10 ribbon fiber cables plus other services like - power distribution - control & monitoring - ,,,,,,, STS Quadrant STS-FEBs size of a post card 5 cm 6 cm CAD: S. Belogurov et al CBM Collaboration Meeting -- Walter F.J. Müller, GSI

22. FEE/DAQ WS Compact electro-optics Converts I LightABLE from ReflexPhotonics Optically enabled FPGA Use MT connector: 12 x TX or 12 x RX or 4xTX and 4xRX Optically enabled ASIC Claim for 12 channels: 4 cm2 footprint 3 mm height Extracted from ReflexPhotonicsWhite Papers and Presentations CBM Collaboration Meeting -- Walter F.J. Müller, GSI

23. FEE/DAQ WS Some Data on Fiber Ribbon Cable • Assume 12 fiber ribbon cable • very compact, 20 mil pitch • cable cross section: 2.3 x 5.1 mm • Assume MPO/MPT connector 2.3 mm 5.1 mm Pictures from GORE CBM Collaboration Meeting -- Walter F.J. Müller, GSI

24. FEE/DAQ WS STS Interface Converter Board • Proposal for STS interfacing • 2m copper twinax x1, x2, x4 or x8 • copper => optical on Postcard 12.7cm x 8.9cm • Conversion to optical signals with AOCs • Does electrical and AOC connector fit on one Postcard ? • Connector density analysis AOC connectors twinax connectors Passive Board Postcard miniHT connector twinax connectors Slide: U. Bruening

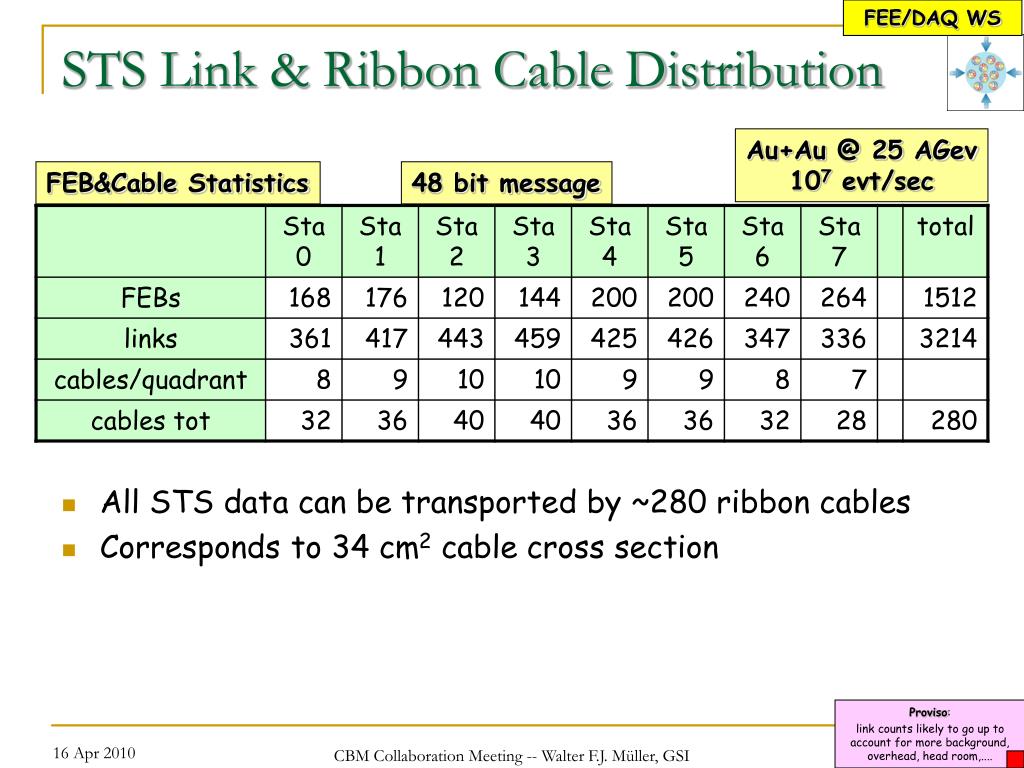

25. FEE/DAQ WS STS Link & Ribbon Cable Distribution Au+Au @ 25 AGev107 evt/sec • All STS data can be transported by ~280 ribbon cables • Corresponds to 34 cm2 cable cross section FEB&Cable Statistics 48 bit message Proviso: link counts likely to go up to account for more background,overhead, head room,.... CBM Collaboration Meeting -- Walter F.J. Müller, GSI

26. Where to locatefast serializers andopto-converters ? CBM Collaboration Meeting -- Walter F.J. Müller, GSI

27. DAQ/FLES WG Data Aggregation on separate chip - Communication hub • Motivation: • Data Aggregation: In most cases 2,4, or 8 CBM-XYTER chips (FEBa2, FEBa4, FEBa8, resp.) can be aggregated to fill a 2.5 Gbps link • Increase the bandwidth available per link • Reduce the number of Optical Links • Schemes: • Embedded (aggregation integrated in CBM-XYTER) • Data aggregation and Traffic Managementwith a separate Communication Controller Asic  • Clock Distribution • Slow control traffic • Data Readout traffic Communication ‘hub’ 15th CBM Collaboration Meeting 6 Slide: P. Banerjee

28. CntlNet TNet DAQ/FLES WG All Combined – Detector & Service Bldg. CBM Service Bldg. on/near Detector feb hub opto DCB Data Data DCS Clock &Control Clock &Sync Control CBM Collaboration Meeting -- Walter F.J. Müller, GSI

29. DAQ/FLES WG STS Quadrant – A possible arrangement STS-'hub' STS-'opto' STS-FEBs 5 cm 6 cm CBM Collaboration Meeting -- Walter F.J. Müller, GSI

30. DCB DCB DCB DCS DCS DCS DCS DCS DCS Cu CntlNet TNet optical DAQ/FLES WG Physical Location View – April 13th ~50m ~500m on/near Detector CBM Service Bldg. 'Green Cube' FEB 'hub' 'opto' ABB FLES Data Data Data Control STS,.... Clock & Sync Clock & Control Control DCB Clock &Data &Control ROC Data Data Control Clock & Sync TOF, ...? Control CLOSY ECS CBM Collaboration Meeting -- Walter F.J. Müller, GSI

31. DCS DCS DCS DCS DCS DCS Cu CntlNet TNet optical DAQ/FLES WG Physical Location View – April 15th ~50m ~500m on/near Detector CBM Service Bldg. 'Green Cube' DPB? FEB 'hub' 'opto' ABB FLES Data& Control Clock &Data &Control Data STS,.... Clock & Sync clock Control DCB Clock &Data &Control ROC Data Data Control Clock & Sync TOF, ...? Control CLOSY ECS CBM Collaboration Meeting -- Walter F.J. Müller, GSI

32. ROC next Gen CBM Collaboration Meeting -- Walter F.J. Müller, GSI

33. Basic Components on FPGA Module FEE/DAQ WS • Xilinx FPGA (Spartan, Virtex)‏ • RAM • Actel Configuration Controller • Flash EEPROM • Voltage Regulators (1.2, 1.5, ...) driven by 3.3 V or 5V • RS232 Interface • 1 or 2 SFPs • Jitter Cleaner • FMC-HPC (Vita57) connector with (160 or) 400 pins Slide: D. Gottschalk

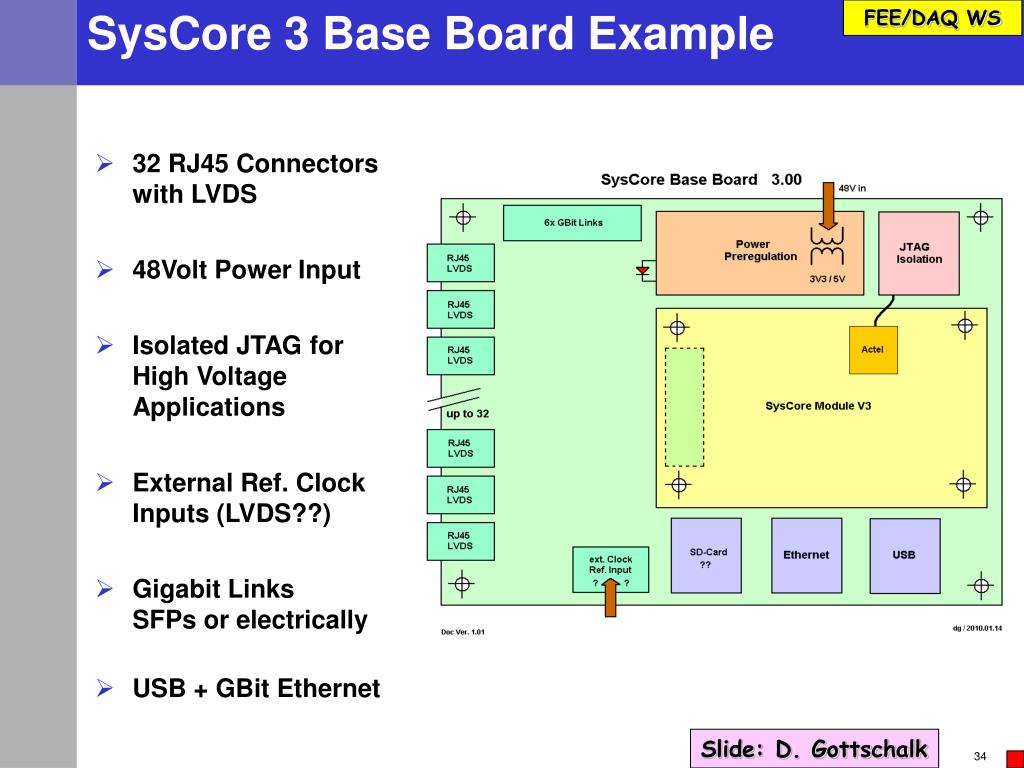

34. SysCore 3 Base Board Example FEE/DAQ WS • 32 RJ45 Connectorswith LVDS • 48Volt Power Input • Isolated JTAG forHigh Voltage Applications • External Ref. ClockInputs (LVDS??)‏ • Gigabit LinksSFPs or electrically • USB + GBit Ethernet Slide: D. Gottschalk

35. Controls CBM Collaboration Meeting -- Walter F.J. Müller, GSI

36. Test beam time example DAQ/FLES WG Burkhard Kolb GSI Burkhard Kolb GSI 36 Slide: B. Kolb

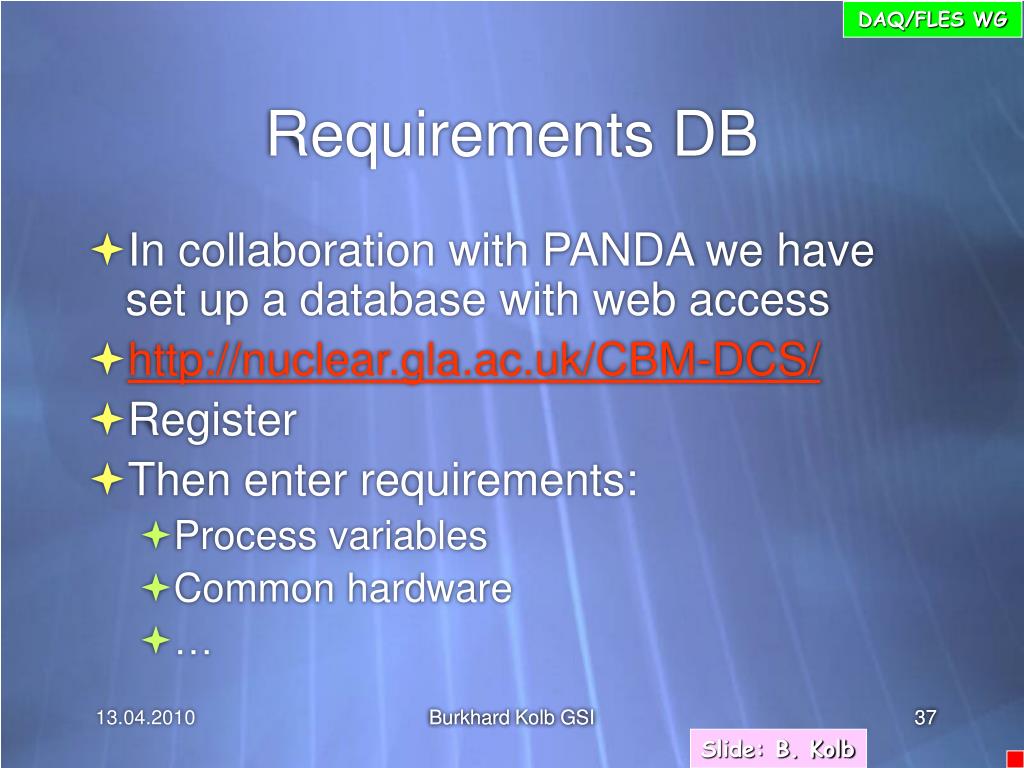

37. Requirements DB In collaboration with PANDA we have set up a database with web access http://nuclear.gla.ac.uk/CBM-DCS/ Register Then enter requirements: Process variables Common hardware … DAQ/FLES WG Burkhard Kolb GSI Burkhard Kolb GSI 37 Slide: B. Kolb

38. The End Thanks for your attention CBM Collaboration Meeting -- Walter F.J. Müller, GSI
