SuperBigBite DAQ

SuperBigBite DAQ. FADC for HCAL 288 channels 18 FADC Digital summing for triggering 2 VXS crate, 4 FADC received for R&D. Use of standard Fastbus with pipeline Flash ADC for Hadron Calorimeter and APV25 GEM tracker readout. Fastbus ECal 1800 calorimeter channels BigBite

graham
Télécharger la présentation

SuperBigBite DAQ

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

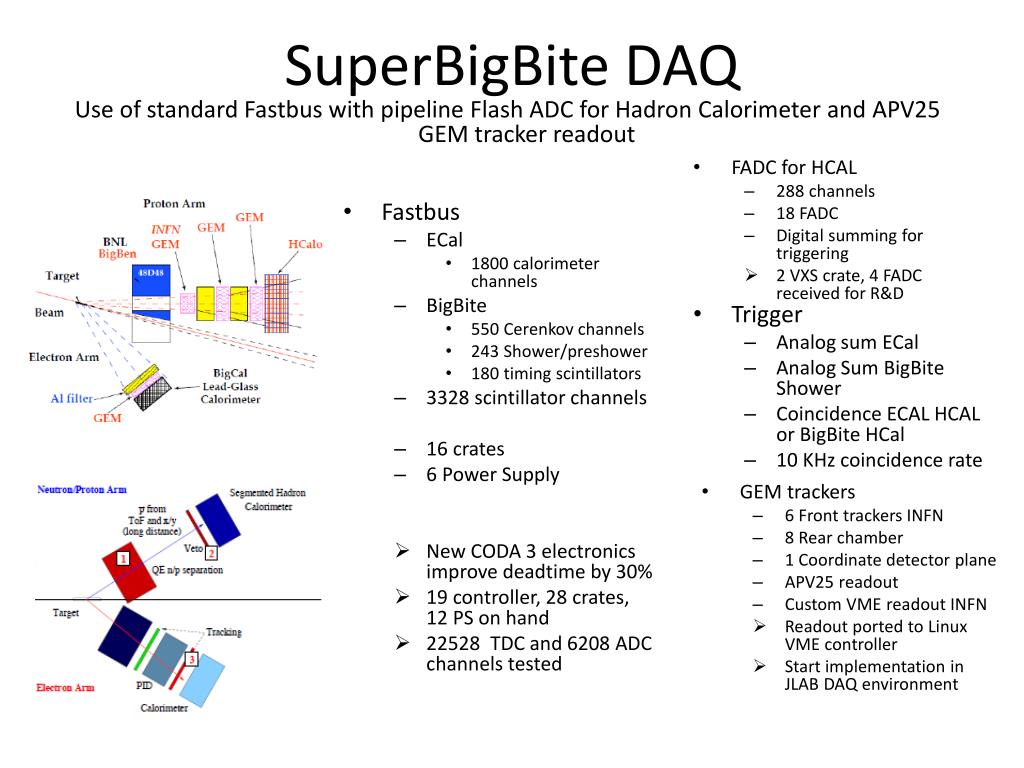

  1. SuperBigBite DAQ • FADC for HCAL • 288 channels • 18 FADC • Digital summing for triggering • 2 VXS crate, 4 FADC received for R&D Use of standard Fastbus with pipeline Flash ADC for Hadron Calorimeter and APV25 GEM tracker readout • Fastbus • ECal • 1800 calorimeter channels • BigBite • 550 Cerenkov channels • 243 Shower/preshower • 180 timing scintillators • 3328 scintillator channels • 16 crates • 6 Power Supply • New CODA 3 electronics improve deadtime by 30% • 19 controller, 28 crates, 12 PS on hand • 22528 TDC and 6208 ADC channels tested • Trigger • Analog sum ECal • Analog Sum BigBite Shower • Coincidence ECAL HCAL or BigBiteHCal • 10 KHz coincidence rate • GEM trackers • 6 Front trackers INFN • 8 Rear chamber • 1 Coordinate detector plane • APV25 readout • Custom VME readout INFN • Readout ported to Linux VME controller • Start implementation in JLAB DAQ environment
