Proposed Rate Control For MAC Simulator

Proposed Rate Control For MAC Simulator. Authors:. Date: 2014-07-12. Context. The evaluation Methodology does not specify which Rate Control Algorithm to use for the MAC simulator This needs to be specified so that MAC Simulations results can be compared across companies.

corby
Télécharger la présentation

Proposed Rate Control For MAC Simulator

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Proposed Rate Control For MAC Simulator Authors: Date: 2014-07-12

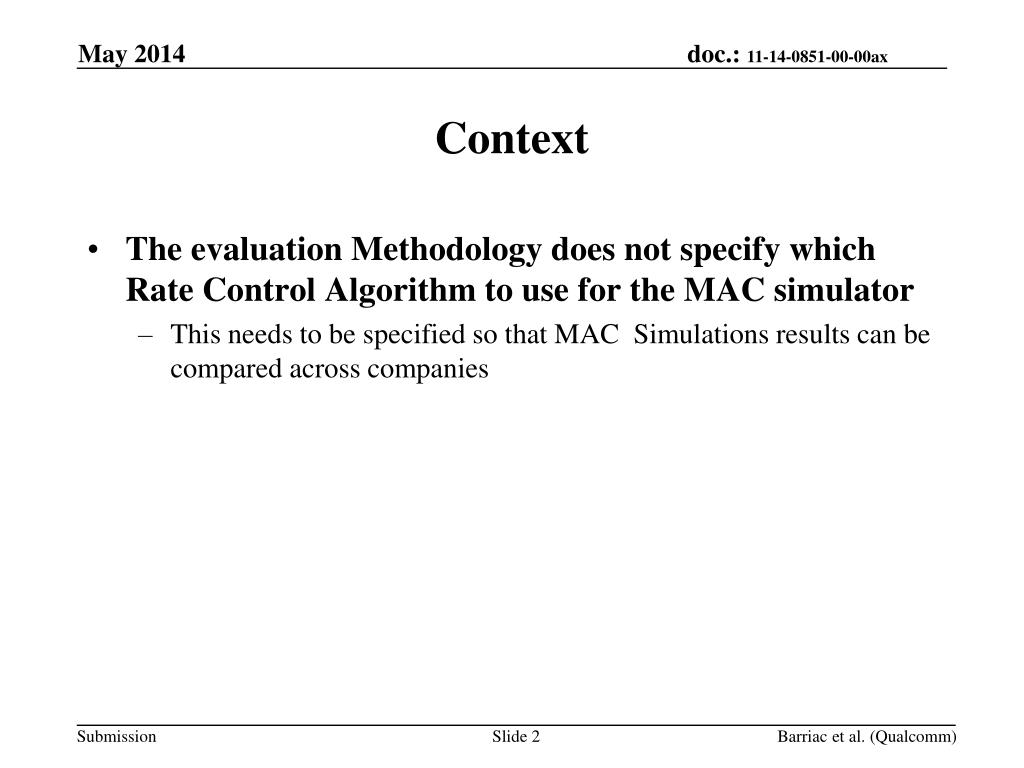

  2. Context • The evaluation Methodology does not specify which Rate Control Algorithm to use for the MAC simulator • This needs to be specified so that MAC Simulations results can be compared across companies Barriac et al. (Qualcomm)

  3. What kind of rate prediction should we use? • Ideally: • Something simple • Easily reproducible across companies • Gives realistic results Barriac et al. (Qualcomm)

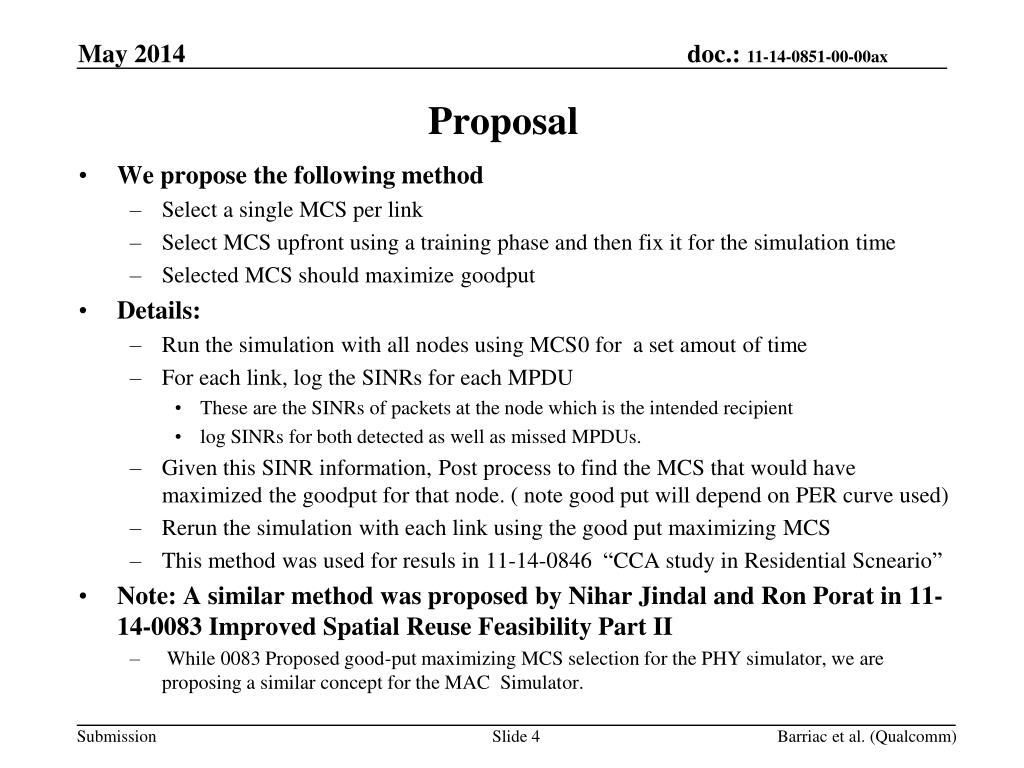

  4. Proposal • We propose the following method • Select a single MCS per link • Select MCS upfront using a training phase and then fix it for the simulation time • Selected MCS should maximize goodput • Details: • Run the simulation with all nodes using MCS0 for a set amout of time • For each link, log the SINRs for each MPDU • These are the SINRs of packets at the node which is the intended recipient • log SINRs for both detected as well as missed MPDUs. • Given this SINR information, Post process to find the MCS that would have maximized the goodput for that node. ( note good put will depend on PER curve used) • Rerun the simulation with each link using the good put maximizing MCS • This method was used for resuls in 11-14-0846 “CCA study in Residential Scneario” • Note: A similar method was proposed by Nihar Jindal and Ron Porat in 11-14-0083 Improved Spatial Reuse Feasibility Part II • While 0083 Proposed good-put maximizing MCS selection for the PHY simulator, we are proposing a similar concept for the MAC Simulator. Barriac et al. (Qualcomm)

  5. Benefits of suggested Proposal • More realistic than genie aided • Models steady state of dynamic rate control algorithms • Simple to implement • Shouldn’t bias or confuse results. • i.e. no strange quirks possible in dynamic rate control algorithms. • No “genie” aided information Barriac et al ( Qualcomm)

  6. Conclusion We suggest using the MCS selection method described in slide 5 as the Rate Control Method in the MAC Simulator. Barriac et al. (Qualcomm)

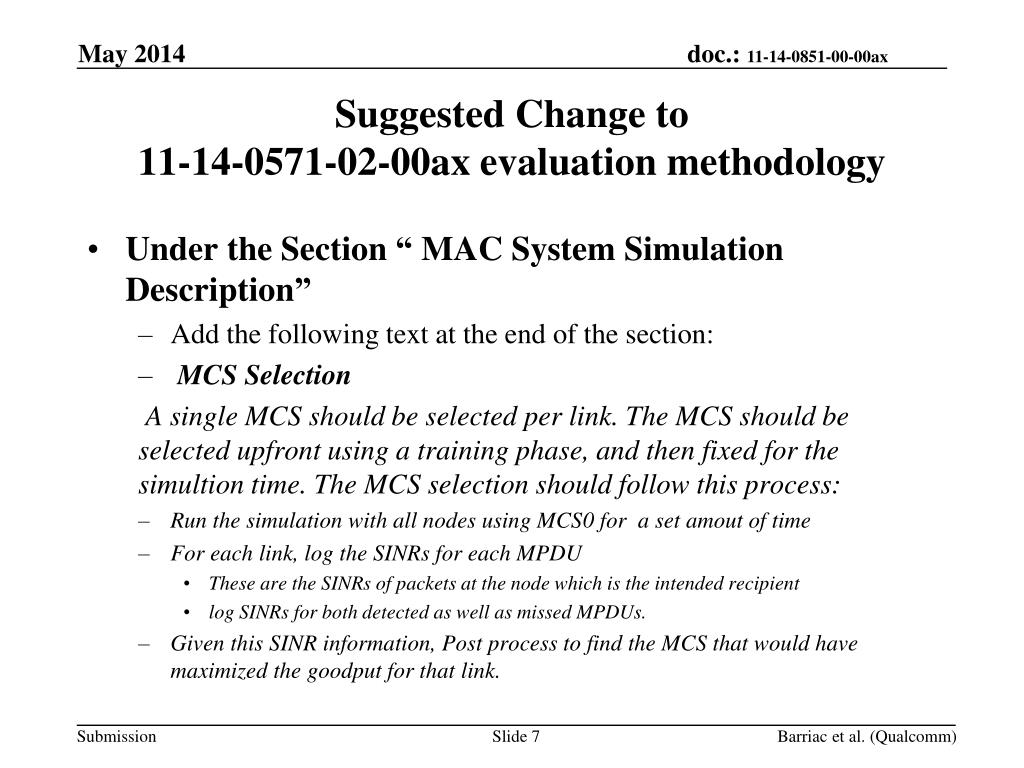

  7. Suggested Change to11-14-0571-02-00ax evaluation methodology • Under the Section “ MAC System Simulation Description” • Add the following text at the end of the section: • MCS Selection A single MCS should be selected per link. The MCS should be selected upfront using a training phase, and then fixed for the simultion time. The MCS selection should follow this process: • Run the simulation with all nodes using MCS0 for a set amout of time • For each link, log the SINRs for each MPDU • These are the SINRs of packets at the node which is the intended recipient • log SINRs for both detected as well as missed MPDUs. • Given this SINR information, Post process to find the MCS that would have maximized the goodput for that link. Barriac et al. (Qualcomm)

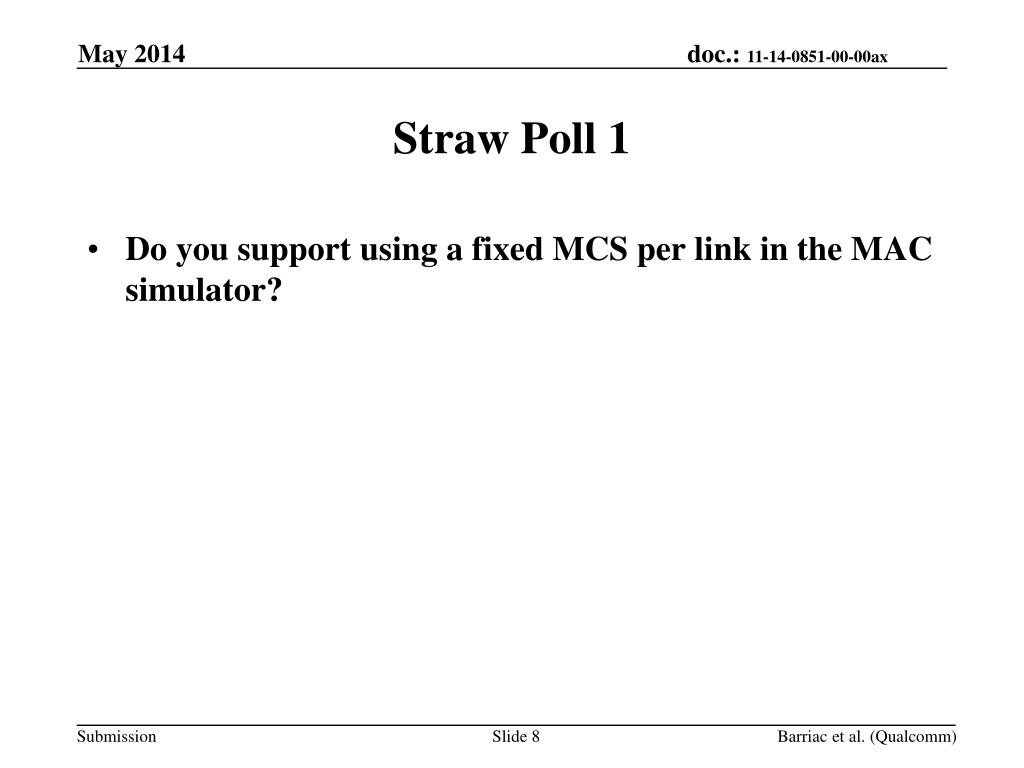

  8. Straw Poll 1 • Do you support using a fixed MCS per link in the MAC simulator? Barriac et al. (Qualcomm)

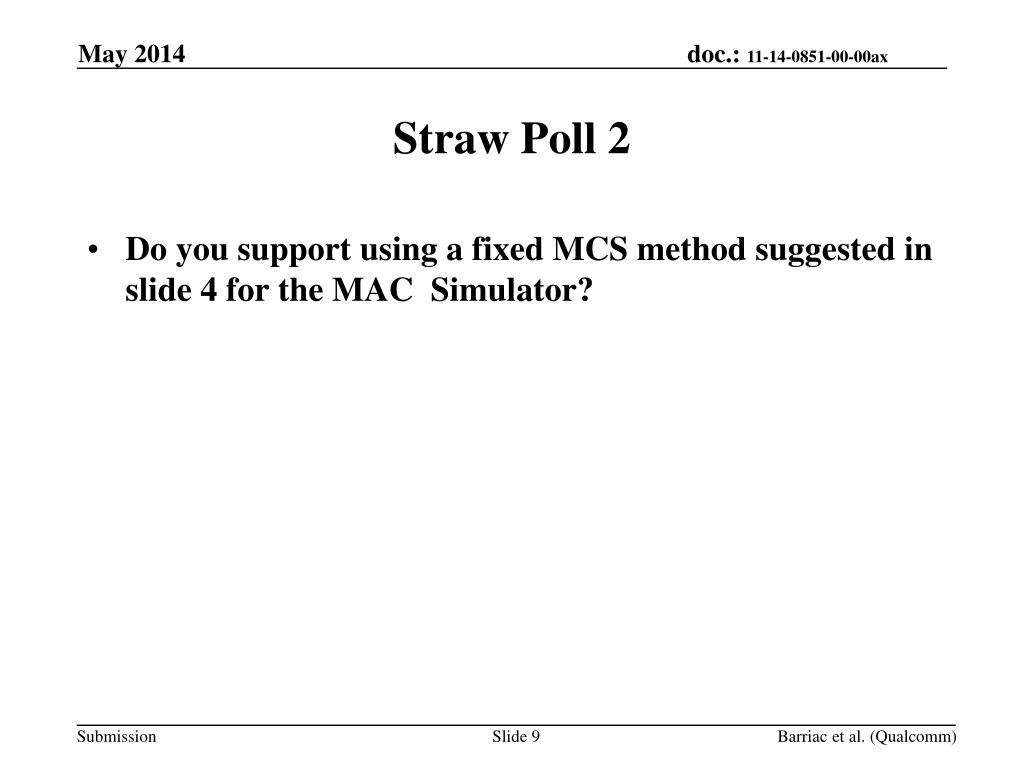

  9. Straw Poll 2 • Do you support using a fixed MCS method suggested in slide 4 for the MAC Simulator? Barriac et al. (Qualcomm)
