Presentation Transcript

  1. No Time to Countdown: Migrating Backoff to the Frequency Domain SouvikSen,Romit Roy Choudhury,SrihariNelakuditi - Twohsien 2012.3.5

  2. What’s the problem? http://revolutionwifi.blogspot.com/2010/07/wireless-qos-part-1-background_7048.html

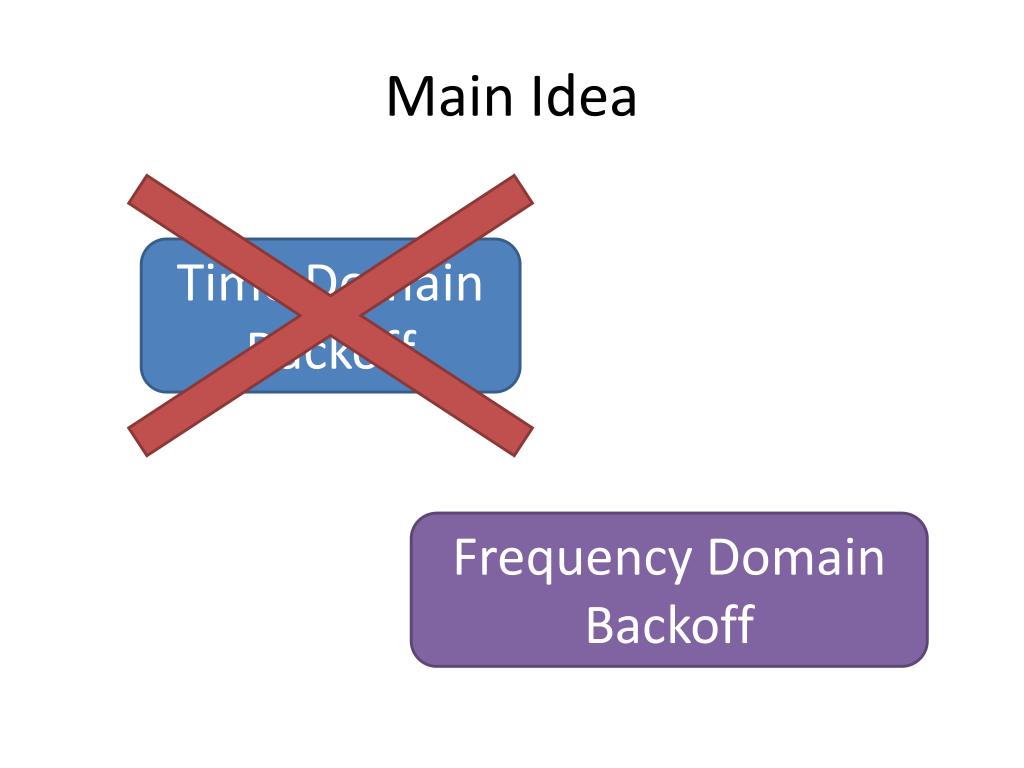

  3. Main Idea Time Domain Backoff Frequency Domain Backoff

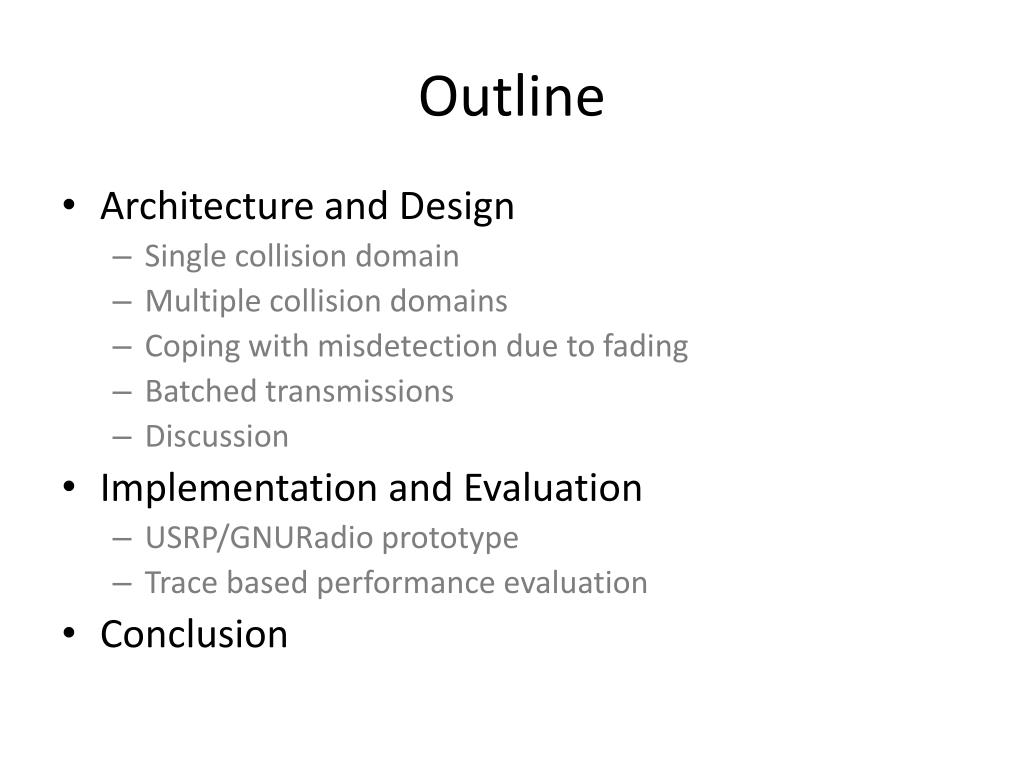

  4. Outline • Architecture and Design • Single collision domain • Multiple collision domains • Coping with misdetection due to fading • Batched transmissions • Discussion • Implementation and Evaluation • USRP/GNURadio prototype • Trace based performance evaluation • Conclusion

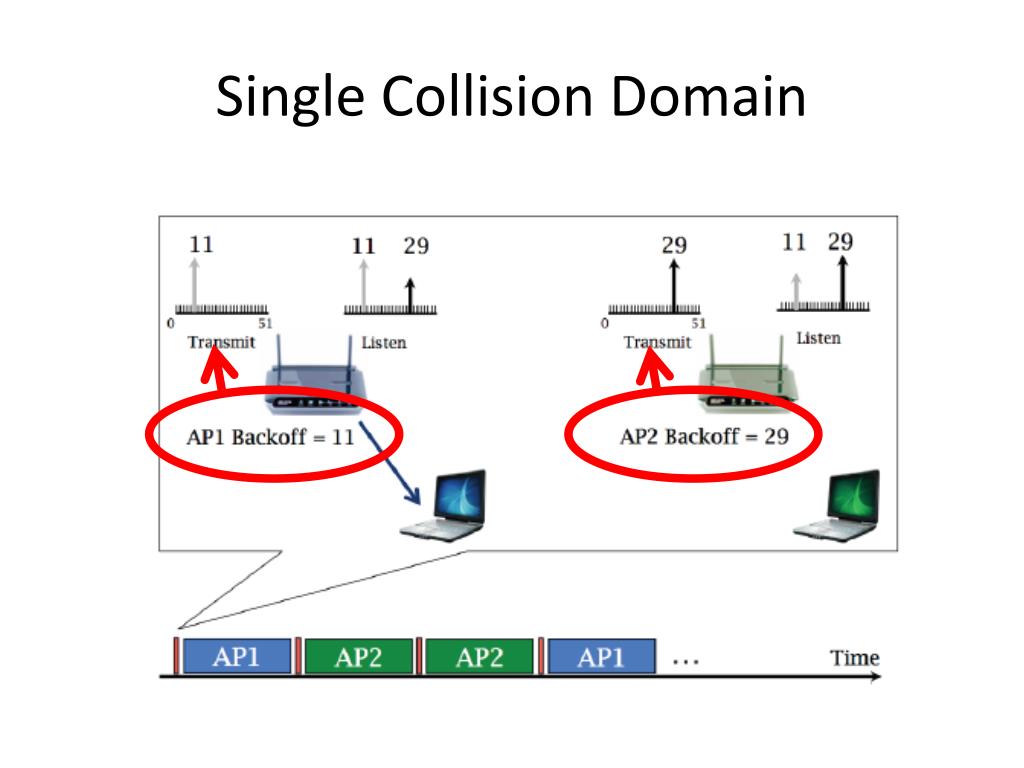

  5. Single Collision Domain

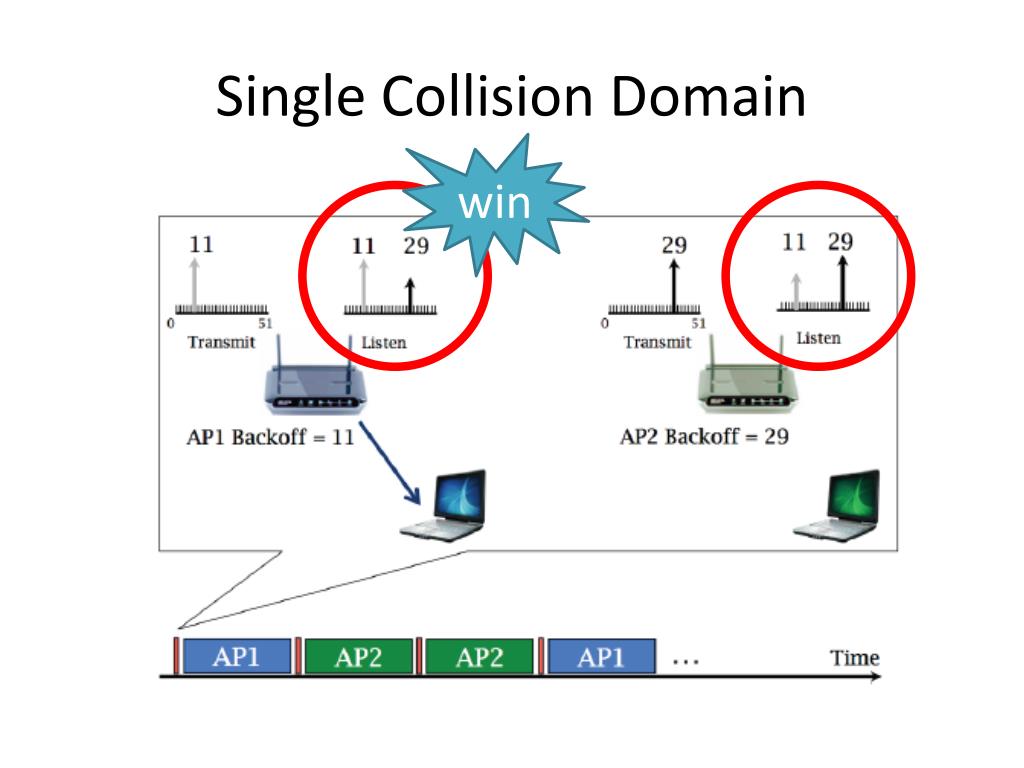

  6. Single Collision Domain win

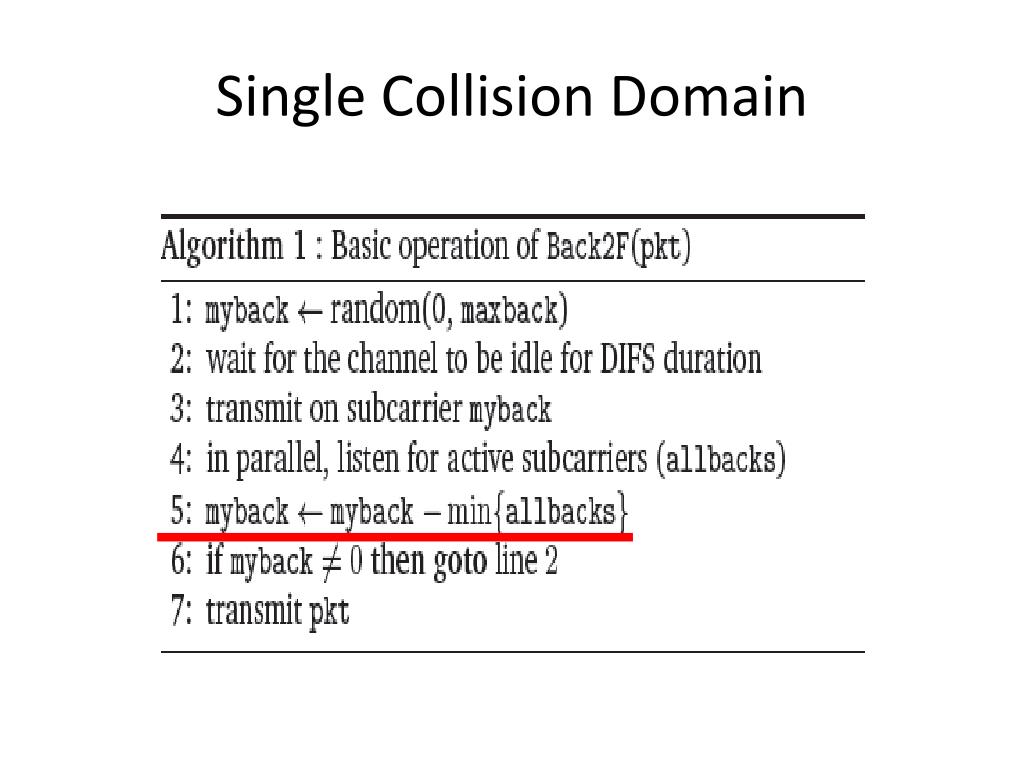

  7. Single Collision Domain

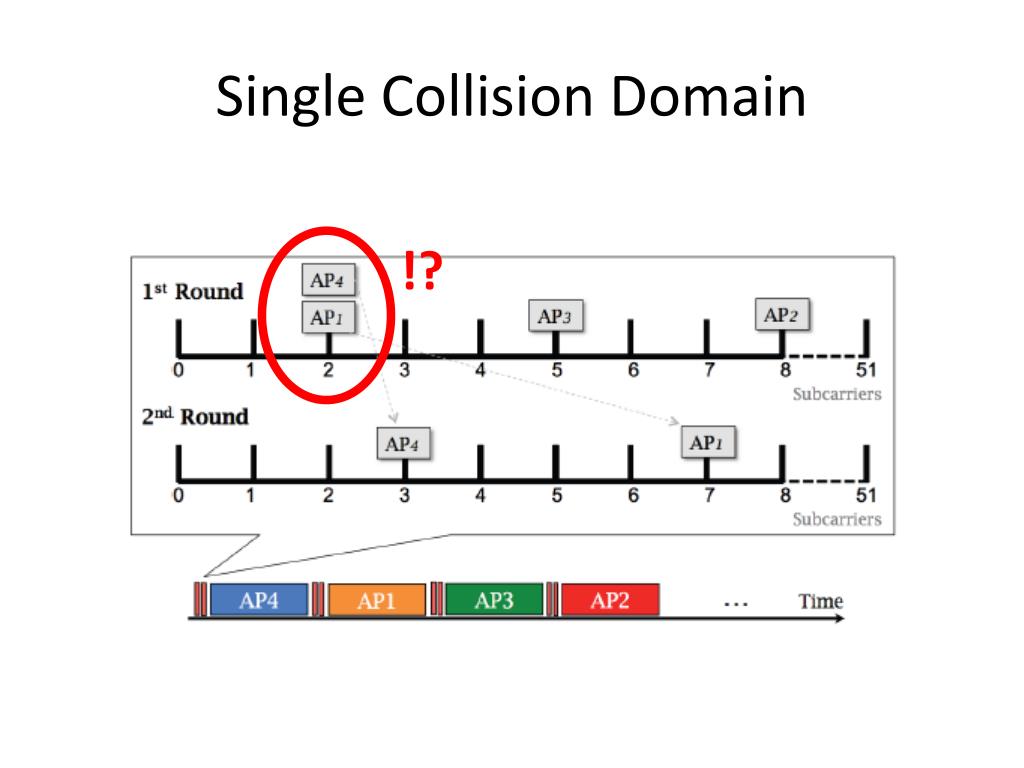

  8. Single Collision Domain !?

  9. Multiple Collision Domains

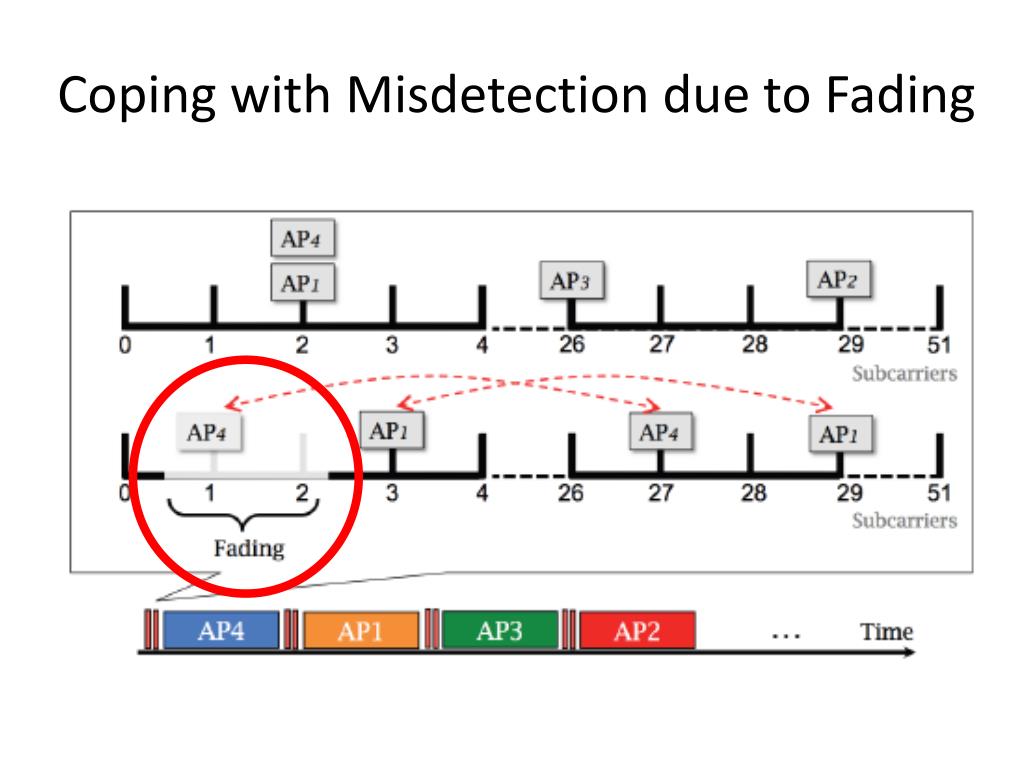

  10. Coping with Misdetection due to Fading

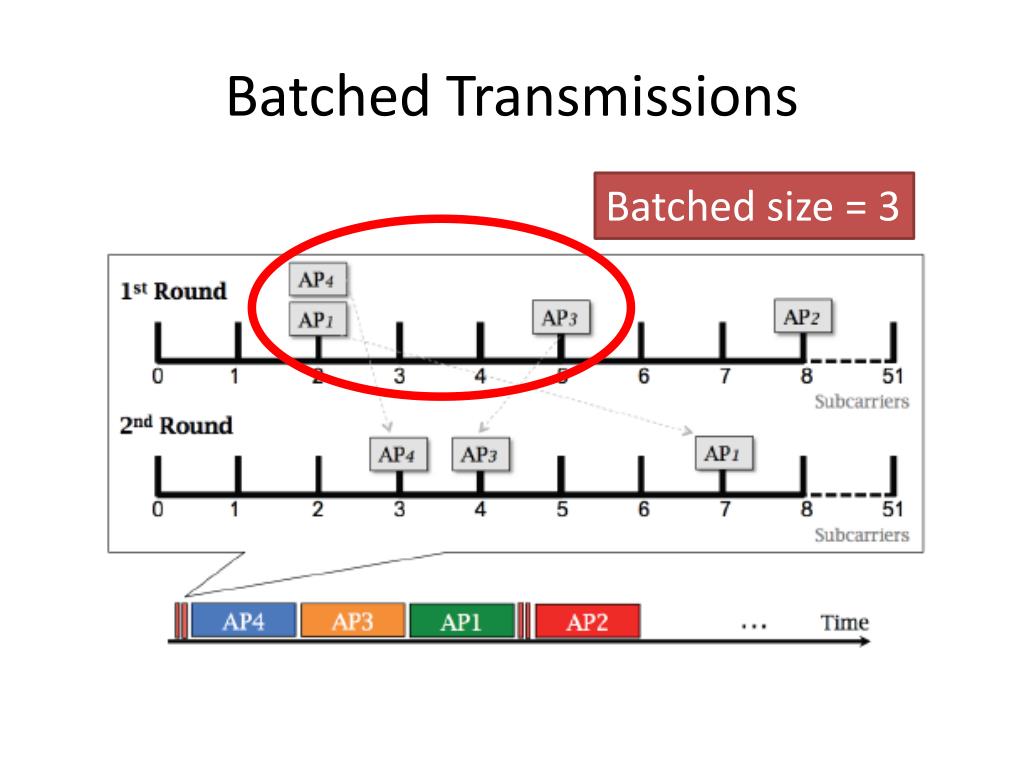

  11. Batched Transmissions Batched size = 3

  12. Discussion • Self-signal is strong

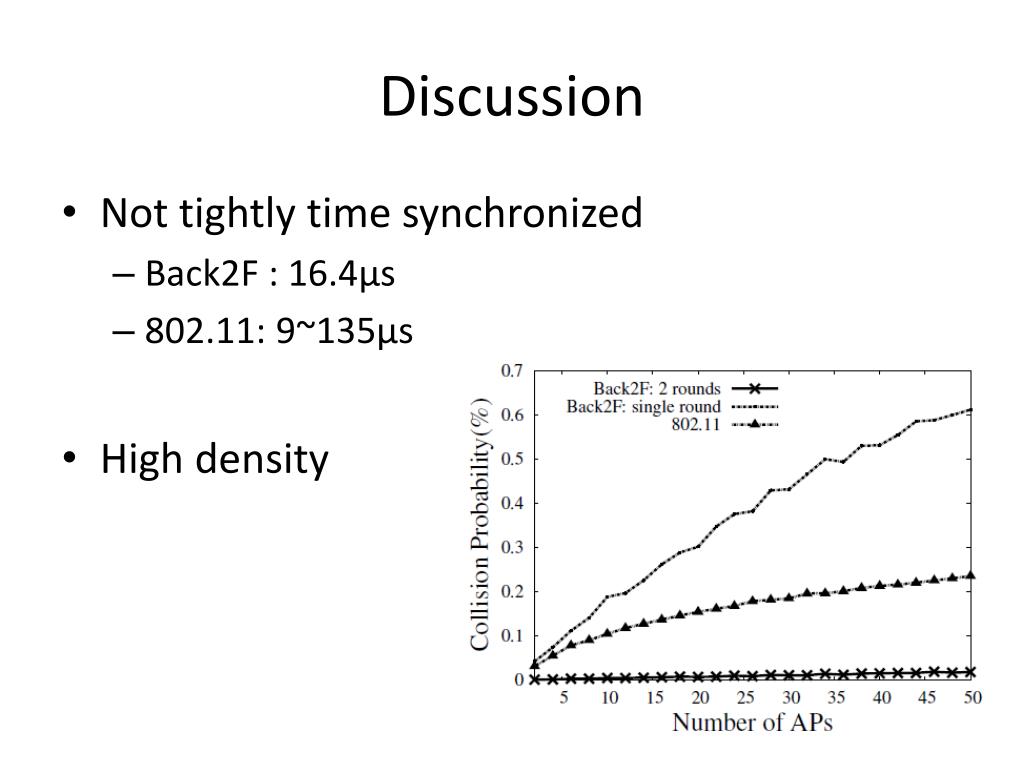

  13. Discussion • Not tightly time synchronized • Back2F : 16.4μs • 802.11: 9~135μs • High density

  14. Outline • Architecture and Design • Single collision domain • Multiple collision domains • Coping with misdetection due to fading • Batched transmissions • Discussion • Implementation and Evaluation • USRP/GNURadio prototype • Trace based performance evaluation • Conclusion

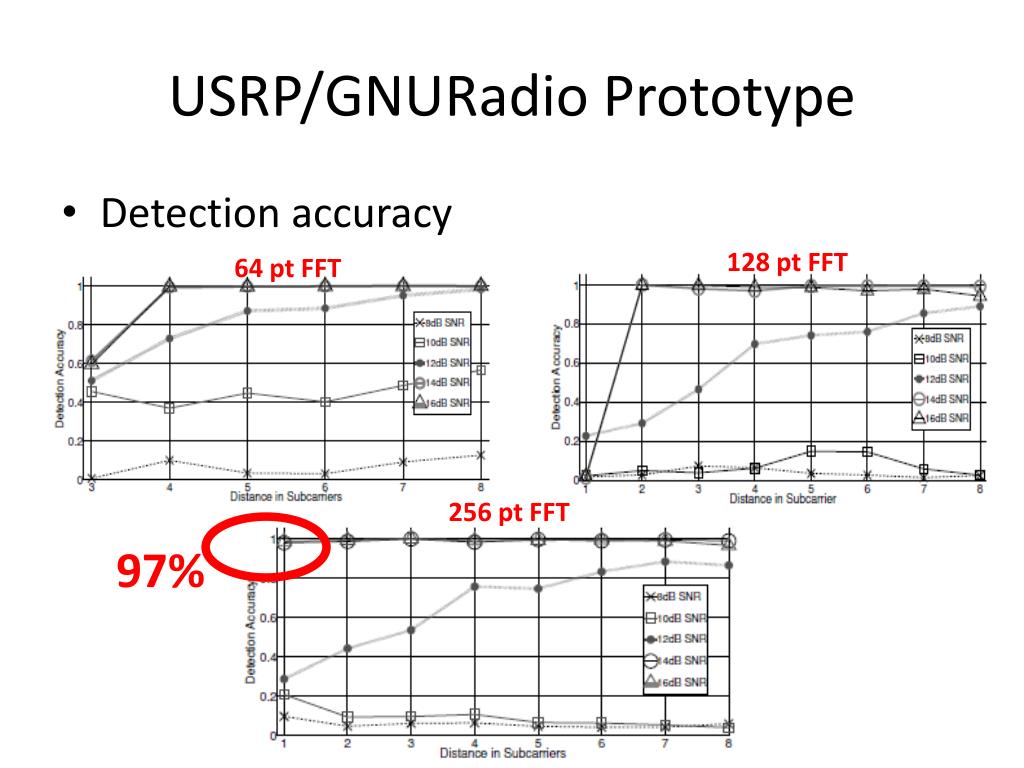

  15. USRP/GNURadio Prototype • Detection accuracy 128 pt FFT 64 pt FFT 256 pt FFT 97%

  16. USRP/GNURadio Prototype • Impact of noise and interference Without interference With 10 dB interference

  17. Trace Based Performance Evaluation • Throughput gain Improve around 5% Back2F consistently outperforms 802.11 across all scenarios

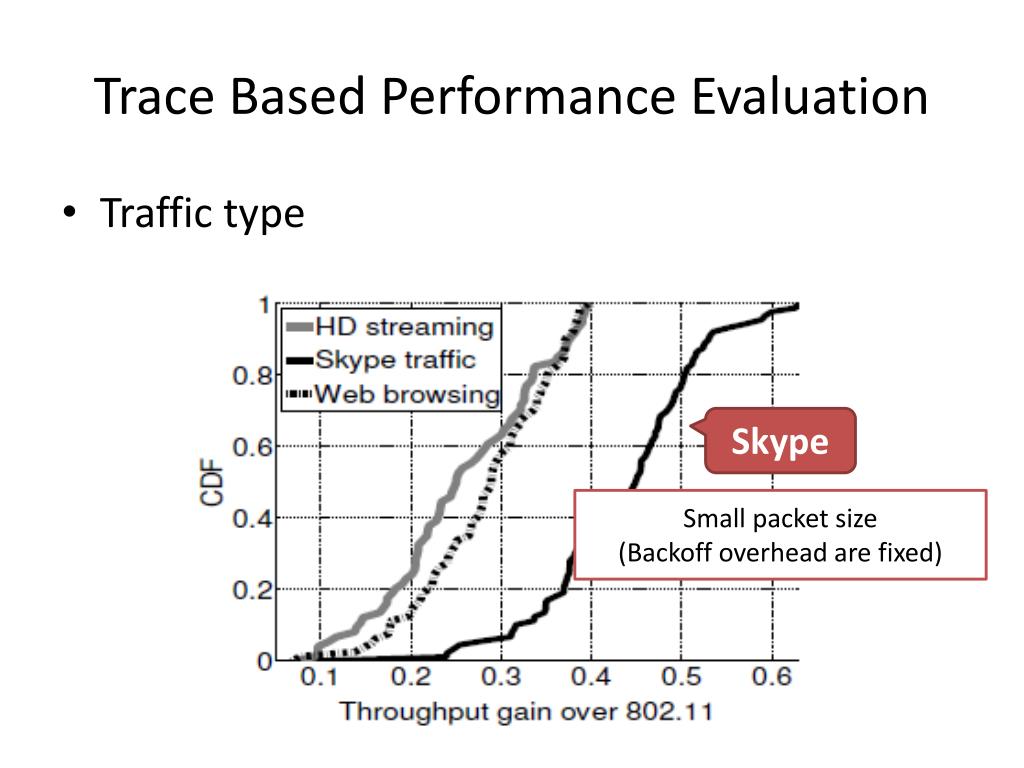

  18. Trace Based Performance Evaluation • Traffic type Skype Small packet size (Backoff overhead are fixed)

  19. Trace Based Performance Evaluation • Fairness Jain’s fairness index

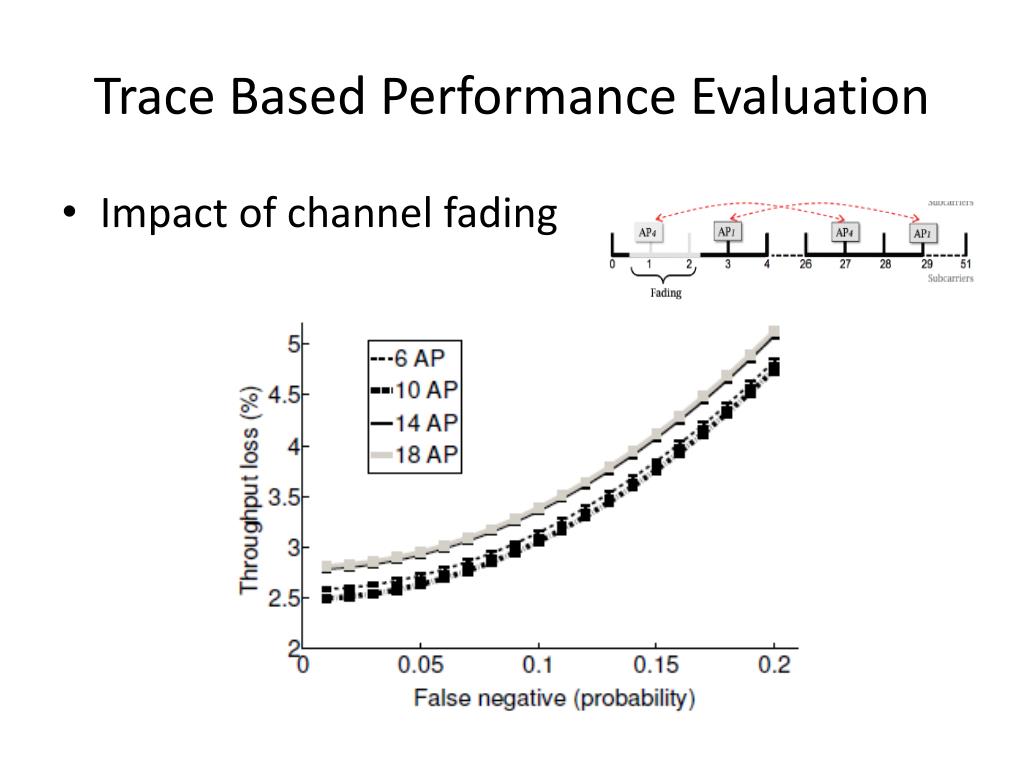

  20. Trace Based Performance Evaluation • Impact of channel fading

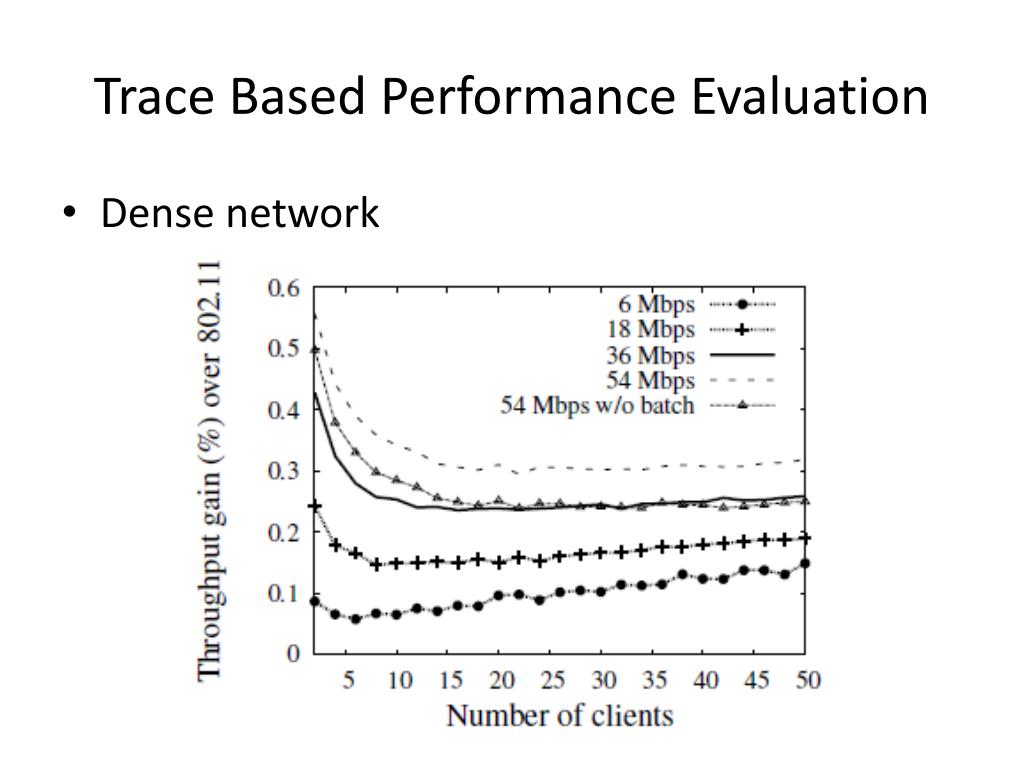

  21. Trace Based Performance Evaluation • Dense network

  22. Outline • Architecture and Design • Single collision domain • Multiple collision domains • Coping with misdetection due to fading • Batched transmissions • Discussion • Implementation and Evaluation • USRP/GNURadio prototype • Trace based performance evaluation • Conclusion

  23. Conclusion • Migrate protocol operations from the time to the frequency domain. • Nearly instantaneous contention resolution method.
