Delta-Wye Conversions

Delta-Wye Conversions. What if resistors are neither in series nor in parallel?. Delta-Wye. Many circuits can be simplified using three-terminal equivalent networks. These are of the type (Y) wye or tee (T) and the delta (  ) or pi (  ) networks. Y - Tee. Delta - Pi.

craig
Télécharger la présentation

Delta-Wye Conversions

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Delta-Wye Conversions What if resistors are neither in series nor in parallel?

  2. Delta-Wye • Many circuits can be simplified using three-terminal equivalent networks. • These are of the type (Y) wye or tee (T) and the delta () or pi () networks.

  3. Y - Tee

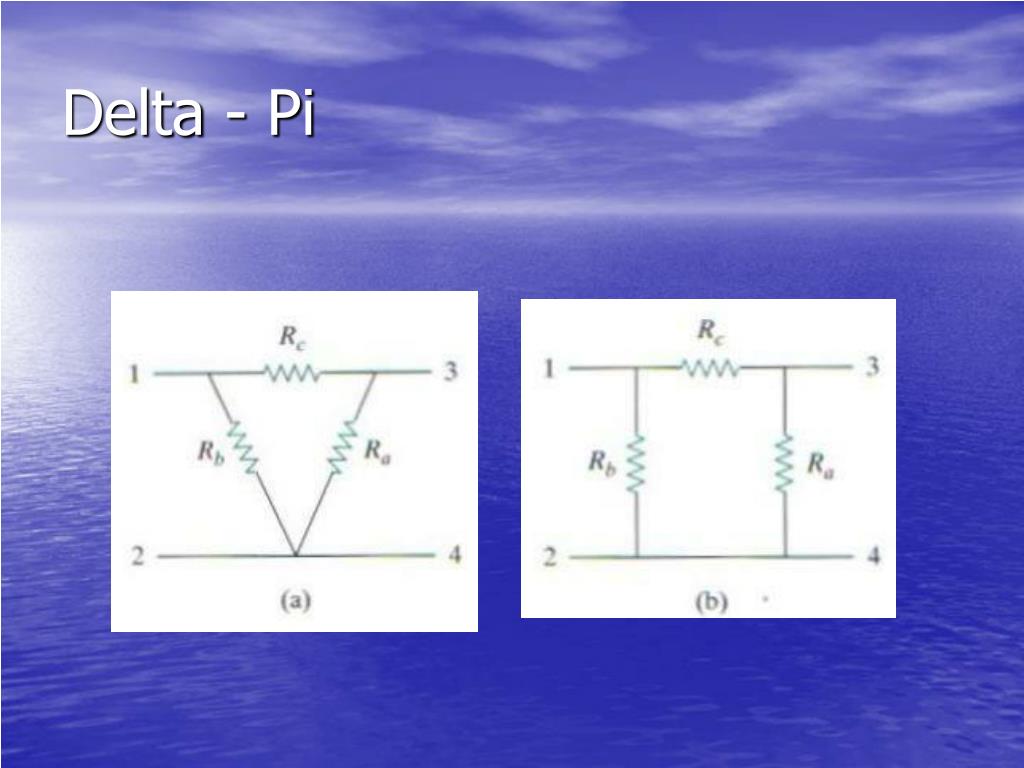

  4. Delta - Pi

  5. Delta to Wye Conversion • Each resistor in the Y-network is the product of the resistors in the two adjacent  branches, divided by the sum of the three  resistors.

  6. Wye to Delta Conversions • Each resistor in the  network is the sum of all possible products of Y resistors taken two at a time, divided by the opposite resistor.

  7. Delta-Wye Chart

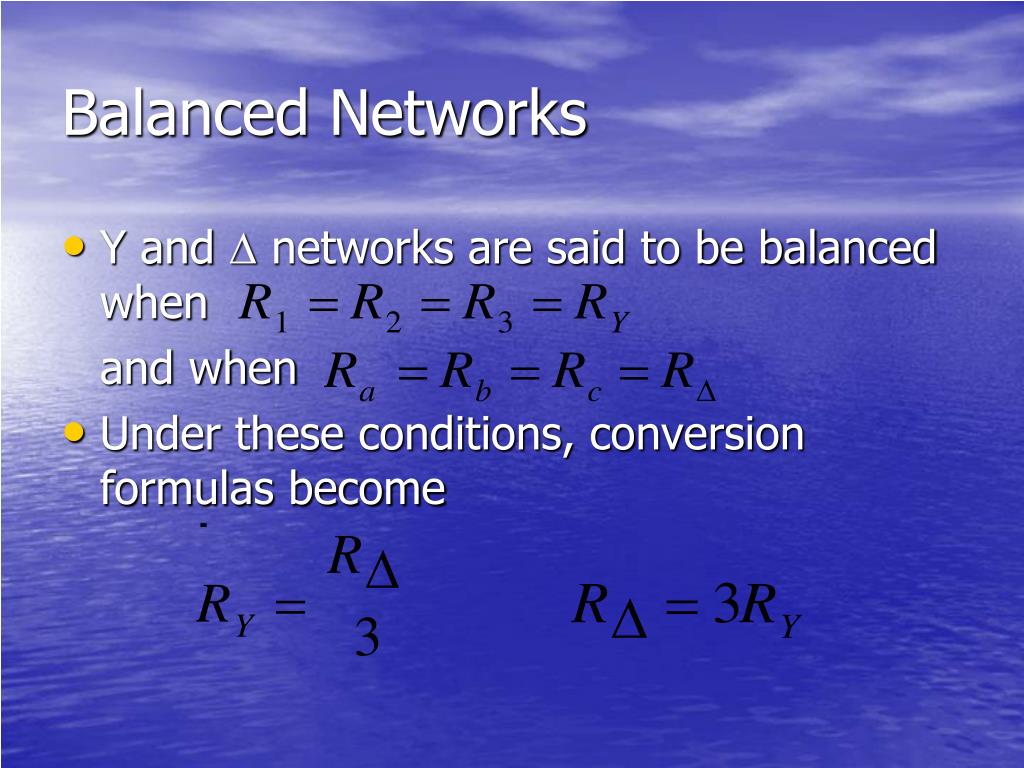

  8. Balanced Networks • Y and  networks are said to be balanced when and when • Under these conditions, conversion formulas become

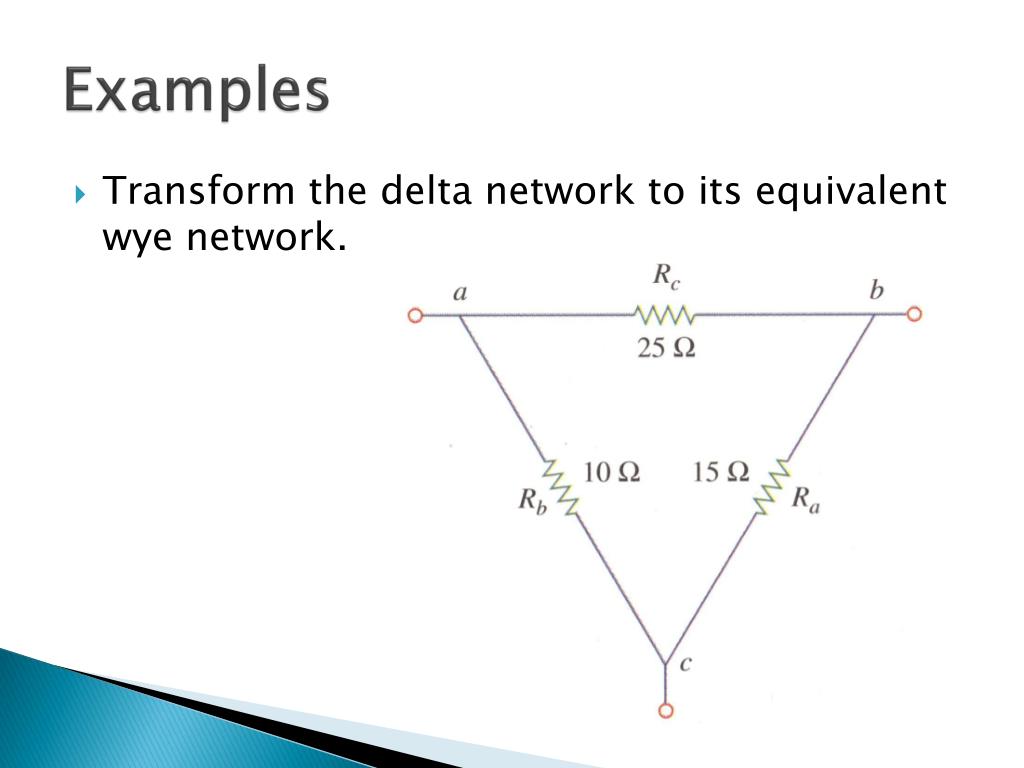

  9. Examples • Transform the delta network to its equivalent wye network.

  10. Examples First, transform your network into its opposite network. Second, calculate the new values for your network. Third, erase the old network.

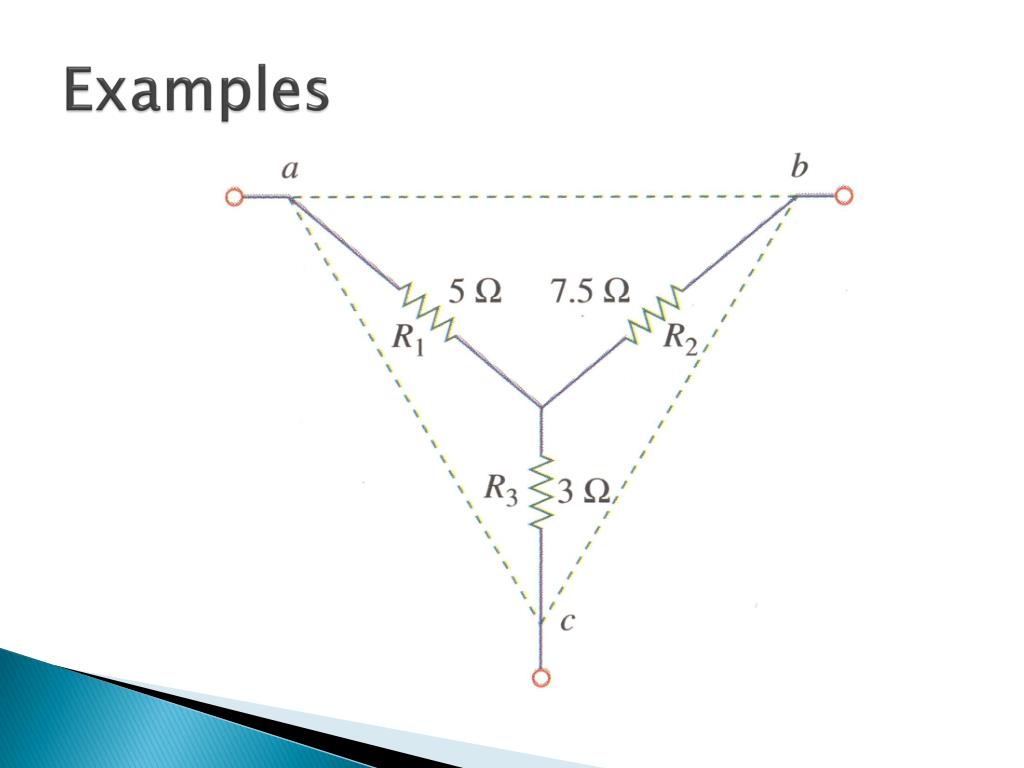

  11. Examples

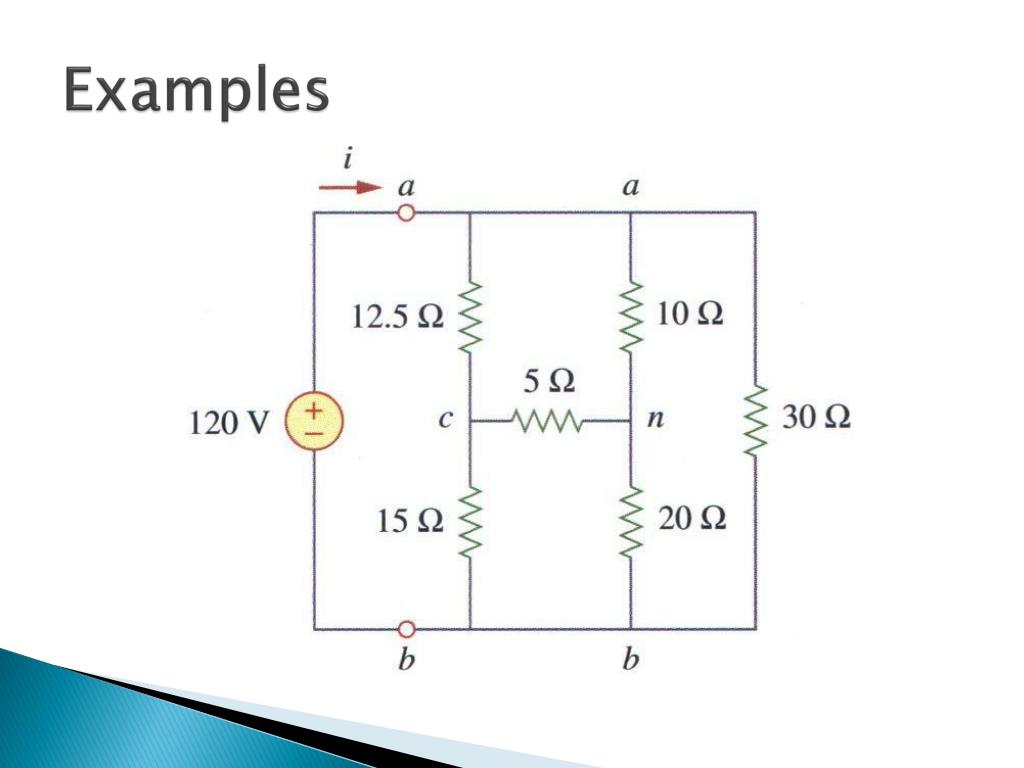

  12. Examples

  13. Examples
