  1. Assembling/Dismanteling Method of the Socket

  2. 1. Recommended Tools 1. Hex Nut Driver [Recommended Model: WihaPicoFinish 265P 4,0X60] 2. Tweezers

  3. 2. Dismantling Method • 2-1. Picture with the bolts holding the Adapter together 2-2. Remove the bolts with the hex nut driver 1.Separate the Top and the Bottom of the Adapter 2-3 Picture with the Adapter with the bolts removed

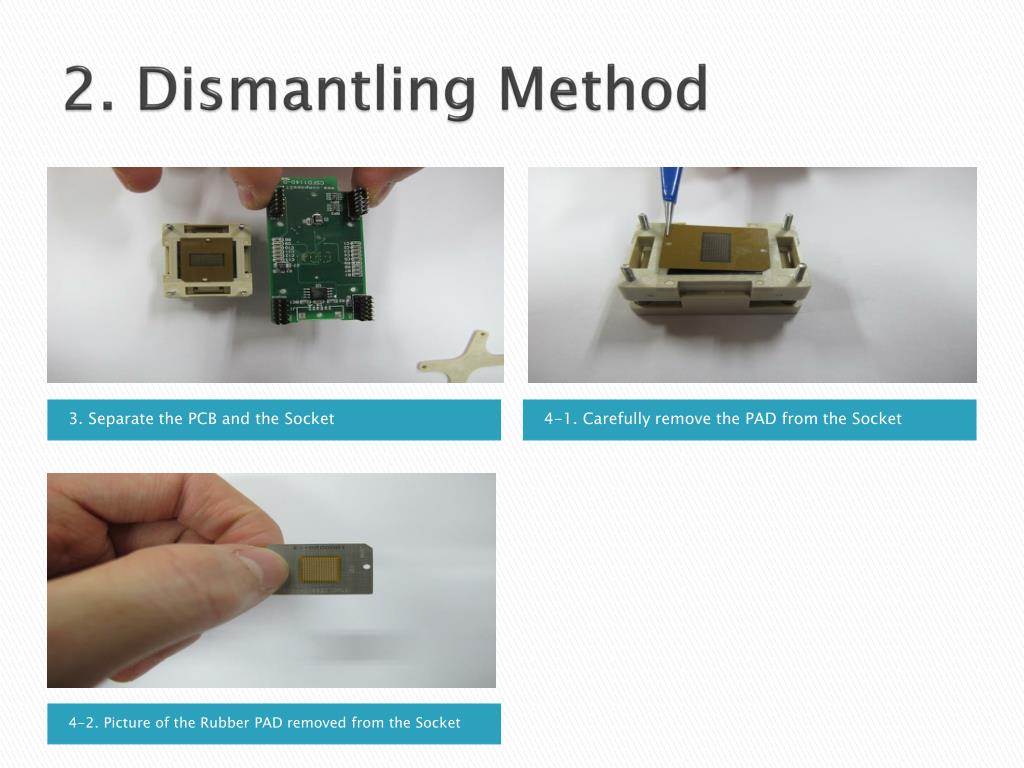

  4. 2. Dismantling Method 4-1. Carefully remove the PAD from the Socket 3. Separate the PCB and the Socket • 4-2. Picture of the Rubber PAD removed from the Socket

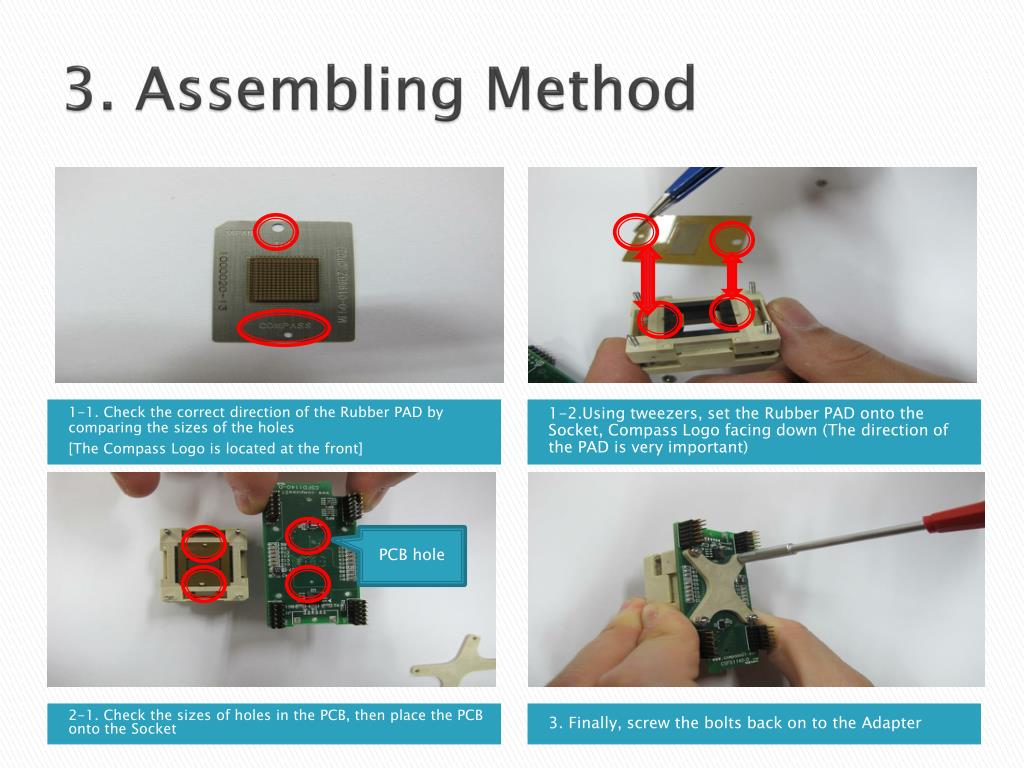

  5. 3. Assembling Method PCB hole 1-1. Check the correct direction of the Rubber PAD by comparing the sizes of the holes [The Compass Logo is located at the front] 1-2.Using tweezers, set the Rubber PAD onto the Socket, Compass Logo facing down(The direction of the PAD is very important) • 2-1. Check the sizes of holes in the PCB, then place the PCB onto the Socket 3. Finally, screw the bolts back on to the Adapter
