1. Building on a Slope: Retaining Walls, Piles, and Suspended Slabs Building on a slope can deliver standout views, cooling breezes, and clever split-level layouts, but it also brings key engineering decisions much earlier in the design process. On sloping blocks around Perth, success depends on controlling soil movement and water, then selecting a foundation system that suits the site conditions, the budget, and the level of long-term maintenance you are comfortable with. Start with the Ground and the Groundwater Every slope has its own story. Some sites are sandy and free-draining, others are clay-heavy and reactive, and many contain layered soils that behave differently once excavation begins. A geotechnical report typically guides footing depths, expected settlement, and whether groundwater or seepage is likely. Drainage is never an afterthought on a hillside. Poor water management is a common cause of retaining wall failure, erosion, and slab movement. Proper surface falls, subsoil drainage, and controlled roofwater discharge help keep the ground behaving as it did before construction commenced.

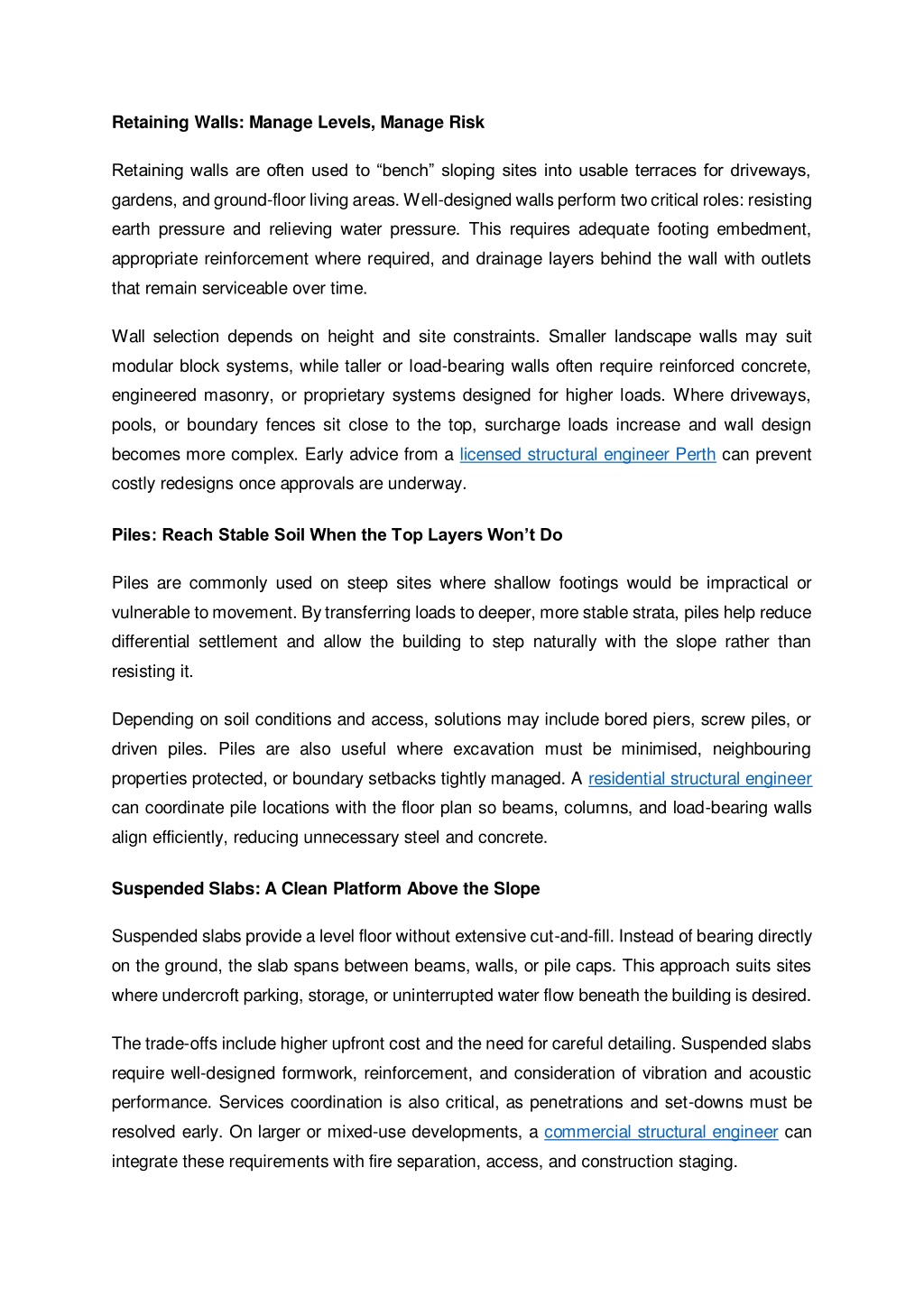

2. Retaining Walls: Manage Levels, Manage Risk Retaining walls are often used to “bench” sloping sites into usable terraces for driveways, gardens, and ground-floor living areas. Well-designed walls perform two critical roles: resisting earth pressure and relieving water pressure. This requires adequate footing embedment, appropriate reinforcement where required, and drainage layers behind the wall with outlets that remain serviceable over time. Wall selection depends on height and site constraints. Smaller landscape walls may suit modular block systems, while taller or load-bearing walls often require reinforced concrete, engineered masonry, or proprietary systems designed for higher loads. Where driveways, pools, or boundary fences sit close to the top, surcharge loads increase and wall design becomes more complex. Early advice from a licensed structural engineer Perth can prevent costly redesigns once approvals are underway. Piles: Reach Stable Soil When the Top Layers Won’t Do Piles are commonly used on steep sites where shallow footings would be impractical or vulnerable to movement. By transferring loads to deeper, more stable strata, piles help reduce differential settlement and allow the building to step naturally with the slope rather than resisting it. Depending on soil conditions and access, solutions may include bored piers, screw piles, or driven piles. Piles are also useful where excavation must be minimised, neighbouring properties protected, or boundary setbacks tightly managed. A residential structural engineer can coordinate pile locations with the floor plan so beams, columns, and load-bearing walls align efficiently, reducing unnecessary steel and concrete. Suspended Slabs: A Clean Platform Above the Slope Suspended slabs provide a level floor without extensive cut-and-fill. Instead of bearing directly on the ground, the slab spans between beams, walls, or pile caps. This approach suits sites where undercroft parking, storage, or uninterrupted water flow beneath the building is desired. The trade-offs include higher upfront cost and the need for careful detailing. Suspended slabs require well-designed formwork, reinforcement, and consideration of vibration and acoustic performance. Services coordination is also critical, as penetrations and set-downs must be resolved early. On larger or mixed-use developments, a commercial structural engineer can integrate these requirements with fire separation, access, and construction staging.

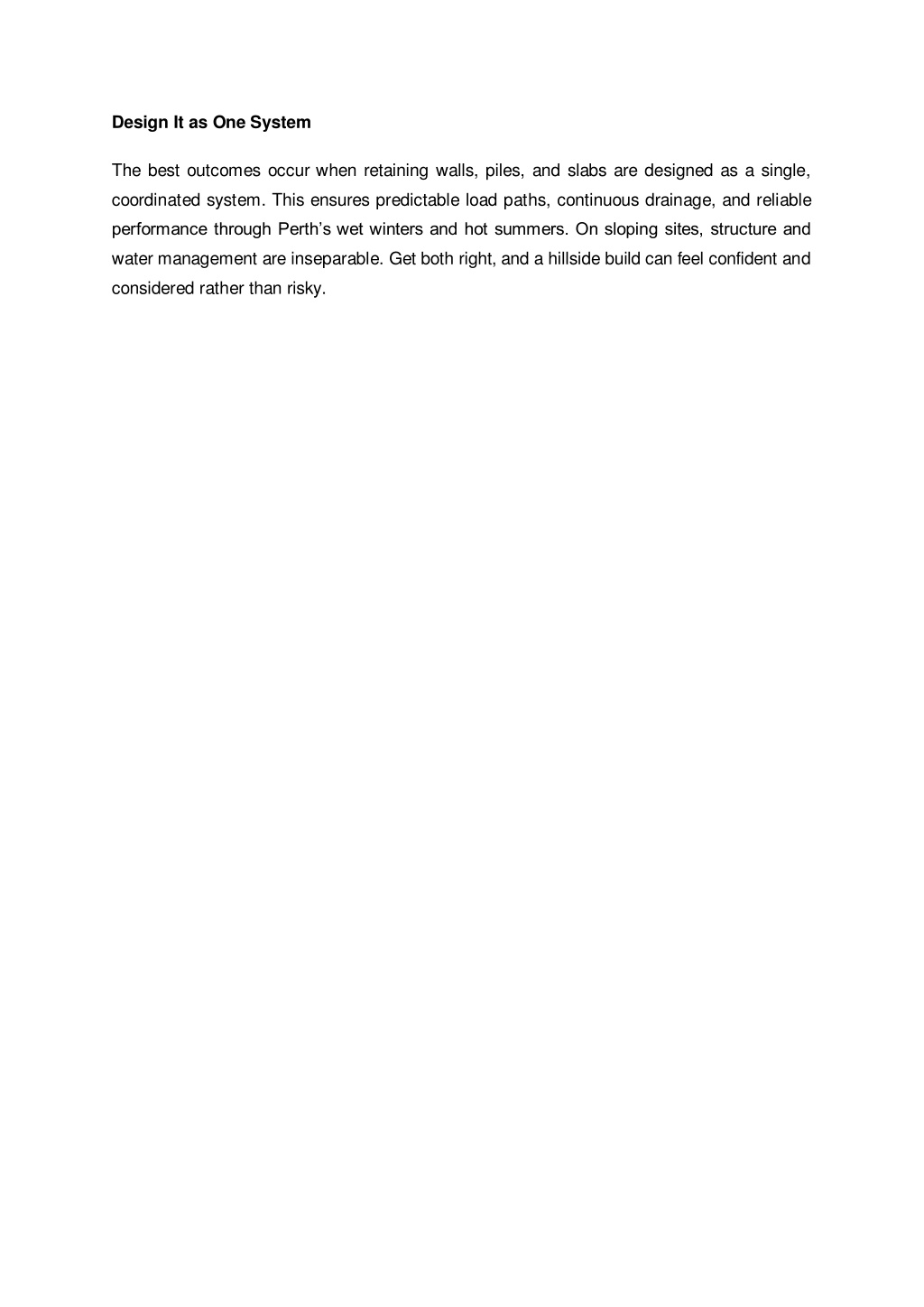

3. Design It as One System The best outcomes occur when retaining walls, piles, and slabs are designed as a single, coordinated system. This ensures predictable load paths, continuous drainage, and reliable performance through Perth’s wet winters and hot summers. On sloping sites, structure and water management are inseparable. Get both right, and a hillside build can feel confident and considered rather than risky.
