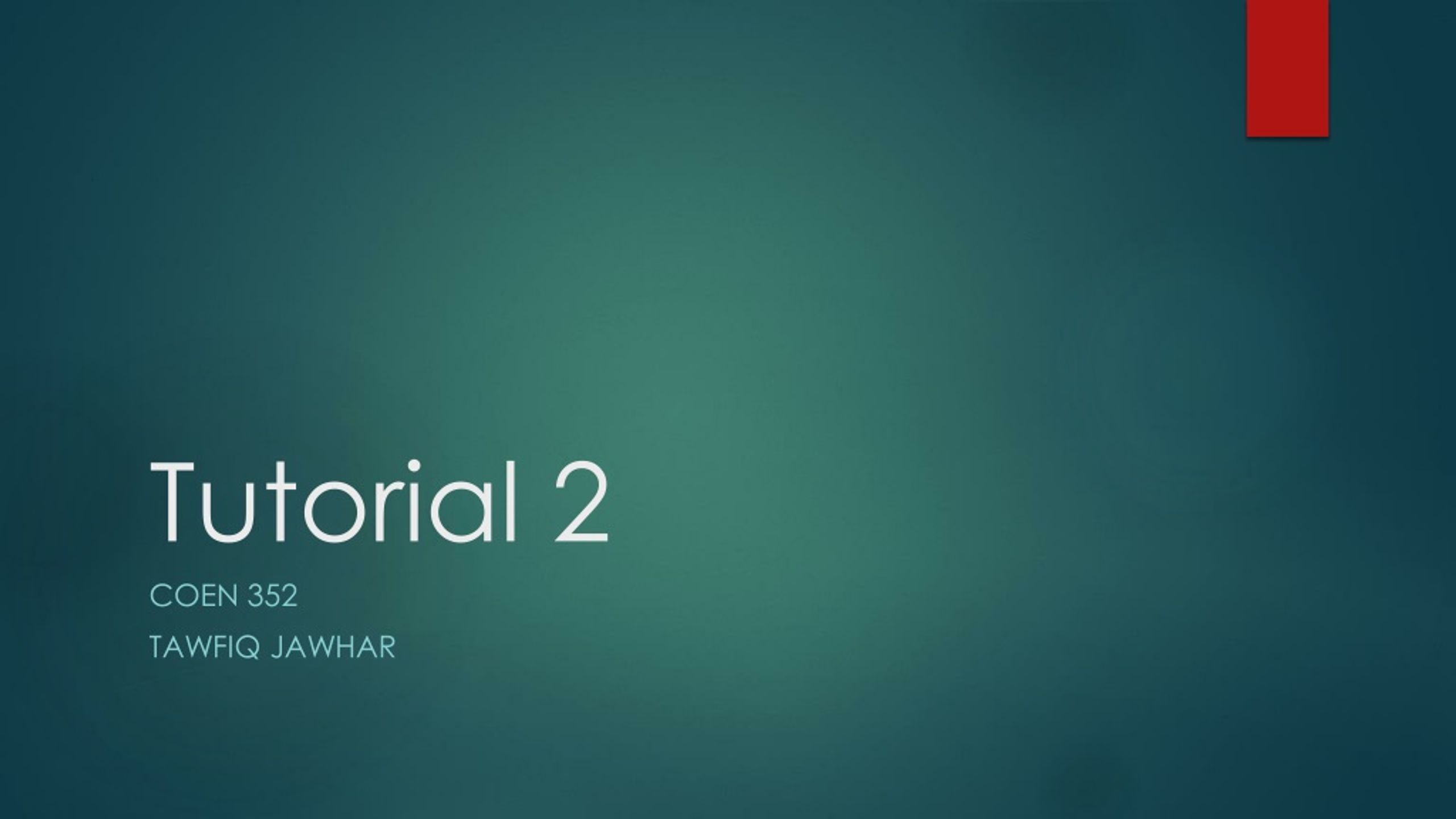

  1. Tutorial 2 COEN 352 TawfiqJawhar

  2. Big O • Describes an upper bound on the unit of complexity (usually time or space). • An algorithm that prints all the values in an array • For element in array: • Print element • Can be described as O(N) where N is the size of the array • It can also be described as O(N2), O(N3), O(2N) • Or any other big O times that is at least as fast as O(N)

  3. Big Omega Ω • Similar to big O but for lower bound. • The same algorithm before can be described as Ω(N) • Can also be described as Ω(log N) and Ω(1) • As it wont be faster that those times

  4. Big Theta Ɵ • Both O and Ω • Printing the values in an array is both O(N) and Ω(N) so it is Ɵ(N) • Ɵ is a tight bound

  5. Drop the constant • When using big O, theta, omega we drop the constant of the complexity • O(2N) is O(N) • O(10000000000000) is O(1) • O(N2+10000000000000000000*N) is O(N2) • You can notice that complexity like big O is not the only thing you should look at when deciding on an algorithm. Asymptotic analysis describes the scalability of an algorithm as N increases. • An algorithm with time complexity of O(N) might be worse than one with complexity of O(N2) if there’s a huge overhead cost and the input size we are using are relatively small. • In such case, an empirical test can help us decide.

  6. What is the big O time complexity? intmin = Integer.MAX_VALUE; intmax = Integer.MIN_VALUE; for(intx: array) { if(x < min) min = x; } for(intx: array) { if(x > max) max = x; } intmin = Integer.MAX_VALUE; intmax = Integer.MIN_VALUE; for(intx: array) { if(x < min) min = x; if(x > max) max = x; }

  7. What is big O time and space complexity? intf(int n) { if(n <= 1) return1; returnf(n-1) + f(n-1); }

  8. Let’s walk through the code

  9. Let’s walk through the code 20+ 21+ 22+ 23+… 2N= 2N+1-1 Review series and logarithm properties

  10. Time and Space complexities? • The time big O complexity is O(2N) • The space complexity? • Hint: think of the biggest memory the program can be using at the same time. It is not O(2N)

  11. Queue • How would you design a queue that in addition to pop and push has a function min which returns the minimum value in the stack • All three pop, push and min will have O(1) time complexity

  12. 2 stacks in one array Beginning of stack 1 Beginning of stack 2

  13. 3 stacks in one array? Possible? • Divide the array into 3 sections and use each section as an array stack • Is this design space efficient? Why? • Say you are not worried about time and you care more about space. Can you design something better?

  14. Reference • Cracking the Coding Interview
