GOES Sounder. Meteorology 415 Fall 2007. Fundamental Relationships. Stefan-Boltzmann Law Wein’s Law. Attributes of the Sounder. The Visible and Infrared Spin Scan Radiometer (VISSR) Atmospheric Sounder (VAS) was introduced on GOES-4 in 1981.

cybele
Télécharger la présentation

GOES Sounder

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

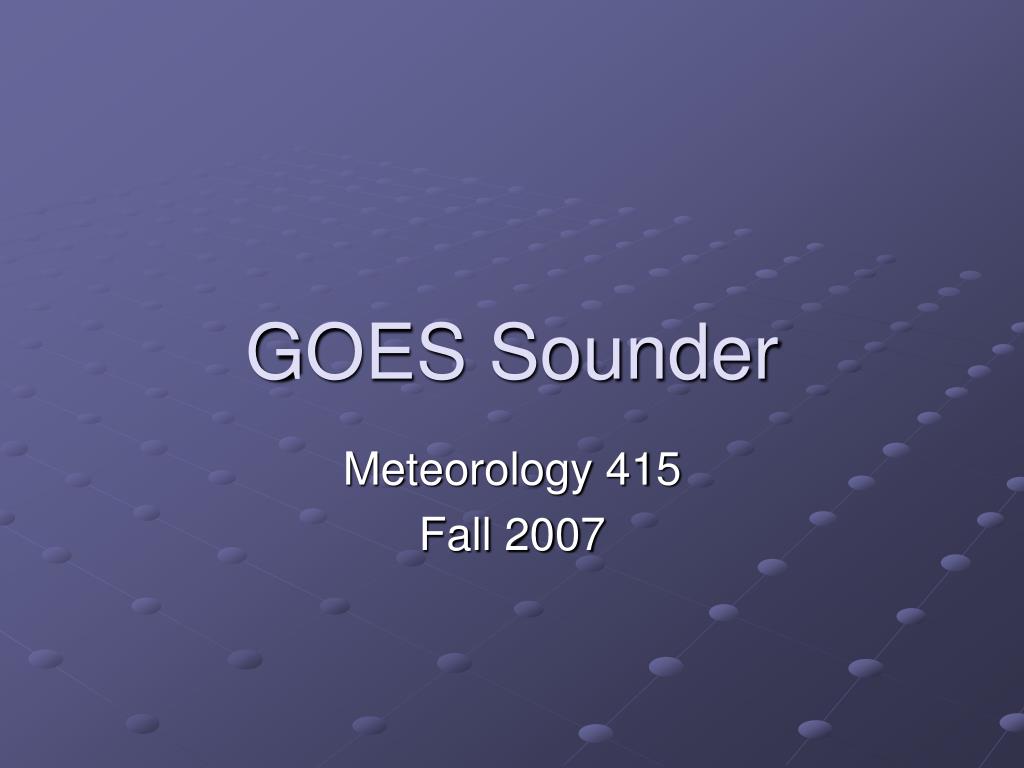

  1. GOES Sounder Meteorology 415 Fall 2007

  2. Fundamental Relationships • Stefan-Boltzmann Law • Wein’s Law

  3. Attributes of the Sounder • The Visible and Infrared Spin Scan Radiometer (VISSR) Atmospheric Sounder (VAS) was introduced on GOES-4 in 1981. • The GOES-8 sounder has 18 thermal infrared bands plus a low-resolution visible band. • The field of view (FOV) is 8 km and is sampled every 10 km

  4. GOES Sounder Channel

  5. Surfing the Channels 14.71 14.37 14.06 13.96 13.37 • Channel 1 680 • Channel 2 696 • Channel 3 711 • Channel 4 733 • Channel 5 748

  6. Surfing the Channels • Channel 6 790 • Channel 7 832 • Channel 8 907 • Channel 9 1030 • Channel 10 1345 12.66 12.02 11.03 9.71 7.43

  7. Surfing the Channels 7.02 6.51 4.57 4.52 4.45 • Channel 11 1425 • Channel 12 1535 • Channel 13 2188 • Channel 14 2210 • Channel 15 2245

  8. Surfing the Channels • Channel 16 2420 • Channel 17 2513 • Channel 18 2671 4.13 3.98 3.74

  9. GOES SounderPrototype

  10. GOES Sounder ProductsLand-Sea Temperature

  11. GOES Sounder ProductsCloud Top Pressure

  12. GOES Sounder ProductsComposite Precip Water

  13. GOES Sounder ProductsLifted Index – Surface Stability

  14. GOES Sounder ProductsSea Surface Temperature

  15. GOES Sounder ProductsImproved Model Precip Forecast

  16. GOES Sounder vs Real Atmosphere • Comparison of RAOBS with two GOES

  17. GOES SounderReferences • http://www.comet.ucar.edu/class/smfaculty/schmit/sounder.html • http://apollo.lsc.vsc.edu/classes/remote/lecture_notes/satellite/instrumentation/snd_der_prod.html • http://cimss.ssec.wisc.edu/goes/sounder_tutorial/g8.html • http://eospso.gsfc.nasa.gov/eos_homepage/for_scientists/atbd/docs/AIRS/AIRS_L1B_ATBD_Part_1.pdf
