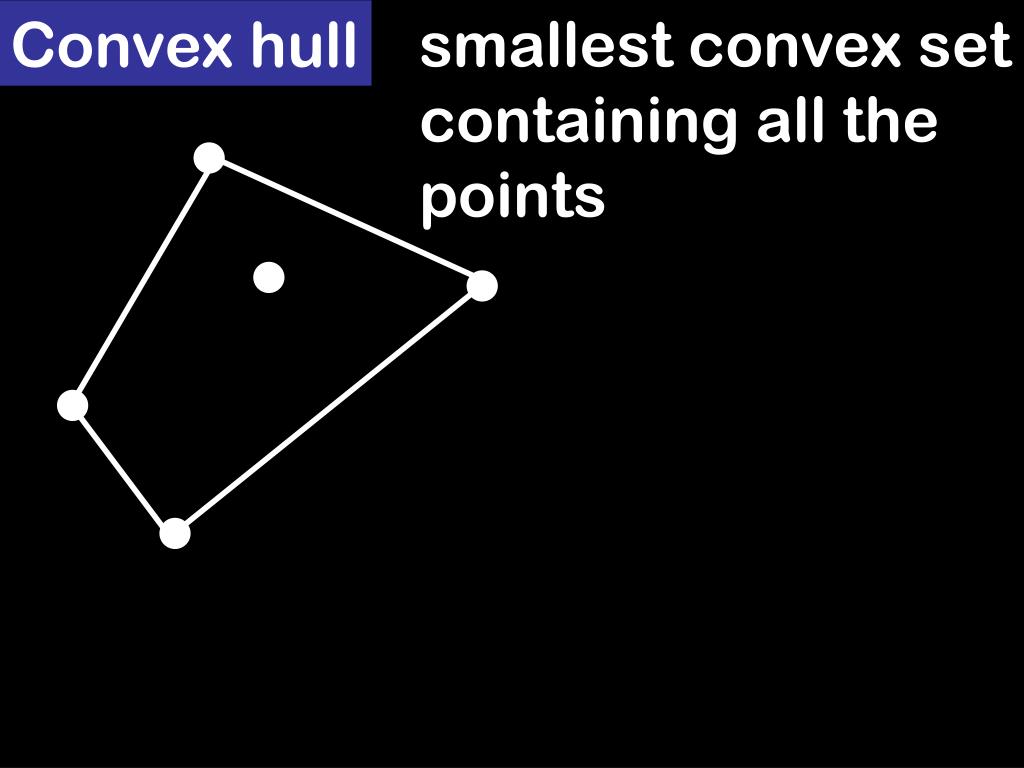

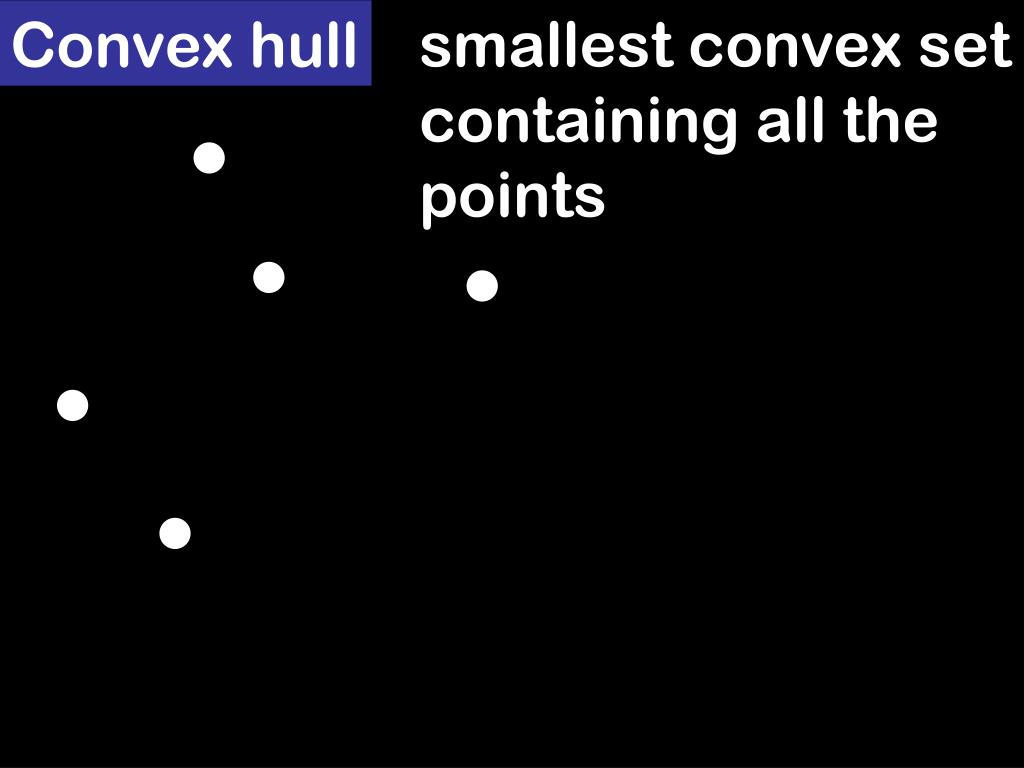

  1. smallest convex set containing all the points Convex hull

  2. smallest convex set containing all the points Convex hull

  3. smallest convex set containing all the points Convex hull 3 2 start = 1 1.next = 2 = 3.prev 2.next = 3 = 4.prev 3.next = 4 = 1.prev 4.next = 1 = 2.prev 4 1 representation = circular doubly-linked list of points on the boundary of the convex hull

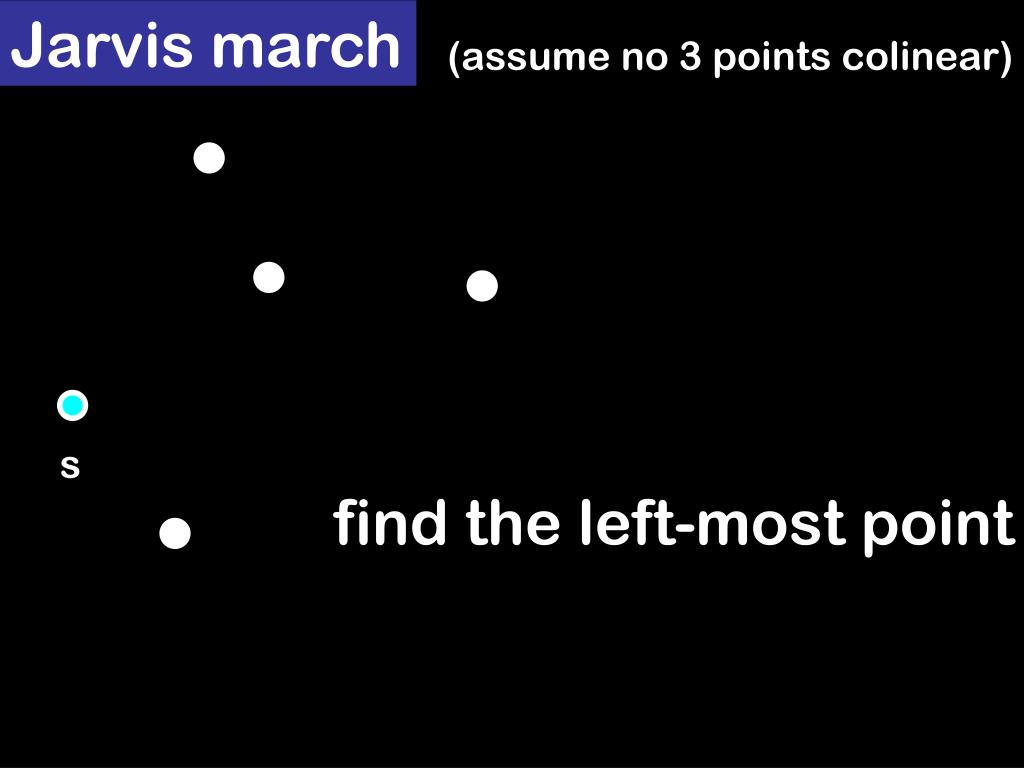

  4. Jarvis march (assume no 3 points colinear) s find the left-most point

  5. Jarvis march (assume no 3 points colinear) s find the point that appears most to the right looking from s

  6. Jarvis march (assume no 3 points colinear) s find the point that appears most to the right looking from p p

  7. Jarvis march (assume no 3 points colinear)

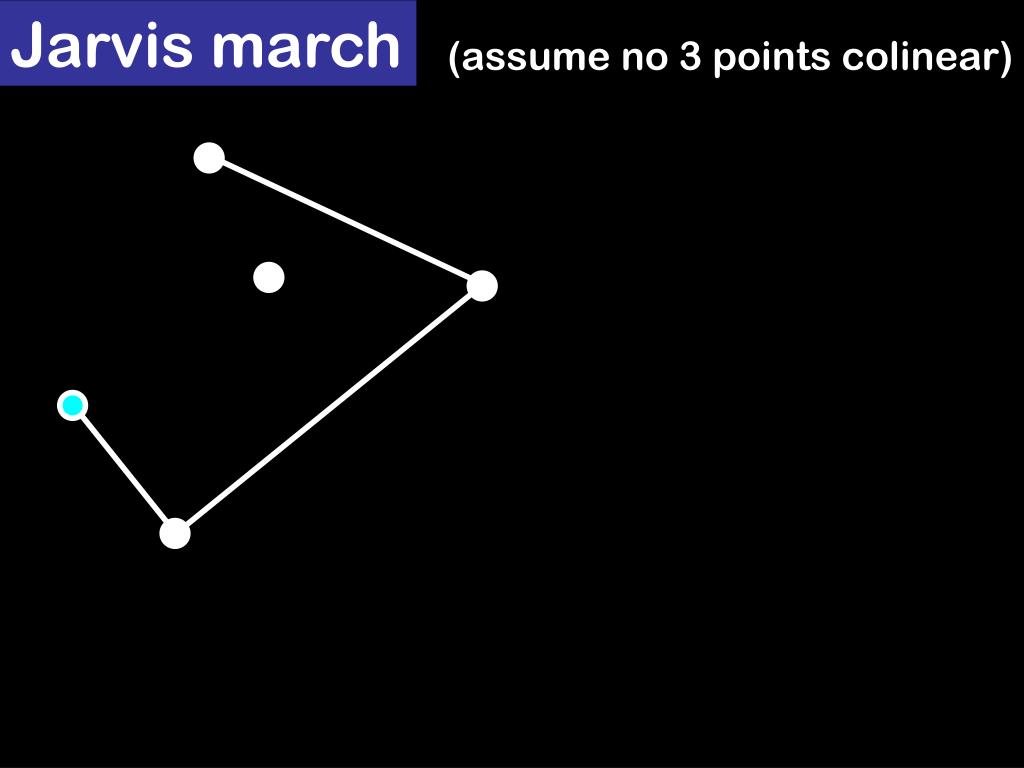

  8. Jarvis march (assume no 3 points colinear)

  9. Jarvis march (assume no 3 points colinear) s  point with smallest x-coord p  s repeat PRINT(p) q  point other than p for i from 1 to n do if i  p and point i to the right of line (p,q) then q  i p q until p = s

  10. Jarvis march (assume no 3 points colinear) Running time = O(n.h)

  11. Graham scan (assume no 3 points colinear) O(n log n) homework start with a simple polygon containing all the points fix it in time O(n)

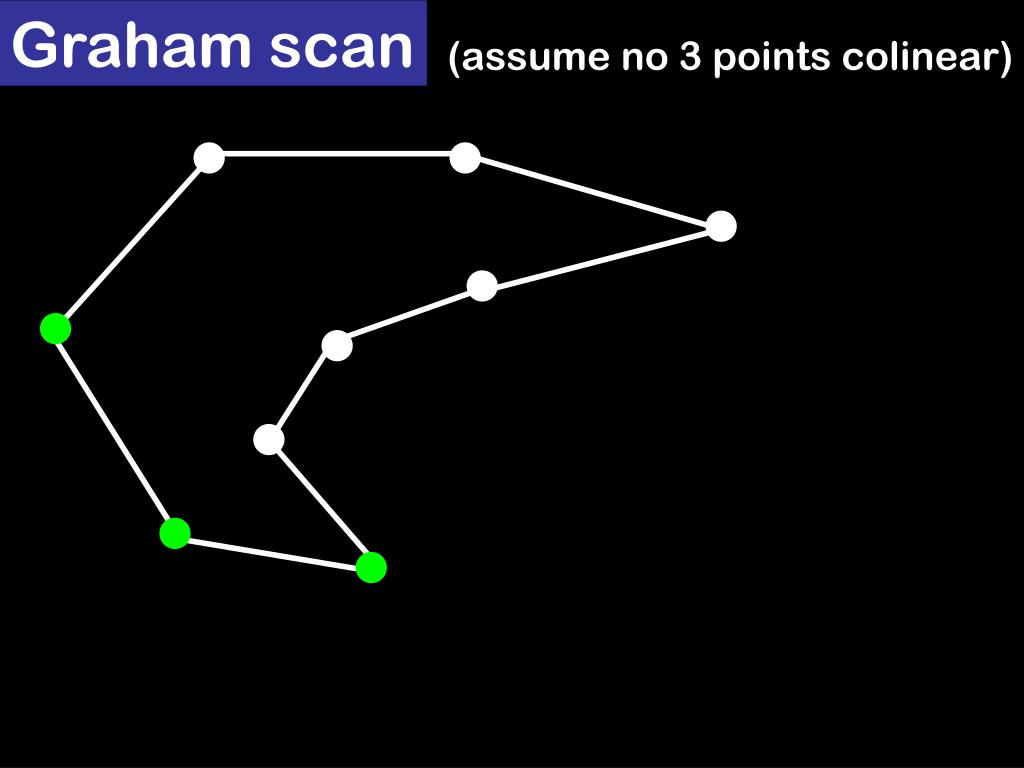

  12. Graham scan (assume no 3 points colinear)

  13. Graham scan (assume no 3 points colinear)

  14. Graham scan (assume no 3 points colinear)

  15. Graham scan (assume no 3 points colinear)

  16. Graham scan (assume no 3 points colinear)

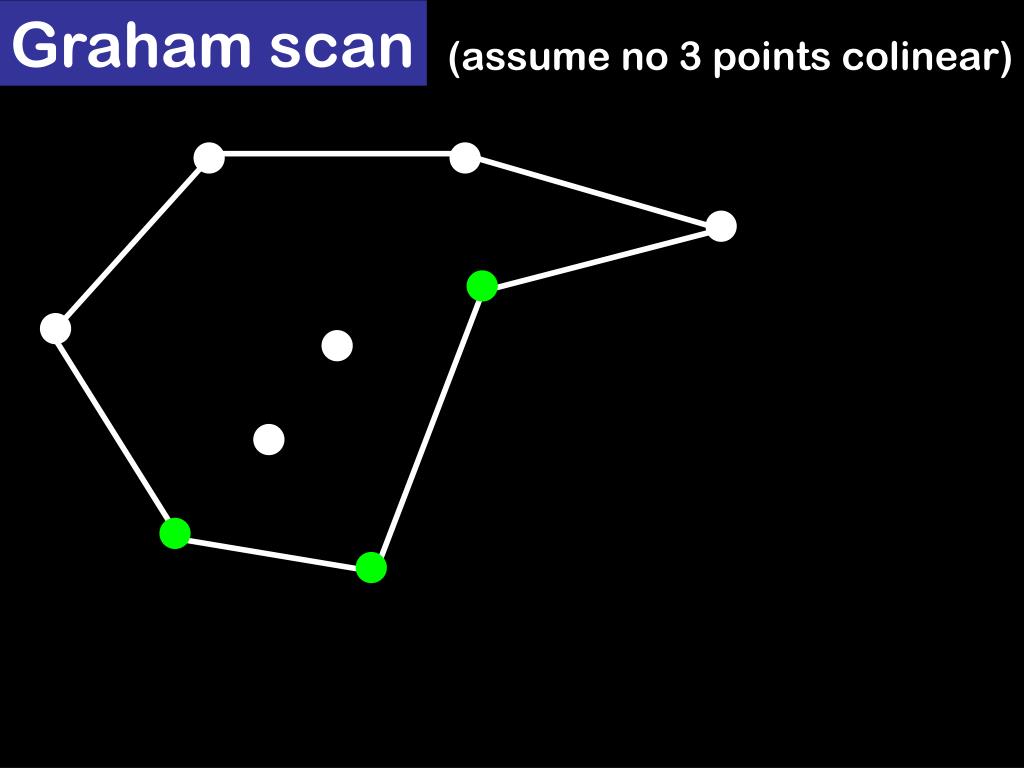

  17. Graham scan (assume no 3 points colinear)

  18. Graham scan (assume no 3 points colinear) A  start B  next(A) C  next(B) repeat 2n times if C is to the right of AB then A.next  C; C.prev  A B  A A  prev(A) else A  B B  C C  next(C)

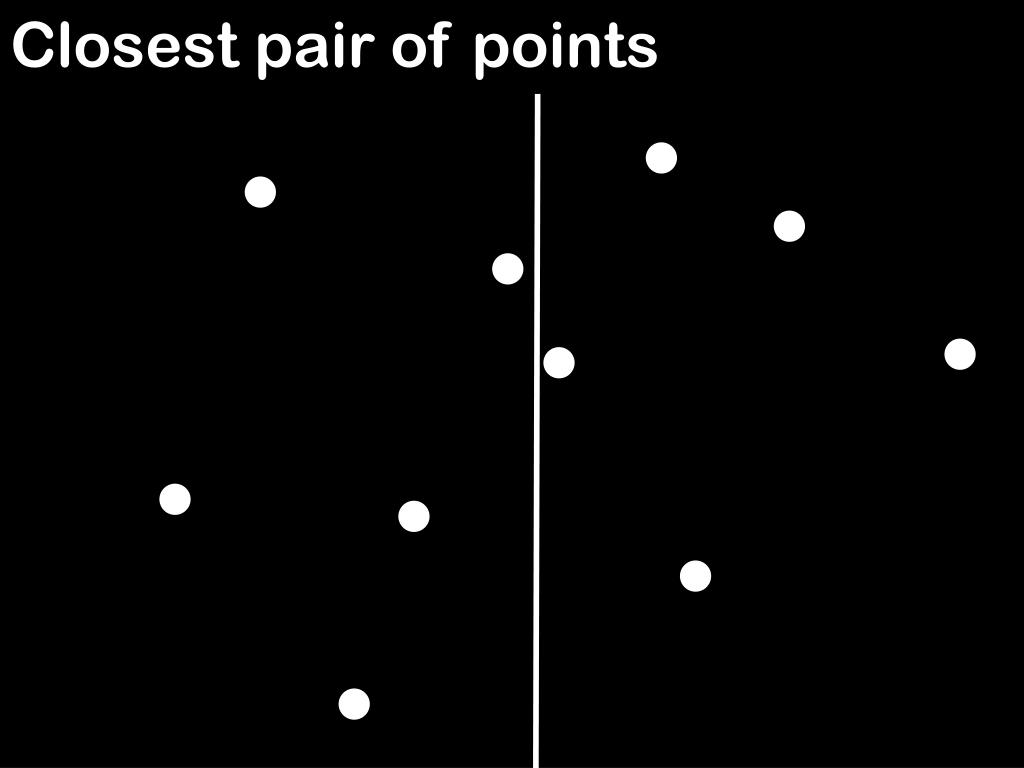

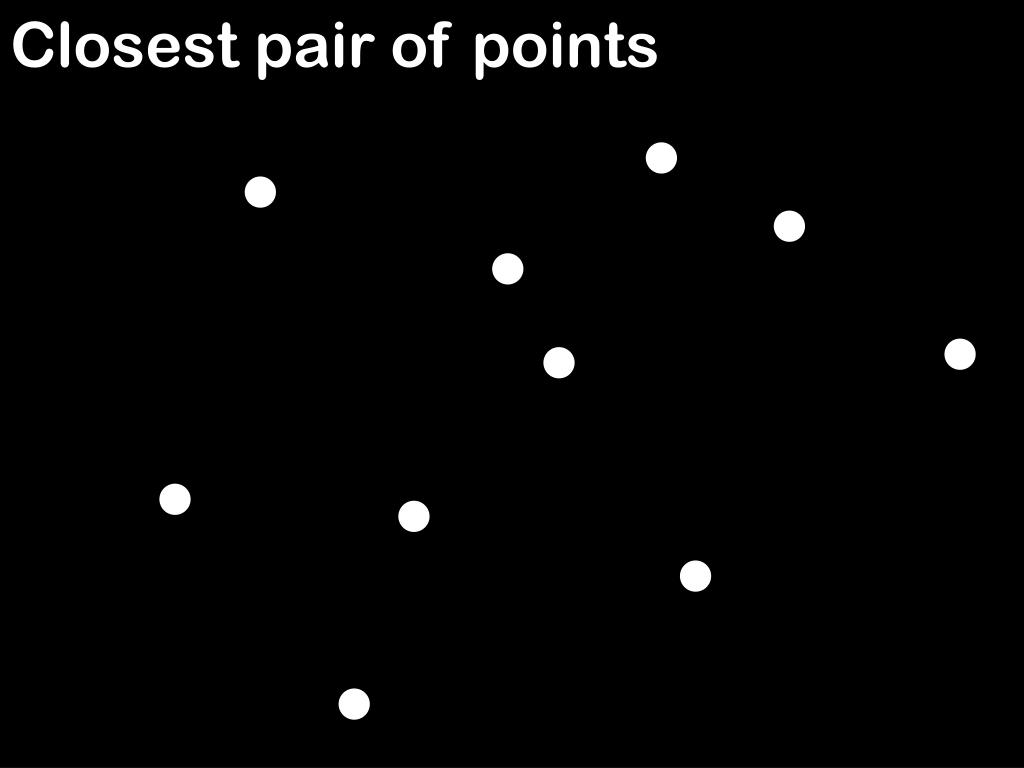

  19. Closest pair of points

  20. Closest pair of points

  21. Closest pair of points 2T(n/2)  min(left,right)

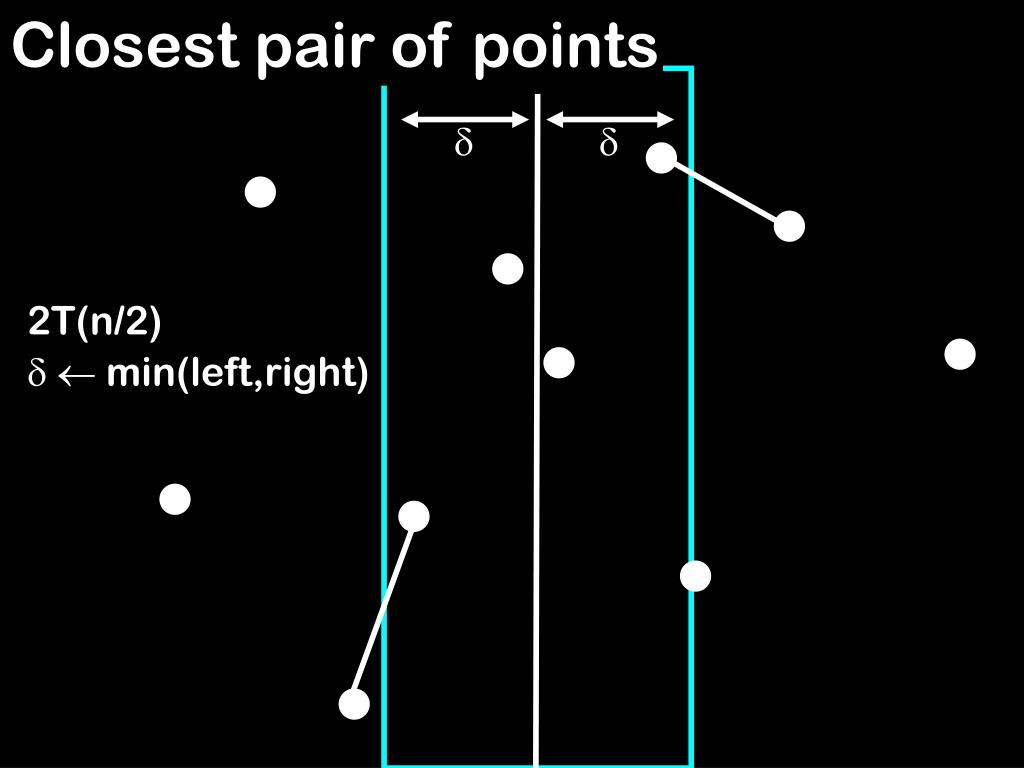

  22. Closest pair of points   2T(n/2)  min(left,right)

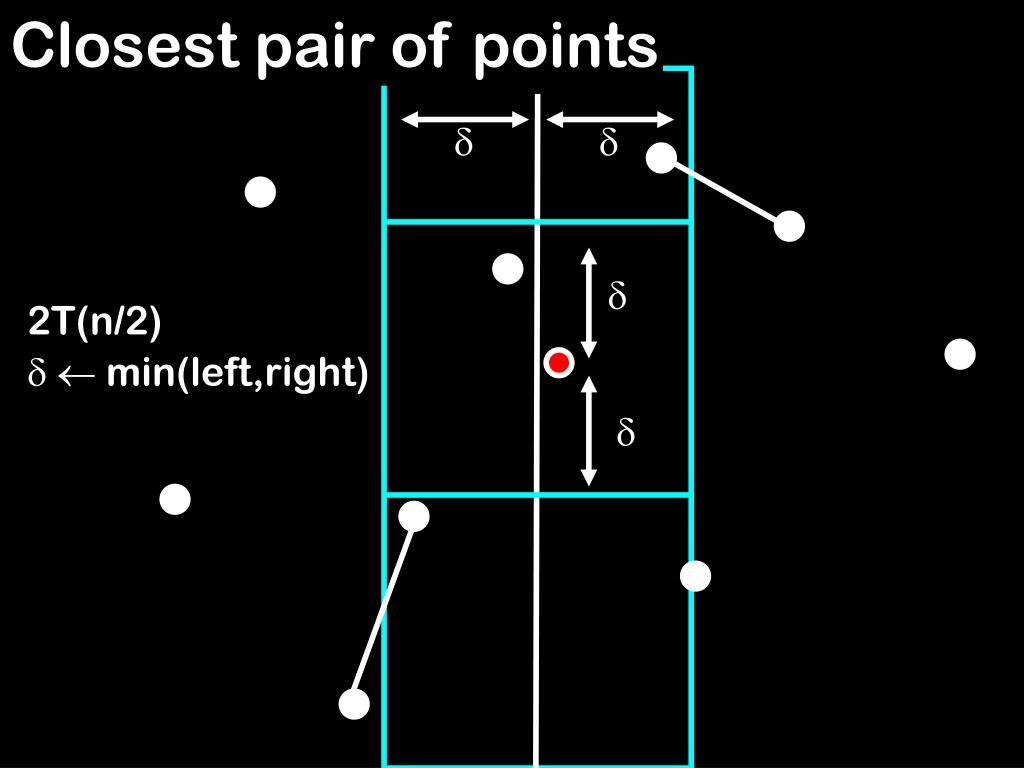

  23. Closest pair of points    2T(n/2)  min(left,right) 

  24. Closest pair of points pre-processing X  sort the points by x-coordinate Y  sort the points by y-coordinate Closest-pair(S) if |S|=1 then return  if |S|=2 then return the distance of the pair split S into S1 and S2 by the X-coord 1 Closest-pair(S1), 2 Closest-pair(S2)   min(1,2) for points x in according to Y check 12 points around x, update  if a closer pair found

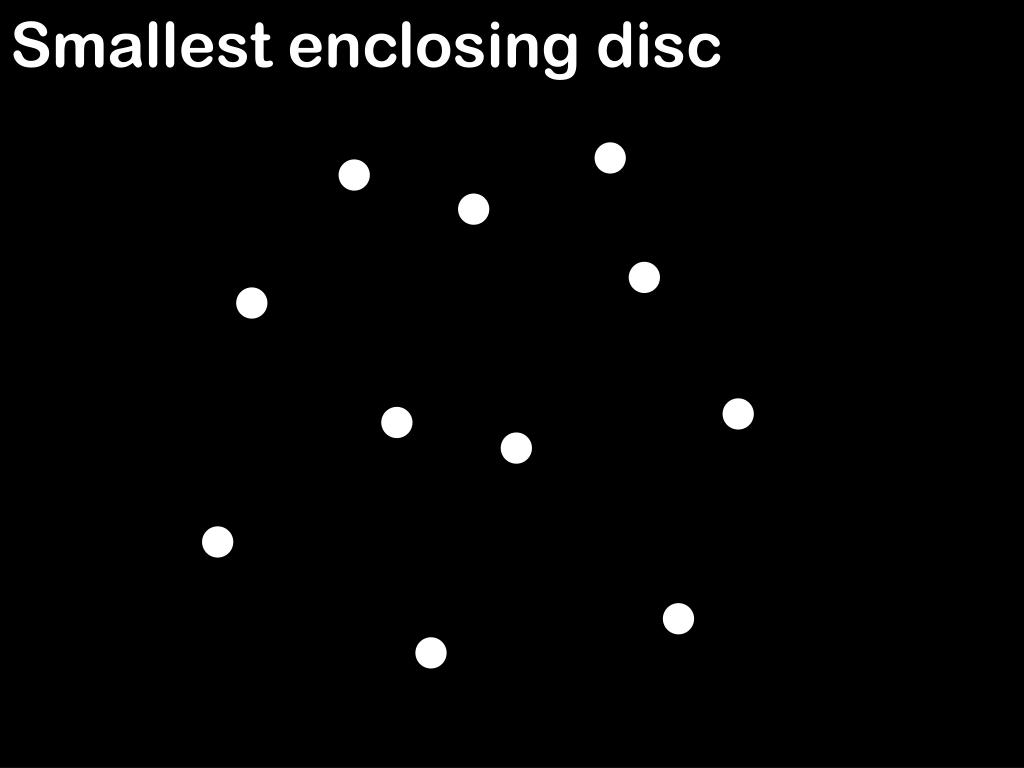

  25. Smallest enclosing disc

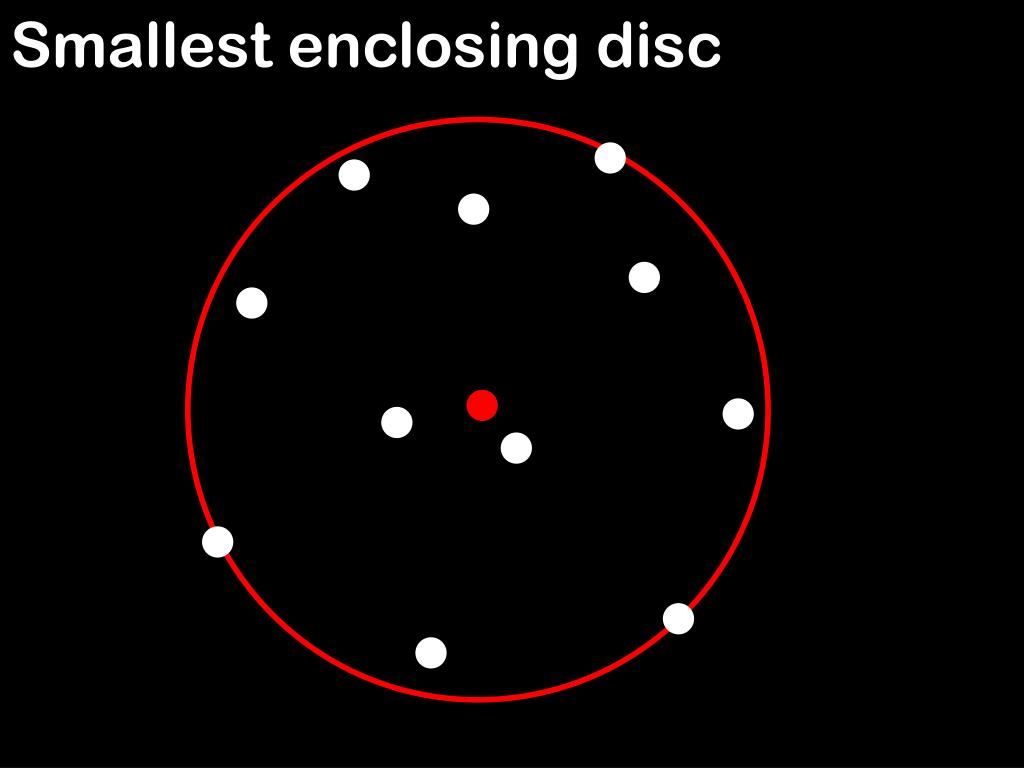

  26. Smallest enclosing disc

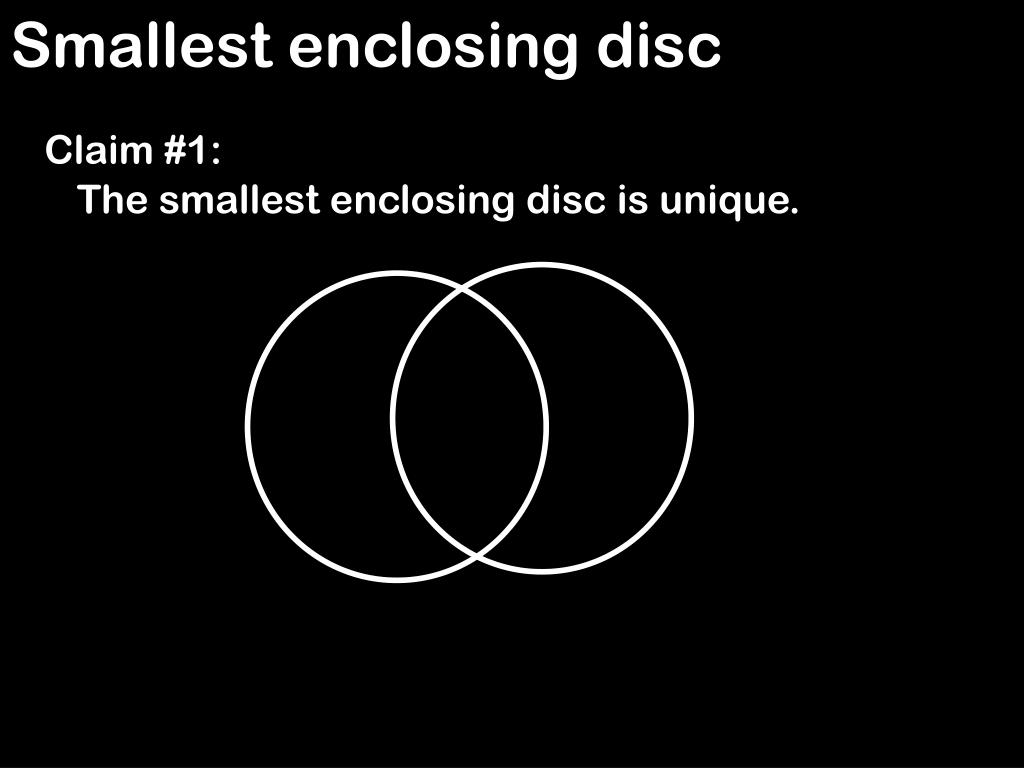

  27. Smallest enclosing disc Claim #1: The smallest enclosing disc is unique.

  28. Smallest enclosing disc Claim #1: The smallest enclosing disc is unique.

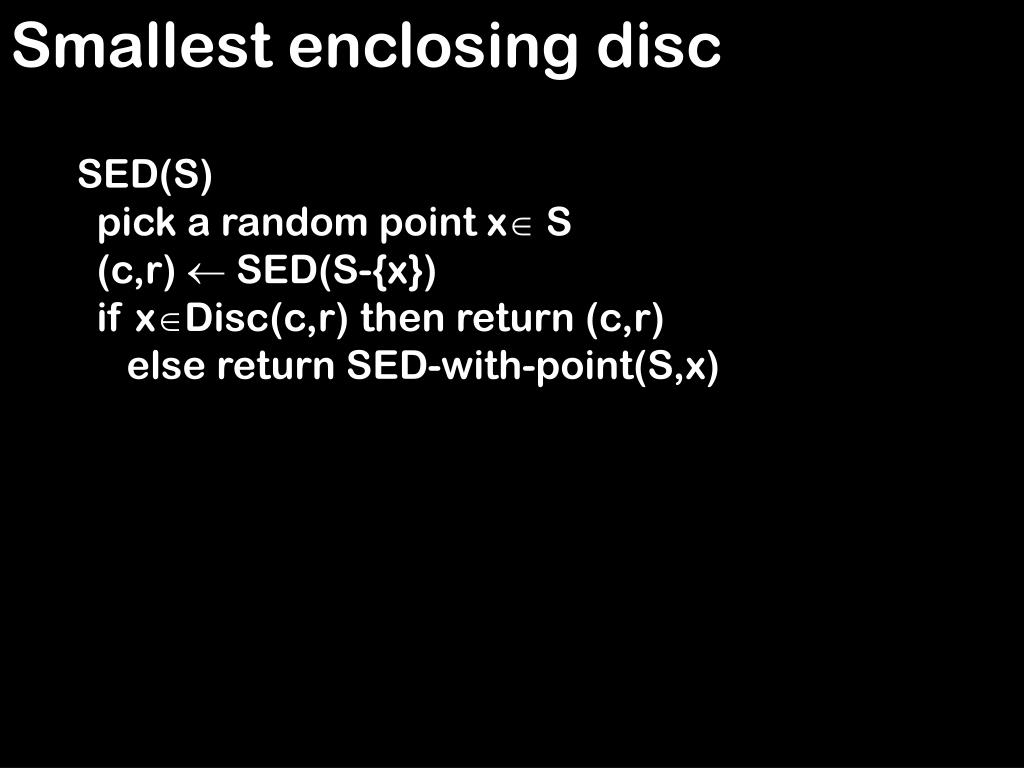

  29. Smallest enclosing disc SED(S) pick a random point x S (c,r)  SED(S-{x}) if xDisc(c,r) then return (c,r) else return SED-with-point(S,x)

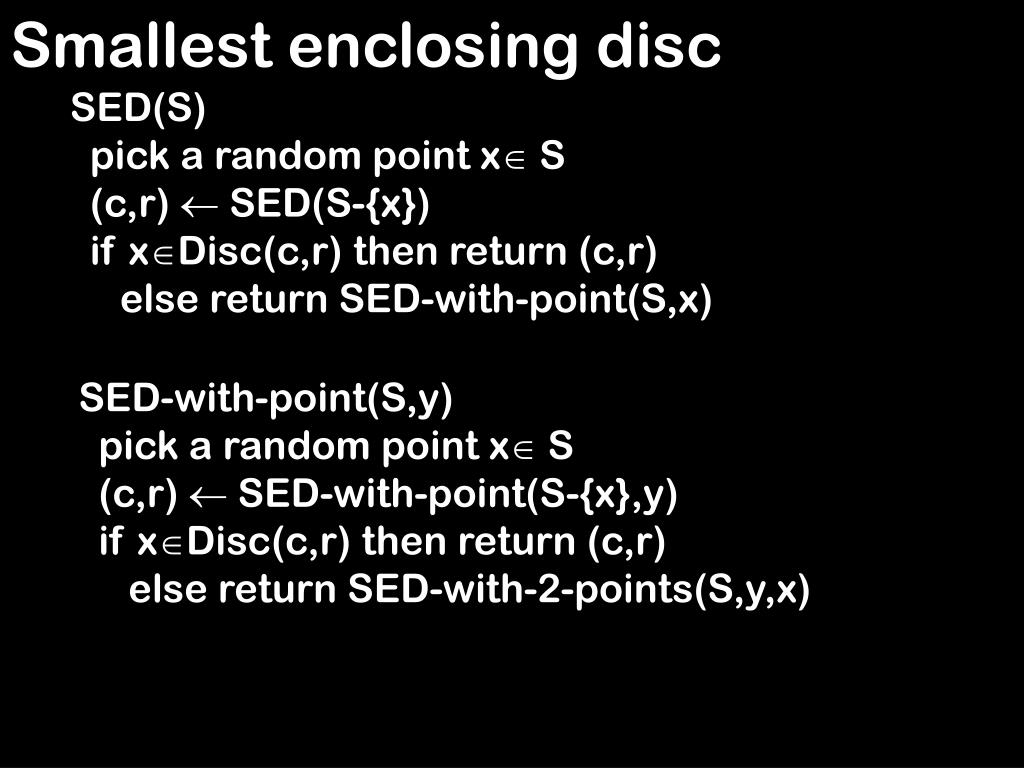

  30. Smallest enclosing disc SED(S) pick a random point x S (c,r)  SED(S-{x}) if xDisc(c,r) then return (c,r) else return SED-with-point(S,x) SED-with-point(S,y) pick a random point x S (c,r)  SED-with-point(S-{x},y) if xDisc(c,r) then return (c,r) else return SED-with-2-points(S,y,x)

  31. Smallest enclosing disc SED(S) pick a random point x S (c,r)  SED(S-{x}) if xDisc(c,r) then return (c,r) else return SED-with-point(S,x) SED-with-point(S,y) pick a random point x S (c,r)  SED-with-point(S-{x},y) if xDisc(c,r) then return (c,r) else return SED-with-2-points(S,y,x) SED-with-2-point(S,y,z) pick a random point x S (c,r)  SED-with-2-points(S-{x},y,z) if xDisc(c,r) then return (c,r) else return circle given by x,y,z

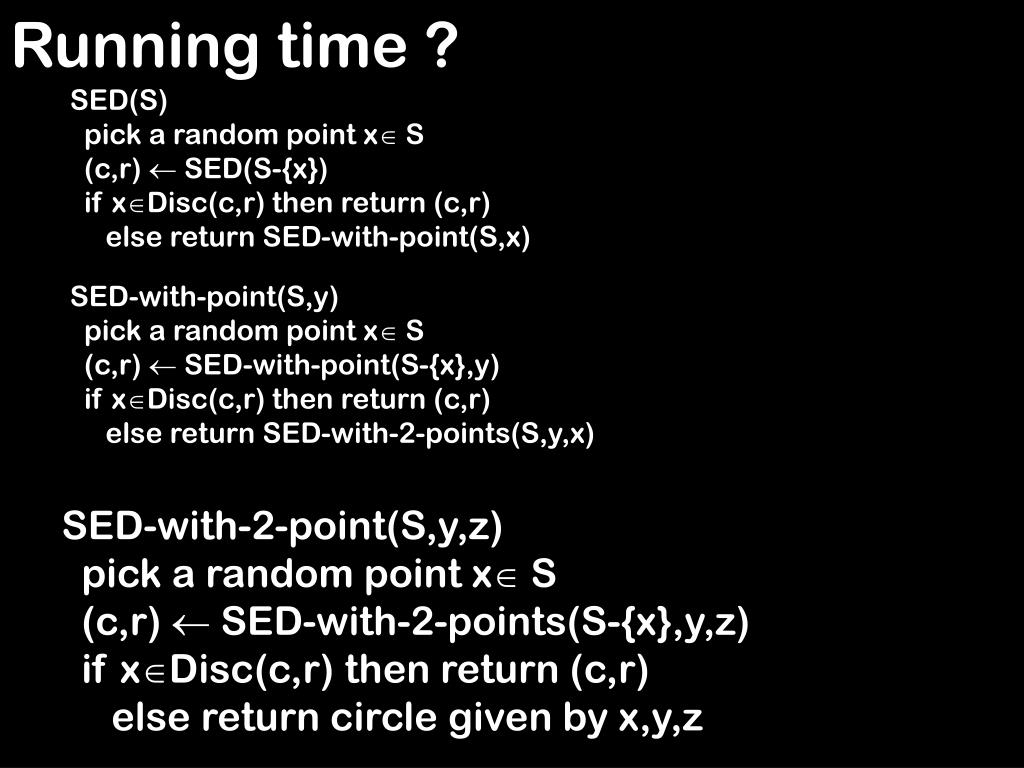

  32. Running time ? SED(S) pick a random point x S (c,r)  SED(S-{x}) if xDisc(c,r) then return (c,r) else return SED-with-point(S,x) SED-with-point(S,y) pick a random point x S (c,r)  SED-with-point(S-{x},y) if xDisc(c,r) then return (c,r) else return SED-with-2-points(S,y,x) SED-with-2-point(S,y,z) pick a random point x S (c,r)  SED-with-2-points(S-{x},y,z) if xDisc(c,r) then return (c,r) else return circle given by x,y,z

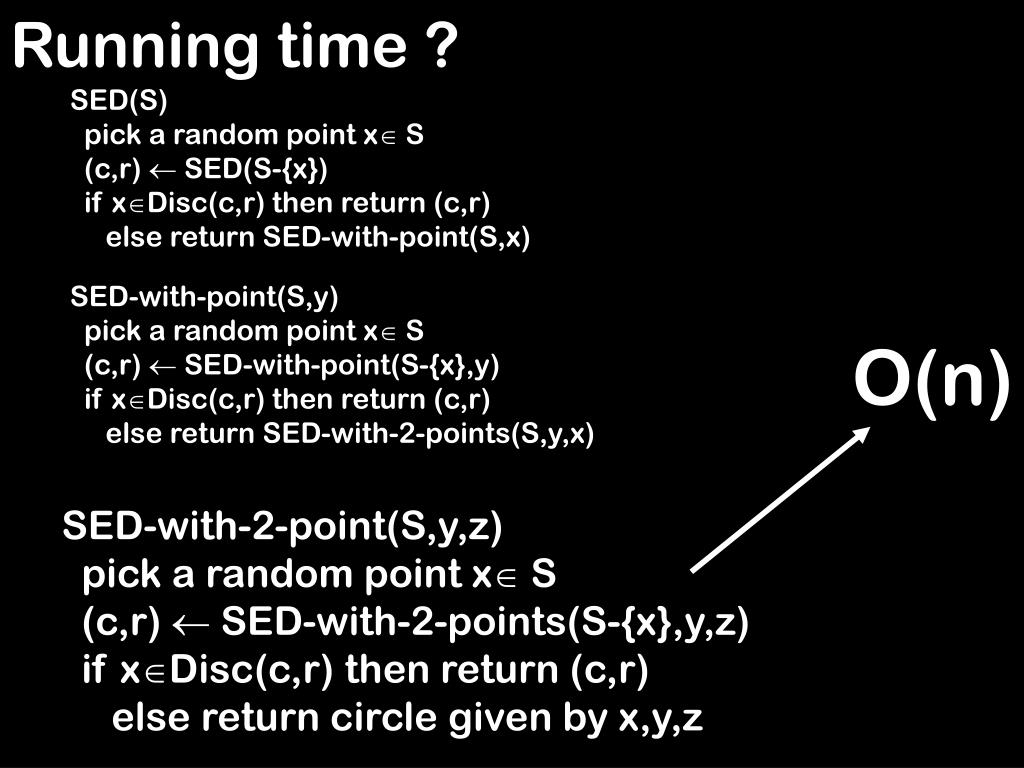

  33. Running time ? SED(S) pick a random point x S (c,r)  SED(S-{x}) if xDisc(c,r) then return (c,r) else return SED-with-point(S,x) SED-with-point(S,y) pick a random point x S (c,r)  SED-with-point(S-{x},y) if xDisc(c,r) then return (c,r) else return SED-with-2-points(S,y,x) O(n) SED-with-2-point(S,y,z) pick a random point x S (c,r)  SED-with-2-points(S-{x},y,z) if xDisc(c,r) then return (c,r) else return circle given by x,y,z

  34. Running time ? SED(S) pick a random point x S (c,r)  SED(S-{x}) if xDisc(c,r) then return (c,r) else return SED-with-point(S,x) O(n) SED-with-point(S,y) pick a random point x S (c,r)  SED-with-point(S-{x},y) if xDisc(c,r) then return (c,r) else return SED-with-2-points(S,y,x) 2 T(n) = T(n-1) + SED-with-2-points n T(n) = O(n)

  35. Running time ? SED(S) pick a random point x S (c,r)  SED(S-{x}) if xDisc(c,r) then return (c,r) else return SED-with-point(S,x) O(n) 2 T(n) = T(n-1) + SED-with-point n T(n) = O(n)

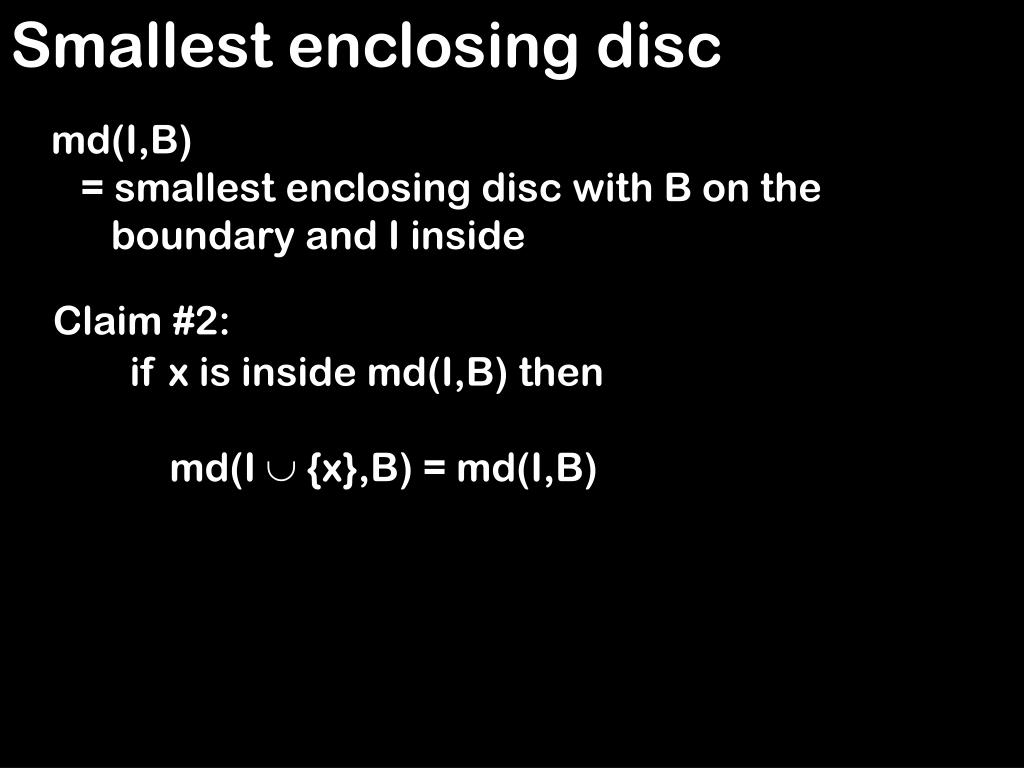

  36. Smallest enclosing disc md(I,B) = smallest enclosing disc with B on the boundary and I inside Claim #2: if x is inside md(I,B) then md(I  {x},B) = md(I,B)

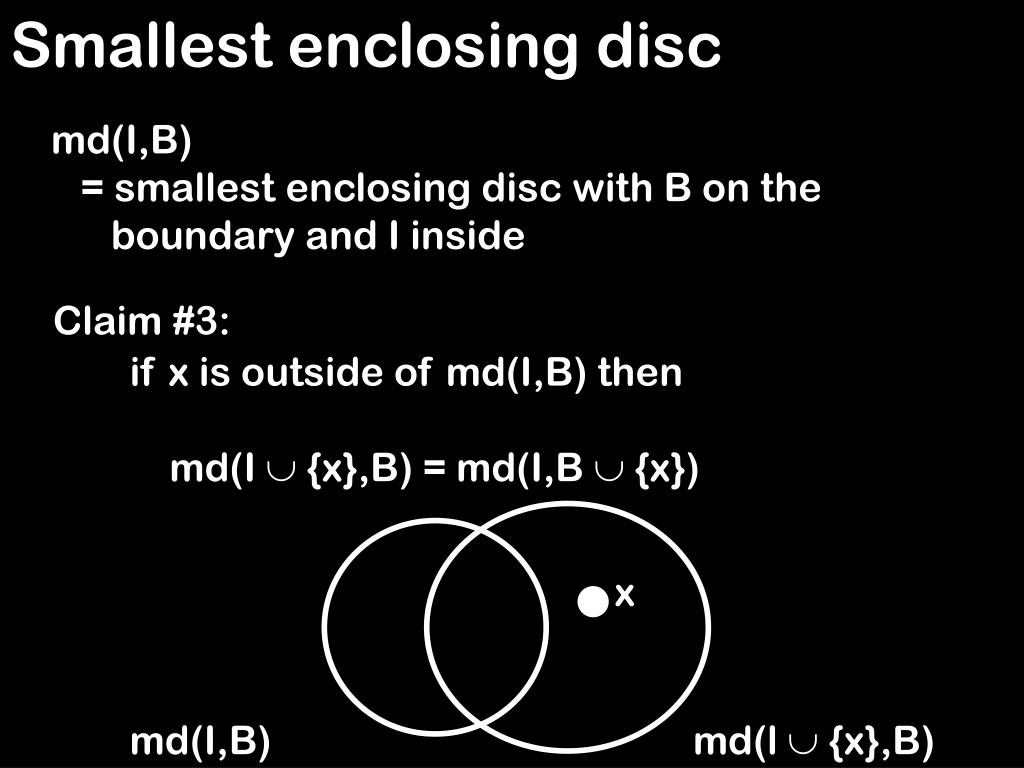

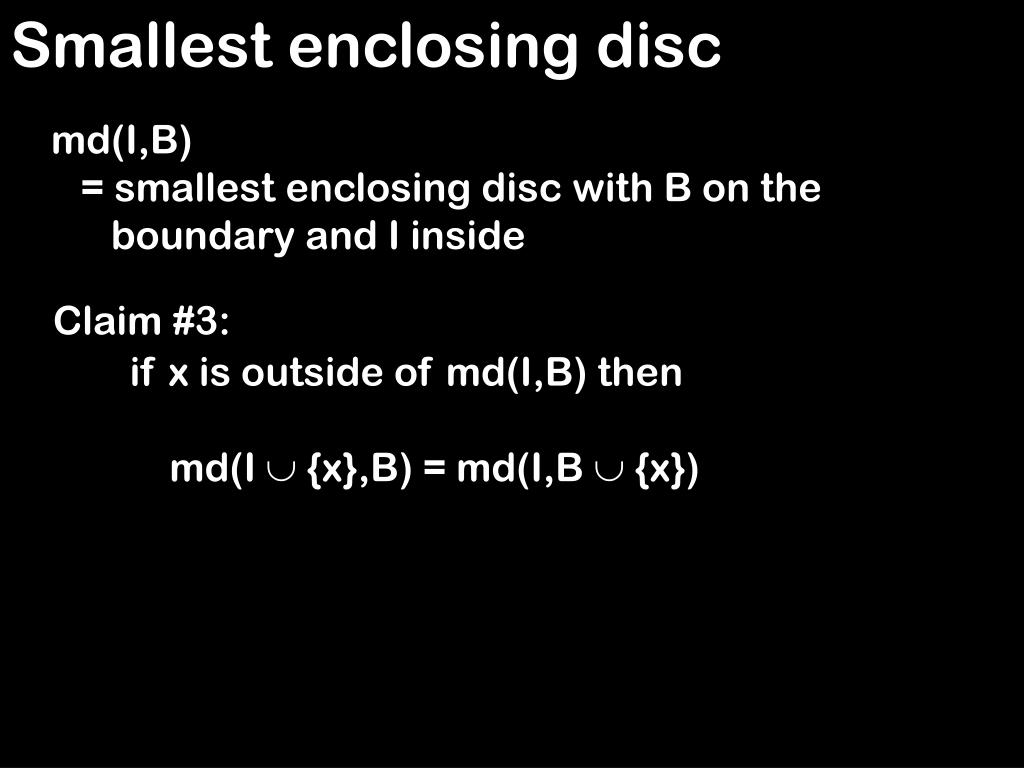

  37. Smallest enclosing disc md(I,B) = smallest enclosing disc with B on the boundary and I inside Claim #3: if x is outside of md(I,B) then md(I  {x},B) = md(I,B  {x})

  38. Smallest enclosing disc md(I,B) = smallest enclosing disc with B on the boundary and I inside Claim #3: if x is outside of md(I,B) then md(I  {x},B) = md(I,B  {x}) x md(l  {x},B) md(I,B)

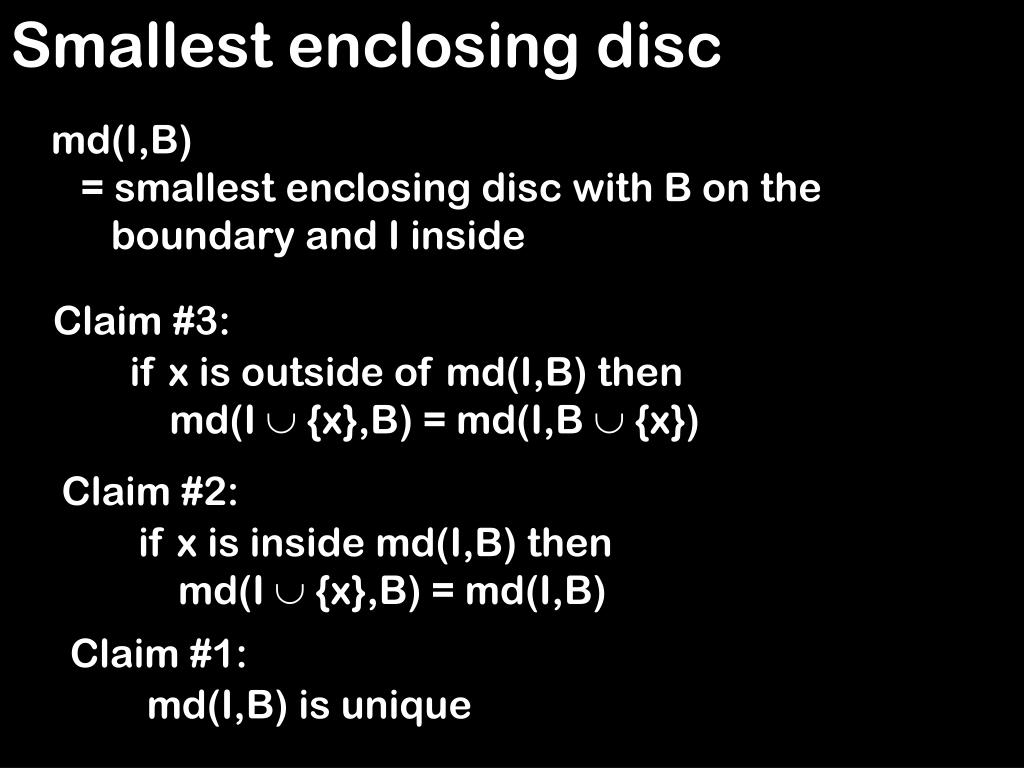

  39. Smallest enclosing disc md(I,B) = smallest enclosing disc with B on the boundary and I inside Claim #3: if x is outside of md(I,B) then md(I  {x},B) = md(I,B  {x}) Claim #2: if x is inside md(I,B) then md(I  {x},B) = md(I,B) Claim #1: md(I,B) is unique
